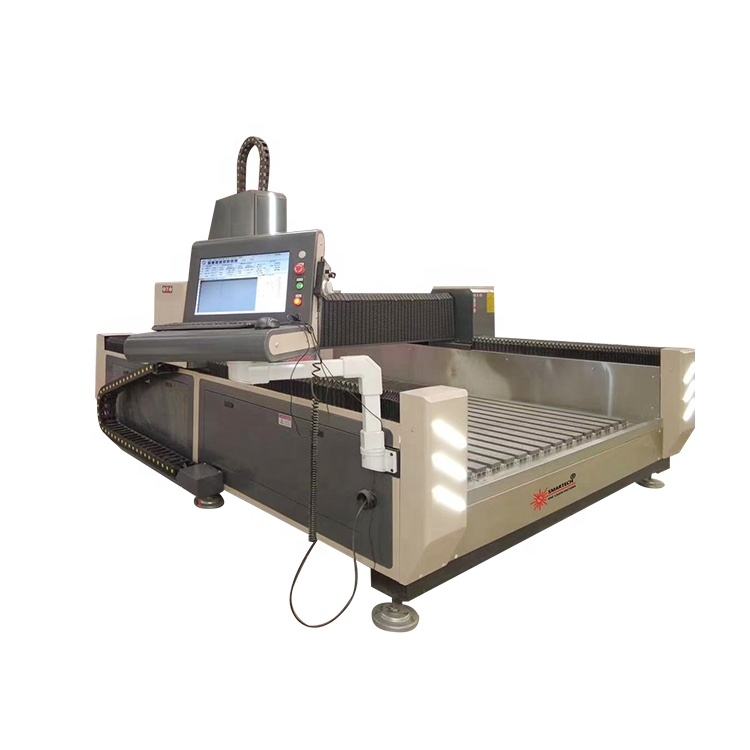

Factory Custom Single Head Granite Marble CNC Router Cutting Carving Machine

Availability:
  • Factory Custom Single Head Granite Marble CNC Router Cutting Carving Machine
  • Shandong, China
  • 3600*2800*2500mm
  • 380V 50HZ
  • grey
Product Description
working size(X*Y*Z)
1800*2500*400MM
transportation
X/Y axis is rack gear,Z axis is screw
Maximum work rate
15m/min
Spindle power
5.5kw*2 water cooling spindle
Control system
Nc Studio system
Driver
China Servo motor
Working Voltage
380V 50HZ
Cooling method
Water-cooling
Machine Size
3600*2800*2500mm
Weight
About 2500kgs
表格宽度最宽为750,超过750的部分及内容均无法展示
PS: All the working area and specifications can be customized according to your requests.


stone cutting and shaping machine Features:1. Stable structure: thick wall square tube welding, side plate tempering treatment, the lathe bed is processed by five side milling processing center, aging treatment, solid without deformation. 2. Modular structure design, simple and safe operation mode, to ensure the speed and accuracy of operation. 3. It adopts gantry type movement, and can process the materials on the working table freely, which is convenient for operation. 4. X / Y axis adopts high-precision rack drive, with high speed and precision. 5. The three-axis adopts the square linear guide rail to ensure the high precision of the machine and bear the heavy load.
stone cutting and shaping machine Advantages:
1. The equipment has good and comprehensive safety protection measures. 2. Movable parts that are frequently adjusted and maintained. 3. Electrical safety standards, control system can ensure that there is no danger when the equipment is powered off, and the equipment itself and personnel will not be injured. 4. The electrical control system of the equipment has the functions of overload protection and short circuit protection.
stone cutting and shaping machine Application:
1. The equipment has good and comprehensive safety protection measures. 2. Movable parts that are frequently adjusted and maintained. 3. Electrical safety standards, control system can ensure that there is no danger when the equipment is powered off, and the equipment itself and personnel will not be injured. 4. The electrical control system of the equipment has the functions of overload protection and short circuit protection.

Nc Studio Control system

The data processing speed is fast, the operation is stable, the new man-machine screen, convenient keys, fast operation, easy to learn and use, reduce the development time of the machine, and at the same time ensure the accuracy of the equipment and high cost performance.

Main accessories

All well-known brands are used, with strong impact resistance, anti-interference, moisture resistance and stability, to ensure the equipment stable processing operation for a long time.

guide rail

High precision, long service life, large contact surface, strong load-bearing capacity, and high-precision helical racks can better ensure the stability of operation.

Assembly process

The whole machine adopts the second assembly process, in which the first assembly determines the mechanical accuracy, and the second assembly enters the quality inspection process. The entire bed body is subjected to aging treatment, and all cast iron parts are quenched and strengthened.

Packaging Details:

1. Outside package: Standard marine export plywood case. 2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package, much more strong and environmental protection. We can also make package according to your requests.
Company Profile
Certifications
FAQ
Recommended by seller


IMG_5174


cnc router double heads

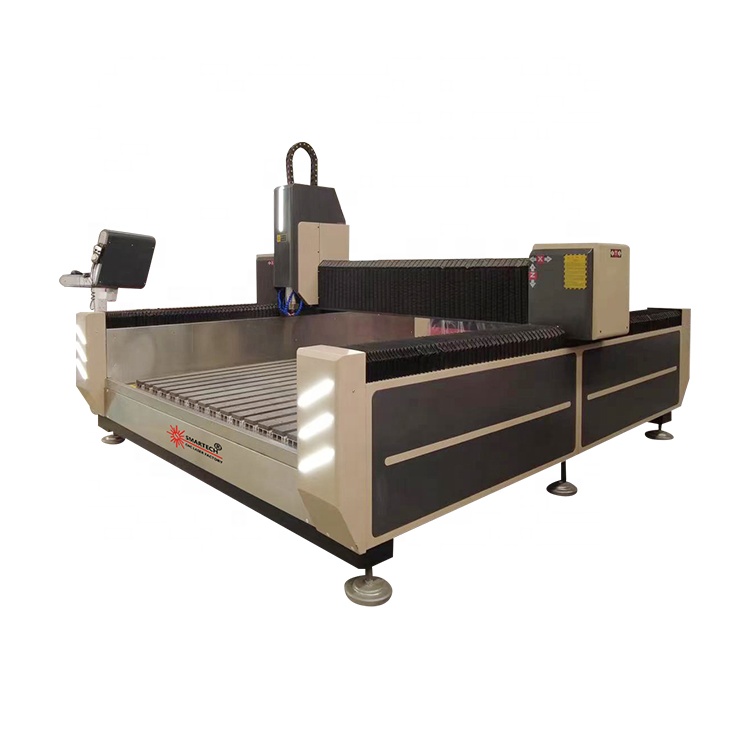

04


WX20220222-2250382x

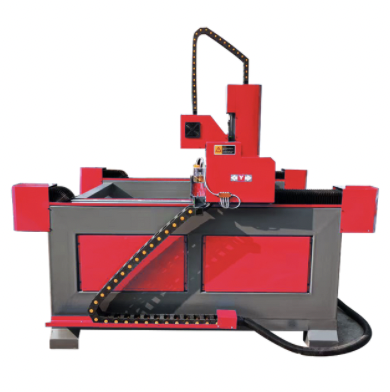

WX20220222-2251342x

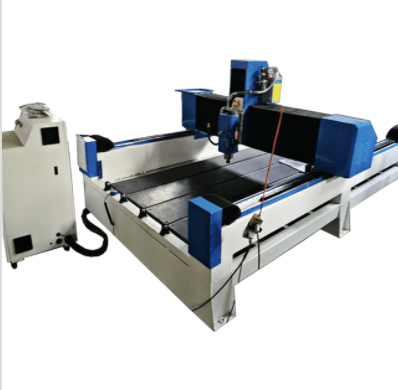

WX20220222-2251532x
