SJ1610 Laser Cutting Machine applition materials: wood,mdf,acrylic,paper,color plates, ABS board, rubber, plastic, cloth toys, leather, wool, crystal, glass,ceramic tile,bamboo,paper,plexiglass,acrylic,marble,jade,crystal.acrylic sheet,paper etc
SJ1610 Laser Cutting Machine Applied Industries:Applied to cloth, leather, toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration ,packaging and printing, paper products industries,art gift,advertisement decoration,toy,electron element,cutting template,paper product,stamp and other industries
SJ1610 Laser Machine Model:

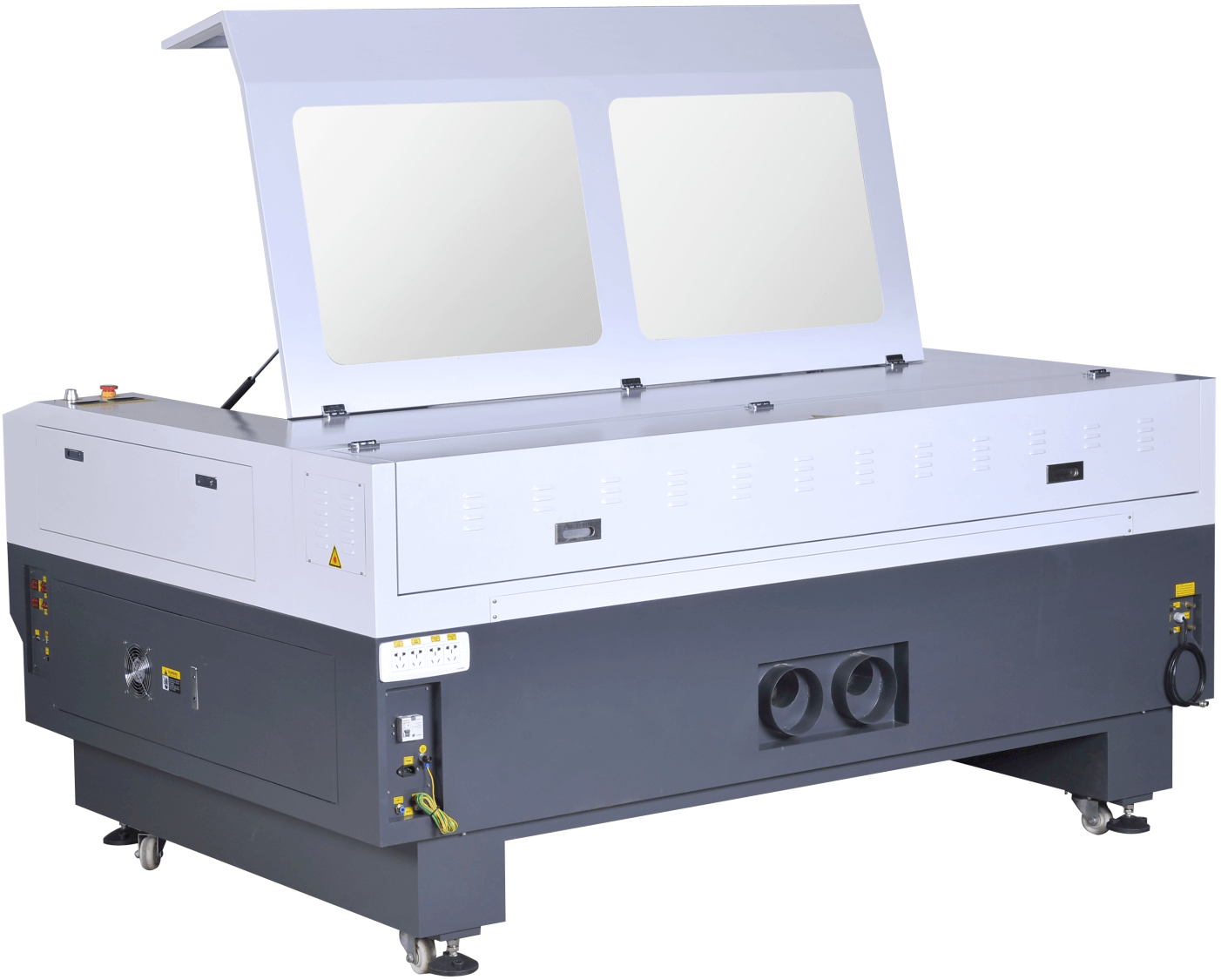

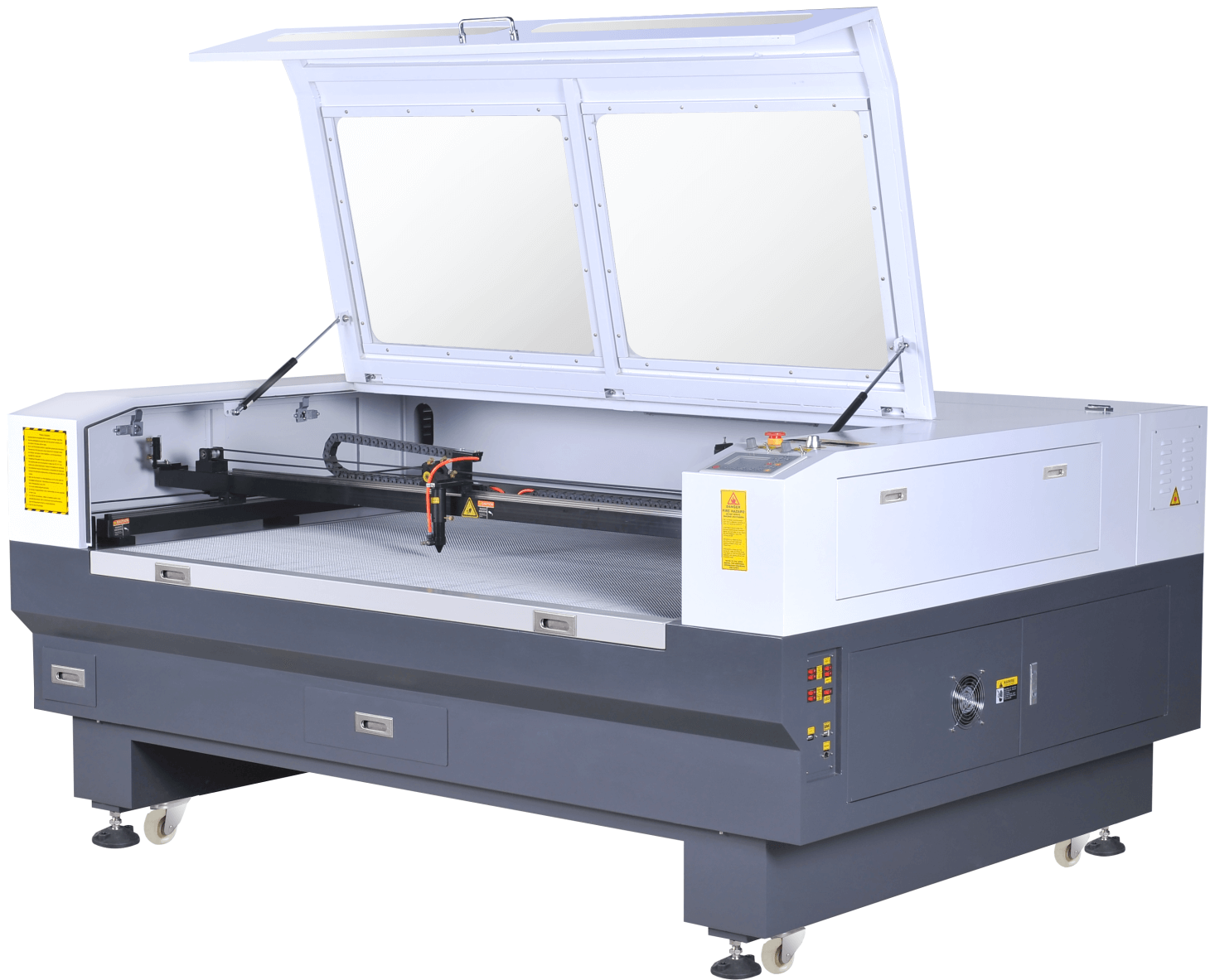

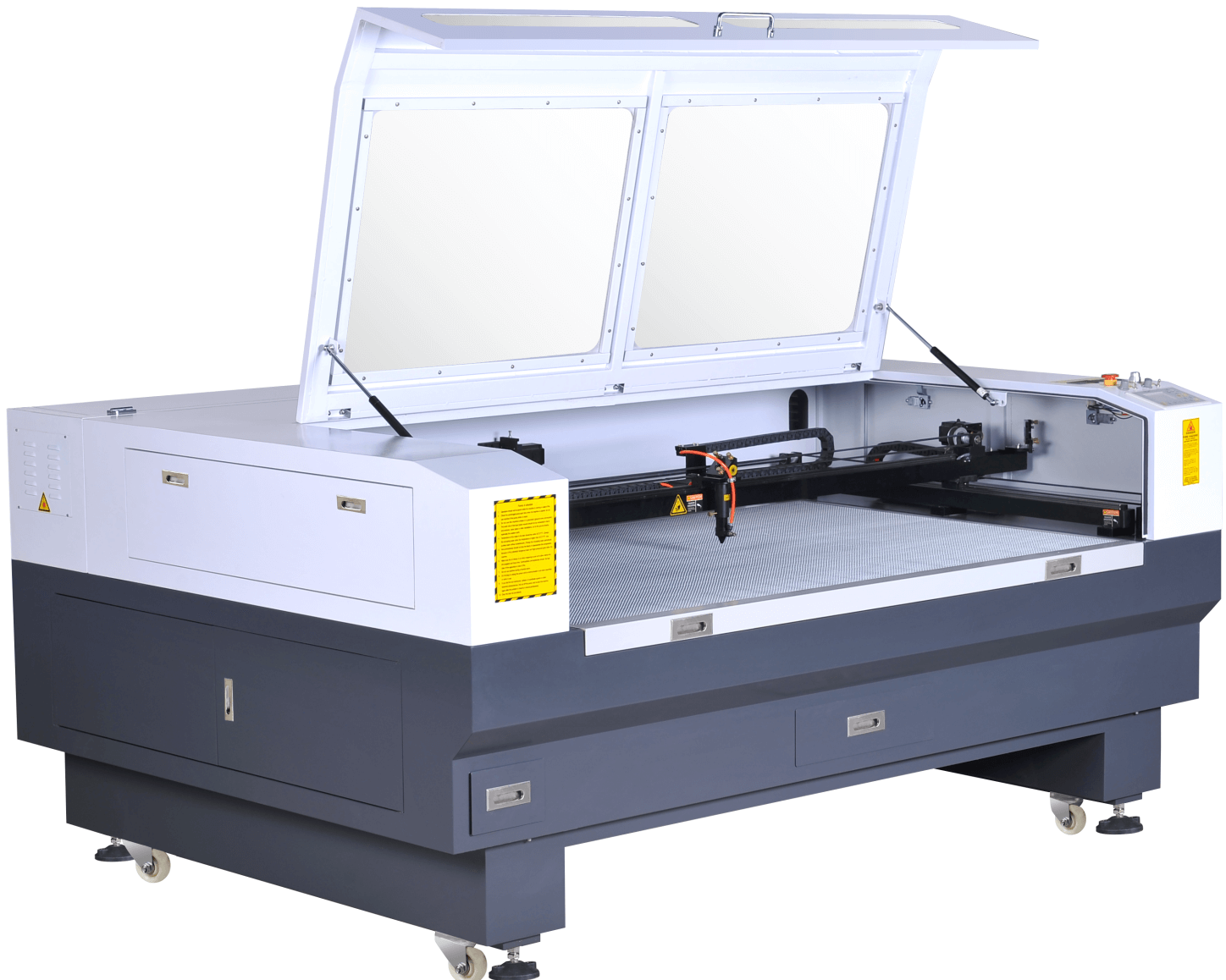

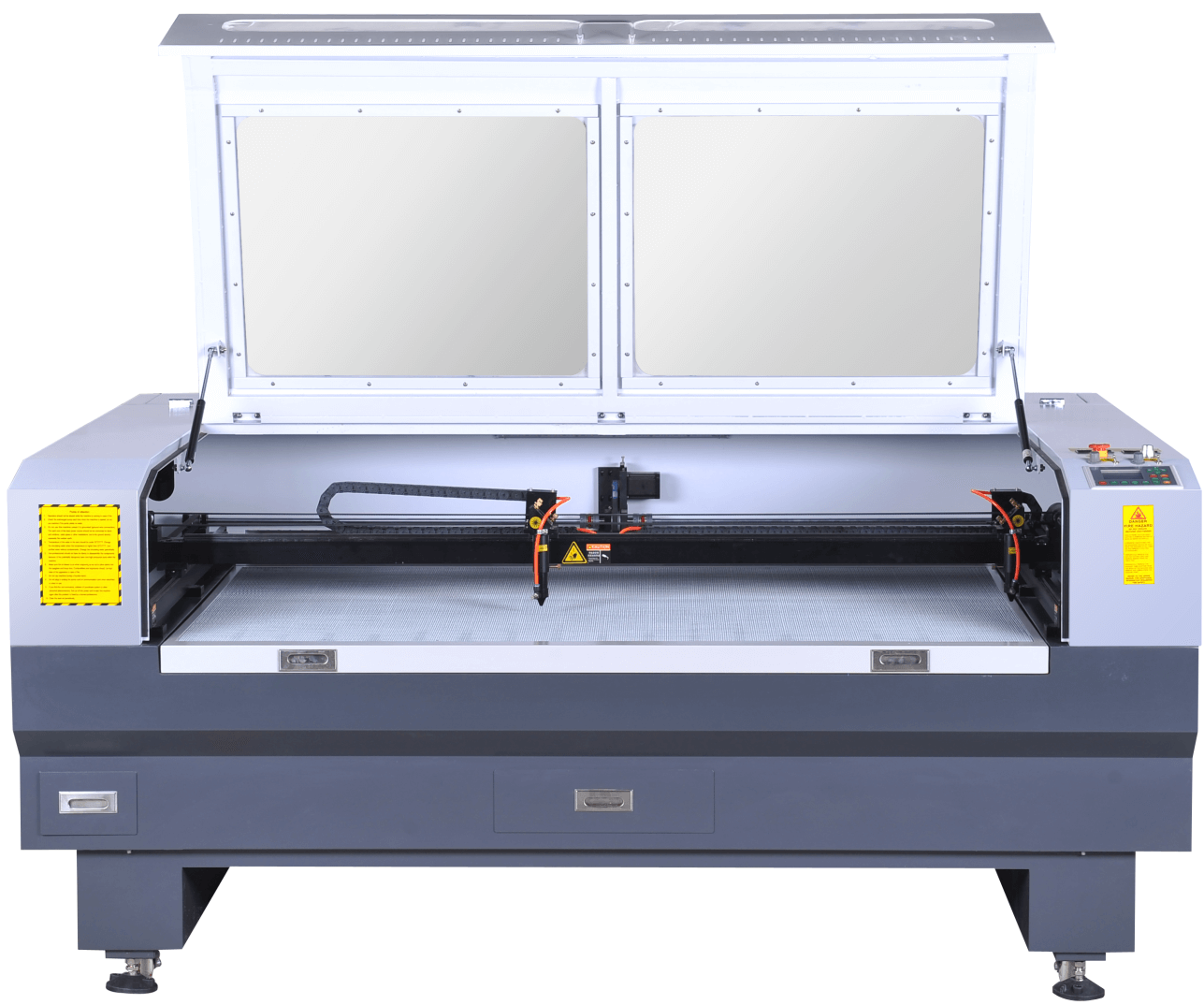

SJ1610 Laser Cutting Machine 100W For Wood/Acrylic/Paper With Good Price
Reci Laser tube: 1.Built-in white gold, enhance stability 2.Coating process, prolong life span 3.Enhanced metal flange head screw is not easy to slide
Laser cutting head spare parts:
Ruida Controller introduction:(Feature: could connect with Wifi Internet laser)
Laser machine switches,USB,LED light,U disk Internet etc ---More friendly use.
Laser machine drawer for tools (with the small drawer, you could put the tools in it)
Plenty tools in the tool box come with machine(USB,softdog,U disk with helpful software,cables, ruler,spare limit swithches and other consumble small parts)
SJ1610 Laser Cutting Machine 100W For Wood/Acrylic/Paper With Good Price
NO. | Description | Parameter | |
1 | Engraving area | 1600X1000mm | |
2 | Laser power | 100W | |
3 | Cooling Mode: | Circulating-water-cooling | |
4 | Power Adjustment | 0-100% controlling, no segment and adjusting by software | |
5 | Machine Control and Drive | Speedy DSP controlling, stepper motor | |
6 | Repeating Location | 0.001mm | |
7 | Max Power | 750W | |
8 | Adjustable Up-down Distance of Laser Head | 30mm | |
9 | Max Cutting Speed | 500mm/min(when cutting 10mm thick of acrylic) | |
10 | Engraving speed | 0-60000mm/min | |
11 | Engraving Depth | 0-3.5mm | |
12 | Minimum shaping character | " Chinese:0.2×0.2mm English:0.1×0.1mm" | |
13 | Working Travel Area | 1600x1000mm | |
14 | Machine size | 2600*1600*1270 mm | |
15 | Up-down Range of Working Table Mechanical | 260mm | |
16 | Controlling Software Language | English, Simplified Chinese, Traditional Chinese and procuring of multi-languages | |
17 | Resolution ratio | 0.025mm | |
18 | Power supply | AC220V± 15%，50Hz | |
19 | Resetting positioning accurate | <0.01mm | |
20 | Number of hanged line | 68Line | |
21 | Operating system | RDWorks/laser cut | |
22 | Gross Power | 1.6Kw | |
23 | Operating temperature | 0-45℃ | |
24 | Operating humidity | 5-80%(free of condensed water) | |
25 | Graphic format supported | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting | |
26 | Packing weight | 300KG/350KG | |
27 | PackageDimensions(mm) | 2270 X1660X1350mm | |
28 | Packing | professional plywood box |
