Fabric Textile Laser Cutting Machine For Textile & Garment

Availability:

Fabric Textile Laser Cutting Machine

Applications for textile processing

When processing textiles, the laser produces products with precision and flexibility. The laser beam melts the material while cutting and results in clean, perfectly sealed edges. Laser engraving creates a tangible tactile effect. In this way, end products can be given a special finish.

· Clothing

· Curtains, drapes

· Decorations

· Promotional items

· Design

· Arts and crafts

· Automotive industry

Laser processing applicable Textile types

Lace,Softshell,Jeans,Alcantara,Polyester,Aramid,Fleece,Cotton,Polypropylene,Polyurethane,Fibreglass, Spacer fabrics, Felt, Silk, Filter fleece, technical textiles, synthetical textiles, Foam, Fleece, Velcro material, fabrics, knitted fabrics, meshwork, Plush,Polyamide,Linen



Function and advantages of laser technology

·   Accurate contour cutting

·   Productive processing

·   Simple high-quality manufacturing

·   One tool for all shapes

§   Sealing of cut edges when cutting synthetical textiles (cut & seal process)

§   No fabric distortion – due to contactless processing

§   Precise cutting of very filigree details

§   Less efforts of clearance due to reduced dust production when cutting

§   No tool wear – consistently high cutting quality

§   Processing in all directions – independent of fabric structure

Fabric Textile Laser Cutting Machine Parameters


Model

SF1810SC Fabric Laser Cutting Machine

Working area

1800mm*1000mm

Laser type

Sealed CO2 laser tube

Laser power

80w/100W/150w

Working table

Auto feeding conveyor

Cooling system

Water cooling and protection system

Engraving speed

0-800mm/s

Cutting speed

0-600mm/s

Resetting position accuracy

±0.05mm

Minimum shaping character

English1×1mm

Graphic format supported

BMP,HPGL,PLT,DST ,AI

Controlling software

DSP control system

Compatible software

Coral Draw, Auto CAD, PS

Driving system

Stepper

Whole machine size

2380*2060*1100mm

Whole weight

570kg

Working voltage

AC 110-220V±10%,50-60Hz

Operating temperature

0-45°C

Operating humidity

5-95%

Note: double-head,auto feeding working table

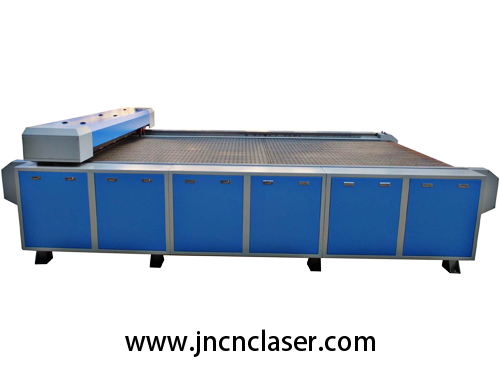

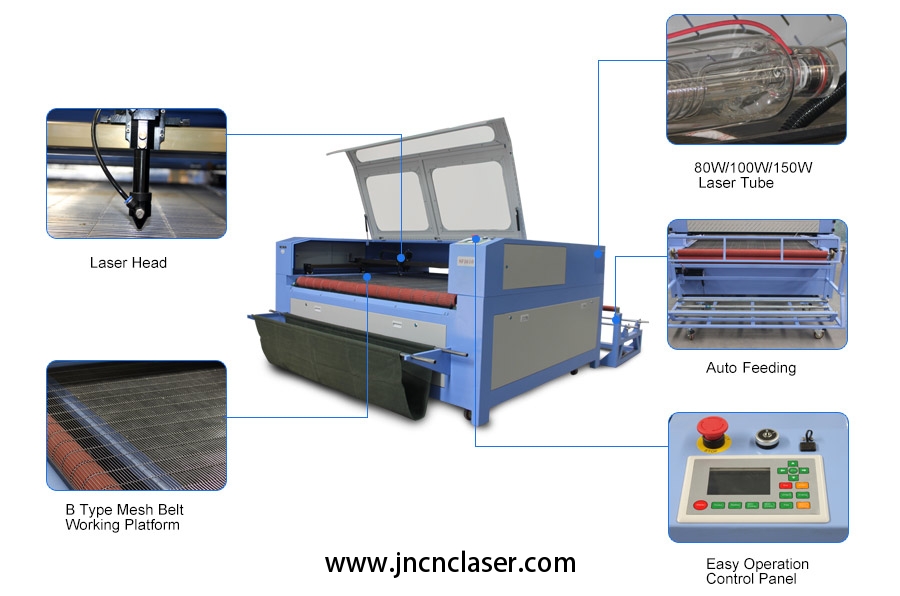

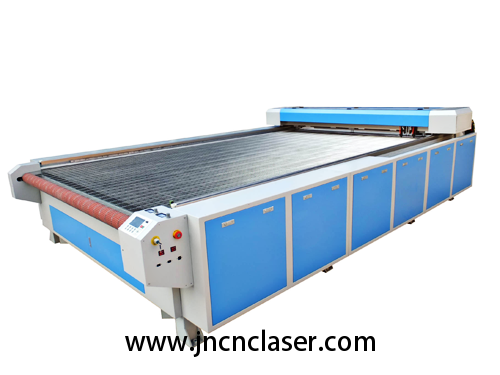

Fabric Textile Laser Cutting Machine pictures:


fabric laser cutting machine

fabric laser cutting

textile cutting laser machine

Fabric Textile Laser Cutting Machine

Fabric Textile Laser Cutting Machine

fabric textile laser

machine recommendation

图片103WechatIMG1326WechatIMG3087
