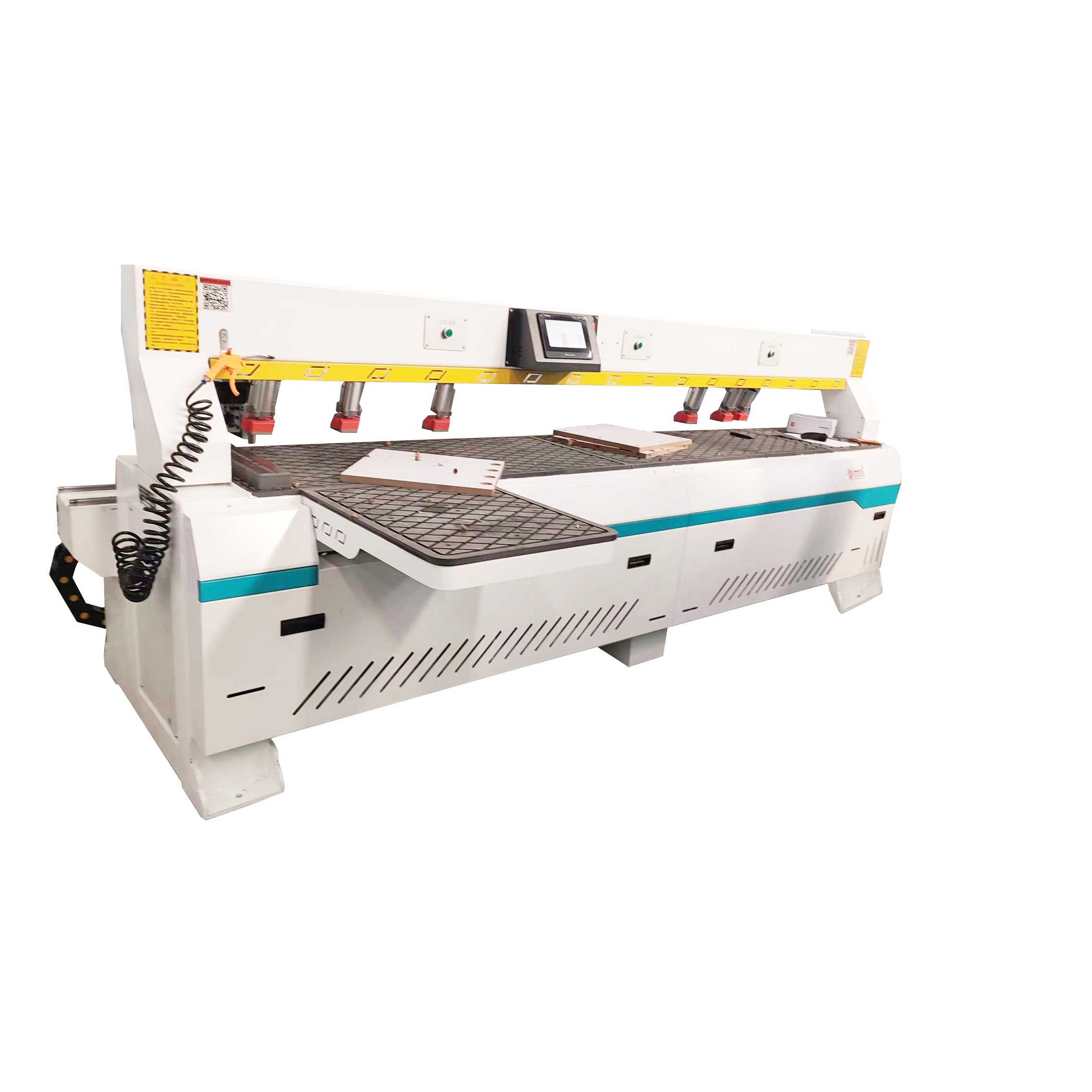

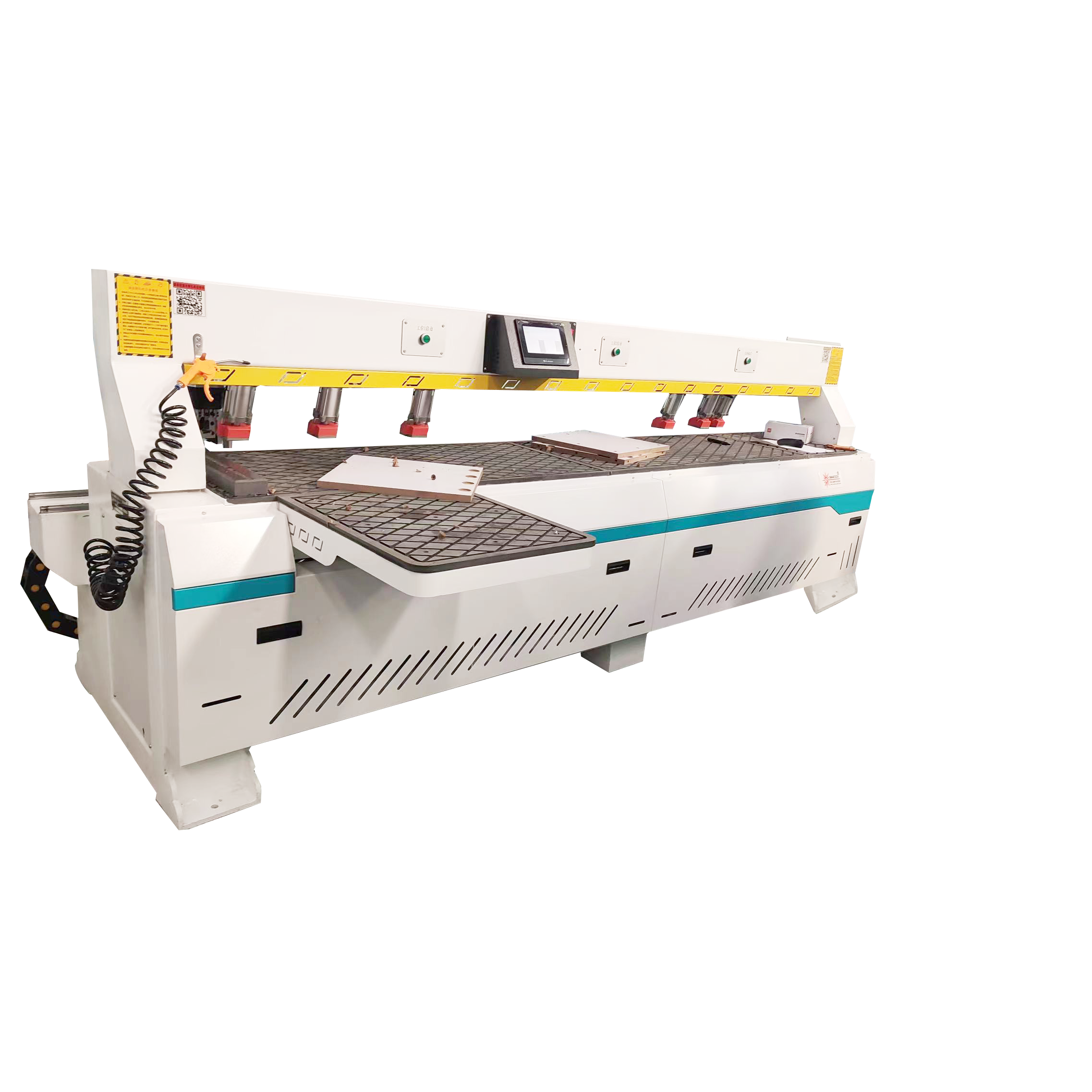

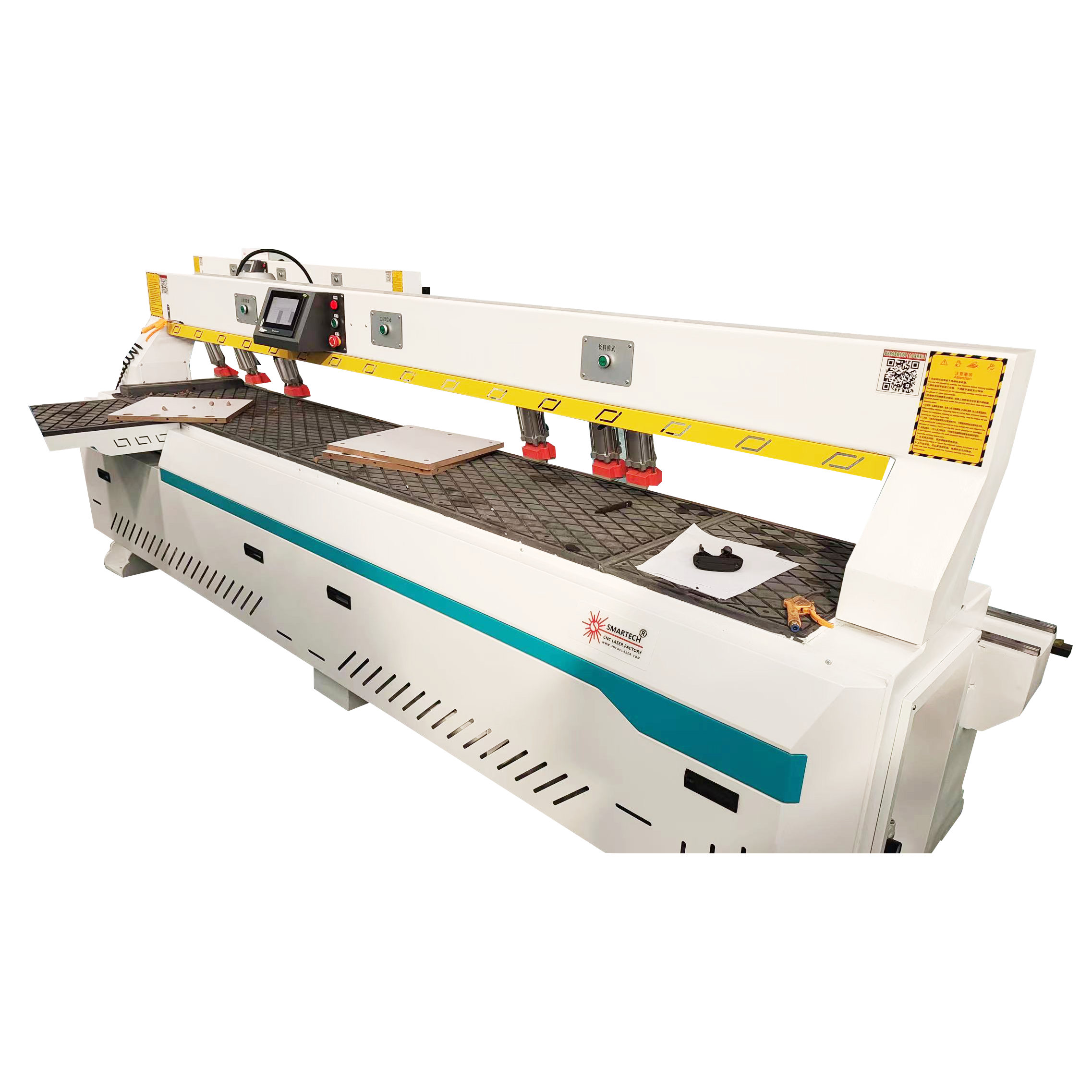

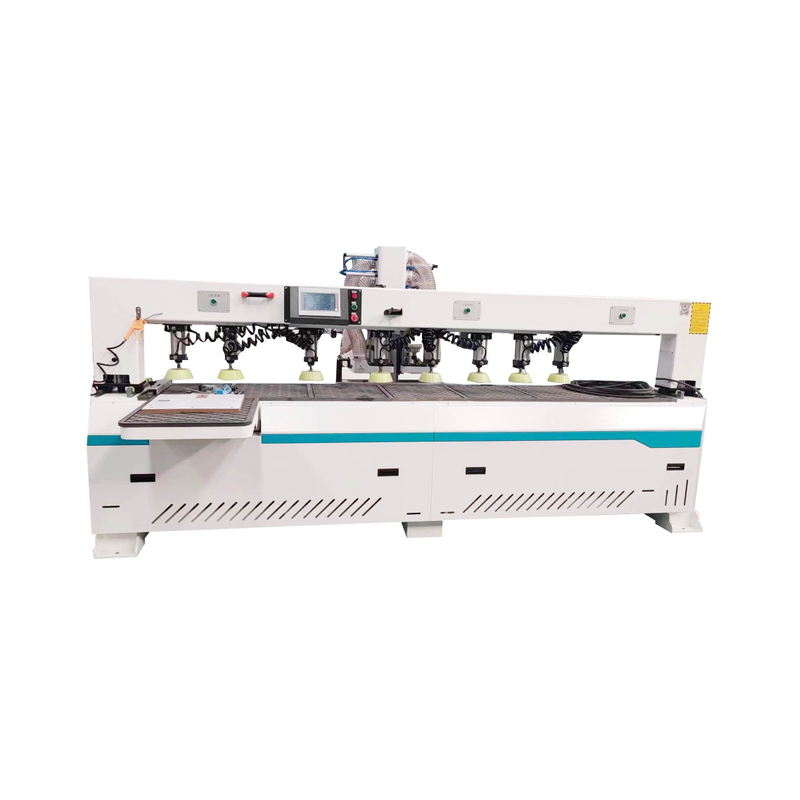

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring Cnc Drilling Milling Machine

Availability:
  • 00:37 01:00 SD1530 Side drilling machine Brief Info
  • SMARTECH
  • Laser Marking
  • 3550*1770*1400mm
  • 3.7kw
  • write

SD1530 Side drilling machine Brief Info

Machine size:3550*1770*1400mm

Minimum workpiece length and width:100*50mm

3.5 KW Spindle

3.7KW Fuling inverter

Touchwin controller (touching panel)

Automatic positioning

American original Banner Laser displacement sensor

Servo motor driver

Y movement: Rack and pinion, gear drive/Taiwan

Z movement: Pneumatic cylinder

Dedicated positioning device

oil lubrication system



Functions: Side drilling holes and horizontal holes drilling For Cabinet Furnitures.

Application:

The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs

Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments

Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting

Side Drilling Machine Technical Parameter

Model

Sidle drilling machine

Machine size

3350*1900*1400mm

Minimum workpiece length and width

100*50mm

workpiece thickness

≤30mm

Y movement

Rack and pinion, gear drive/Taiwan

Z movement

Pneumatic cylinder

Guide

Linear 20 square/Taiwan

Max. speed

15,000mm/min

Max. drilling speed

10,500mm/min

Spindle power

3.5kw (Chinese self-cooling)

Spindle speed

18,000/24,000rpm

Inverter power

3.7kw

Drive motors

servo

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code

Interface

USB 2.0

Collet

ER32- 3.175mm, 6mm, 12.7mm

Barcode scanner

 Yes

Controls

Touchwin controlling system

Packing dimensions

3500 x 1900 x 1500mm

Net weight/Gross weight

1050/ 1100kg

Standard equipment included

1.Dedicated positioning device

 2. Manual oil lubrication system

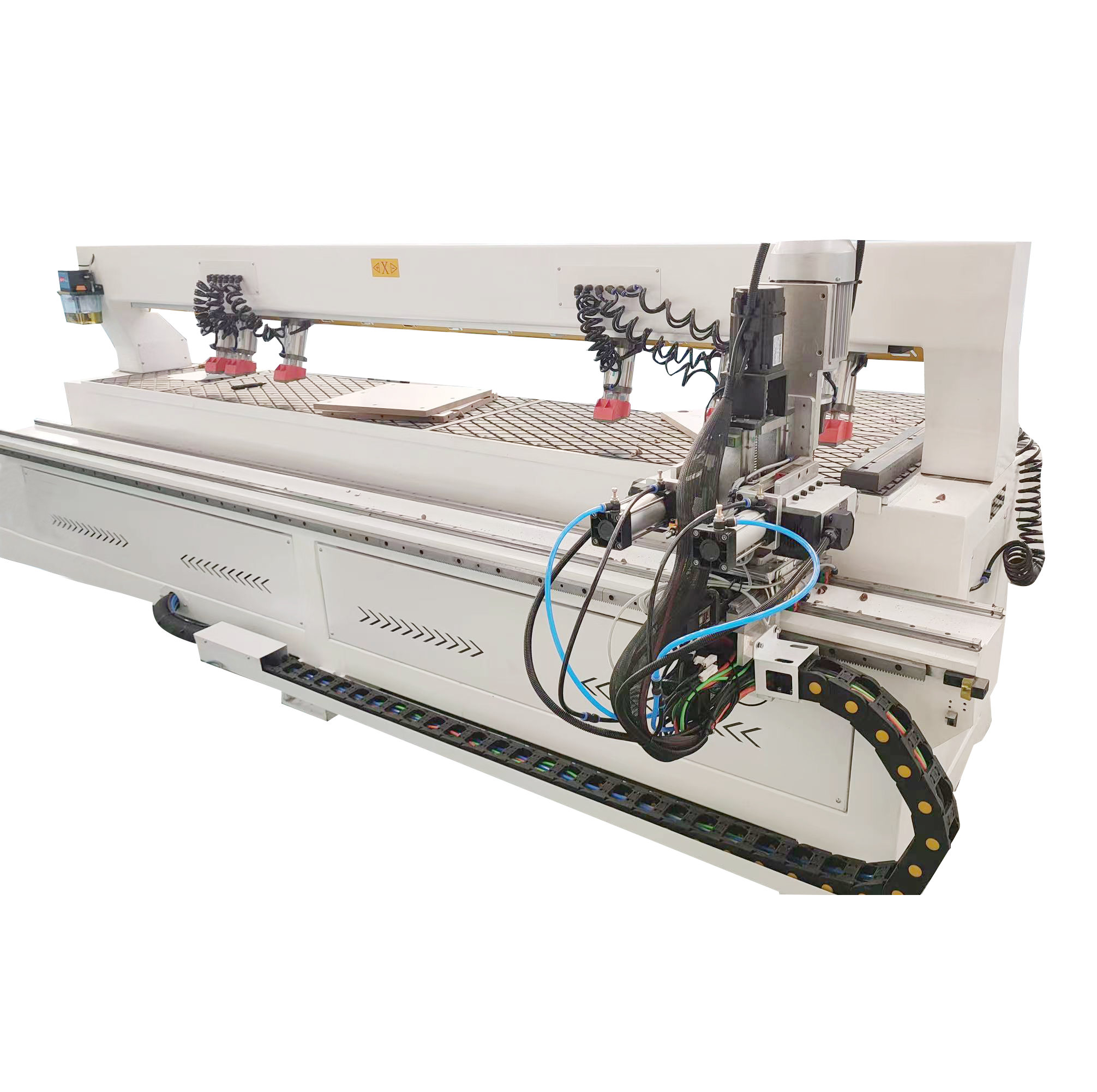

Horizontal side drilling machine detailed pictures:

beam picture-strong and clean

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machineSmart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

Dust collection system

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

Towing chains

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

Hinged drill motor

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

Drilling tools

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

Lubricating system

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machineSmart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

LED screen control panelSmart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

USA Banner famous brand detector

Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machineSmart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machineSmart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machineSmart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine

Side drilling Machine working samples:



Smart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machineSmart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machineSmart Side Drilling Machine For Cabinet Door Lock Hole Cabinet Hinge Boring cnc drilling milling machine
