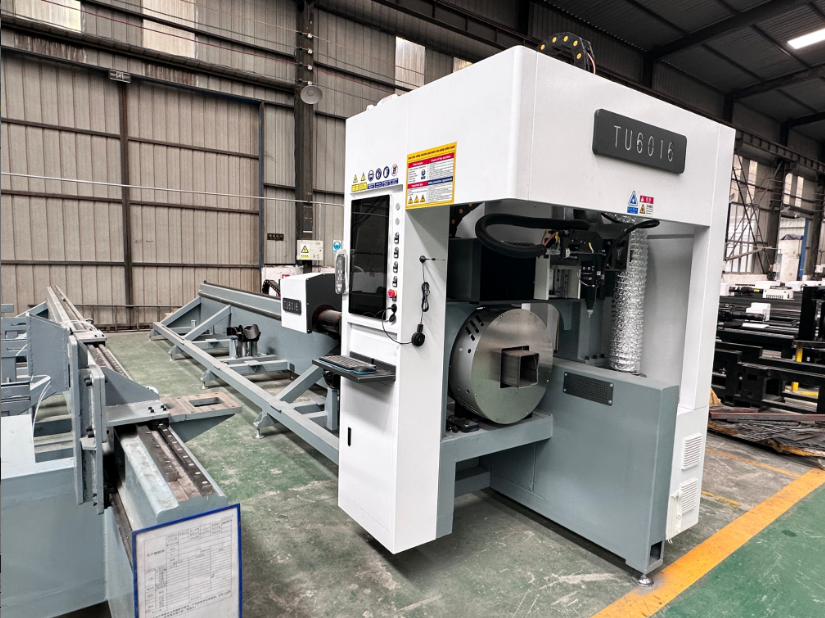

5 Axis Fiber Laser Cutting Machine for Tubes Bevel Cutting

Wo r kin g Ar e a

Ch u ck s iz e 8 -2 4 0 m m

Cuttin g Le n gth

6 0 0 0 m m

Fib e r La s e r So u r c e

MAX

La s e r Head

Ospri

La s e r P ow e r

1 5 0 0 W / 3 0 0 0 W

Co m plete m a chin e p ow e r

5 2 /5 5 KW

Ch u ck s p e e d

2 - 6 s e c o n d s /r ev

Be a m Qu a lity M 2

< 0 . 3 7 3

P o s itio n in g Ac cu r a cy

± 0 . 0 1 m m /m

M a x M ove m e n t Sp e e d

0 -6 0 0 0 m m /m in (d ep e n din g o n m a te r ia l a n d

M a x Cuttin g Sp e e d

0 -2 0 0 0 m m /m in (d ep e n din g o n m a te r ia l a n d

Wo r kin g Table

Ra ck w o r kin g pla tfo r m

Co n tr o l Sys te m

Fangling c o n tr o l sys te m

Re du c e r

Motovario

Min im u m Cla m pin g W a ll Thick n e s s

Re d d o t in dic a to r

Min im u m Cla m pin g W a ll Thick n e s s

Co r e l Dr aw /Auto CAD /Ph o to s h o p /AI Supp o r t Gr a phic Fo r m a t

Supp o r t Gr a phic Fo r m at

L XD / . DX F/ . P LT/ .AI / . Ge rb e r / . DW G

W a te r Co o lin g Sys te m

Co n s ta n t te m p e r a tu r e w a te r chille r

M a chin e We ight

Ar o u n d 2 5 0 0 kg

M a chin e Dim e n s io n (m )

≥ 1

Ele ctr ic a l c o m p o n e n ts

Sch n e id e r m a d e in Fr a n c e

Re m a r k

Auto m a tic ex ch a n g e w o r k table , c ove r (o ptio n )

M a chin e s iz e

7 5 0 0*  1 0 0 0 *2 0 0 0 m m
