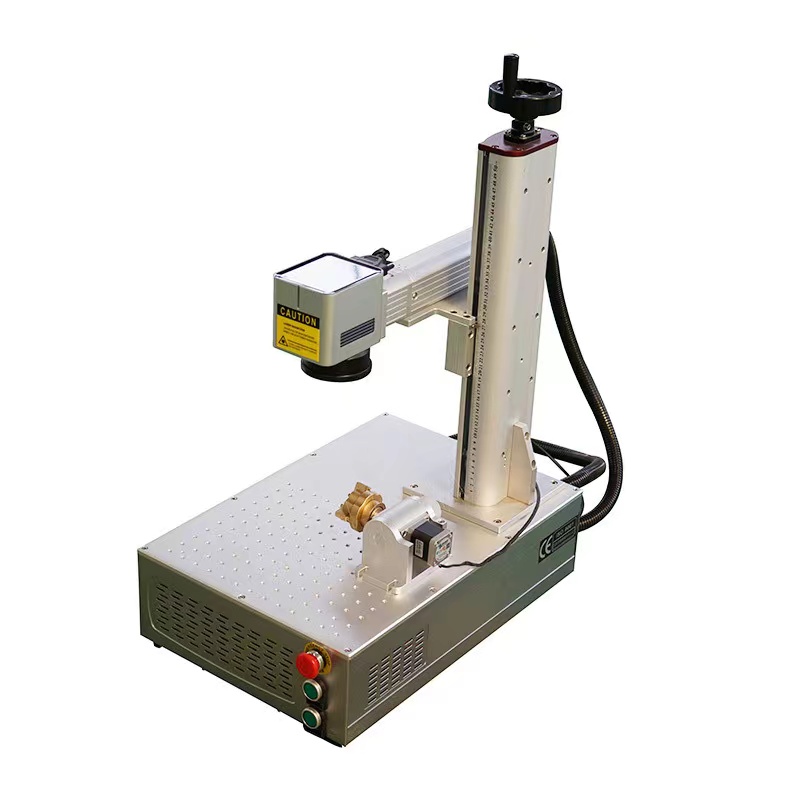

Portable Fiber Laser Marking Machine Mini 20w 30w50w Metal Cabinet Smart Color Fiber Laser Marking Machine

Availability:



Inquire Add to Basket

Model:
Laser Marking
Brand:
SMARTECH
Code:
Laser Marking
Size:
200mm*200mm
Power:
20w 30w50w
Machine Color:
write

Product Description

Product Overview

Tips here to help you choose the best laser marking machine

@1.There are 10W/20W/30W,Which power should I choose ?

Common Fiber Laser Power 10W/20W/30W/50W ,The bigger power,marking efficiency would be greater.

--20W fiber laser engraver is the most pop choice. Basic 20W fiber laser can meet 90% work.

--10W is good for shallow marking work. --30W for some deep engraving, or match with big size F-theta lens for big size marking. The bigger power,price would be higher. Your machine model is equipped with 20W

@2.There are many sizes for the machine,which size should I choose ?

--SF110 110X110mm Small size, Deep engraving.

--SF160 160x160mm Standard device for Smartech. --SF300 300x300mm For big

size engraving.(200$ extra) -

-Customized size,such 500500mm/700700mm etc

Package First layer is film,second layer is protective strong foam,third layer is Strong wooden case

Size/Weight 9007901550mm/870X500X720mm(Table type/portable type)

Gross weight is:350KG/70KG(Table type/Portable type)

Delivery Time Within 3 working days after get deposit

Payment 30% T/T in advance, 70% before delivery Warranty Time 2 years (replace parts during warranty(no human reason))

Certificates Could provide CO/CE/SASO/CIQ/Invoice etc Certificates for customs clearance

Application: Metal materials:stainless steel,aluminium,copper,silver, gold, carbon steel etc Non-metal materials

:plastic,pvc,rubber,glass,stone,wood,feather,jewelry etc Software EZCAD original version interface Very easy to operate,comes with user manual.Machine support six languages,USA English, English,Japanese,Korean,Chinese

*Main functions of the software: � Users can design their graphics freely.  � Various types of fonts are supported. Such as
SHX,JSF(Single line font defined by EzCad2), DMF(Dot Matrix), One-Dimensional bar code, Two-Dimensional bar code etc) � Flexible variable text: changes the text real time while in laser processing. Excel datasheet is supported.
 � Can through the serial port direct read text data
 � Can through the network direct read text data
 � Strong node editing function make the curve modification more easier
 � The software can support 265 “pencils”, which used to draw graphic and can be set different processing parameters.
 �Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
 � Common vector images are supported. (ai, dxf, dst, plt…)
 � Image processing (Grayscale, White / Black Transformations)
 � Powerful hatching functions, such as support round hatch.
 � More convenient IO operations and more easier to harmonize the auxiliary equipments.
  � Supports the dynamic focus (3 axis processing system)
 � An opening language supporting system makes it easy to run the software in various languages platform.


FEATURES AT A GLANCE

 Standard parts come with machine
 Fiber laser marking machine SF110
 Working area is :110*110mm PC computer famous brand
 Comes with Keyboard and mouse
 Digital scanning head&Original Singapore imported high transmissivity wavelength power source 20W/30w/50w
 user manual and CD
 data connection
 EZCAD software
 Up down table & controlling cabinet
 Tools and tool box comes with machine
 Sino-Galvo galvanometer
 Include each necessary part,no need to buy other additional parts,you could use directly after received machine.

Optional part:(For some special working demands.)  @1.Auto feeding system----Improve working efficiency
 (used for mass production,such as production dates/bottle caps’ numbers marking on packages etc high demands on marking quantity efficiency)
@2.Stent and working table 2D and 3D with rotary device for option (Used For round materials’ processing.such
as:glasses,bottles,rings etc)
 @3.Aufo focus up down system--no need to caculate distance by hands wheels.+500$(Upgrade from hands
adjustment into electricity distance adjustment between materials and galvanometer)
  @4.Optional sliding X,Y moving table or pens rotating working table(especially for pens marking demands)
 @5.If change into Mopa type(Used for Colorful marking for stainless steel,Tell us if you need marking colorful works.)

 Right elevation

 Left elevation

 Front elevation

PRODUCT SPECIFICATIONS

 NO Model SF10W/20W/30W /50W 1 Laser power Fiber 10W/20W/30W/50W air cooling 2 Working area 110*110mm (160X160 or 300x300mm or customized available) 3 Weight(Table model) 350KG(Old design table type)/400KG(New design table type)/80KG(Portable type) 4 Power Raycus /IPG/JPT/MAX 5 Laser / PC Connectivity USB connection 6 Response time 0.03ms 7 Frequency of pulse 20-100KHz 8 Scanning Speed: 0-10000mm/s 9 Marking speed ≤10000mm/s 10 Spot size     ≤40 micron (F-theta 160) 11 Marking lines 1-10 lines(in the marking area) 12 Energy per pulse (PRR = 20 kHz) 0.95 mJ 13 Laser switching ON/off time   180 μsec 14 Marking content Text,pattern,date,bar code,etc 15 Operation system Original JCZ which support Win10/win8/win7/xp 16 Control software EZCAD control software   17 Graphic format supported bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. 18 Unit power ≤1.2KW 19 Operation temperature 5℃-40℃ 20 Continuous working time ≥16h 21 Relative moisture ≤ 90%,no fog 22 Supply Voltage 220V/50Hz/10A /380V/110V All available 23 Packing size 900*790*1550mm/870X500X720mm(Table type/portable type)

PRODUCT CONFIGURATION

SALES AND SERVICE NETWORK

Successful Project

machine recommendation

FAQ  -Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
