Product Description

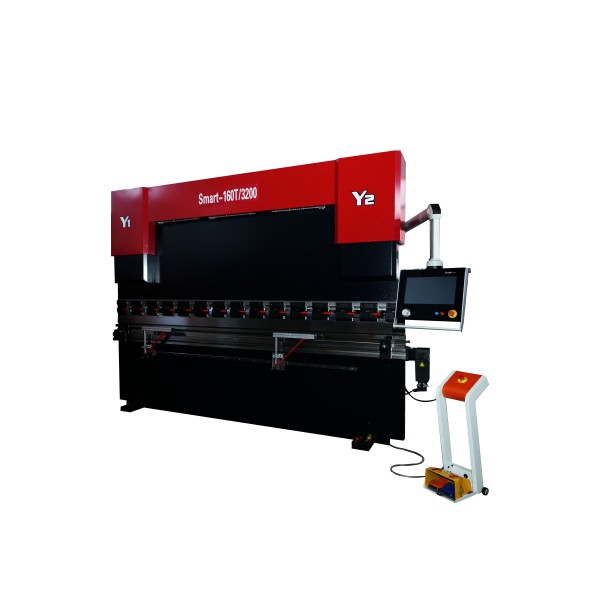

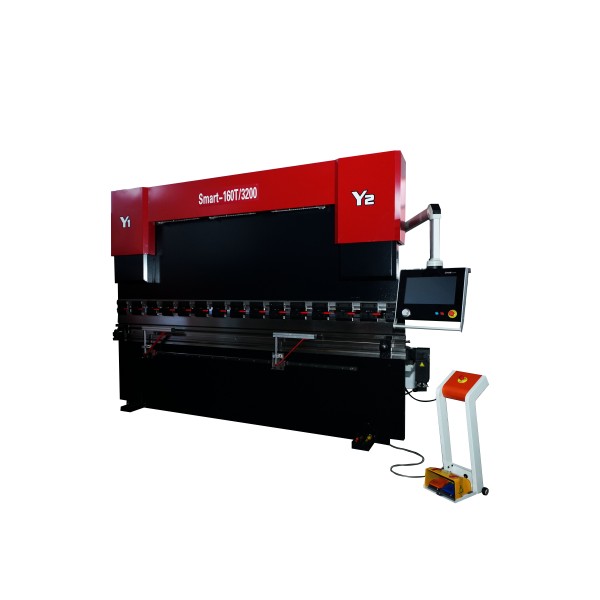

CNC Press Brake Precision Sheet Metal Bending Machine

Model: Smart-100T-3200MM

Main Configuraitons:

Model:Smart-100T-3200

Pressure:100T

bending Length :3200mm

Control Axis:3+1 (Y1,Y2,X+V)

Column spacing:2700 mm

Cylinder stroke:200mm

Mold height:570 mm

throat depth:410 mm

Backgauge stroke:600mm

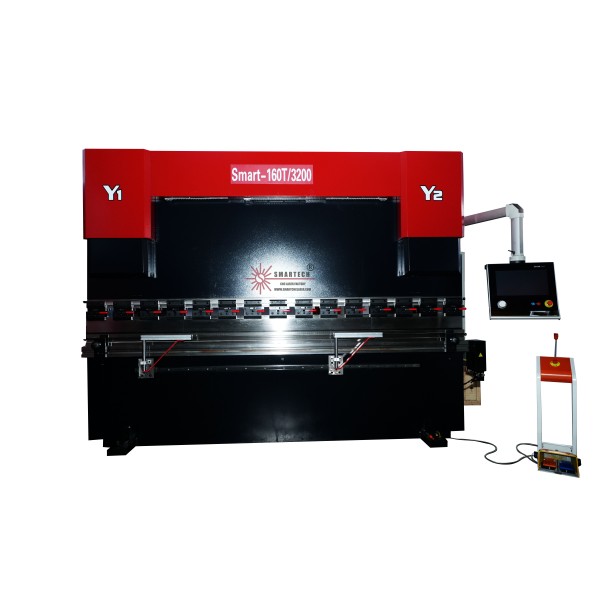

Machine Tool Structure

This machine is assembled from a frame, slider, workbench,oil cylinder, hydraulic proportional servo system, position detection system, numerical control system and electrical system. The transmission structure of this machine tool is an upward-moving design; The mechanical structure of this machine tool mainly consists of the frame, workbench, slider, main cylinder, and back gauge. Perfect design and manufacturing technology can effectively ensure the manufacturing and use accuracy of machine tools.

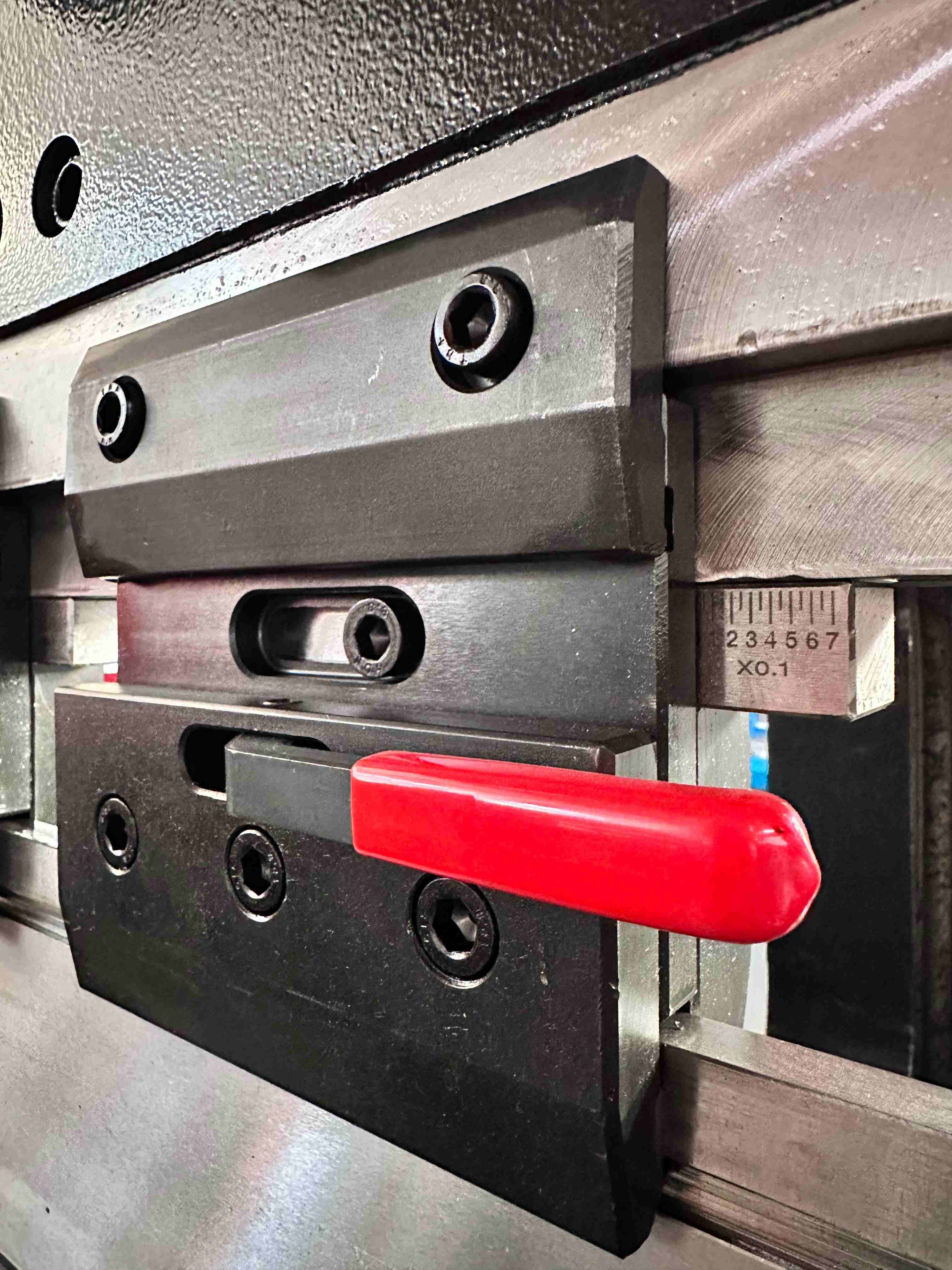

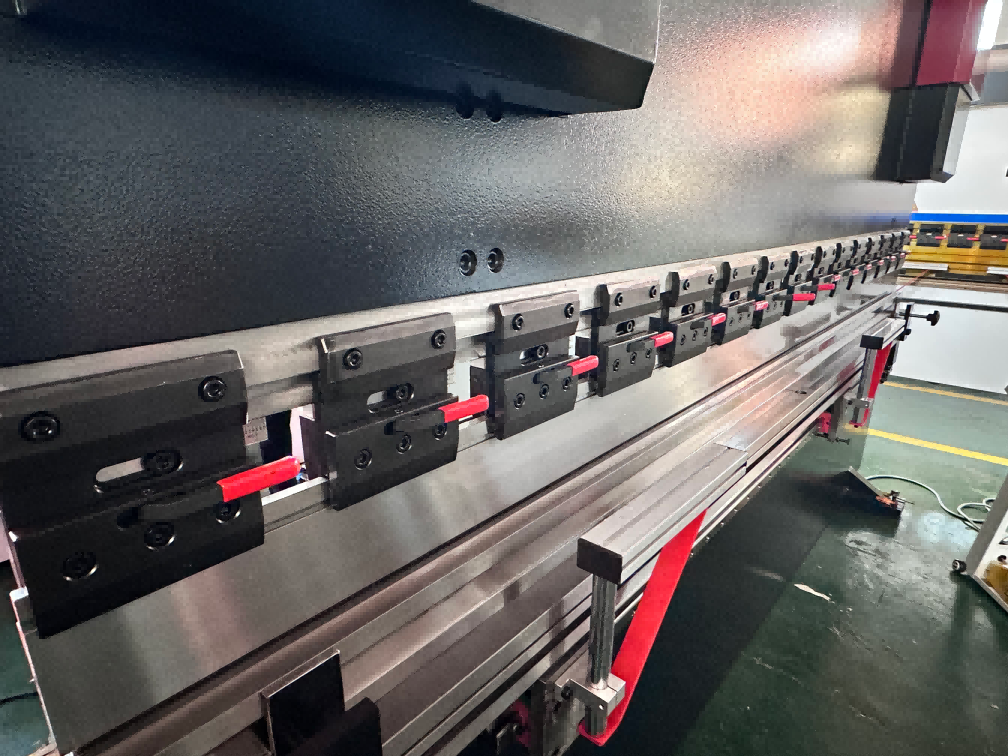

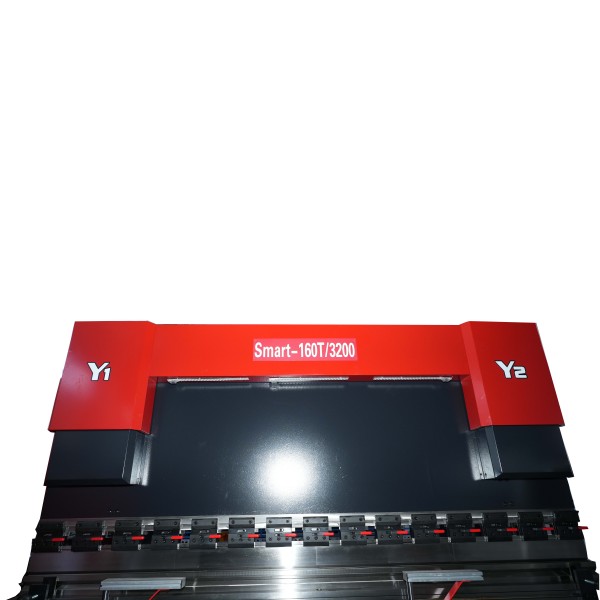

快夹(1) Materil auto clamps Each machine has 15 quick clamps.

Name	Unit	Numerical value
Nominal pressure	KN	1000
Bending Length	mm	3200
Number of control axes		3+1(Y1,Y2,X+V)
Column spacing	mm	2700
Cylinder stroke	mm	200
Mold height	mm	570
throat depth	mm	410
Backgauge stroke	mm	600

Slider synchronization control

Machine tool slider synchronous control (Y1, Y2axis),Using German Rexroth/Hoerbigger maleSpecial digitalclosed-loop hydraulic system for bending machines (electronic-Liquid proportional servo synchronous control system), this system is a position control system, which is composed of

① Drive assembly,

② Pressure control valve unit,

③ Closed-loop control It is composed of valve unit,

④ closed-loop proportional valve amplifier,

⑤ hydraulic cylinder,

⑥ position detection system,

⑦ CNC system,

⑧ electrical system, etc. The position synchronization of the two piston cylinders during the stroke process and the positioning of the stroke end point are achieved through an electro-hydraulic synchronous servo system, which has high synchronization accuracy and repeatable positioning accuracy.

It allows the slider to always remain parallel to the workbench during rapid approach, working stroke, end positioning and return. When the slider tilts under various disturbances and unbalanced loads, it dynamically detects the synchronization error of the slider through the grating ruler and feeds it back to the CNC system. The electro-hydraulic servo valve of the CNC system corrects the synchronization error of the slider. It controls the proportional servo valve to adjust parameters such as the flow and pressure of the oil entering the cylinder,so that the two pistons maintain position synchronization, so that the slider and the workbench remain parallel.Single machine slider synchronization accuracy≤±0.05mm.◆Y1, Y2 axes - the left and right sides of the slider are equipped with Spanish FAGOR/Italian GIVI high precision linear grating rulers (Y1-Y2). They are used to measure the exact distance between the slider and the workbench. The grating ruler and the column are made of soft connection so that column deformation does not affect positioning. The position data is immediately fed back to the CNC system, which can then calculate the output servo valve control signal (S1-S2). Therefore, the positioning accuracy of the single machine slider ±0.05mm, the repeatable positioning accuracy of the slider is 0.05mm.

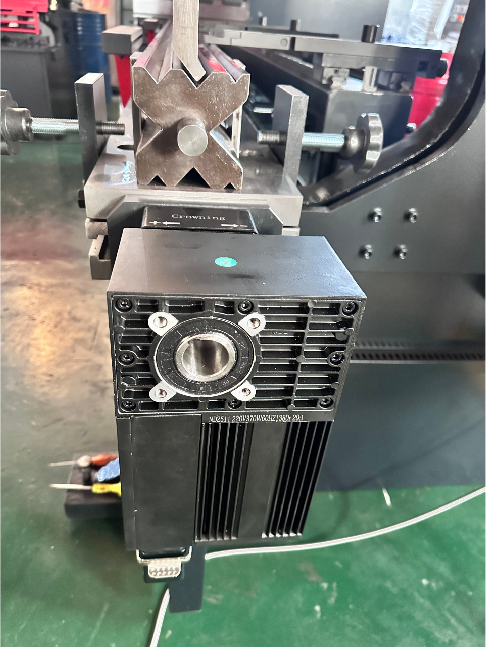

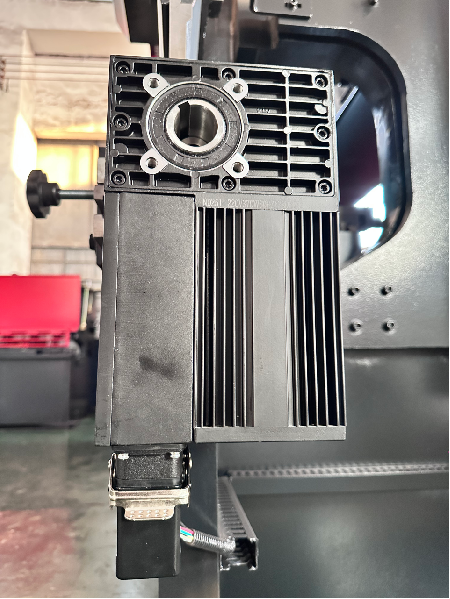

Work bench compensation

Long workpieces will undergo deflection and deformation during the lifting and processing process, making it difficult to guarantee the processing accuracy of the workpiece. In order to ensure that the workpiece meets the processing requirements, a hydraulic compensation workbench is selected
