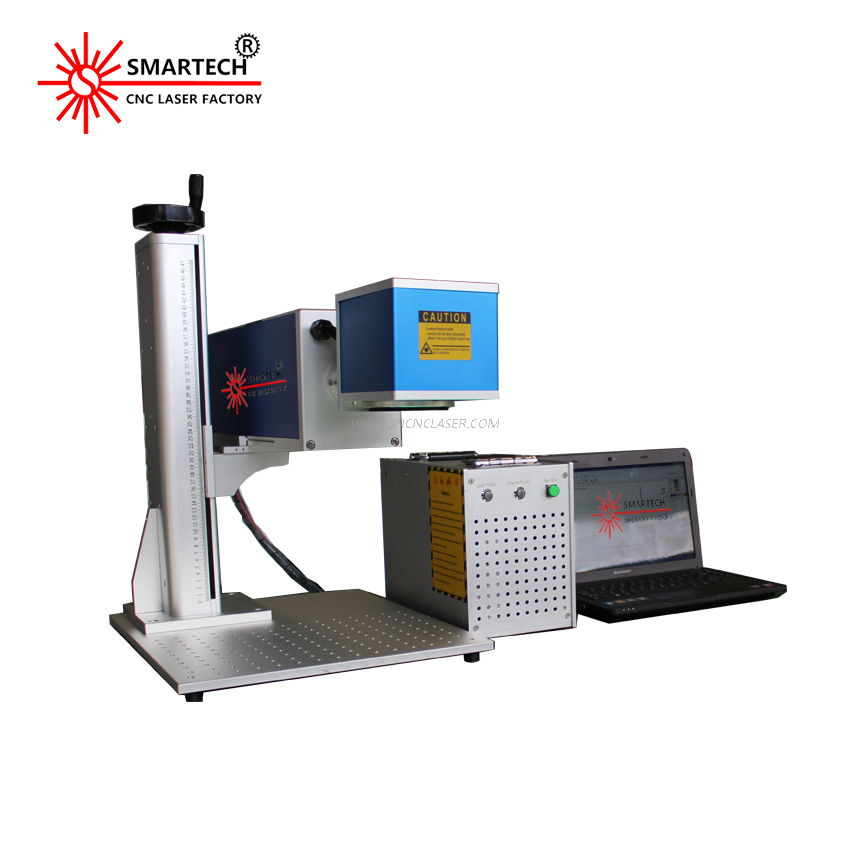

RF Portable Automatic Galvo Co2 Laser Marking Machine
You are here: Home » CNC Laser Machine » Laser Marking Machine » CO2 Laser Marking Machine » RF Portable Automatic Galvo Co2 Laser Marking Machine
Share to:

RF Portable Automatic Galvo Co2 Laser Marking Machine

pice:
  • SJF- CS10/30/50/100
  • SMARTECH
  • as your preference
Parts of the Machine

30w RF wood carton box co2 laser printing machine from SMARTECH laser


2D or 3D Working table



Rotary Axis



Light Path & Rise and Fall Pillar



Galvanometer & Lens



  Power Supply & Control Board



Laser Tube:
Reci,Coherent,Synrad,EFR,Yongli



All parts of our Fiber Laser Marking Machine come from the world-class reputational manufacturers


Product Description

Applied Materials:

Paper, plastics, wood, glass, painted pottery,
non-metallic materials and oxidation plating paint materials on the surface of metal.


Applied Industries:

Food, beverage, wine, mineral water, pharmaceutical, chemical products, tobacco, plastic & rubber product accessories, building materials and other manufacturing products or packaging.

Adopt quality parts ,RF metal CO2 laser tubes and sealed glass tubes
NO maintenance laser source.
High speed galvo scanner
Easy Operate without route maintenance
Higher precision,faster speed.
Machine features:

①The machine takes CO2 laser tube as the laser source. By 2D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.

②Using metal CO2 laser tube, with exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 20,000 hours free of maintenance, then can be recharged by filling CO2 gas, suitable for users requiring batch production and high marking precision. Once invested, whole-life benefited.

③Using fast-speed scanning mirrors, it can be the graph in shortest time finish fine marking process.

④Using the simple structure, abrasion and rusty against component, the system have the most stable performance and moving precision.

⑤It can configure automatic configuration fixture, baiting production line.

⑥It can mark data, serial number & bar code automatically.

⑦Marking clearly and not easy to wear.

⑧Use the computer control, user friendly interface, easy operation.

⑨Accept customizing.

⑩The extensive equipment performance,competitive of working continuously for 24-hour made it meet the demand of massive on-line and off-line industrialized production.
30w RF wood Co2 laser marking machine from  laser

Technical Parameter

Model
SJ CS10/30/50/100
Laser Power
10W/30W/50W/100W
Laser Wavelength
10.64um
Q-frequency
20KHz~100KHz
Divergence
0.3mard
Marking Range
100*100mm/200*200mm/300*300mm
Minimum Line Width
0.02mm
Minimum Character
0.15mm
Marking Depth
0 ~0.5mm
Engraving Line Speed
≤7000mm/s
Repeatability Accuracy
±0.001mm
Beam Quality
M2:1.2~1.8
Marking Format
Graphics, Text, Bar Codes, Two-dimensional Code, Automatic
Marking the Date,Batch number,Serial number,Frequency,etc.
Graphic Format Supported
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage
220V±10%/50Hz/4A
Samples

Here are some samples of the Co2 laser marking machine as follows:

laser marking on mirror

co2 laser marking on mirror

laser marking on marble

co2 laser marking on marble

laser marking on wood

co2 laser marking on wood

laser marking on glass

co2 laser marking on glass



Co2 laser marking machine on Jeans
