Bench Top Thickness Planer with Spiral Cutterhead – Woodworking Planing Machine

Availability:



Inquire Add to Basket

Model:
MB106
Brand:
SMARTECH

Product Description

MB106

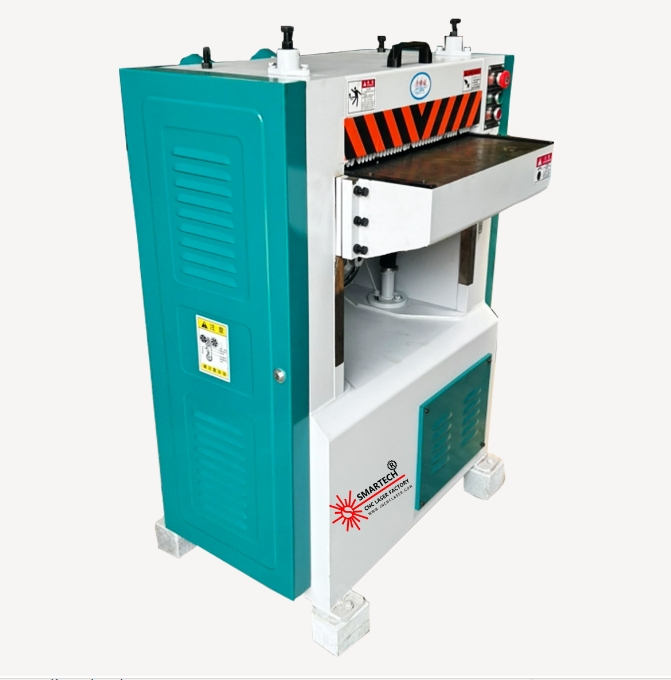

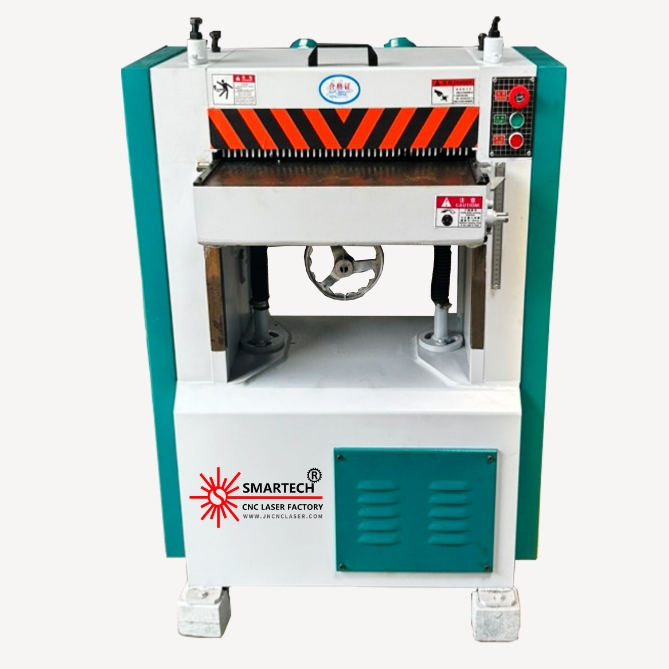

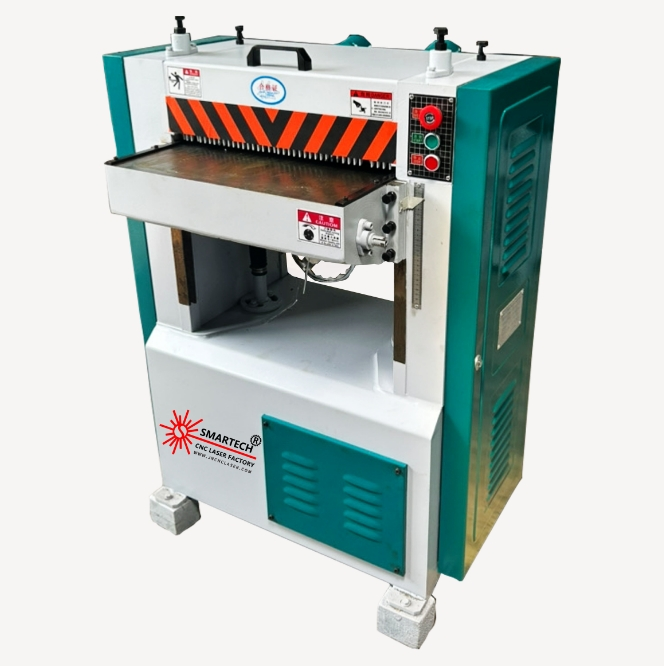

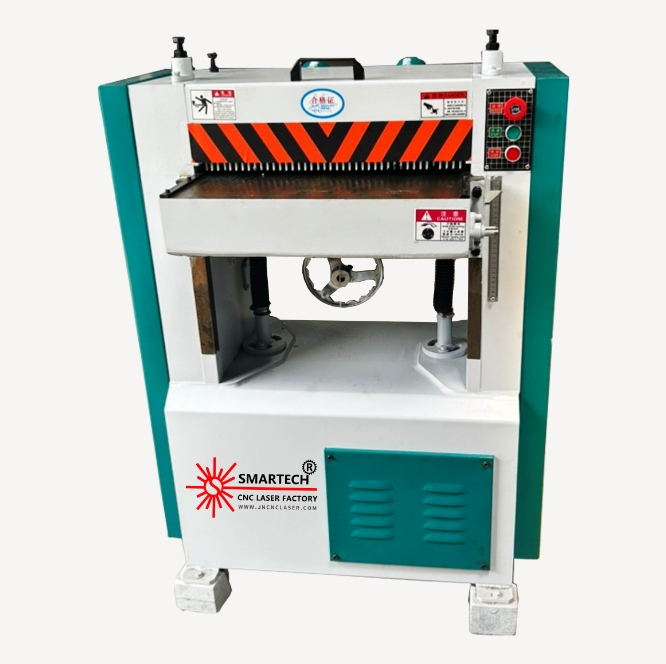

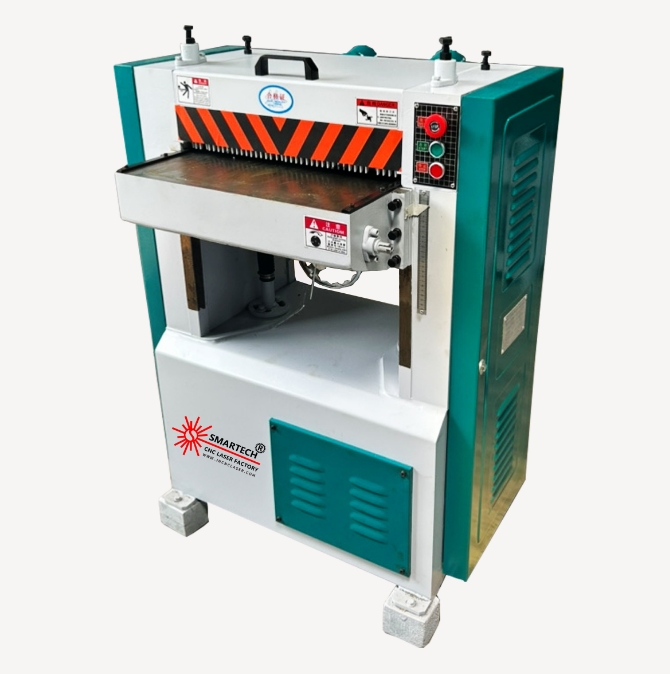

The MB106 Surface Planer is a heavy-duty woodworking machine designed for precise thickness planing and surface smoothing of solid wood, plywood, and MDF. Ideal for furniture workshops, door manufacturers, and carpentry studios, it delivers high accuracy, robust performance, and user-friendly operation to streamline your production process.

微信截图_20250430113358

✅ Model: MB106
✅ Max Planing Width: 600 mm (24") – Handles wide boards efficiently.
✅ Max Planing Thickness: 200 mm (8") – Suitable for thick stock.
✅ Cutter Head: 3/4 knives (HSS or carbide optional) – Ensures smooth finishes.
✅ Motor Power: 4 kW (5.5 HP) – Powerful performance for hardwoods.
✅ Feed Speed: 8 m/min (adjustable) – Balances speed and finish quality.
✅ Table Material: Cast iron – Provides stability and reduces vibration.
✅ Dust Extraction: 100 mm port – Keeps workspace clean and safe.

Parameter

Model	MB106
Working Thickness	3-220mm
Rotate RPM	6500r/min
Working Speed	7-10m/min
Max working width	600mm
Max working length	250mm
Planner thickness	<=4mm
Power of Motor	7.5KW
Machine dimension	76106127cm
Net weight	600KG

Competitive Advantages

✔ Industrial-Grade Durability
* Heavy-duty cast iron construction minimizes vibration for ultra-smooth finishes.
* Precision-ground cutter head with quick-change knives reduces downtime.
✔ Safety & Ease of Use
* Anti-kickback rollers and emergency stop button (CE compliant).
* Ergonomic height adjustment with clear depth scale for accurate planing.
✔ Versatile Applications
* Perfect for furniture panels, tabletops, door blanks, and custom millwork.
* Handles both rough lumber and fine finishing in one pass.
✔ Cost-Effective Performance
* 30% faster feed rate vs. similar models – Higher productivity.
* Low maintenance design with accessible lubrication points.
