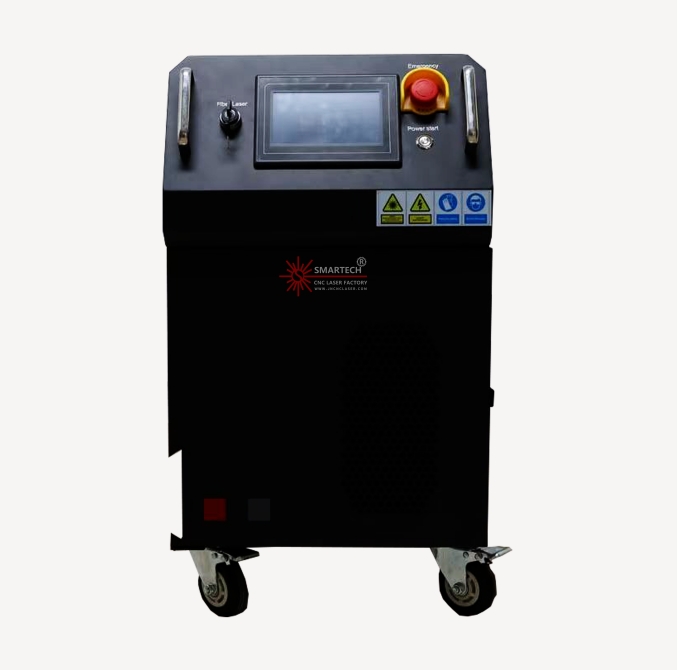

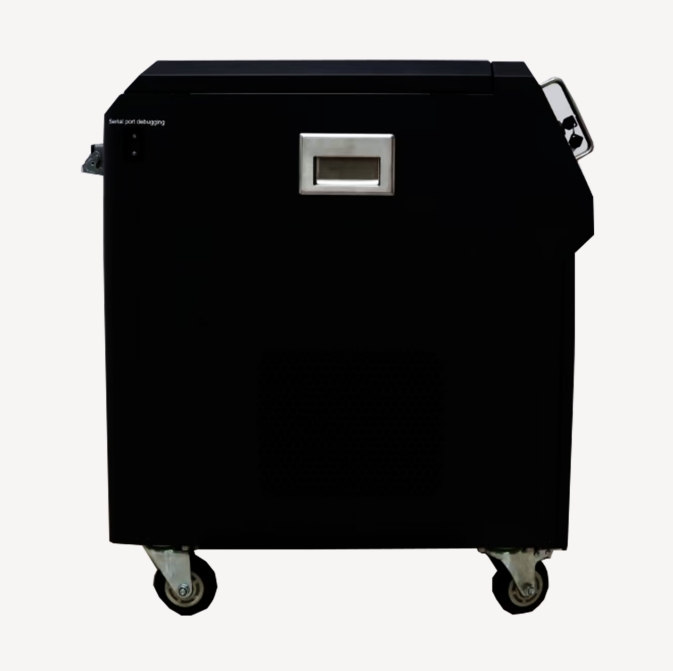

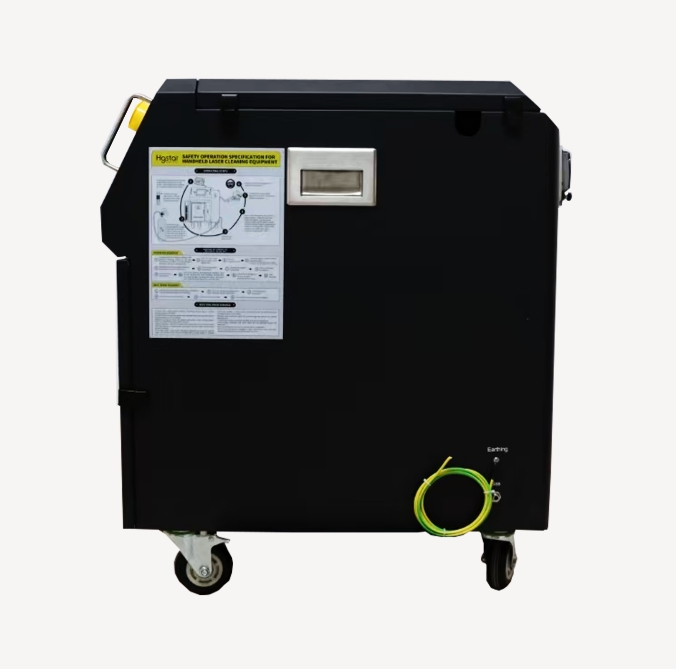

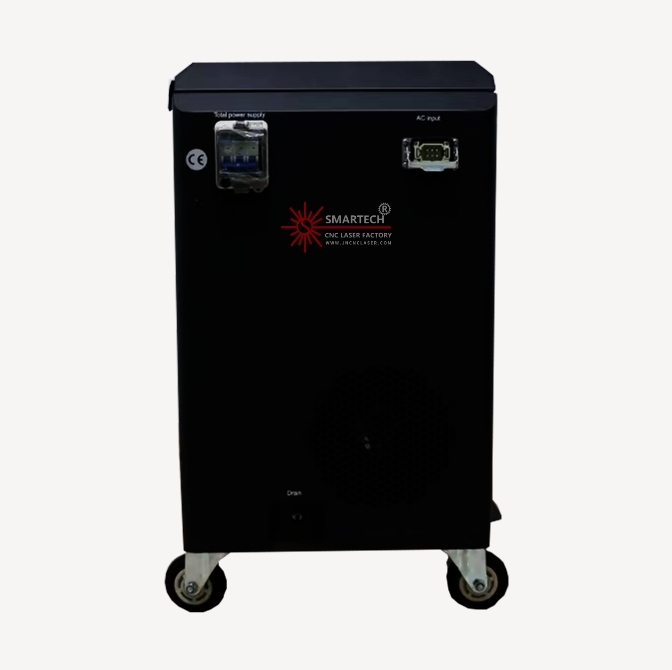

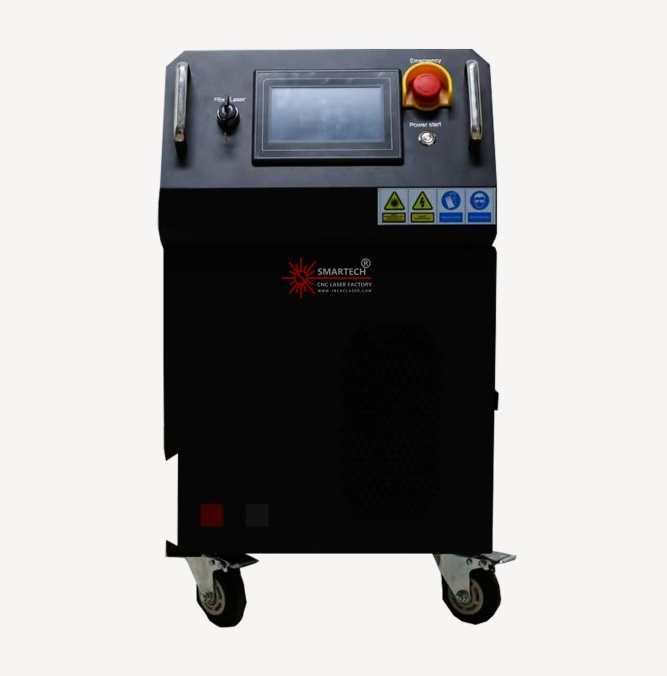

500W Pulsed Fiber Laser Cleaner for Rust, Paint, and Coating Removal
Type of laser operation: Pulsed
• Power:500W
• Laser Source
• Cooling method: water cooled
• Beam wavelength: 1064 +5 nm
• Laser switch-off time: 2 μs
PULSE CHARACTERISTICS
• Adjustable pulse duration: Yes
• Optical fiber length: 10m
• Control system: Touching PLC
• Electrical parts: Schneider brands.
• Protective glasses
• Spare protective lens
• Leakage protector to protect operator's safety
• Working voltage:220/380V

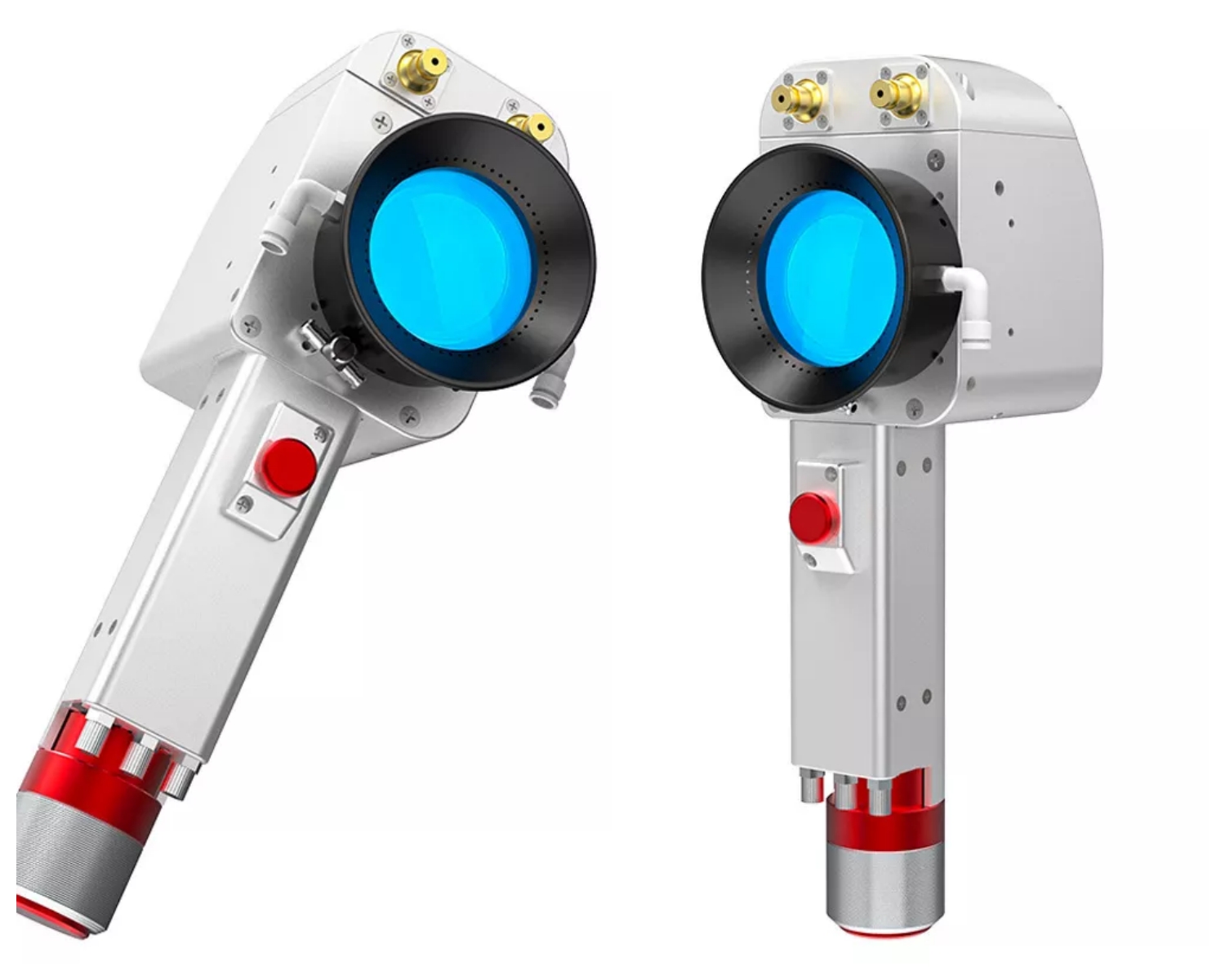

• Warranty: 5 years HEAD • Handheld
• Mini And Portable
• New Generation
1) Non-contact cleaning without damaging the part matrix.
2) Precise cleaning, which can realize selective cleaning of precise position and precise size.
3) No need for any chemical cleaning fluid, no consumables, safe and environmentally friendly.
4) The operation is simple, just turn on the power, and it can be hand-held or cooperate with a robot to realize automatic cleaning.
5) The cleaning efficiency is very high, saving time.
6) The laser cleaning system is stable and requires almost no maintenance.
PRODUCT SPECIFICATIONS
| Technical Parameter | 500W |
| Laser Type | Pulse fiber laser |
| Laser power life span | 100000 Hours |
| Power range (%) | 10-100(adjustment ) |
| Repeat frequency (KHz) | 1-1000(adjustment) |
| Cooling mode | Water Cooling |
| Laser switch-off time | 2 μs |
| Laser wavelength | ±1064NM+5 |
| Max output power (W) | 500 |
| Maximum single pulse energy(MJ) | 15/50 |
| Optical fiber length | 10m |
| Laser safety classification | IV |
| Weight | 125 /135/180 KG |
| Size | 700*500*850mm |
| Cleaning speed | ＜30000mm/s |
| Voltage | 220/380V |
| Water Temperature Range | 25°C-28°C |
| Cooling Medium | Pure Water/Demineralized Water/Clean Antifreeze |
| Gas Pressure | 0.5-0.8MPa |
| Power Supply | AC100-240V 50HZ/60HZ (select according to country/region) |
| Recommended Operating Environment | Dew-free, clean, dust-free, no vibration source, 0°C-40°C, humidity ≤80% |
| Cleaning Material Range | Steel, Aluminum, Magnesium, Copper, Wood, Stone, Electronic Components, Fiber Composite Materials, Plastic, Glass, Rubber |
| Cleaning Head Weight | 1.3kg/1.6kg |
| Machine Size | 700*500*850mm |
| Machine Weight | 125 KG |
Laser cleaning is a new generation of surface cleaning technology that can widely replace traditional cleaning processes such as chemistry, grinding, sandblasting, etc. It has the advantages of no grinding, non-contact, low thermal effect, no damage, and is suitable for objects of various materials. It is recognized as a reliable and effective new generation of cleaning technology

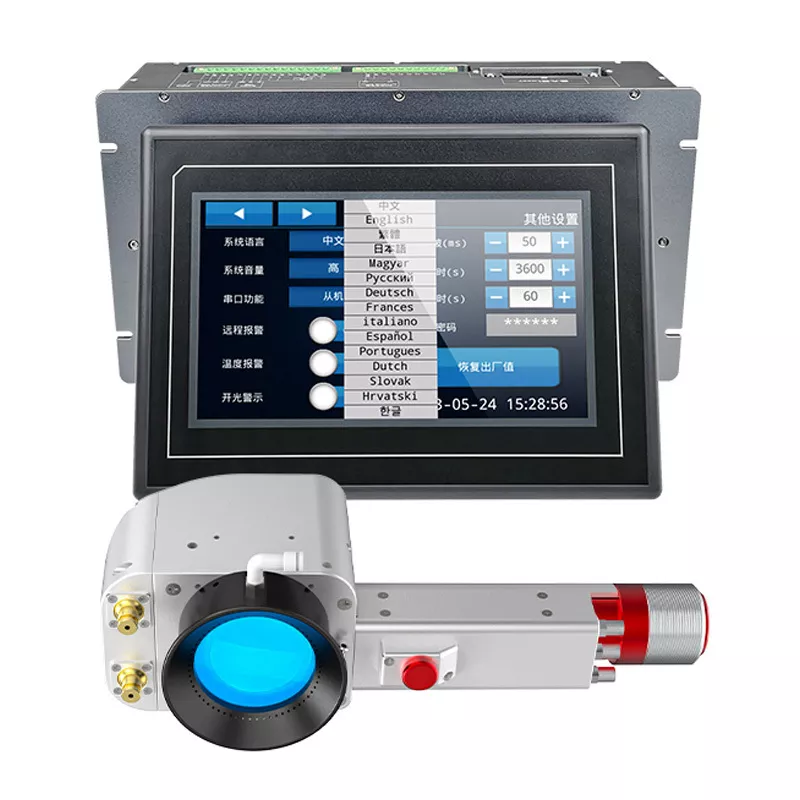

Introduction to Laser Control System
1.Supports 8 cleaning modes, suitable for various complex cleaning scenarios. Supports laser power ramp-up and ramp-down, real-time control, better cleaning results, does not damage the substrate. Multiple safety alarms, smaller size, more flexible operation;
2.Has 10 safety alarm protection systems, stronger product stability. Supports multiple communication methods, richer control functions. At the same time supports LOGO, interface, specific function customization; Adopts high-speed galvanometer motor, higher stability;
3.Upgrades unique wind tunnel multi-hole ring-shaped air knife design, all-round protection of protective lens. Even in complex working environments, it can be safer and more stable, better improving cleaning efficiency; 4.Cleaning width up to 150 * 150mm, can support higher laser power stability, better efficiency. Supports multiple field lens specifications, suitable for more application scenarios;
5.Supports 15 language switching, can adapt to more countries' users. Barrier-free human-machine communication;

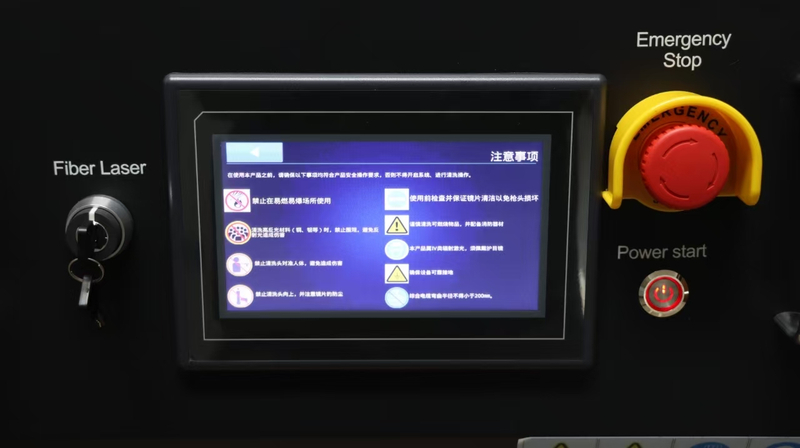

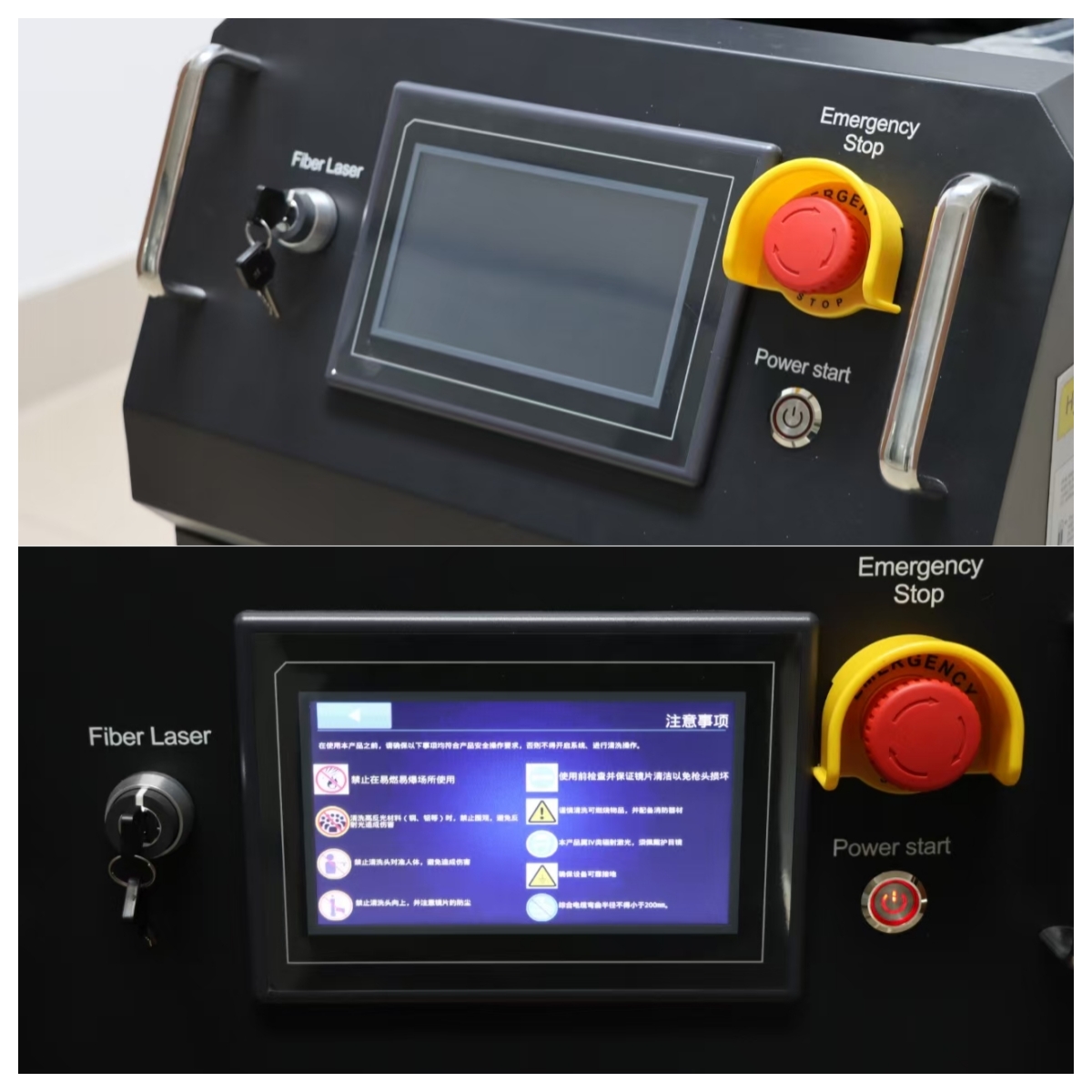

Control system-- Touching Screen

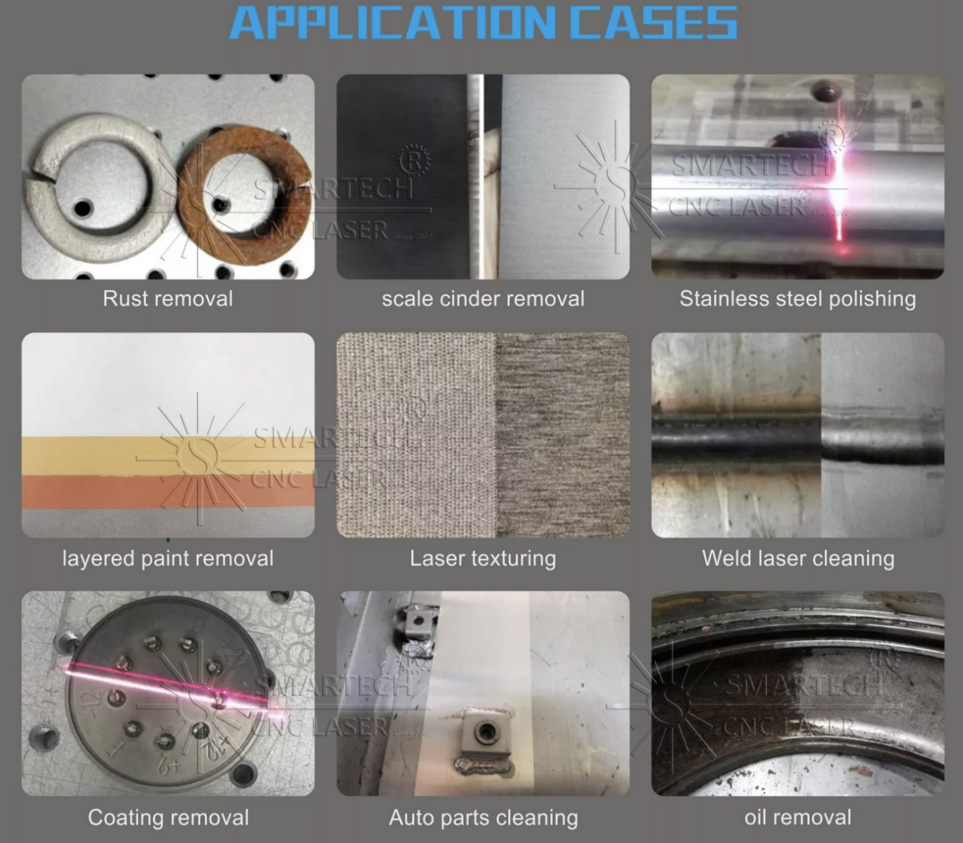

Sample
