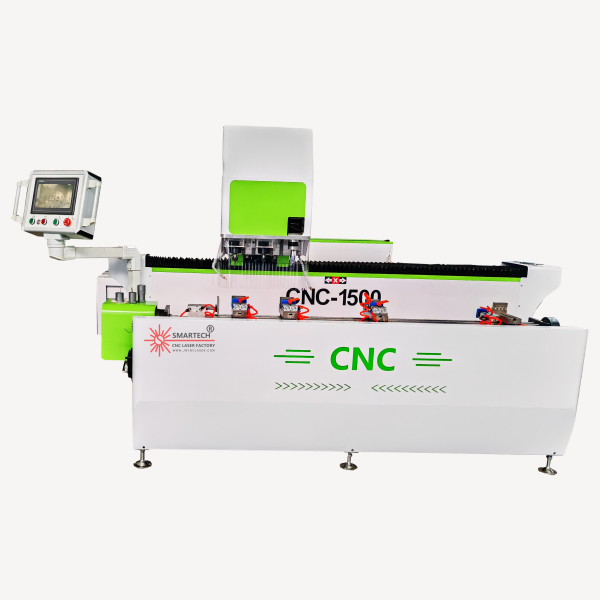

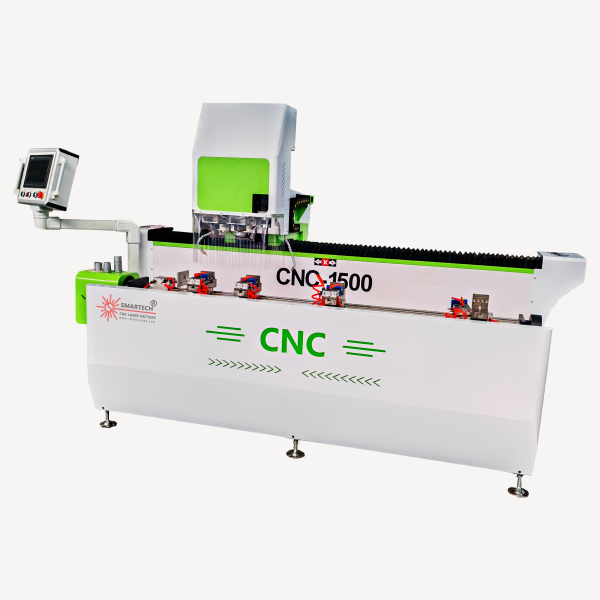

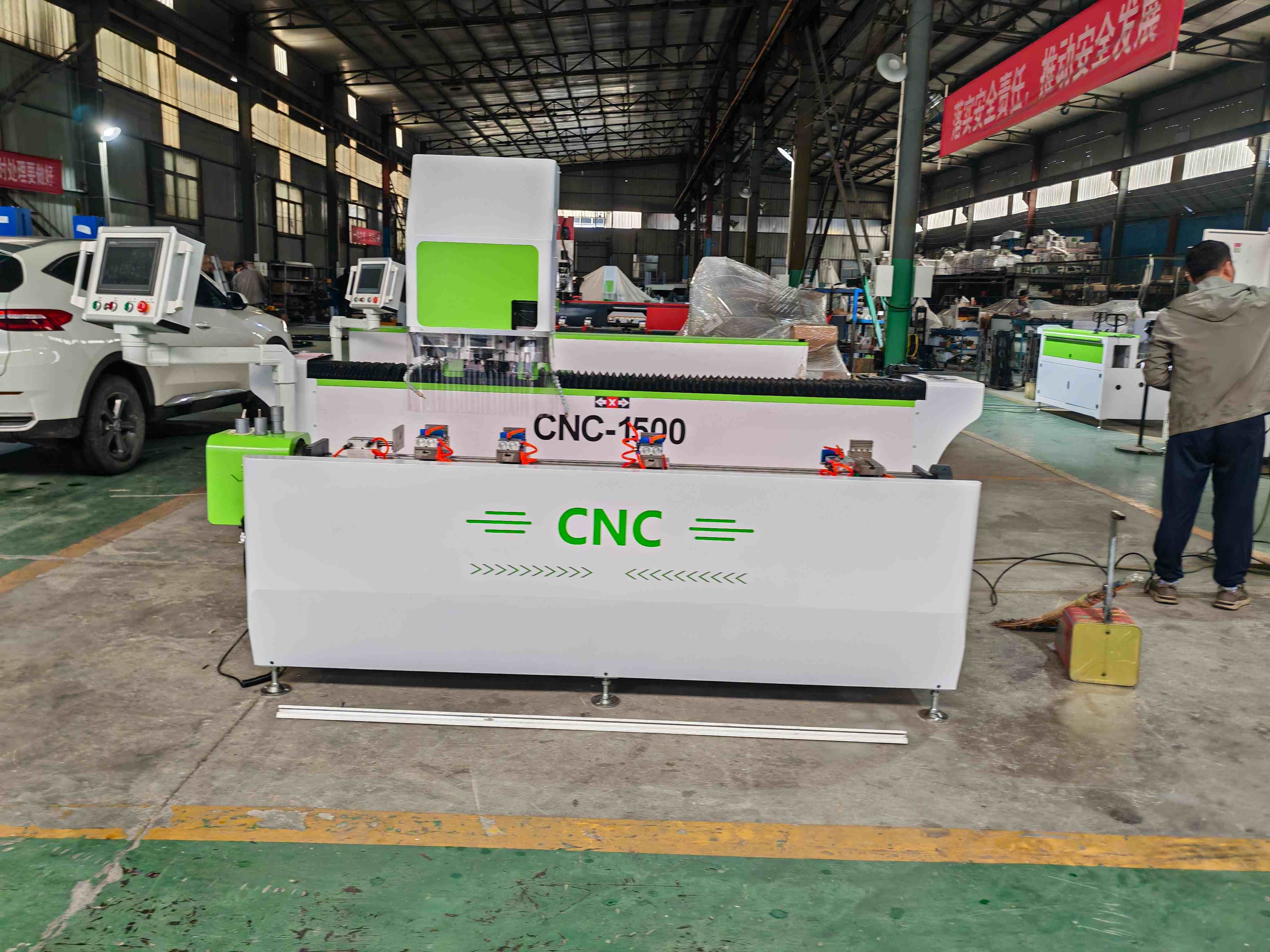

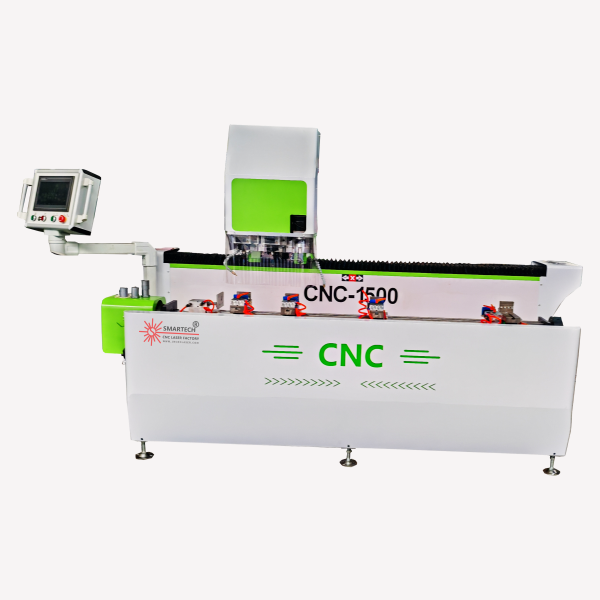

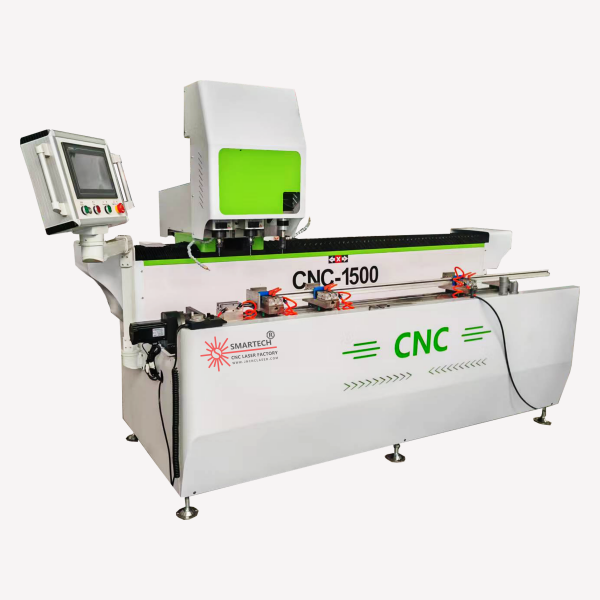

Aluminium Tapping Cnc Machine
Main performance characteristics:
*Suitable for drilling, milling, round holes, special-shaped holes, plane engraving and other processing of aluminum alloy profiles
*The system adopts Red Sea CNC System

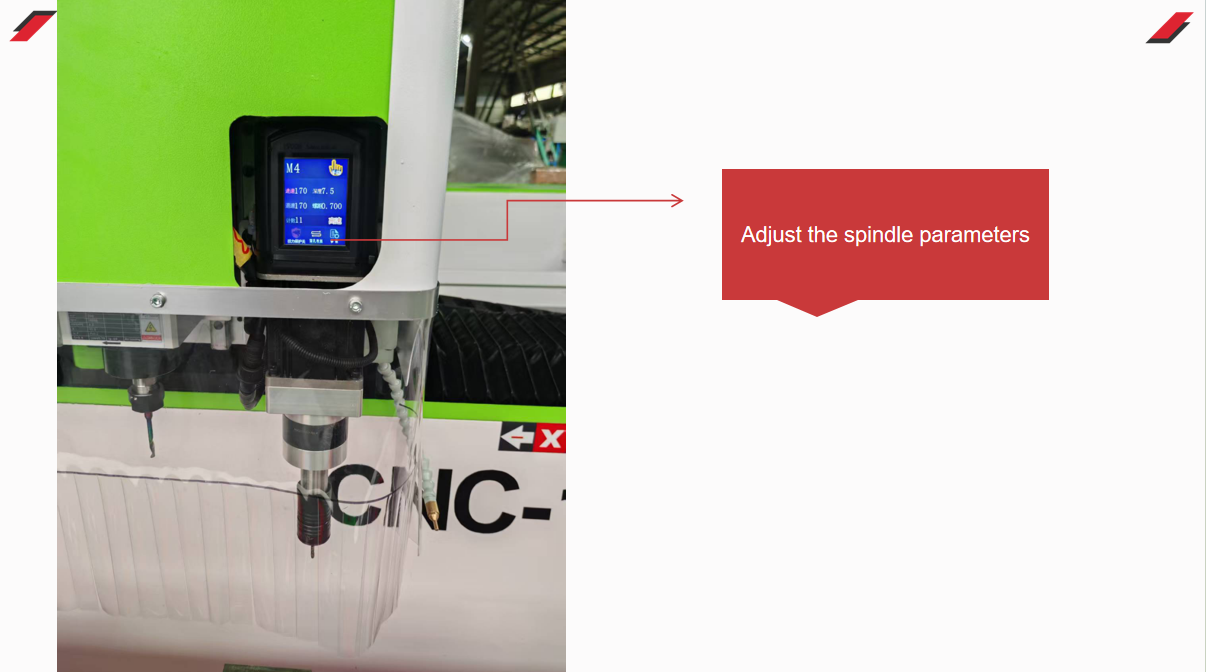

*Using electric spindle, high precision, good safety and high reliability

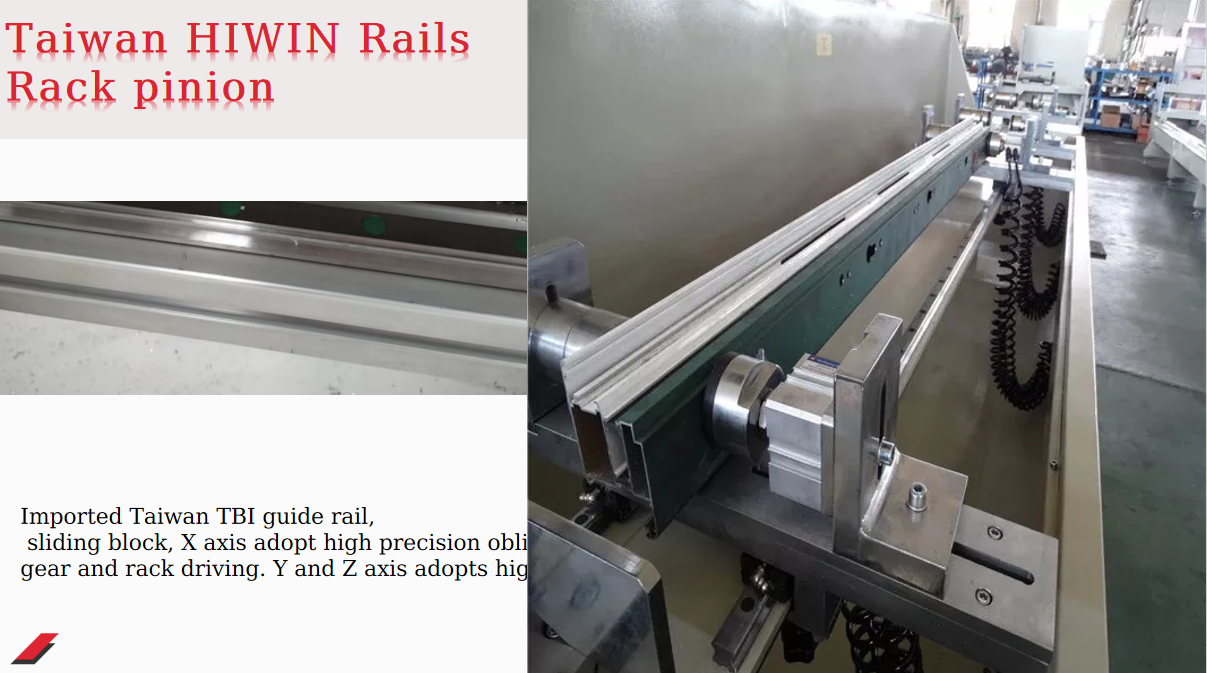

*X-axis adopts high-precision helical gear and helical rack, Y-axis and Z-axis adopt high-precision ball screw transmission, stable transmission and high precision
*Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity

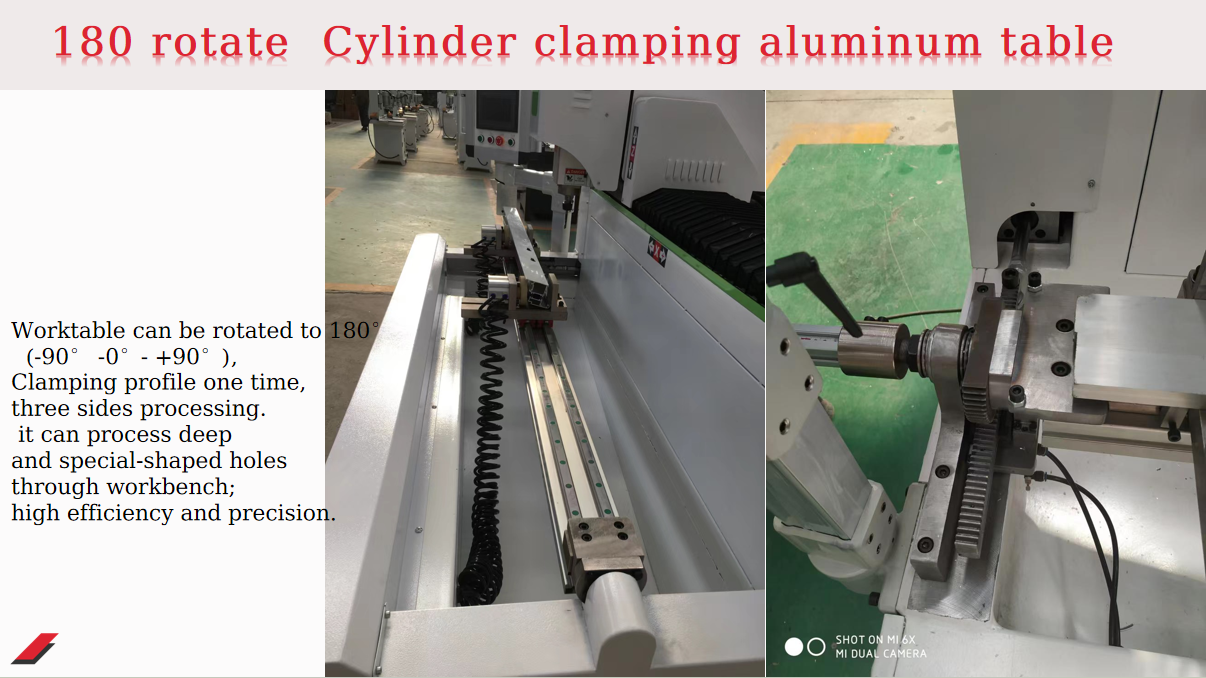

*The table is flipped 180°. -90～0°～+90°, the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the table over, with high efficiency and high precision
PRODUCT SPECIFICATIONS
| Parts Item | Parameters | Part Item | Parameters |
| CNC machine system | Customized system english | Power supply | 380V/50Hz |
| Motor | Leadshine | Spindle power | 4.5Kw*2 |
| Driver | Leadshine | Spindle Rotating | 18000/24000RPM |
| Power Supply | CHNT | Working pressure | 0.5-0.6MPa |
| Limit Switch | Omron | X axis travel | 1500MM |
| Rack Pinion | High Precision | Y axis travel | 420mm |
| Rails | HIWIN from Taiwan | Z-axis travel | 250mm |
| Spindle | HQD | Power source | CHNT |
| Spindle quantity | Double | Tool holder | ER20,ER25 |
| Inverter | Best | Turning angle | 180°. -90～0°～+90° |
| Cylinder | Hansanhe pneumatic | Weight | 2000KG |
| Electromagnetic valve | Delixi | Processing range | 3050*1900*2000MM |
PRODUCT CONFIGURATION

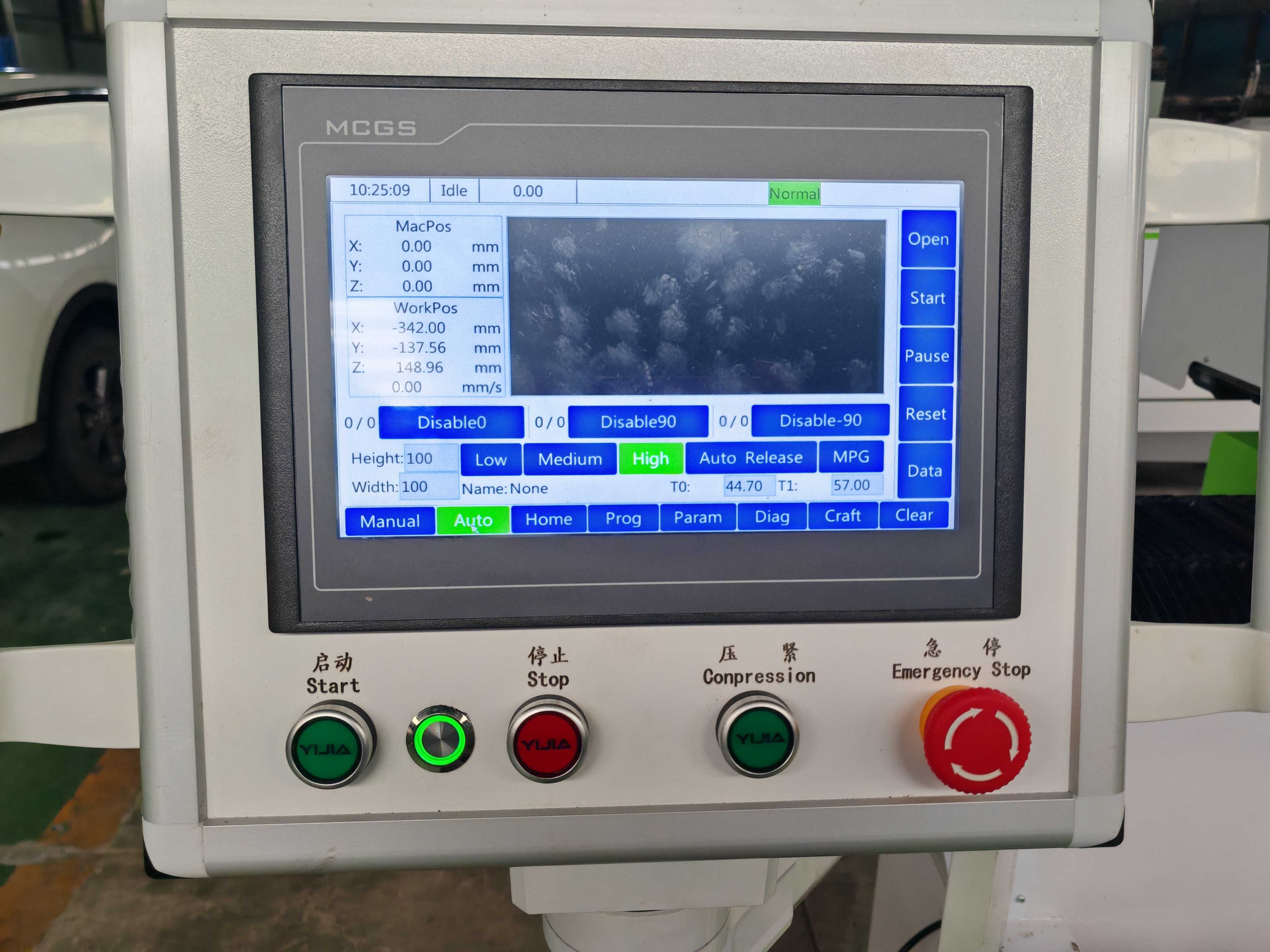

Control System-Multilingual
