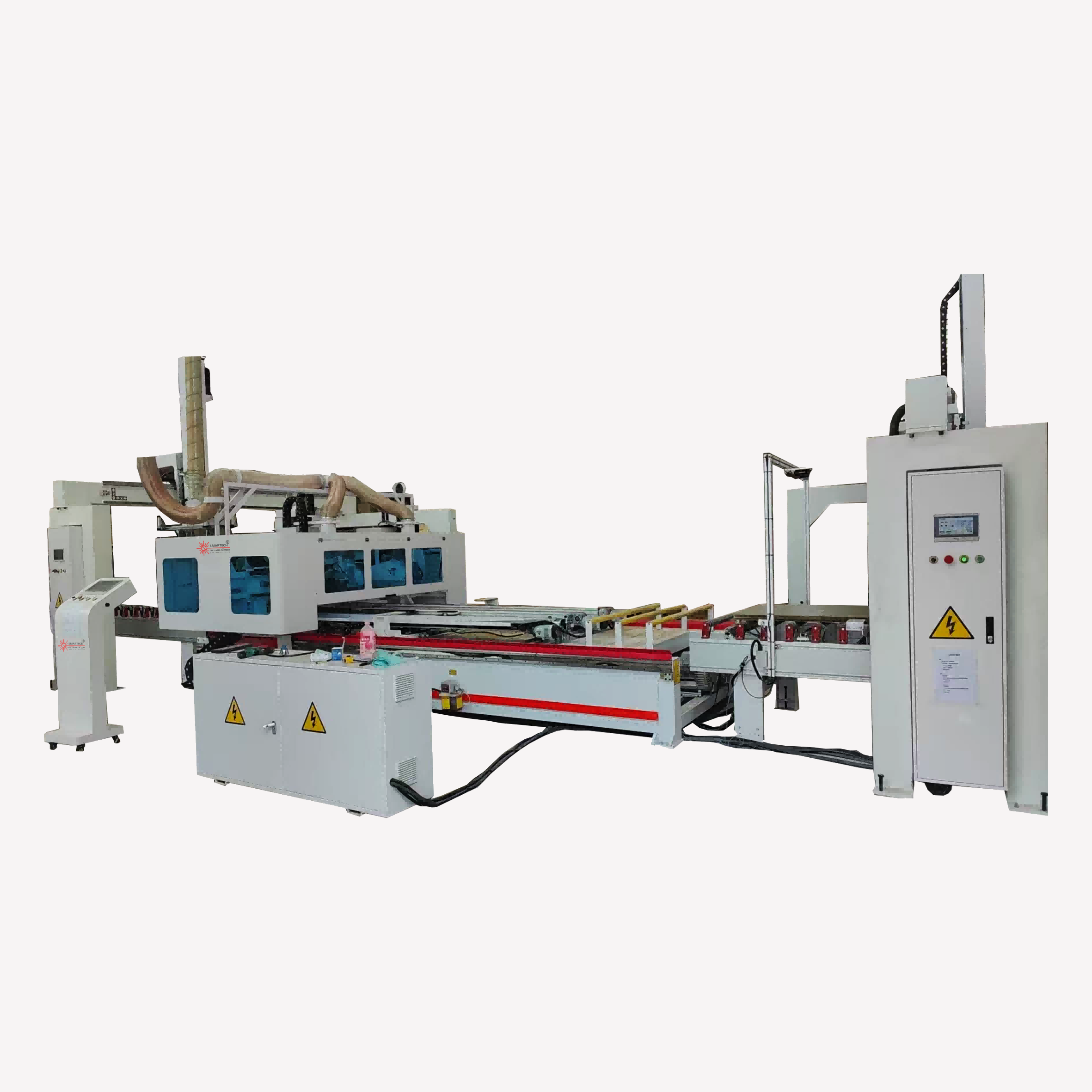

Automatic 4-Sided Edge Groove Saw for Wooden Doors High-Speed Door Profiling Trimming Machine

Mobile adsorption block
automatic adjustment of door width and length, intelligent and precise processing.

Availability:



Inquire Add to Basket

Brand:
SMARTECH

Product Description

Four-sided saw

1.Mobile adsorption block

automatic adjustment of door width and length, intelligent and precise processing.

2.Intelligent edge trimming

3 sets of sub-mother saw blades, fully automatic and precise edge trimming, prevent edge chipping, and high efficiency.

3.Automatic collection of leftovers

Movable waste collection device, automatic collection and transmission of leftovers.

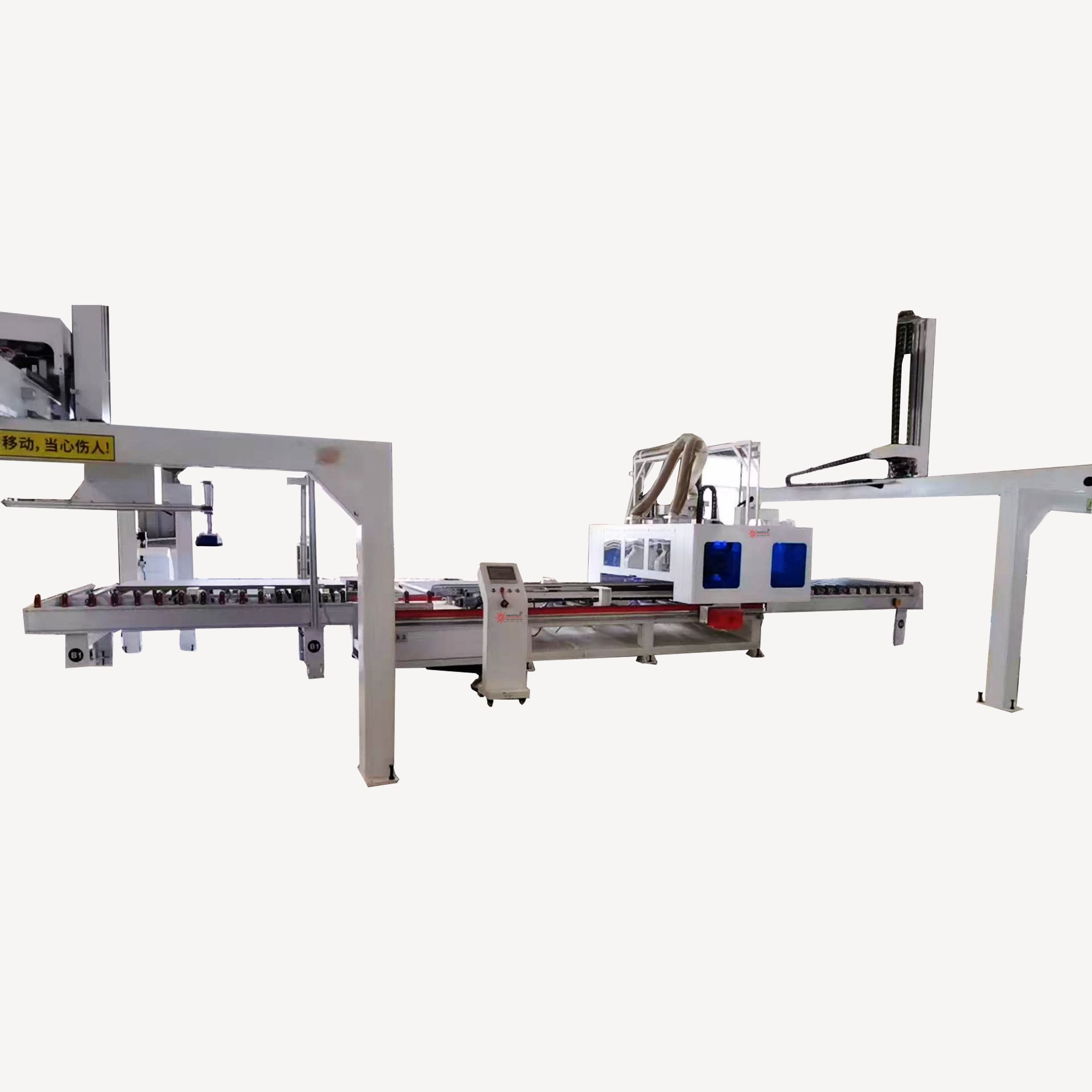

4.Pass-through type

Wooden door square four-sided saw, which can be operated with intelligent connection.

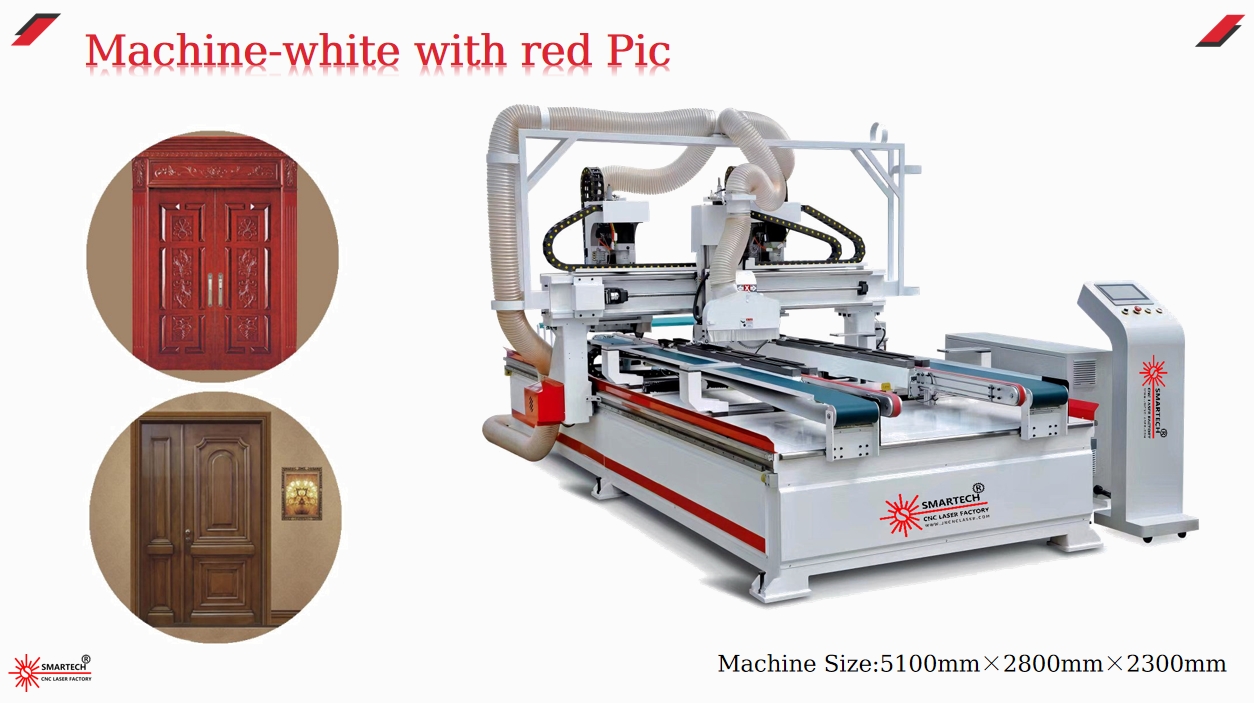

微信截图_20250807141300

Machine model	Smart-H3-MJ-T
Machine Dimension	5100mm×2800mm×2300mm
Max Processing size	1100mm×3050mm
Minimum Processing size	500mm×1800mm
Max processing thickness	35mm-65mm
Power of main saw	5.5KW×3
Power of Vice saw	1.5KW×3
Main saw diameter	D300MM-D30MM
Vice saw diameter	D120MM-D20MM
Total Power	21 KW
Max processing speed	80M/MIN
Air pressure	0.5-0.7mpa
Working voltage	380V 50HZ
Total weight	3000KG

微信截图_20250807141714

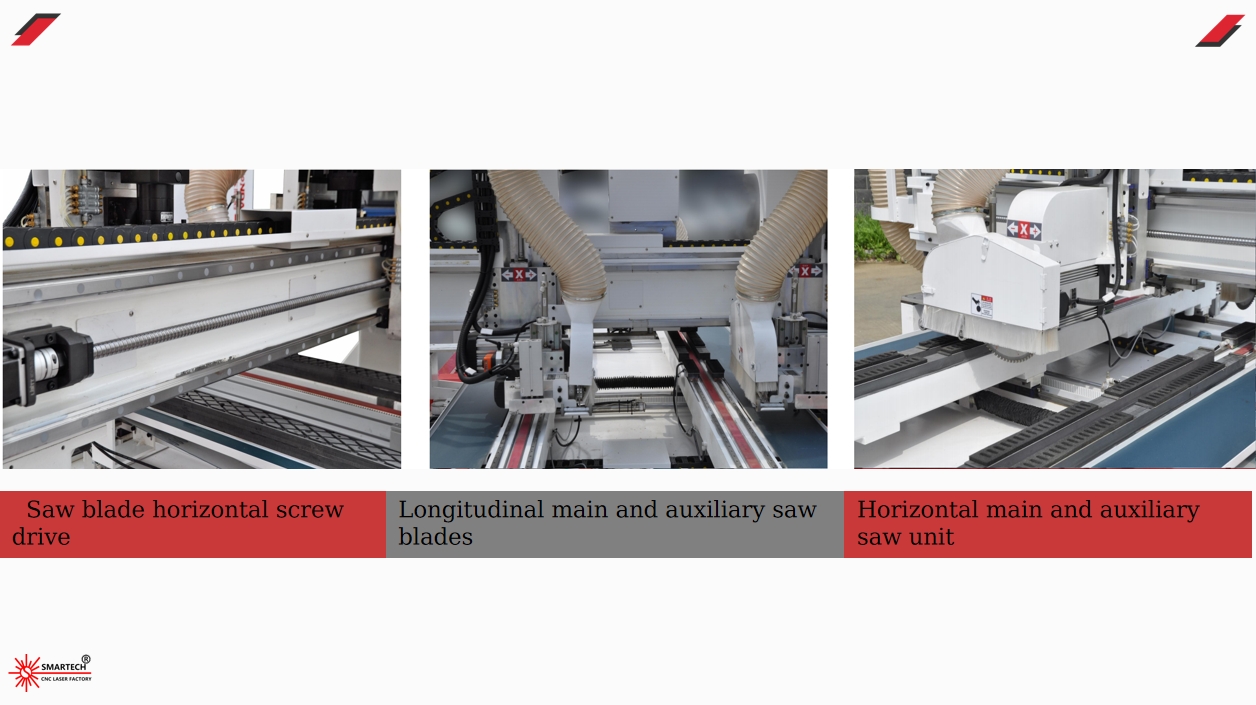

微信截图_20250807141736

微信截图_20250807141808

微信截图_20250807141914

Smart and precise

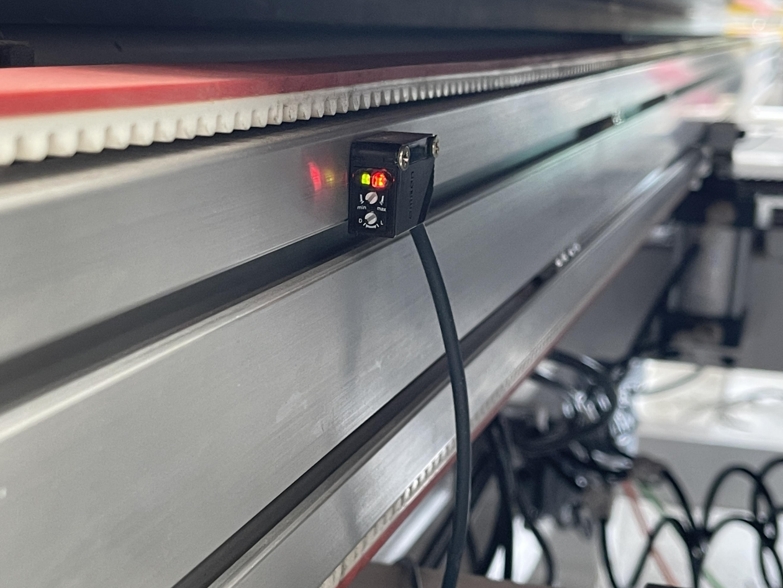

The infrared sensor has extremely high sensitivity, detects that the door panel is in place, and then controls the operation of the drive system.

图片1(2)

Wide Application

Applicable to a variety of material boards. It is suitable for horizontal and vertical sawing of wooden doors, and can easily complete the standard and square processing of painted doors, solid wood composite doors, rubber wooden doors, and ecological wooden doors. According to the actual processing mode of the factory, flexible customized connection can be carried out, and the door panel can be formed at one time, which can quickly improve production efficiency and effectively reduce labor costs
