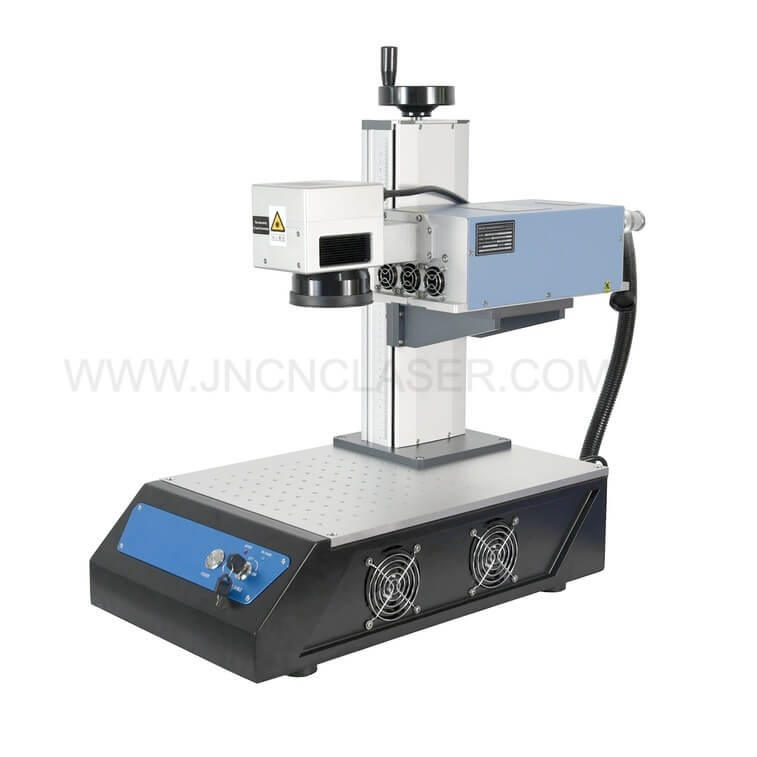

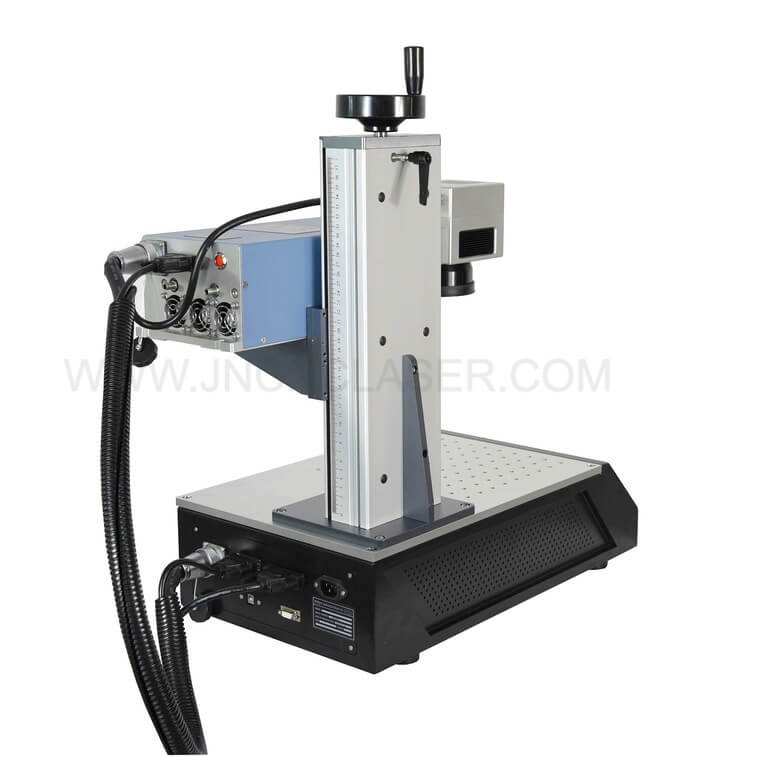

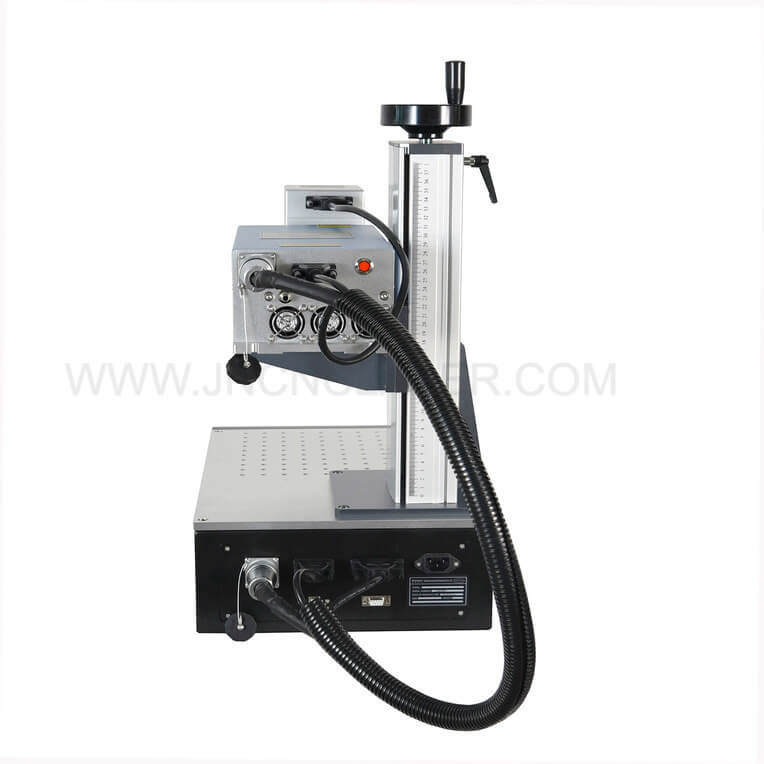

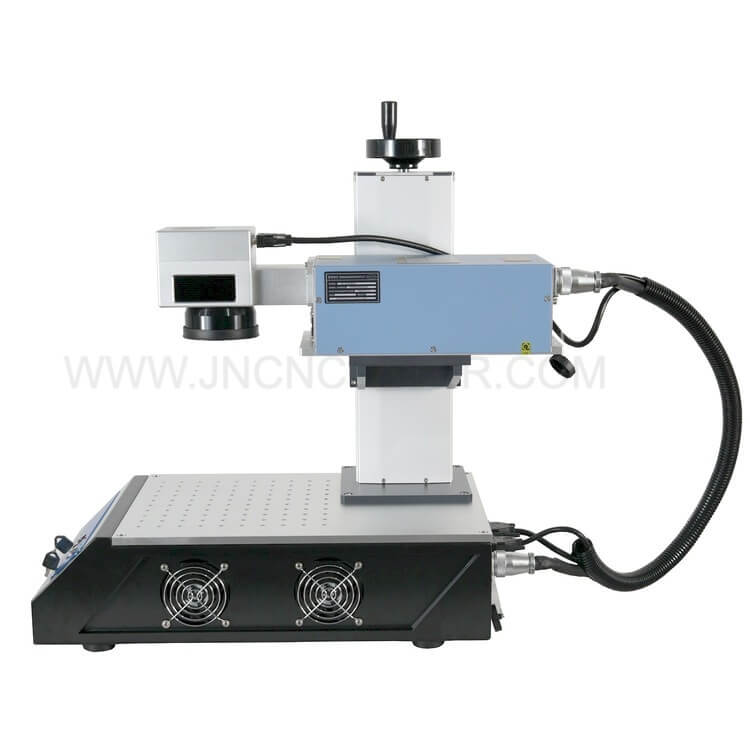

High Precision Portable UV Laser Marking Machine

UV Laser marking machine has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is suitable for processing more extensive materials.

  • SJUP Series
  • SMARTECH

UV Laser marking machine has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is suitable for processing more extensive materials.

Laser UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to coldprocess with a little heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorbultraviole laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power consumption.

High Precision Portable UV Laser Marking Machine Application:

(1) It is widely used inelectronic components, battery chargers, electric wire, computer accessories,mobile phone accessories(mobile phone screen, LCD screen) and communication products.

(2) Automobile andmotorcycle spare parts, auto glass, instrument appliance, optical device, aerospace,military industry products, hardwaremachinery, tools, measuring tools, cutting tools, sanitary ware.

(3)Pharmaceutical, food, beverage and cosmeticsindustry.

(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting orengraving,clocks and watches and glasses.

(5) It can be marked onpolymer material, majority of the metal and non-metallic materialsfor surfaceprocessing and coating film processing, pervious to light polymer materials, plastic, etc,.

Main Features:

(1) Adopting doubling technique of intravenous frequency has greatly improve the stability of laser. Designon laser cavity adoptsaseries of optimization method, so as to ensure the beam quality as the fundamental mode.


(2) The machine takes 355nm pumped purple light laser device as the light source. Narrower pulse width  and smaller heat affection contribute to generate peak power. The higher the peak power is, the wider  the adapting range of materials is. This implement perfect printing in some relatively hard material.
(3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and  high production efficiency.

(4) High efficiency of the photoelectric conversion and long service life.

(5) Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.

(6) The mark is of environmental protection, comply with RoHS standard.
(7) It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.

(8) It can mark date, bar code and two-dimension code automatically.

(9) Superior performance, good stability, high conversion rate and low energy consumption.
(10) Faster and more efficient marking efficiency.

UV Laser Marking Machine Technical Parameters:

Lasertype

UV Laser-Table Type

Response time

0.8m/s

Laserpower

3W/5W/8W/10W

Engravingarea

100×100mm

Optical maser wavelength

355nm

Marking speed

0-12000mm/s

repeat frequency

15-100HZ

Beamquality

TEM00(m2)

Spot diameter

0.02

Locatingprecision

±0.003 mm

Resettingaccuracy

±0.003mm

Workingvoltage

AC220V ±10%.50-60HZ

Operatingtemperature

0-45°C

Operatinghumidity

5-95%

MinimumcharacterEnglish

1×1mm

Communicationinterface

Windows 7/ 8/10

Coolingmode

Water cooling/air cooling

Machinesize

1200*600*1320mm

Machineweight

150KG

Packingsize

1300*700*1420mm

Weightwithpacking

140KG

UV Laser marking machine could be used for plastic marking,glass marking etc nonmetal materials marking and also the metal materials marking.Here is some of the working samples made by SMARTECH laser marker machines.
