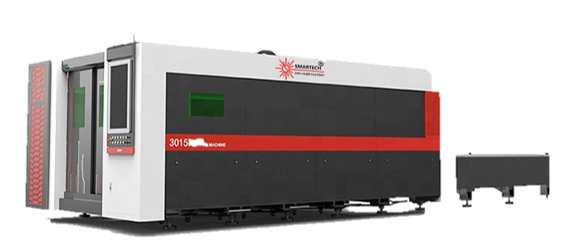

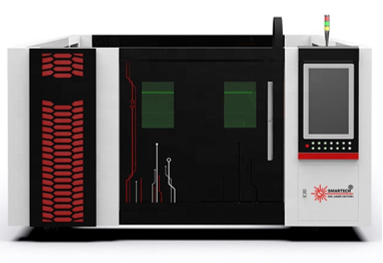

SF1530
SMARTECH
7900mm×2950mm×1900mm
6000w
General Information
Model: SF1530
Features:
1.Stability and reliability of light path and control system.
2.Laser consumption 0.5-1.5 kW/h.
3.Service life - more than 100 thousand hours.
4.Low operating cost with high and stable performance.
5.High cutting efficiency - quiet, fast and efficient cutting - up to dozens of meters per minute (sheet cutting)
6.Low deformation, smooth appearance and precise cutting edge.
Technical data
Model | S-Fiber | S-Fiber-1530 | S-Fiber-2040 |
Working Area | 2500 ×1300 mm | 3000 × 1500 mm | 4000 × 2000 mm |
Laser Type | Germany IPG /Chinese fiber laser generator Max | ||
Laser Power | 6000 W | ||
Complete machine power | 57/60 KW | ||
Maximum XY axis Acceleration | 2.0 G | ||
Beam Quality M2 | < 0.373 | ||
Positioning Accuracy | ≤ ± 0.03 mm/m | ||
Re-positioning Accuracy | ≤ ± 0.02 mm/m | ||
Max Cutting Speed | 0-40 m/min (depending on material and thickness) | ||
Power Supply Voltage | 3-phase 380V/50Hz | ||
Model | S-Fiber-1325 | S-Fiber-1530 | S-Fiber-2040 |
X-axis Stroke | 2500 mm | 3000 mm | 4000 mm |
Y-axis Stroke | 1300 mm | 1500 mm | 2000 mm |
Z-axis Stroke | 120 mm | ||
Working Table | Rack working platform | ||
Control System | FSCUT CNC control system | ||
Location System | Red dot indicator | ||

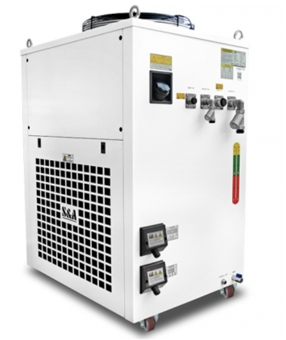

Water Cooling System | Constant temperature water chiller | ||
Machine Weight | 2000-12000 kg | ||
X-axis Stroke | 2500 mm | 3000 mm | 4000 mm |
Machine Dimension (m) | 7.4×2.45×19+1.2×0.8×1.2 | 7.9×2.95×1.9+1.2×0.8×1.2 | 8.6×3.45×1.9+1.2×0.8×1.2 |
Remark | Automatic exchange worktable, cover(option) | ||
Machine & Parts

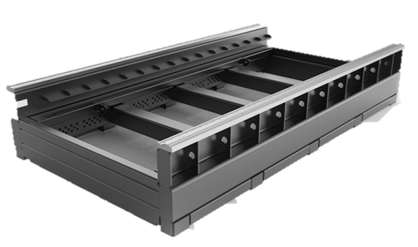

The Segmented steel sheet Welded Bed
High strength, stability, tensile strength, ensuring 20 years of use without distortion;
Cypcut operating system
advanced technology, suitable for all kinds of material cutting, remote control option
Security/stability
Lenovo computer licensed software.

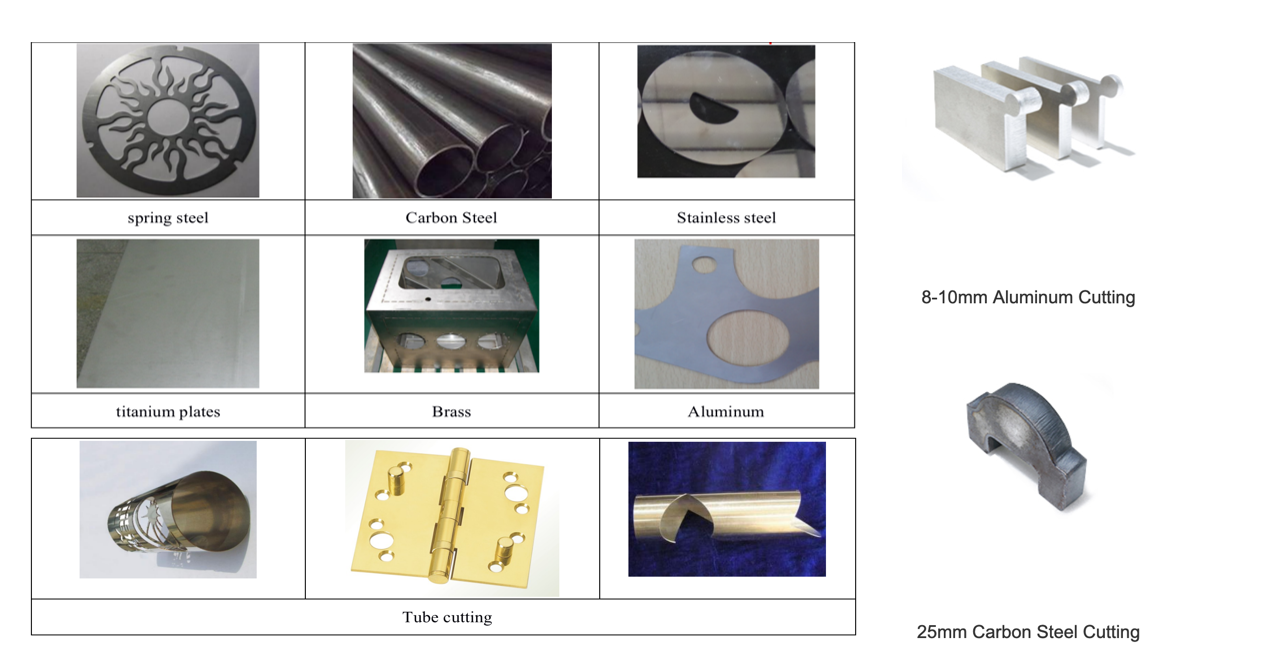

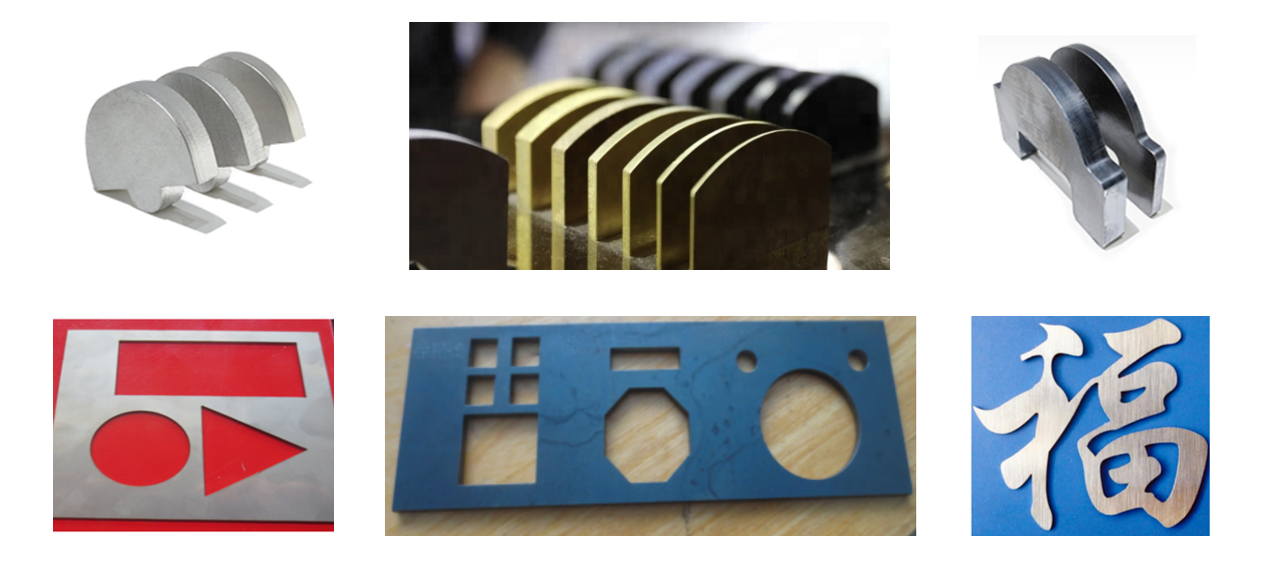

Processed samples
