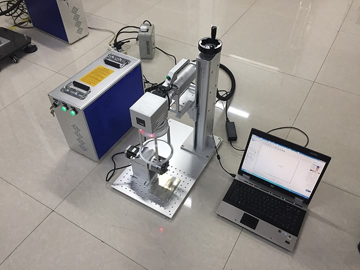

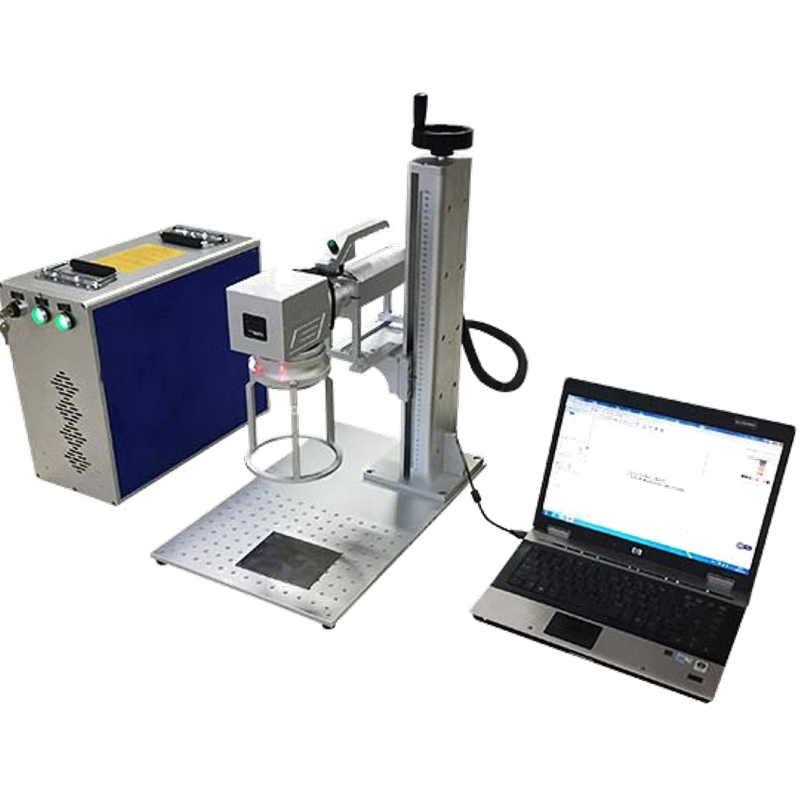

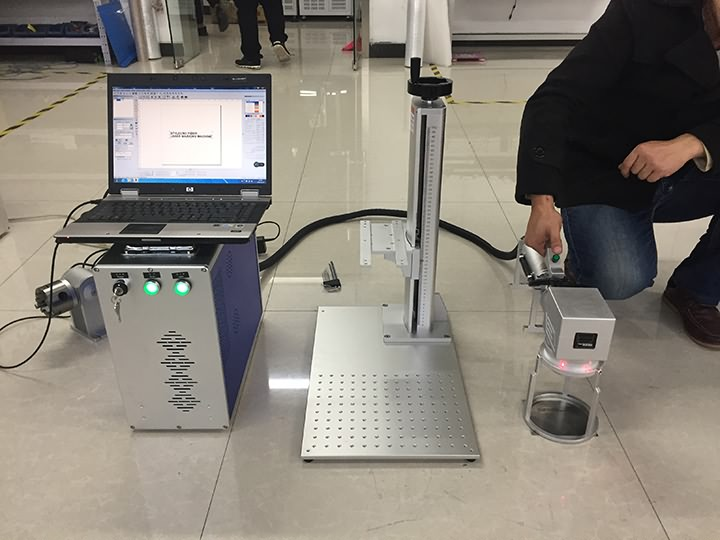

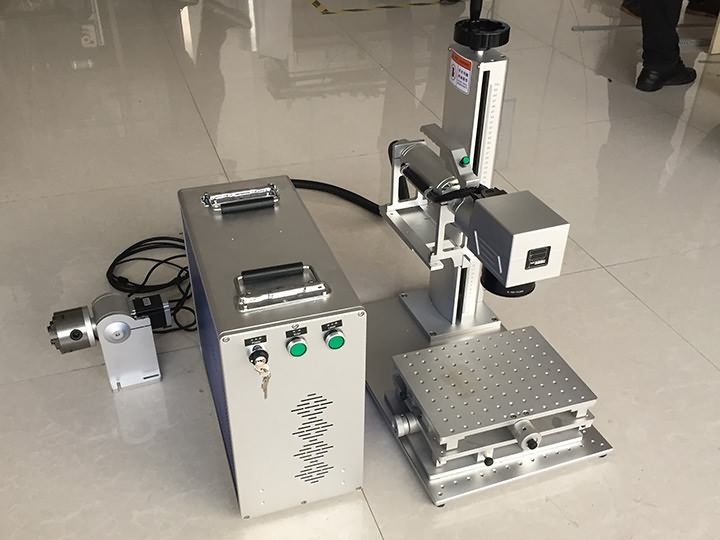

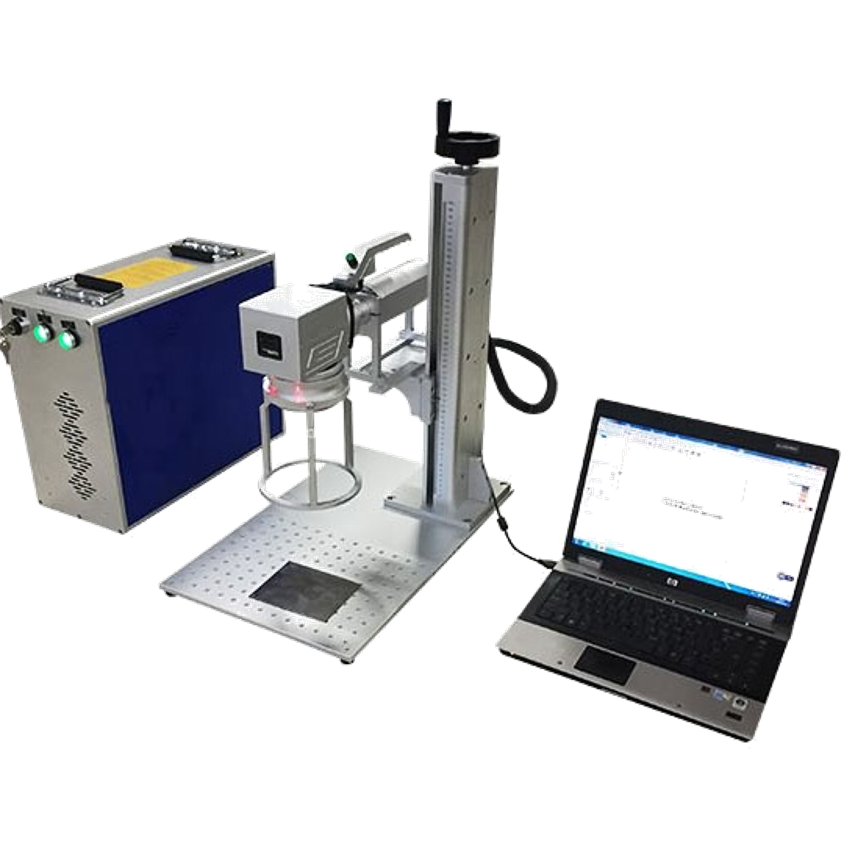

Fiber Laser Marker Etcher Professional Fiber Optic Engraving System

Very easy to operate,comes with user manual.Machine support six languages,USA English,
English,Japanese,Korean,Chinese,complex Chinese.

Availability:



Inquire Add to Basket

Brand:
SMARTECH

Product Description

Fiber Laser Marker Etcher Professional Fiber Optic Engraving System

Features:

Very easy to operate,comes with user manual.Machine support six languages,USA English,
English,Japanese,Korean,Chinese,complex Chinese.

*Main functions of the software:

� Users can design their graphics freely.

�Various types of fonts are supported. Such as SHX,JSF(Single line font defined by EzCad2), DMF(Dot Matrix), One-Dimensional/Two-Dimensional bar code etc)

� Flexible variable text: changes the text real time while in laser processing Excel data sheet is supported.

� Can through the serial port and network direct read text data

� Strong node editing function make the curve modification more easier

� The software can support 265 “pencils”, which used to draw graphic and can be set different processing parameters.

� Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
� Common vector images are supported. (ai, dxf, dst, plt…

� Image processing (Grayscale, White / Black Transformations)
� Powerful hatching functions, such as support round hatch.

� More convenient IO operations and more easier to harmonize the auxiliary equipment.

� Supports the dynamic focus (3 axis processing system)

� An opening language supporting system makes it easy to run the software in various languages plat form.

PRODUCT SPECIFICATIONS

Model	Smart-F Series 10W/20W/30W /50W
Laser power	Fiber 10W/20W/30W/50W air cooling
Working area	100*100mm (160X160 or 300x300mm or customized available)

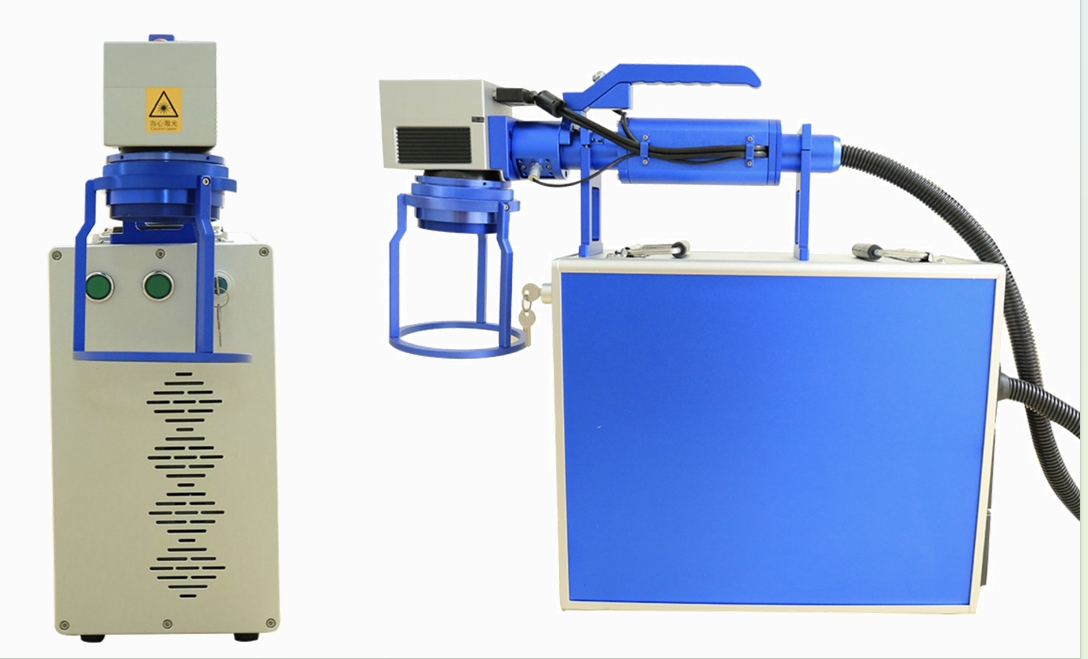

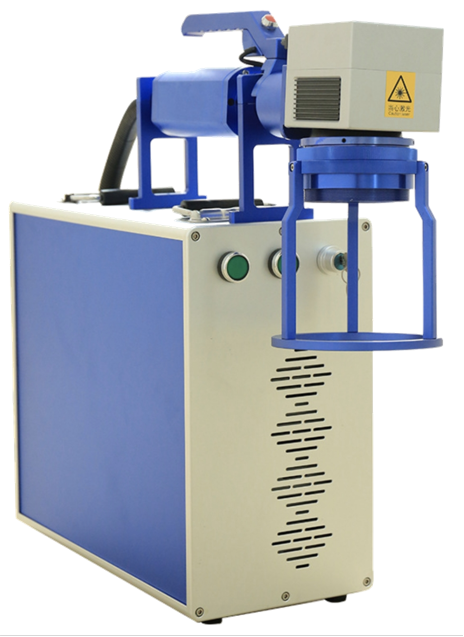

Weight(Table model)	350KG( table type)/80KG(Portable type)
Power	Raycus /IPG/JPT/MAX/UV/CO2
Laser / PC Connectivity	USB connection

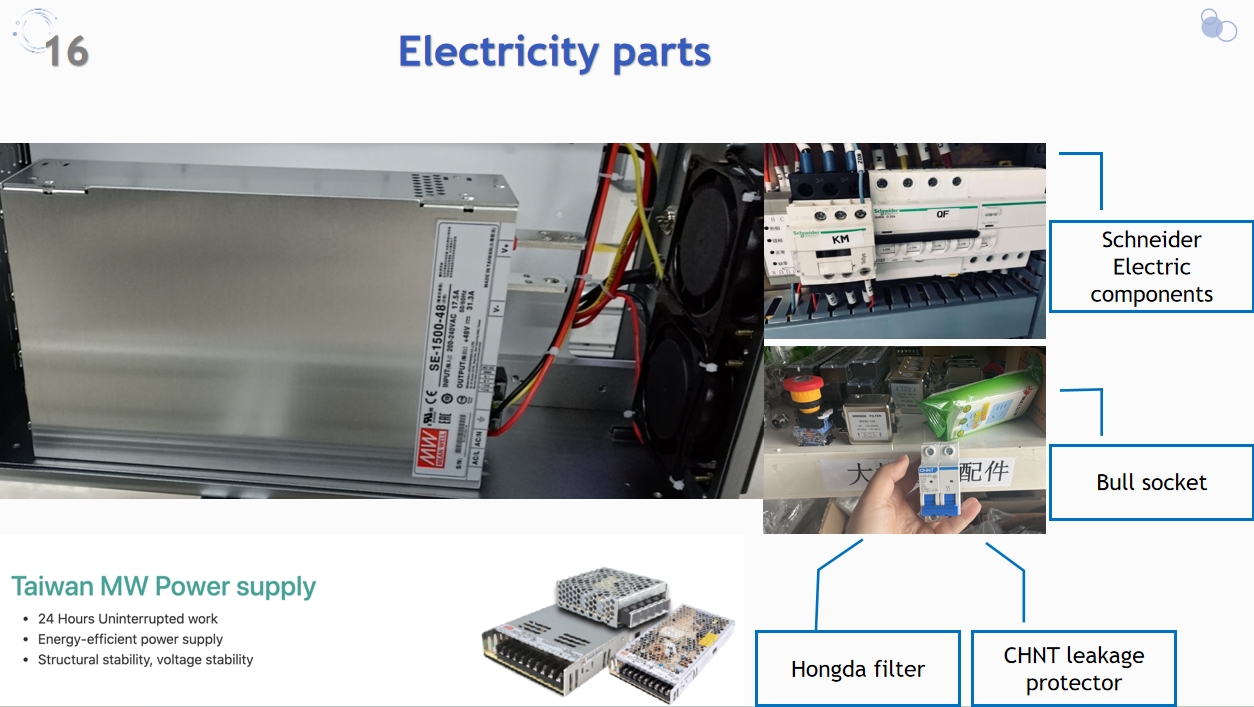

Power supply	Taiwan mean well
Response time	0.03ms
Frequency of pulse	20-100KHz
Scanning Speed	0-10000mm/s
Marking speed	≤10000mm/s

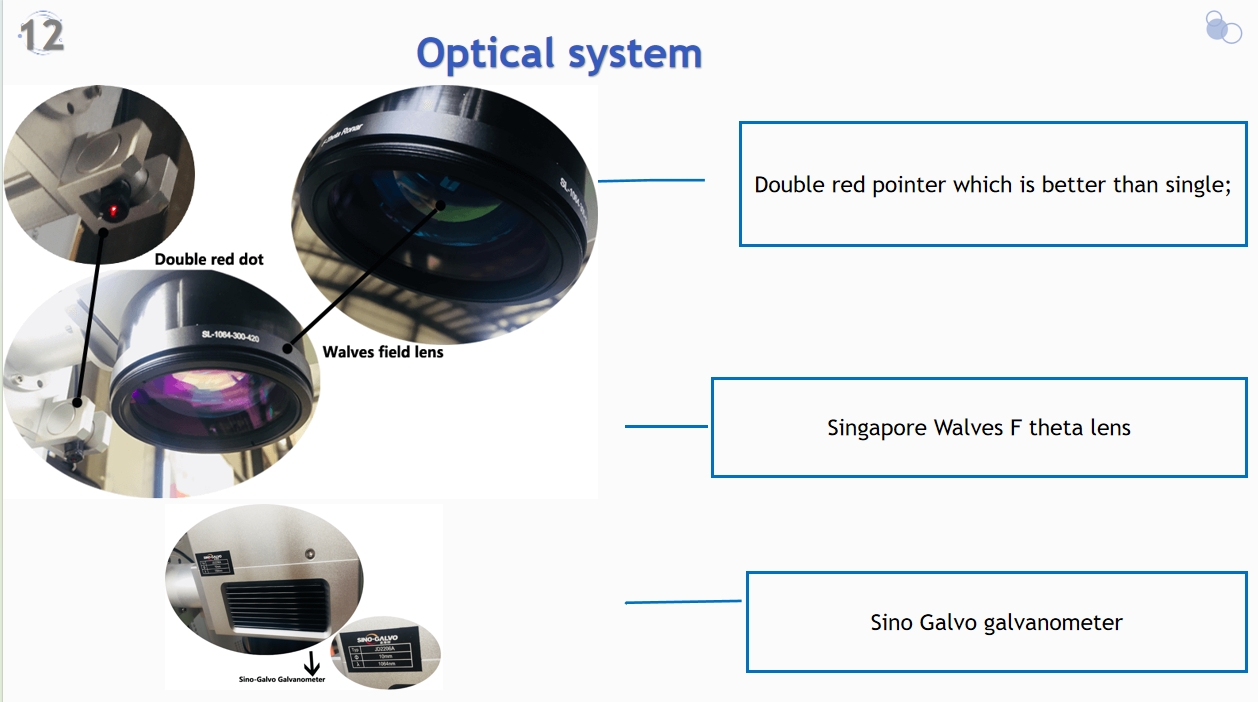

Spot size	≤40 micron (F-theta 160)
Marking lines	1-10 lines(in the marking area)
Energy per pulse (PRR = 20 kHz)	0.95 mJ
Laser switching ON/off time	180 μsec

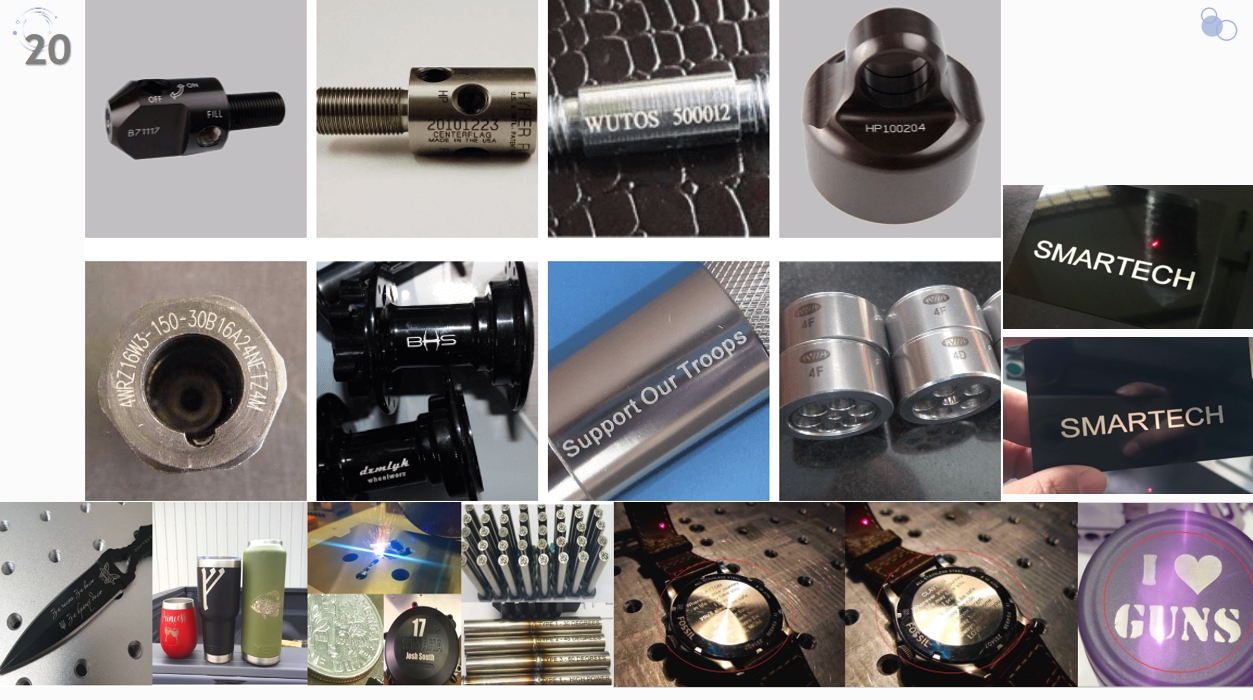

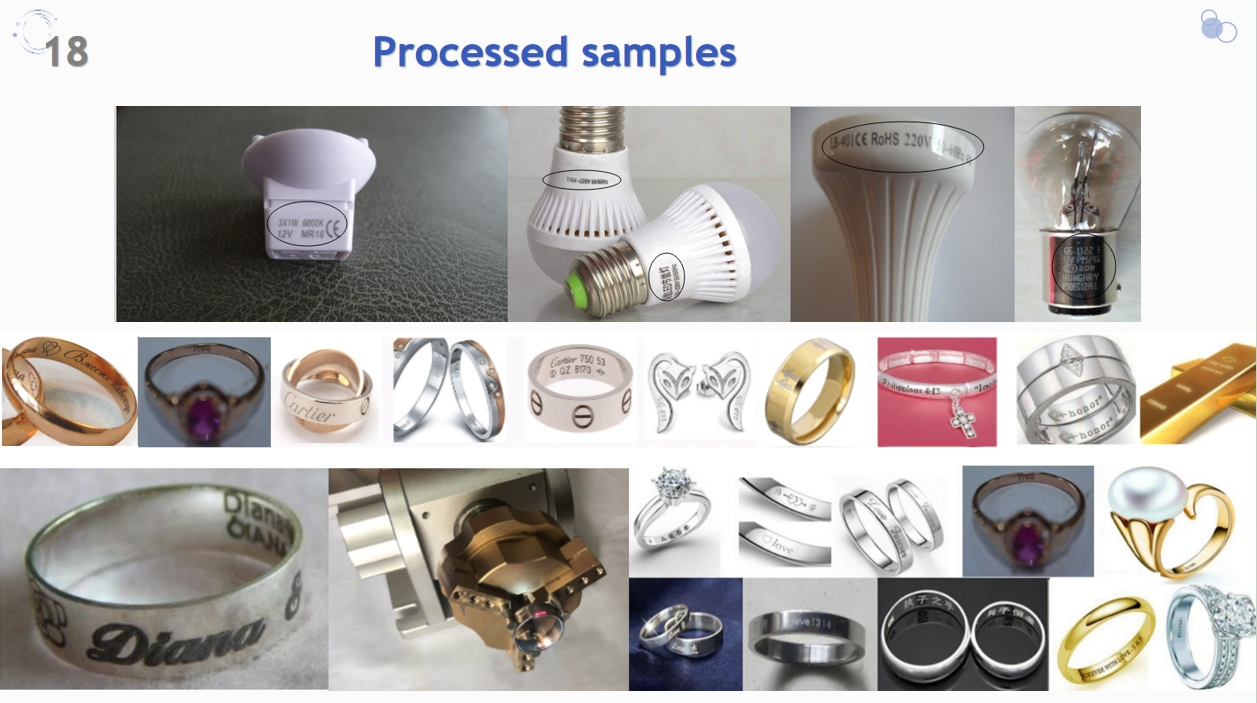

Marking content	Text,pattern,date,bar code,etc

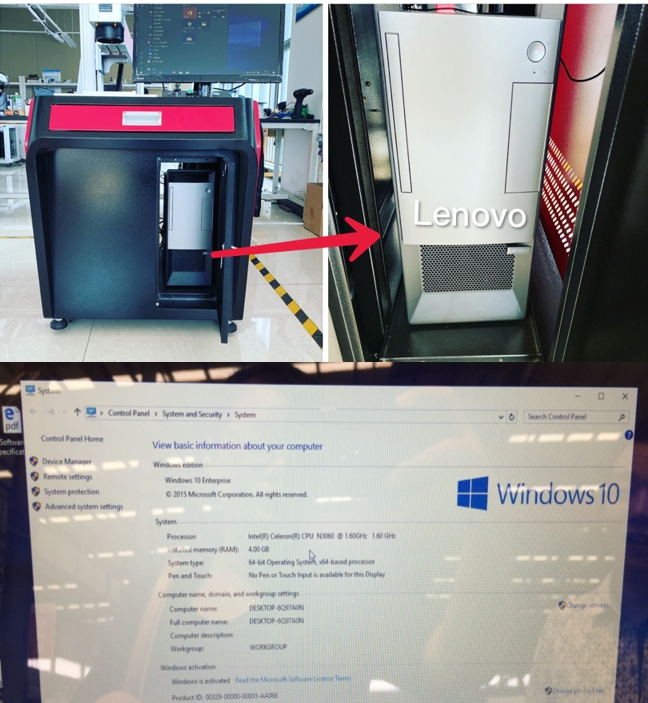

Operation system	Original JCZ which support Win10/win8/win7/xp
Control software	EZCAD control software
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt, PRN, PSD, TIFF and AI etc
Unit power	≤1.2KW
Operation temperature	5℃-40℃
Continuous working time	≥16h
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A /380V/110V All available
Packing size	9007901550mm/870X500X720mm(Table type/portable type)
