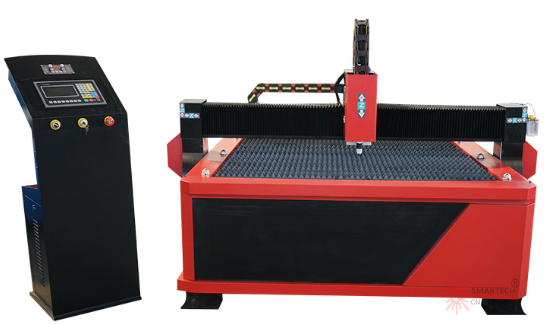

CNC Plasma machine features:
1. Steel structure automatic cad plasma cutting machine is processed by precision machine tool and aging treatment, which is firm, reliable and durable.
2. The three-axis movement adopts imported high-precision guide rails, helical racks, and the X-axis aluminum design mold. Ensure the stability of the automatic cad plasma cutting machine at work.
3. High-speed stepper motor and driver, Y axis adopts dual-motor drive, which enables high-speed operation up to a blank line speed of more than 20 meters, and a high-power spindle can greatly increase the engraving speed.
4. When cutting with an automatic cad plasma cutting machine, if the plasma torch breaks at any point, remove the torch from the machine and adjust the torch, the torch will automatically return to the break point
5. Plasma torch power supply and supporting all well-known brands, many national patents are provided by manufacturers.
6. Advanced material inclined discharge design.
CNC Plasma parameters:
Item | Industrial cnc plasma cutting machine | ||
Model | SP-1325 | SP-1530 | SP-2030 |
Working area | 1300 *2500mm | 1500 *3000mm | 2000 *3000mm |
Repeatability
| ±0.05mm | ||
Working precision | ±0.3mm | ||
Transmission
| X，Y Taiwan Hiwin guide rails Z axis arc control | ||
Maximum cutting speed | 15000mm/min | ||
Working voltage | AC220 / 380V 60HZ | ||
Control system | Start/Starfire controller with arc system | ||
Support software | FASTCAM，Auto CAD | ||
Format code | G code | ||
Drive system | Stepper / servo for option | ||
Power supply | HUAYUAN 60A-200A USA Hypertherm 60A-200A | ||
Cutting ability | CHINESE POWER 0.5-25mm USA Power max series 0.5-30mm | ||
Working pressure | 0.65-0.7Mpa | ||

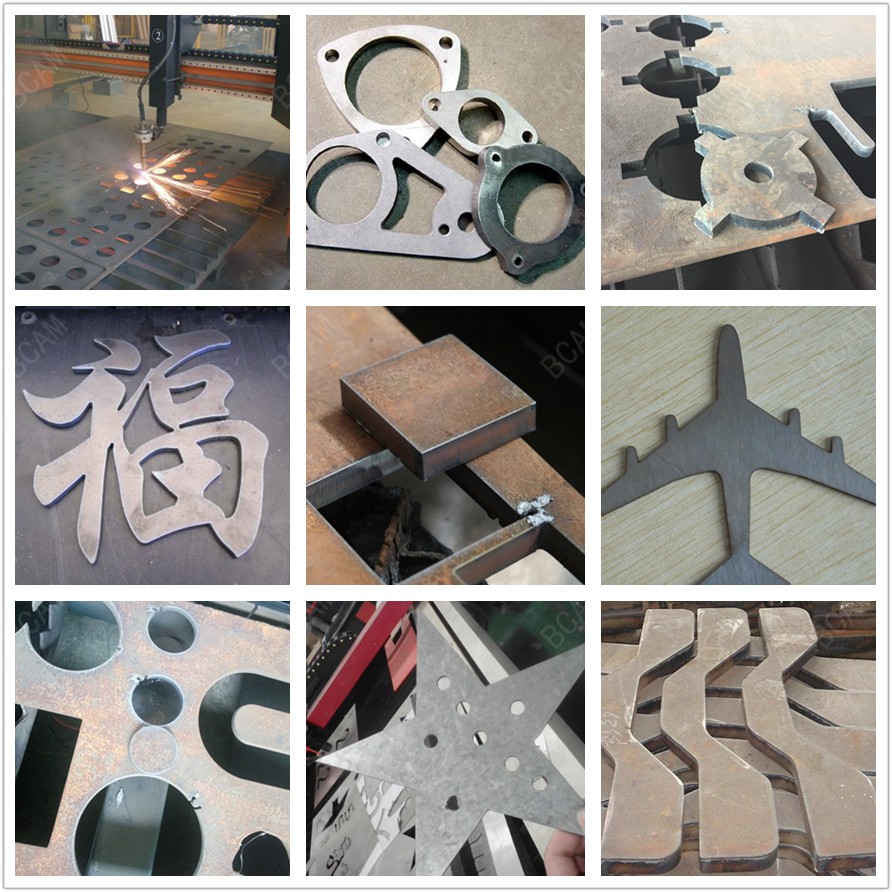

Application materials: stainless steel, low carbon steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc.
Application industry: sheet metal, kitchen utensils, parts, decoration industry, electro mechanical products, advertising signs, gardening iron, automobile manufacturing, shipbuilding, electrical appliances, sheet metal cutting.
FAQ
1. Payment term:
1.T/T (30% of the total amount paid in advance, the balance paid before delivery.)
2. Via Alibaba
Letter of credit (at sight)
Have you ever exported this automatic cad plasma cutting machine before?
We have been working in this field for 13 years. We have CE, CO, ISO, FDA certificates and have exported to Europe, South America, Arabia, Asia, Russia, Spain, Australia and many other countries.
3. How to operate?
There are English manuals or guide videos showing how to use the machine.
If you still have any questions, please feel free to contact us via email / phone / online service.
4. What is the minimum order quantity of this automatic cad plasma cutting machine?
1 set of machines, mixed orders are also welcome.
