Tips here to help you choose the best laser marking machine
*Main functions of the software:
� Flexible variable text: changes the text real time while in laser processing. Excel datasheet is supported. � Can through the serial port direct read text data � Can through the network direct read text data � Strong node editing function make the curve modification more easier � The software can support 265 “pencils”, which used to draw graphic and can be set different processing parameters. � Common types of images are supported. (bmp, jpg, gif, tga, png, tif…) � Common vector images are supported. (ai, dxf, dst, plt…) � Image processing (Grayscale, White / Black Transformations) � Powerful hatching functions, such as support round hatch. � More convenient IO operations and more easier to harmonize the auxiliary equipments. � Supports the dynamic focus (3 axis processing system) � Supports directly the SPI G3 fiber laser and the newest IPG_YLP and IPG_YLPM fiber laser � An opening language supporting system makes it easy to run the software in various languages platform.
FEATURES AT A GLANCE
Standard parts come with machine
Model SJC30/SJC50/SJC80
Laser Type CO2 /Fiber Laser
Laser Output Power 30W/50W/80W For option
Laser Wavelength 1064um
Marking Area 110×110mm / 160*160MM/220*220MM/300*300MM
Marking Speed <=8000mm/s
Minimal Character Size 0.2*0.2mm
Minimal Line Width 0.1mm
Power Supply 110v/220v/380v
Cooling Method Air-Cooling /Water cooling
Repetition Rate 0~50KHz
Bitmap Format BMP, JPG, PNG, TIF, PCX, TGA, ICO, PNG, GIF, PLT, etc.,
Power Consumption <2 kw
Red Pointer Yes, with red pointer
Field Lens Data F100M F160M F210M F254M
Focus Distance 100mm 160mm 210mm 254mm
Marking size 70*70mm 110*110mm 145*145mm 175*175mm
Optional part:(For some special working demands.)

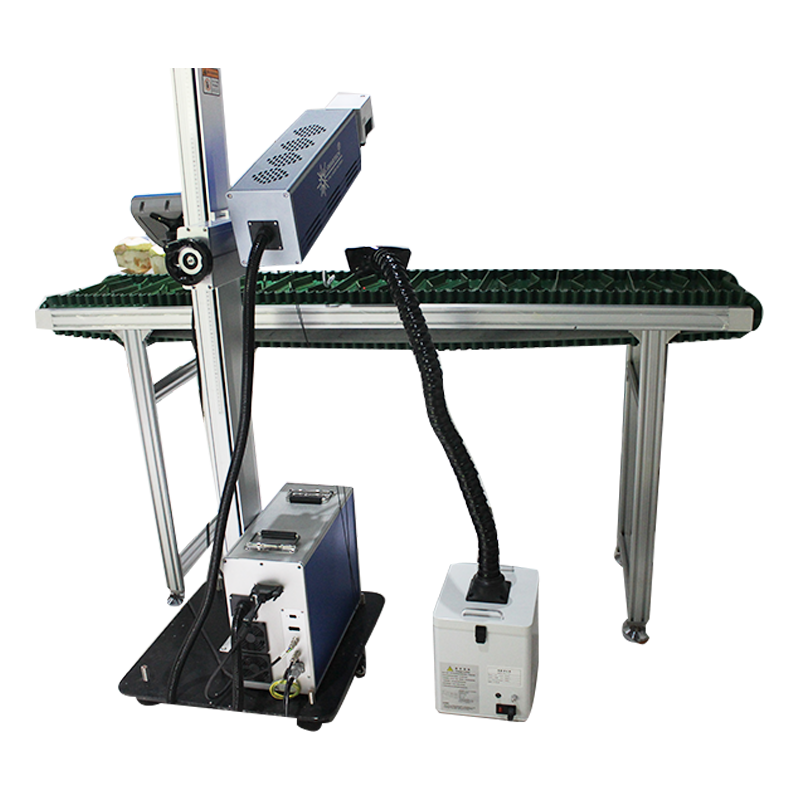

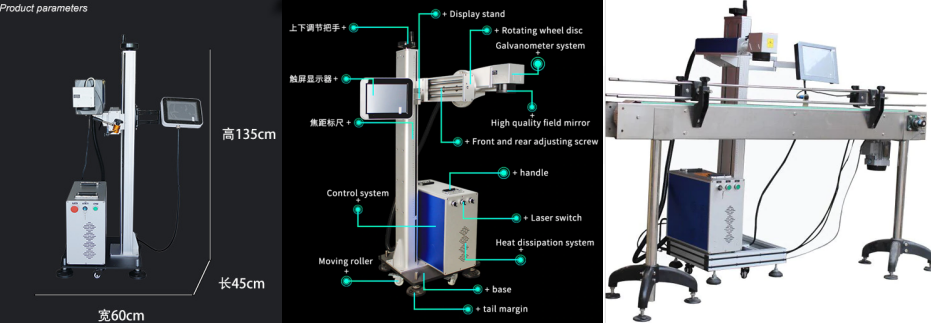

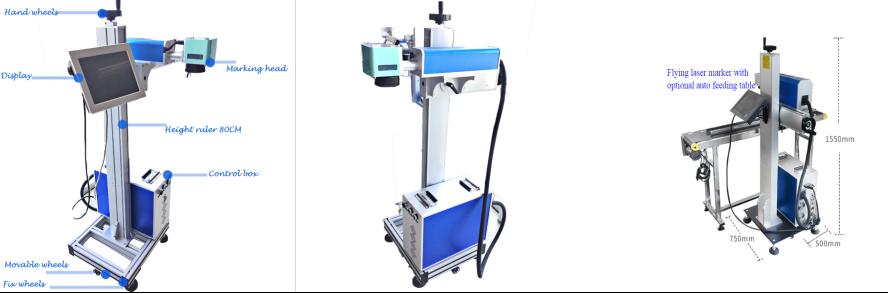

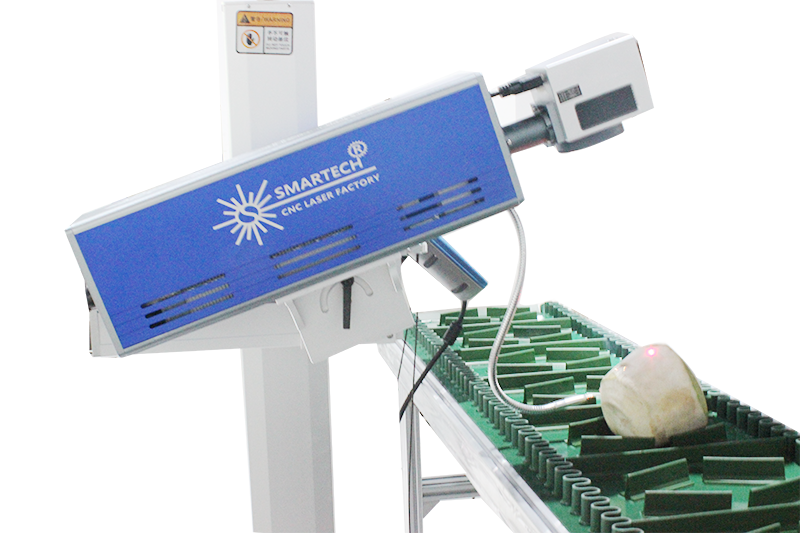

Detail description of Flying Laser Wire Marking Machine

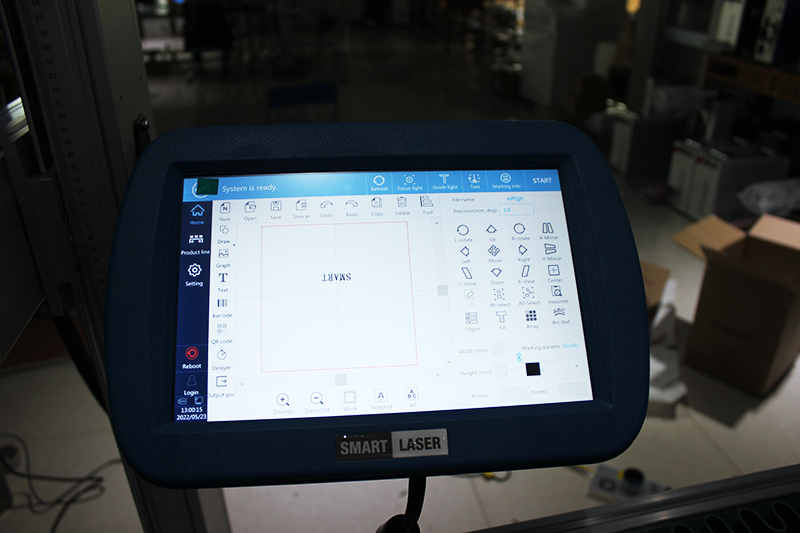

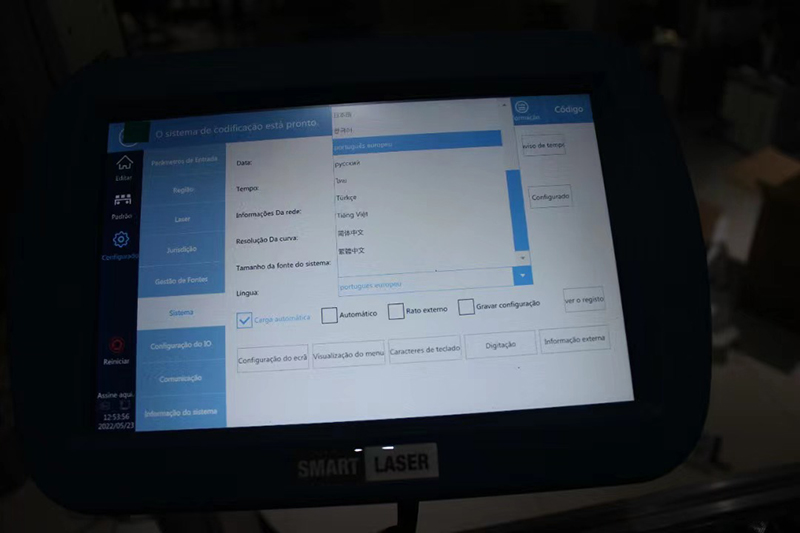

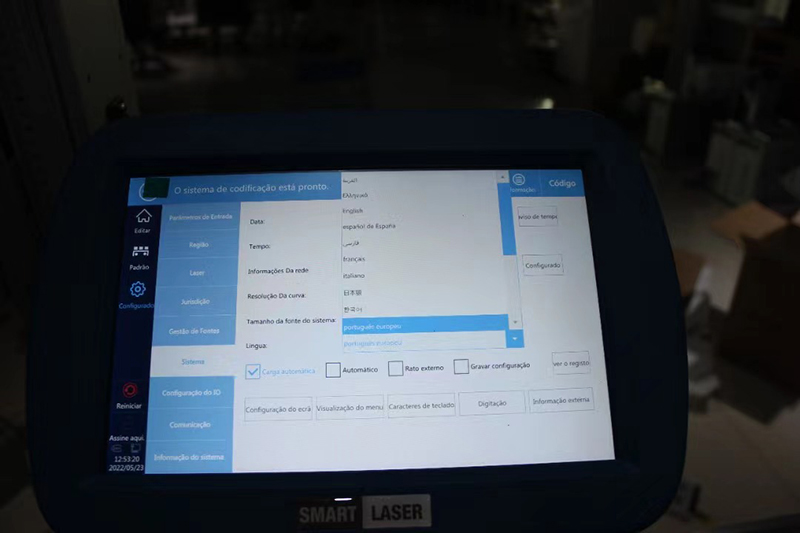

LCD Touch Screen
Software installed on the LCD touch screen. The marking speed, power, frequency..all can be adjusted on the screen. It is very convenient.
Perfect Laser all use latest version laser marking software. This software is ease-of-use, automation, database integration and vision inspection meet the needs of your project.

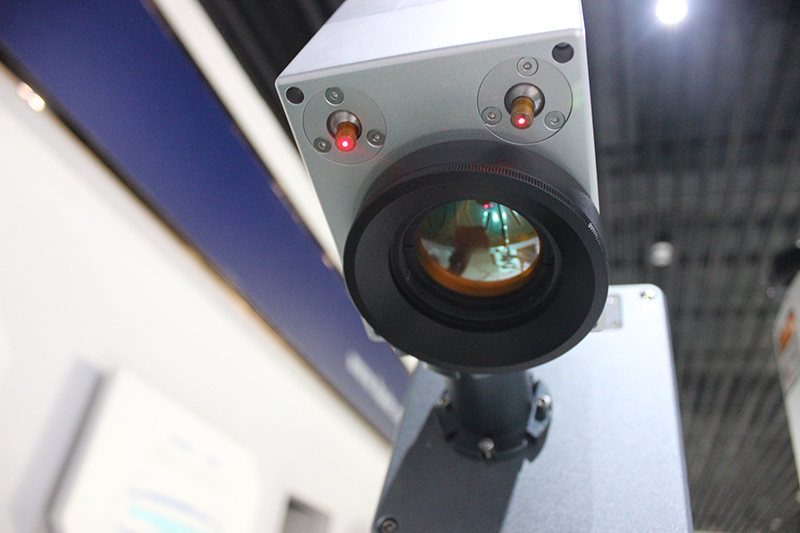

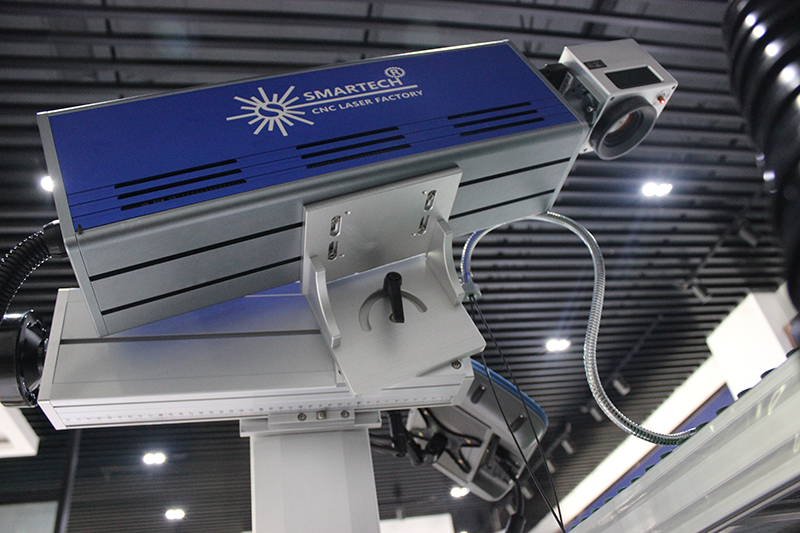

High Speed Galvo Head
Speed can reach 8000mm/s, which can suitable for various speed production line.
Rolling Wheel
Easy for moving
Lifting Handle Design
Shake Hand Wheel
Laser Focus Distance can be Adjusted Easily
Operation is Simple and Convenient.

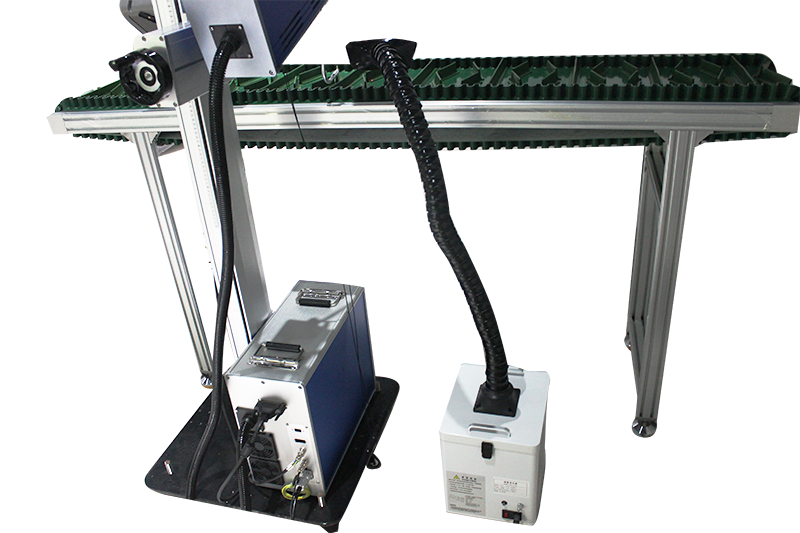

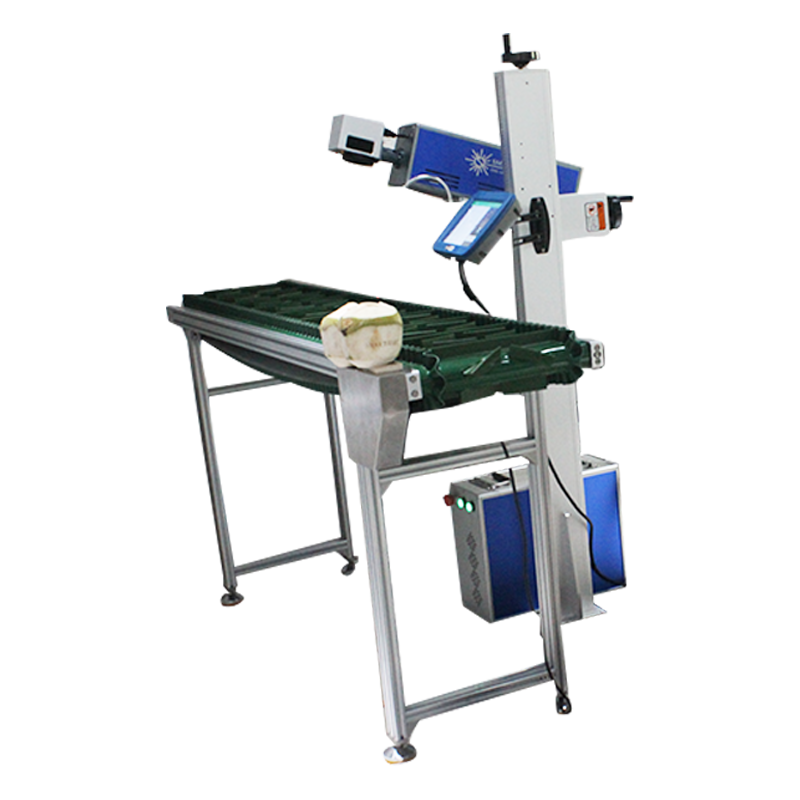

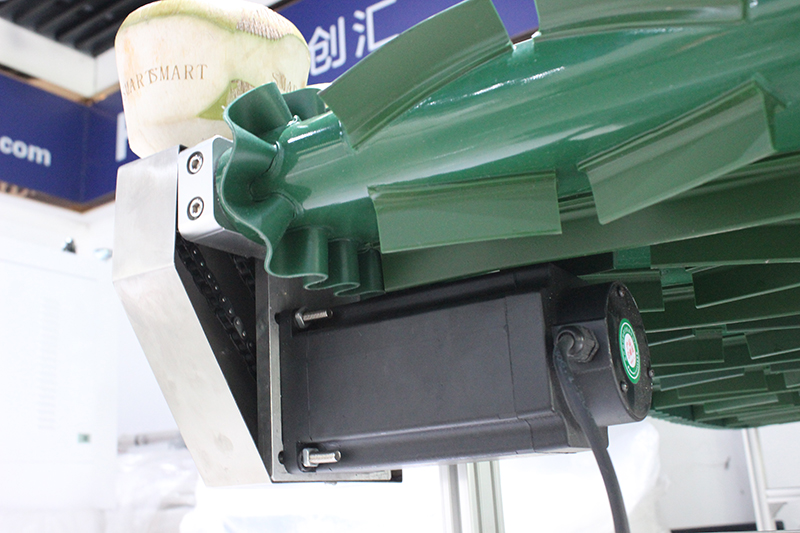

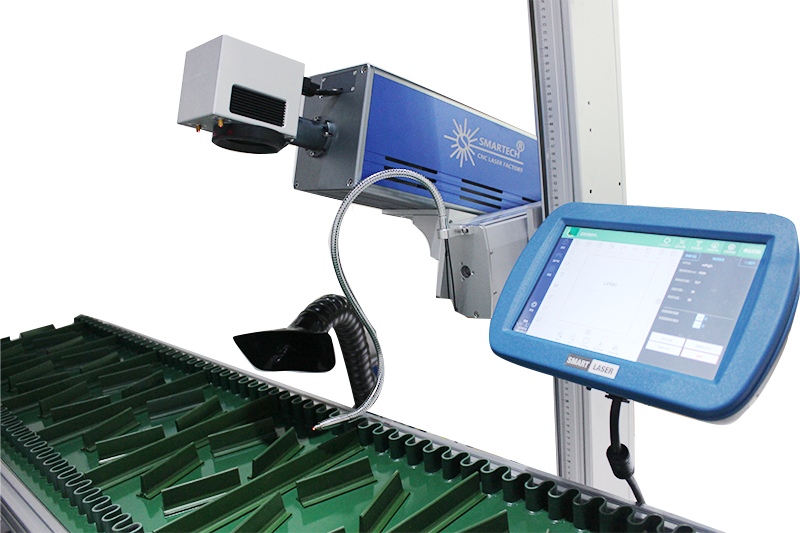

Optional-Conveyor belt
Objects can be put on the conveyor belt and no need human work.

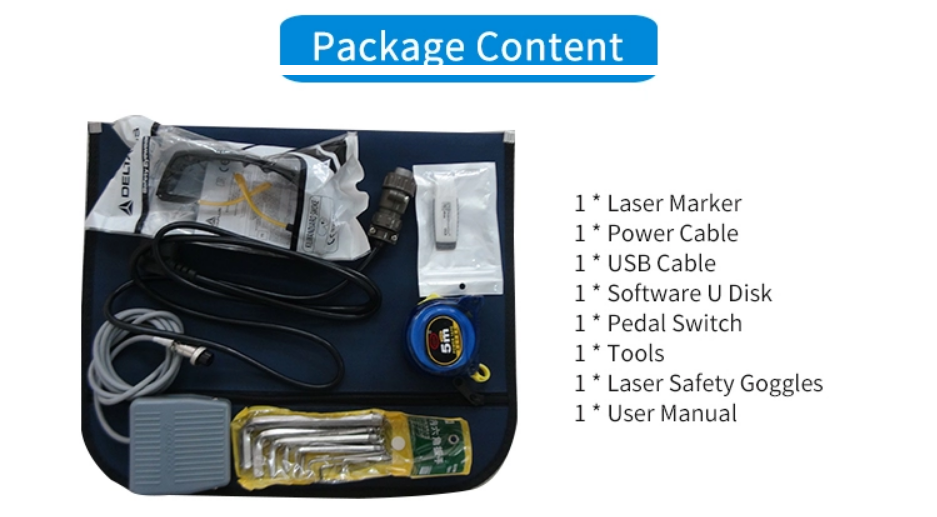

COMMODITY&DESCRIPTION
EZCAD SOFTWARE
Touching control system
Coherent/Davi etc power source
Up down table
Hand wheel
Moving wheels
Walves field lens
Marking head
Double red pointer
Cooling system
CD
Control box
Include each necessary part,no need to buy other additional parts,you could use directly after received machine.
Optional part:
Auto feeding system----Improve working efficiency

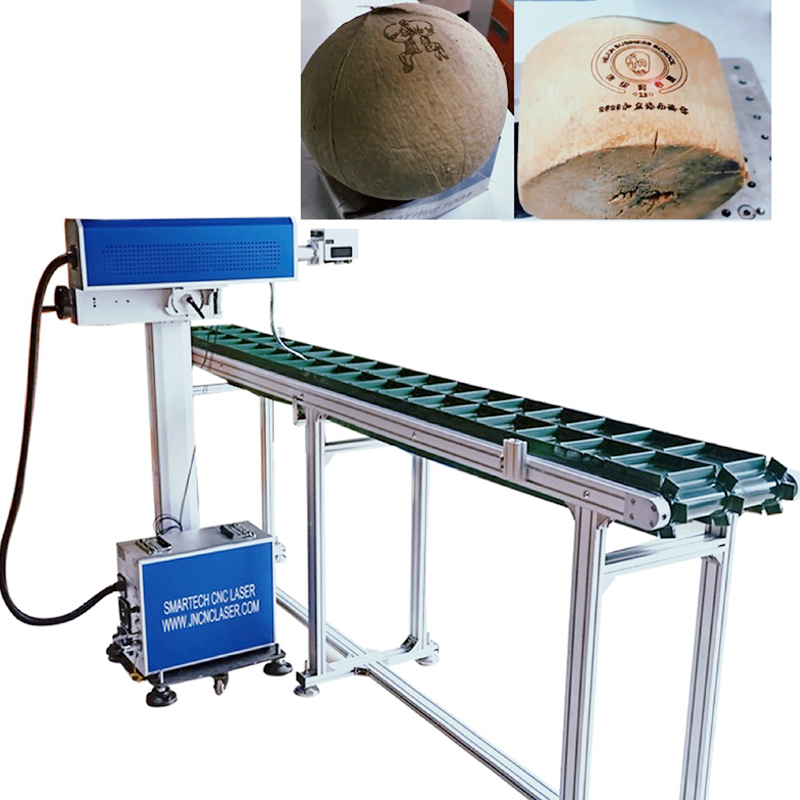

Flying Laser Marking Machine Application
laser marking machine can be used for marking date, serial number, bar code, 2D code,logo on PP/PET/PVC plastic, wood, bamboo,plywood,beech wood,carton,paper package etc.
Flying Laser Marking Machine Main Features
China top brand Fiber/ CO2 laser source / American Synrad laser source optional
Advanced CO2 RF metal laser tube.
Taiwan Mean well laser power supply;
7inch or 10inch touch screen in stead of computer.
Software in touch screen directly in English and Spainsh.
Double red light autofocus system;
Red light indicator system for outline, size, location, direction;
Special lifting mobile station;
8000 to 10000 bottles per hour.
First layer is film,second layer is protective strong foam,third layer is Strong wooden case
650*500*1400mm Gross weight is:100KG
Within 3 working days after get deposit
30% T/T in advance, 70% before delivery
3 years (replace parts during warranty(no human reason))
8-10 years (If work 10 hours per day)
FAQ
-Q What is the payment terms?
A:Western Union,Cash,T/T
-Q How long is the delivery date?(After getting the deposit)
A:Delivery time is 5-7 working days for standard machine models,please confirm with us before payment.
-Q How about the shipping
ways? A:By sea or by air
-Q Is on site training is available ?
A: Yes, we could provide training in our factory or at your workshop after machine arrival.
-Q Where is your factory located? How can I visit there?
A:Jinan City, Shandong Province, China, about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome.
-Q How about your laser machine package?
A: Standard export wood package with free fumigation
-Q How about the quality guarantee period?
A:5 Years for whole machine
-Q How can you guarantee the production quality ?
A:We have 15years experience of QC team; strictly quality control system in our production process.
-Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
