SMARTECH

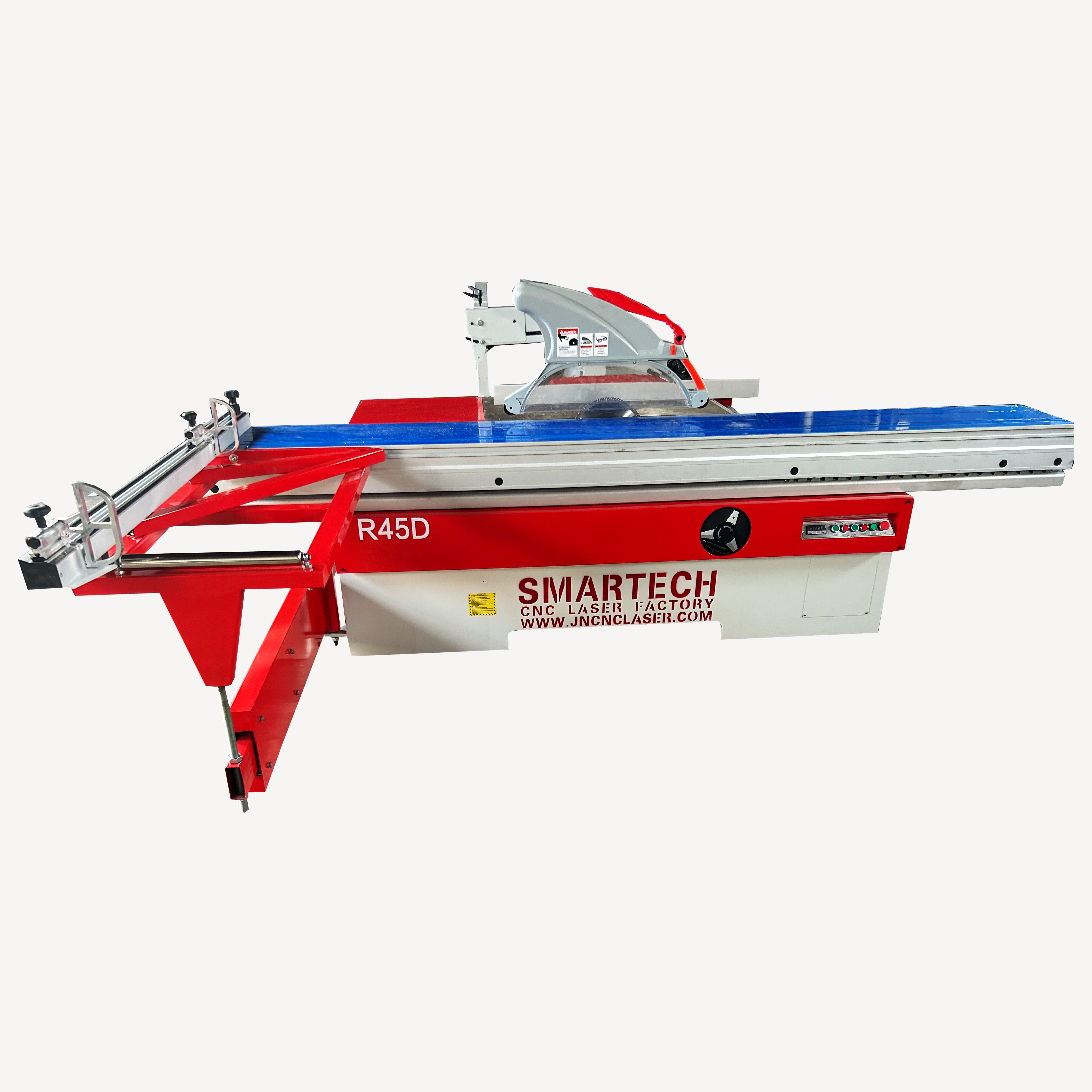

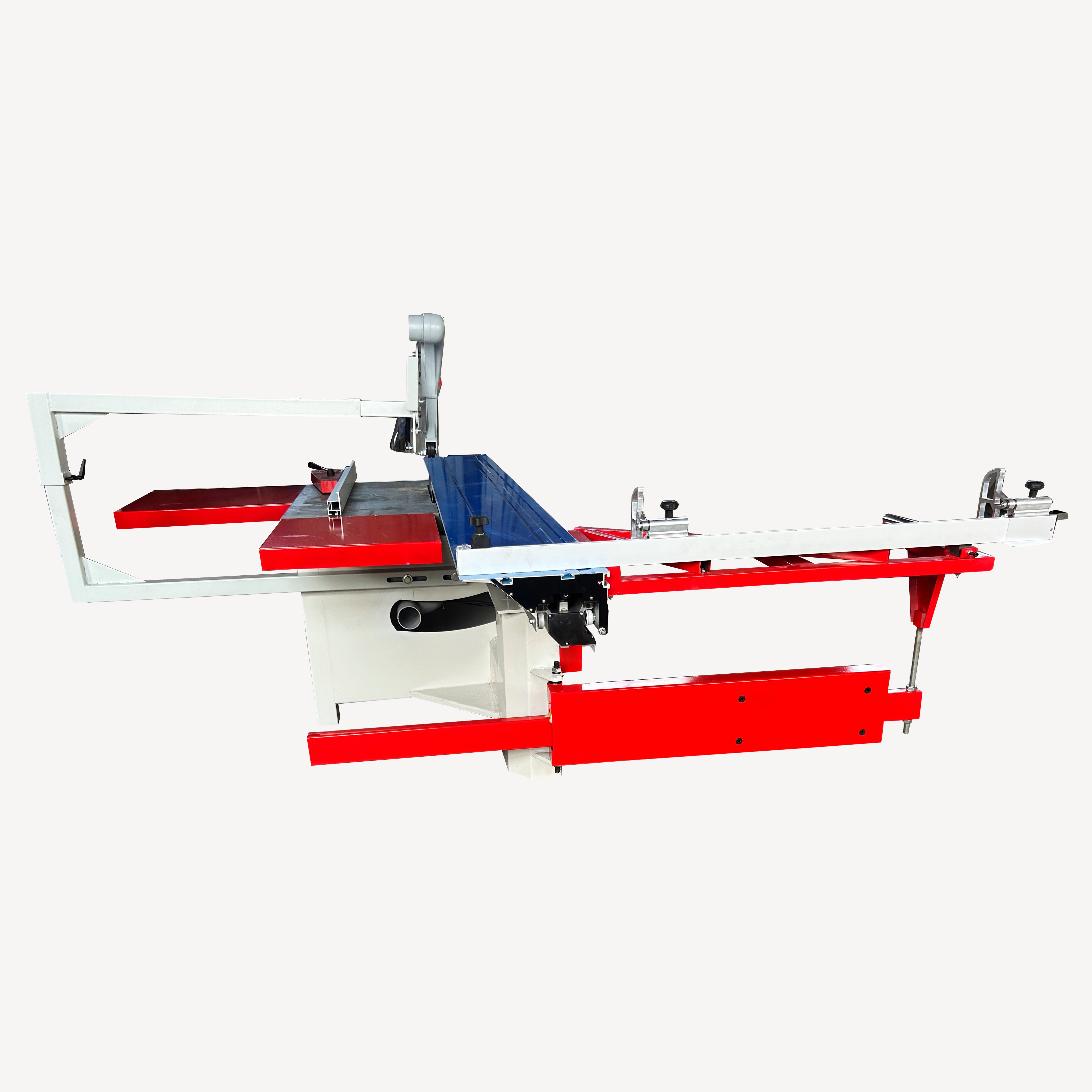

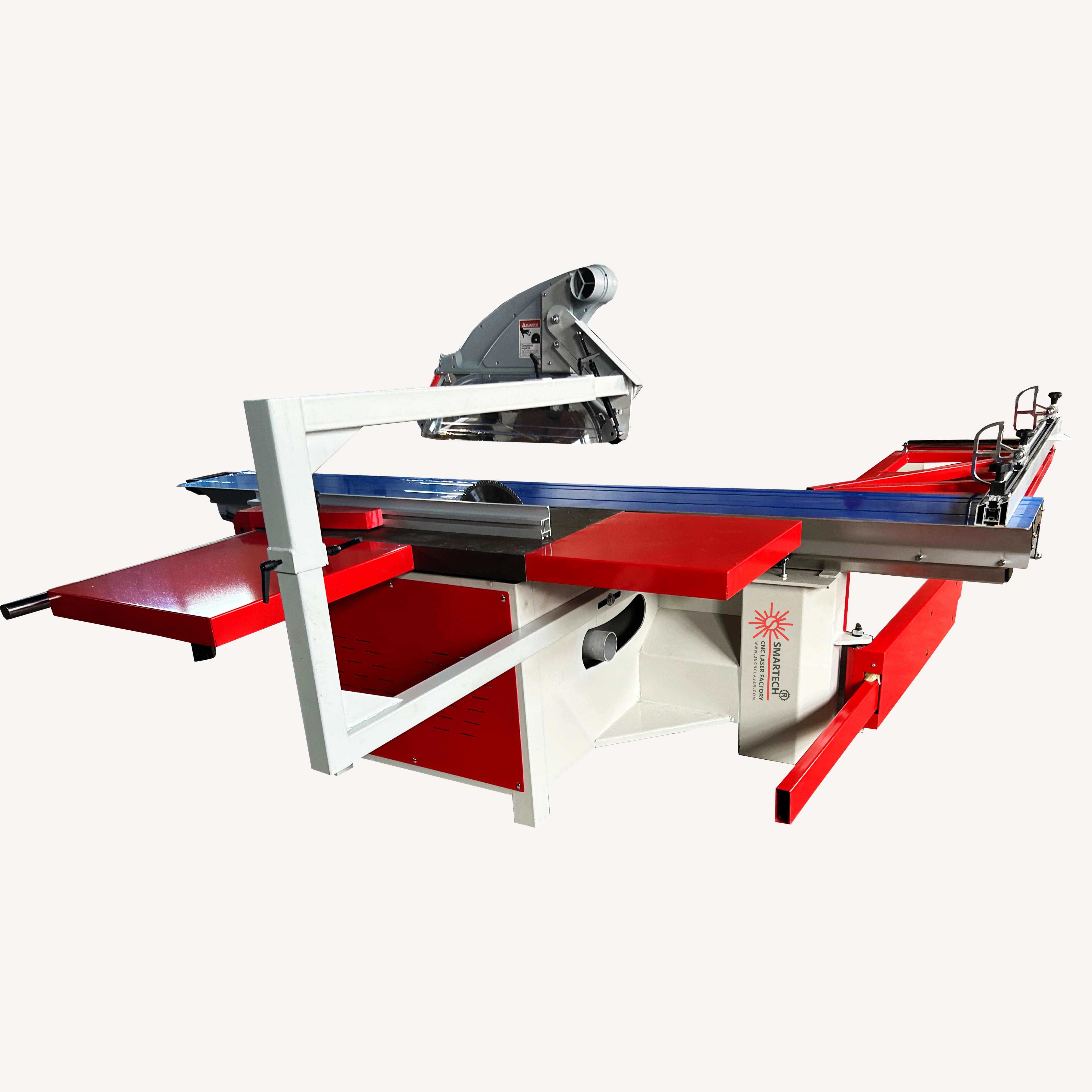

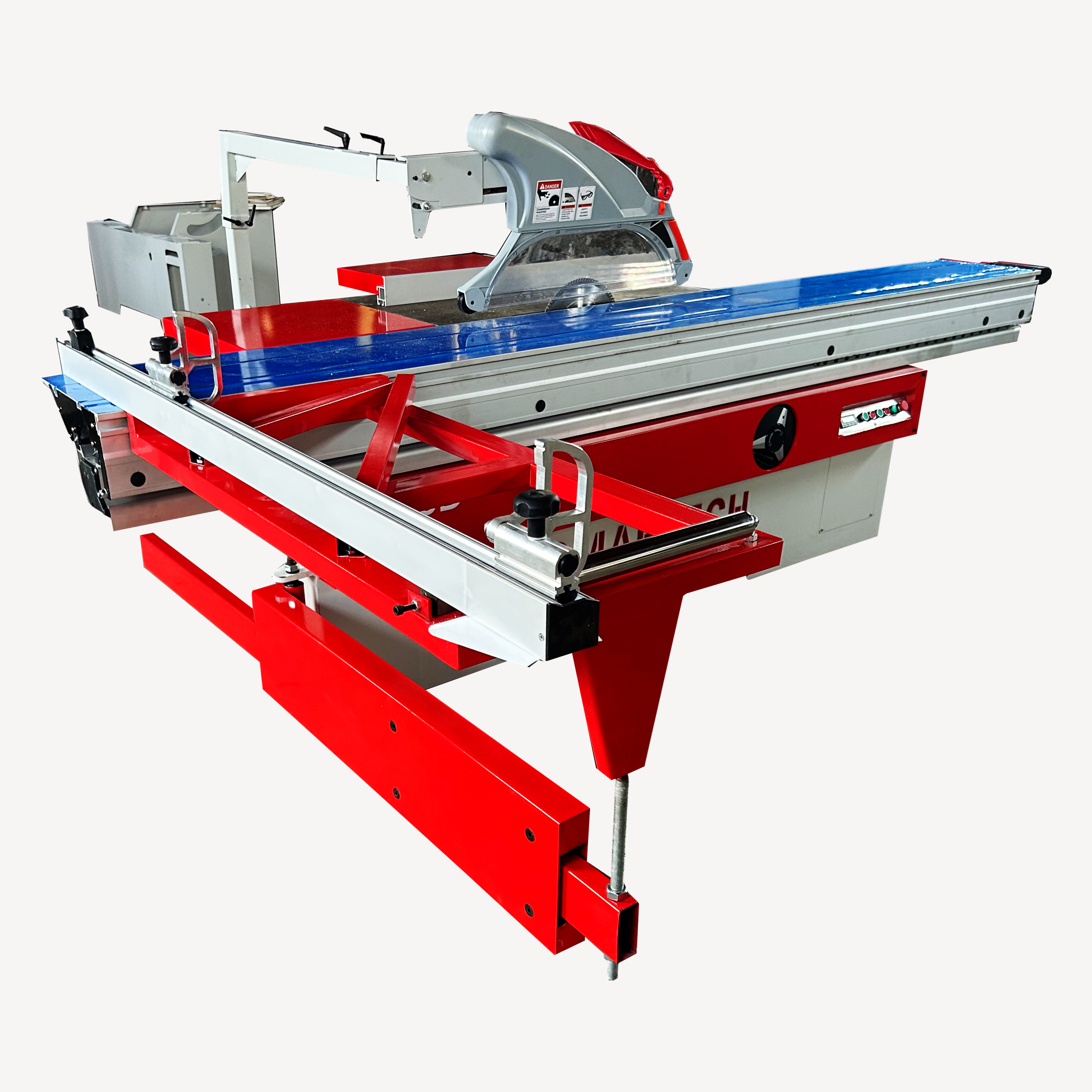

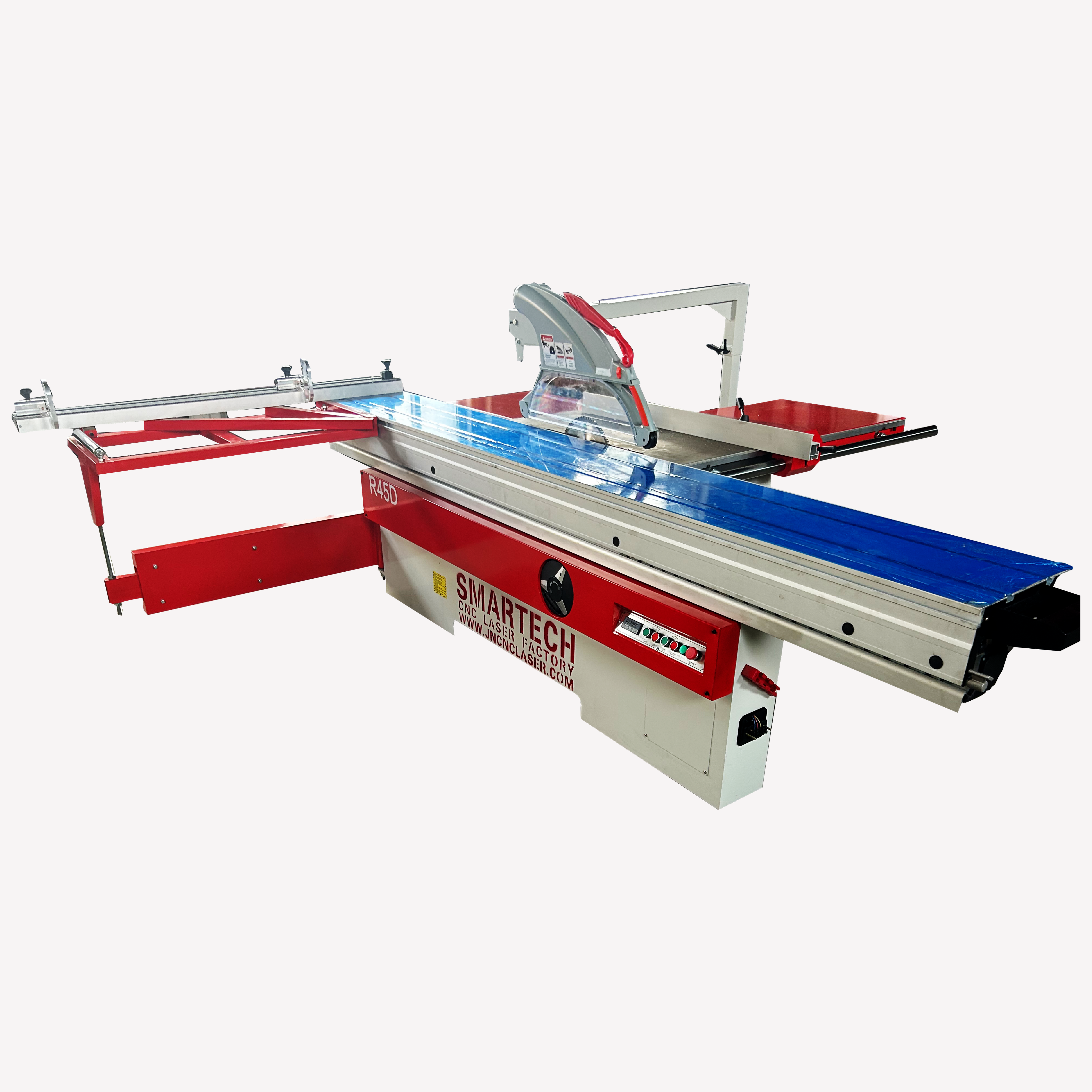

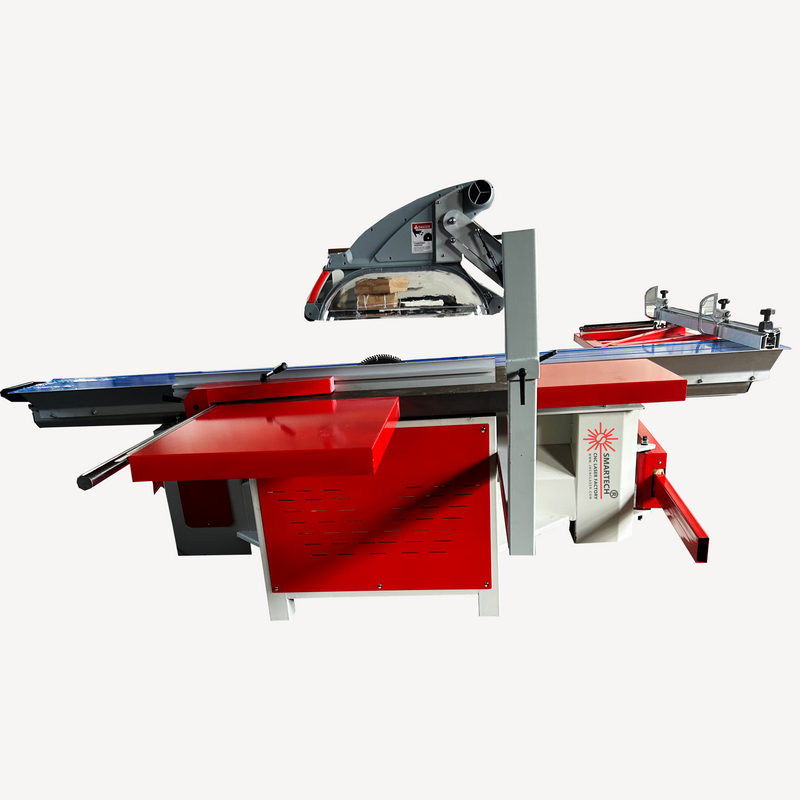

Industrial Sliding Table Panel Cutting Saw
Automatic CNC Sliding Table Saw
#Machine integrated size:2800*375mm
#Main motor:5.5KW
#Scoring motor:1.1kw
#CNC Controller More Intelligent and smart.
#Main saw OD: 300mm ID:30mm
#Scoring saw OD: 120mm ID:20mm
#Saw degree:90°~45°
#Tools and tool box
#Machine comes with full set parts,could be used directly after arrival
#Warranty : 2 years; 24 Hours Lifetime after sale service for free
PRODUCT SPECIFICATIONS
| Dimension of sliding table | 3200*430mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250—400mm) |
| Height of cut (300mm) | 70—80mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45 °&90° |
| Main motor | 5.5kw(7.5HP) |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 1.1kw (1.5HP) |
| total power | 6.6 kW |
| Lifting of saw blade | Electrical lifting |
| Cutting degree readout | Digital readout |
| Weight | 950 KGS |
| Overall dimension | 3250x3150x900 mm |

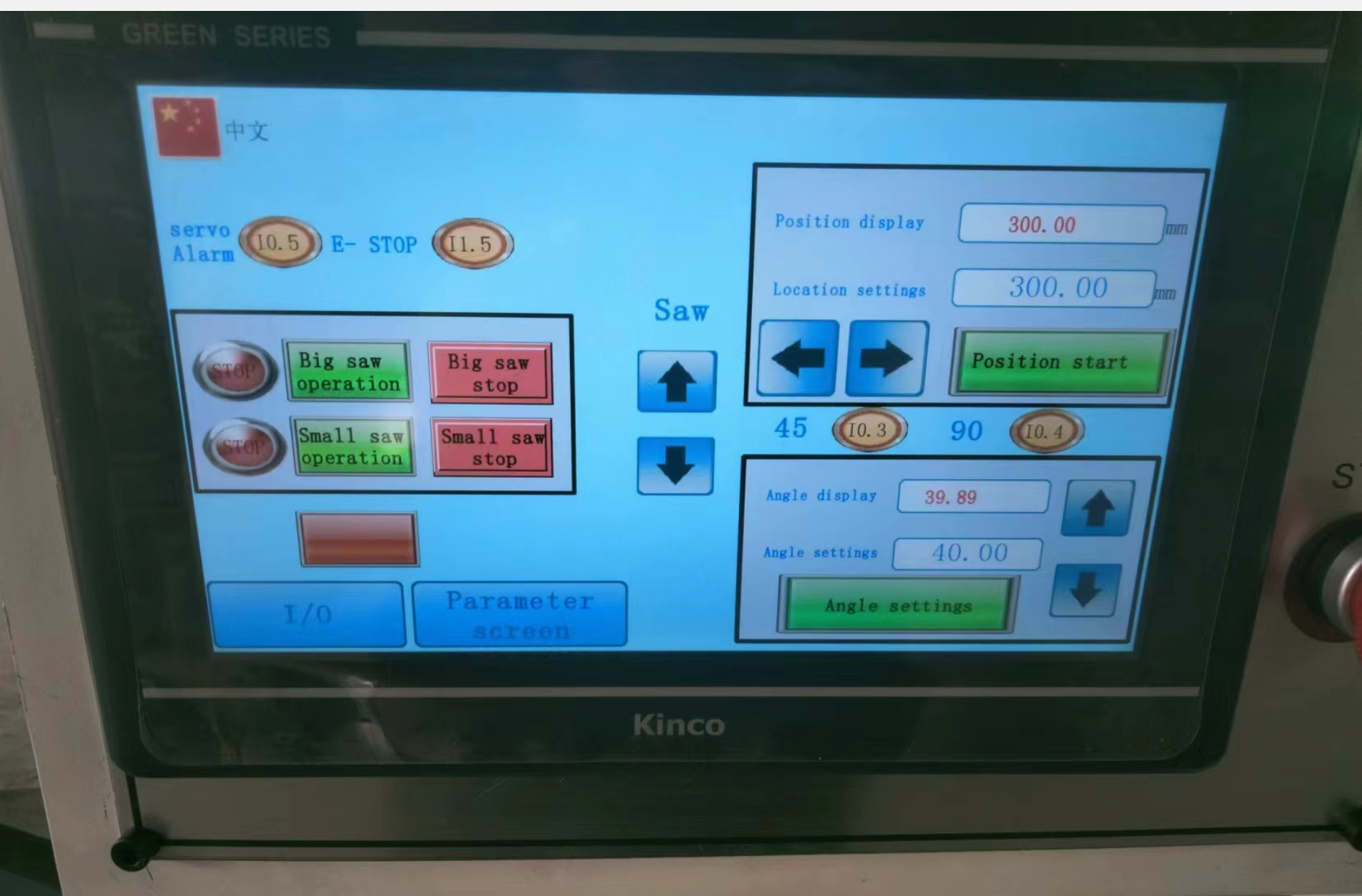

CNC Controller
