SPP2006
SMARTECH
7500 x 1000 x1700 mm

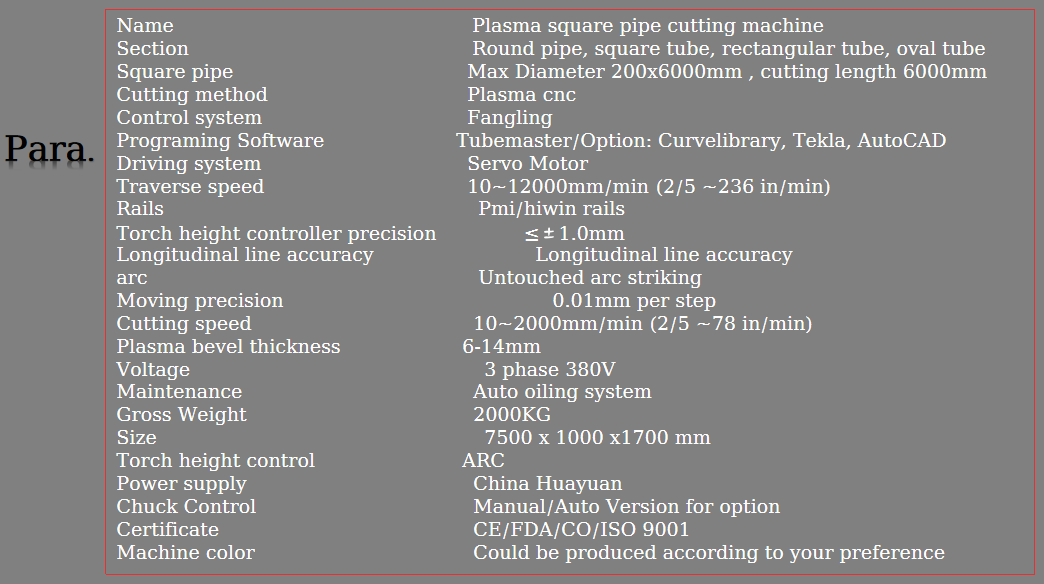

Main Configurations.

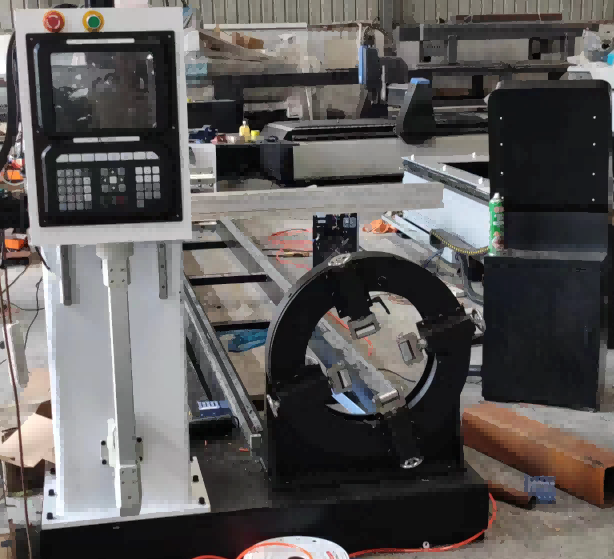

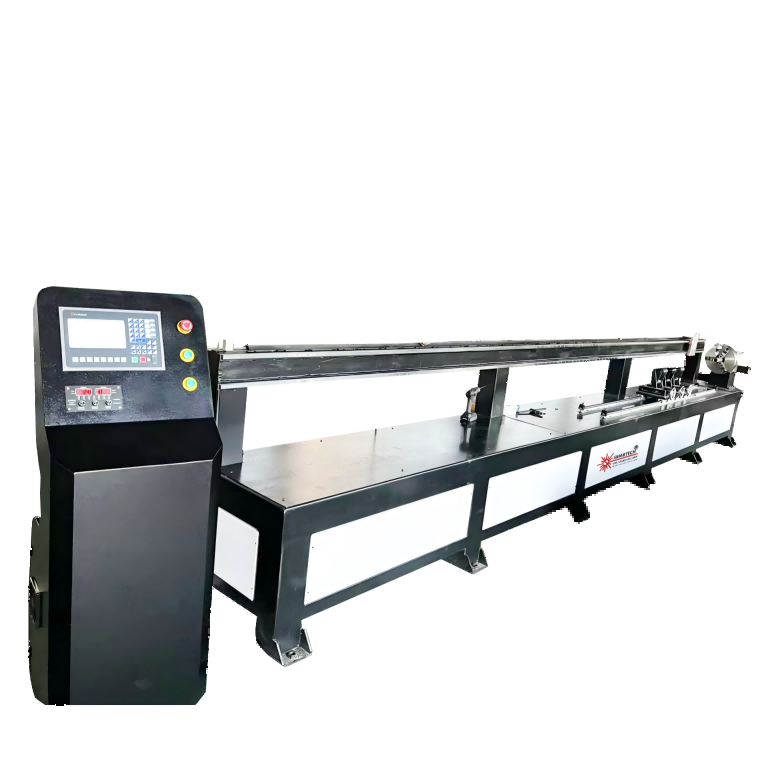

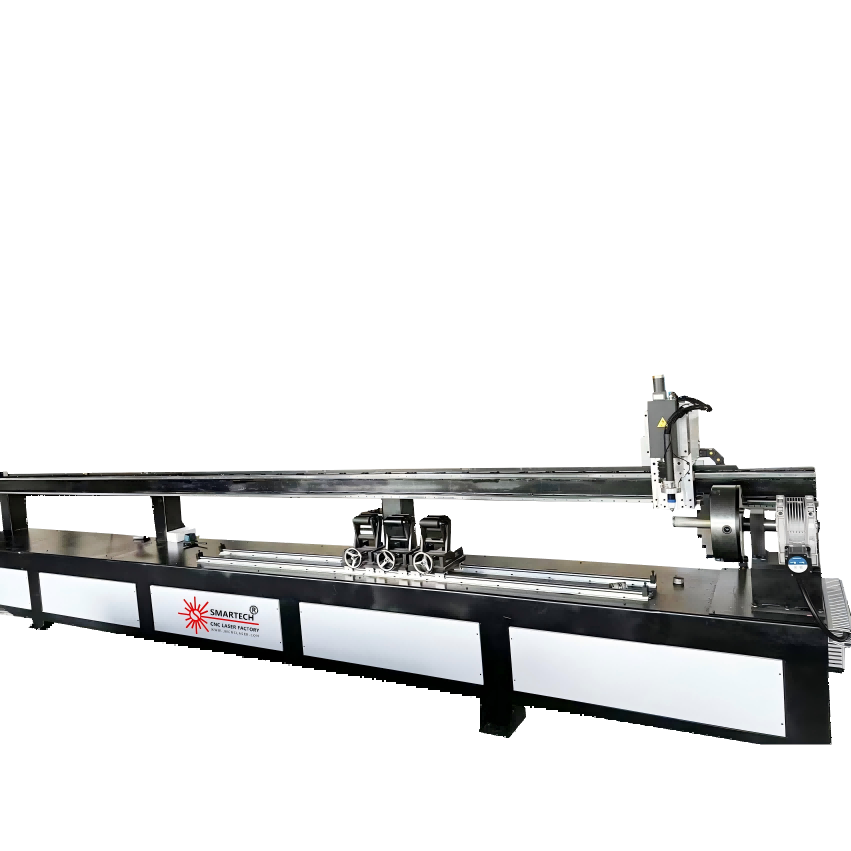

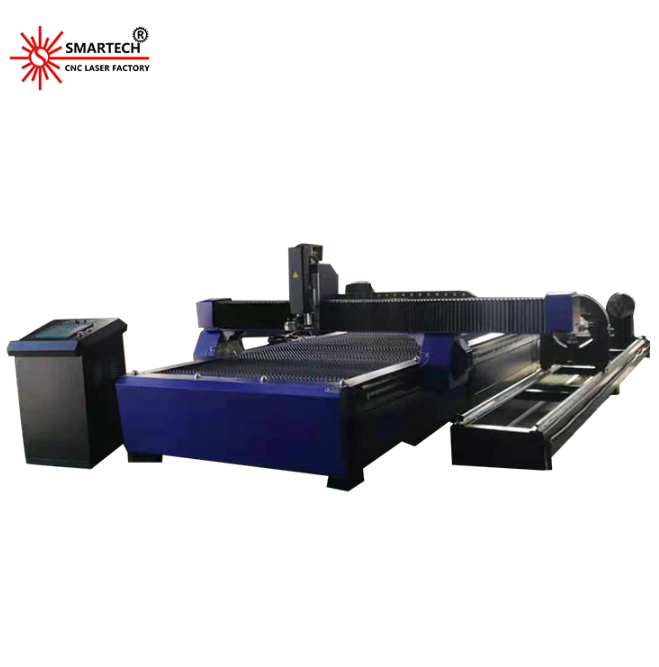

Model:SPP2006 Plasma
@Working area:10-200MM (X)*6000MM(Y)
@Control system:Fangling
@Chuck diameter:10-200MM
@Power Source 120A

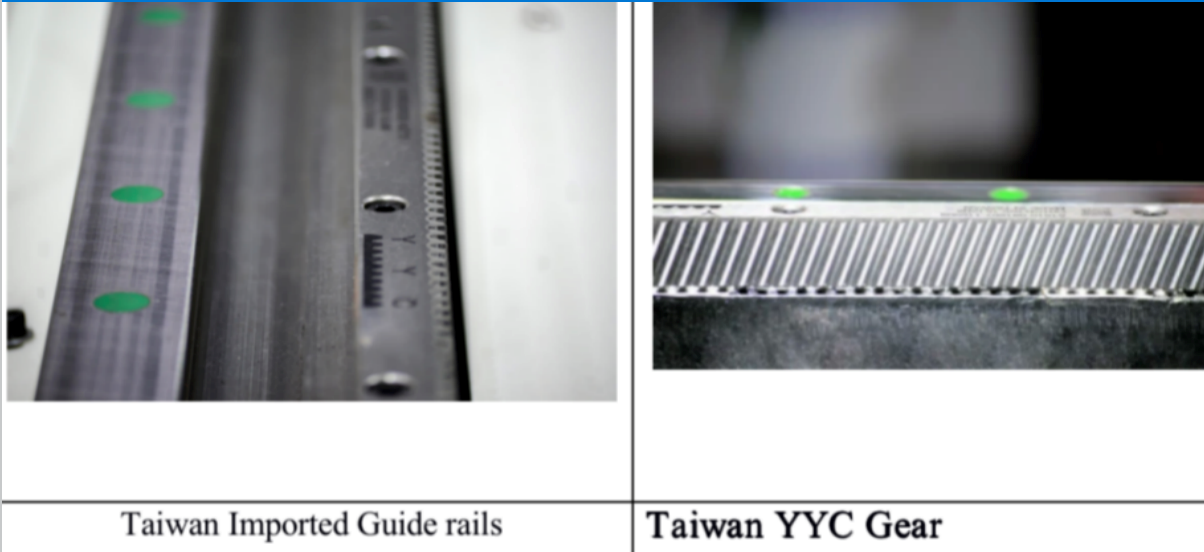

@Transmission:X,Y Taiwan Helical Rack pinion
@Guide rail:Taiwan original imported HIWIN Rail
@Machine body:Heavy steel structure steel beam
@Original TBI rails
@Oil system:Automatic oil injection system
@Voltage:380V/220V/60HZ/50HZ
@Servo motors and drivers
@Spare parts: electrode nozzles 10 sets
@Manual chuck
Select power according to your maximum cutting thickness
China HUAYUAN Source: | USA Hyperthem Source: |
63A(Max 5mm thickness matel plate) | 45A(Max 5mm SS,Aluminum.8mm CS.) |
100A(Max 6mm SS,Aluminum.12mm CS.) | 65A(Max 8mm SS,Aluminum.12mm CS.) |
120A(Max 10mm SS,Aluminum.18mm CS.) | 85A(Max 12mm SS,Aluminum.16mm CS.) |
160A(Max 15mm SS,Aluminum.25mm CS.) | 105A(Max 16mm SS,Aluminum.20mm CS.) |
200A(Max 20mm SS,Aluminum.30mm CS.) | 125A(Max 18mm SS,Aluminum.25mm CS.) |
Machine parts

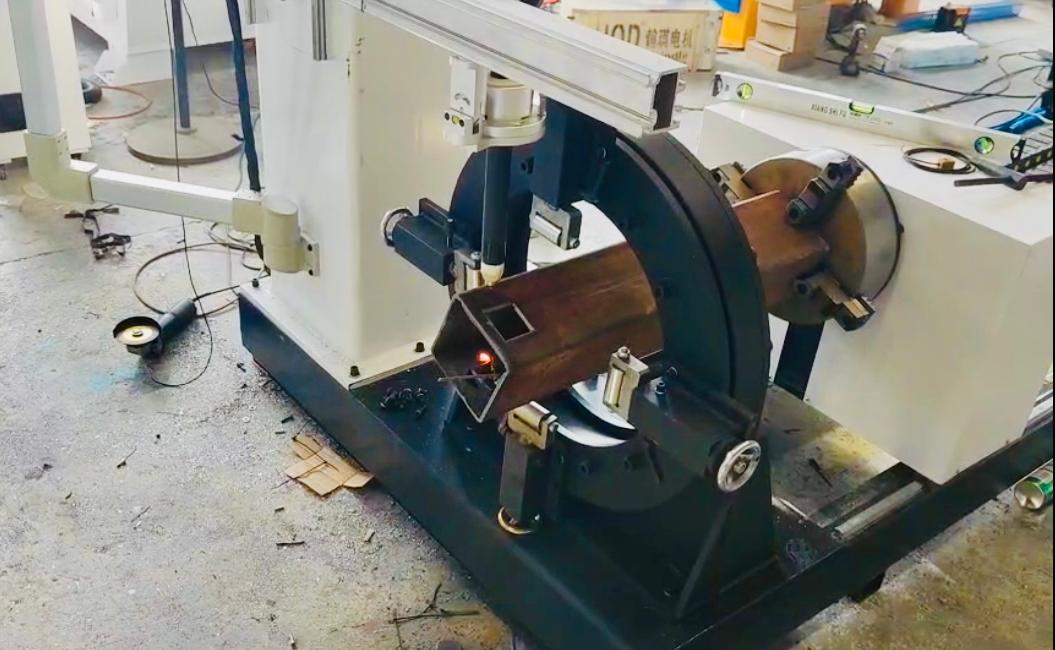

Machine-Manual Chuck

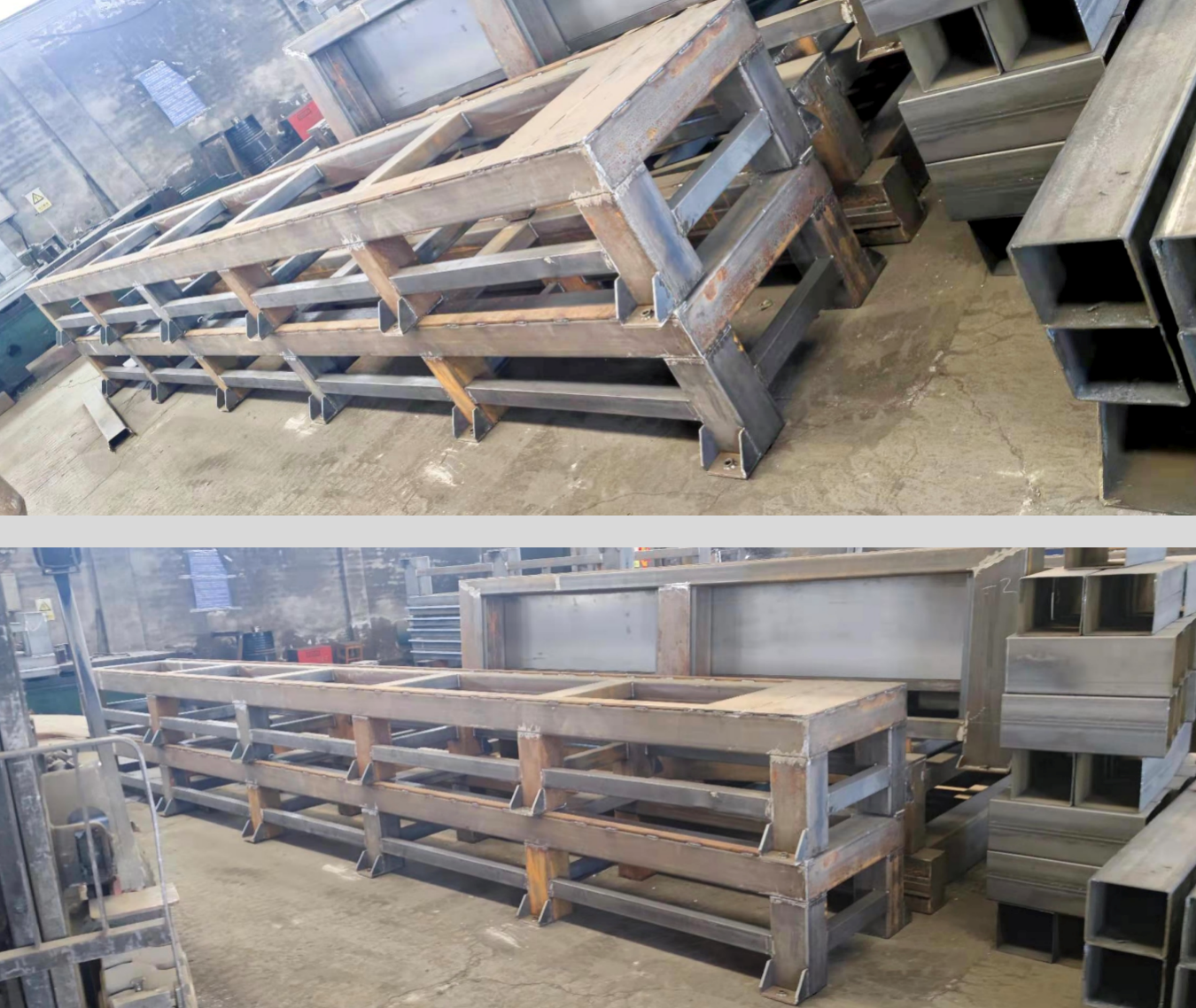

Machine structure
High temperature tempering treatment heavy duty structure,not easy to be deformed even after 10 years.

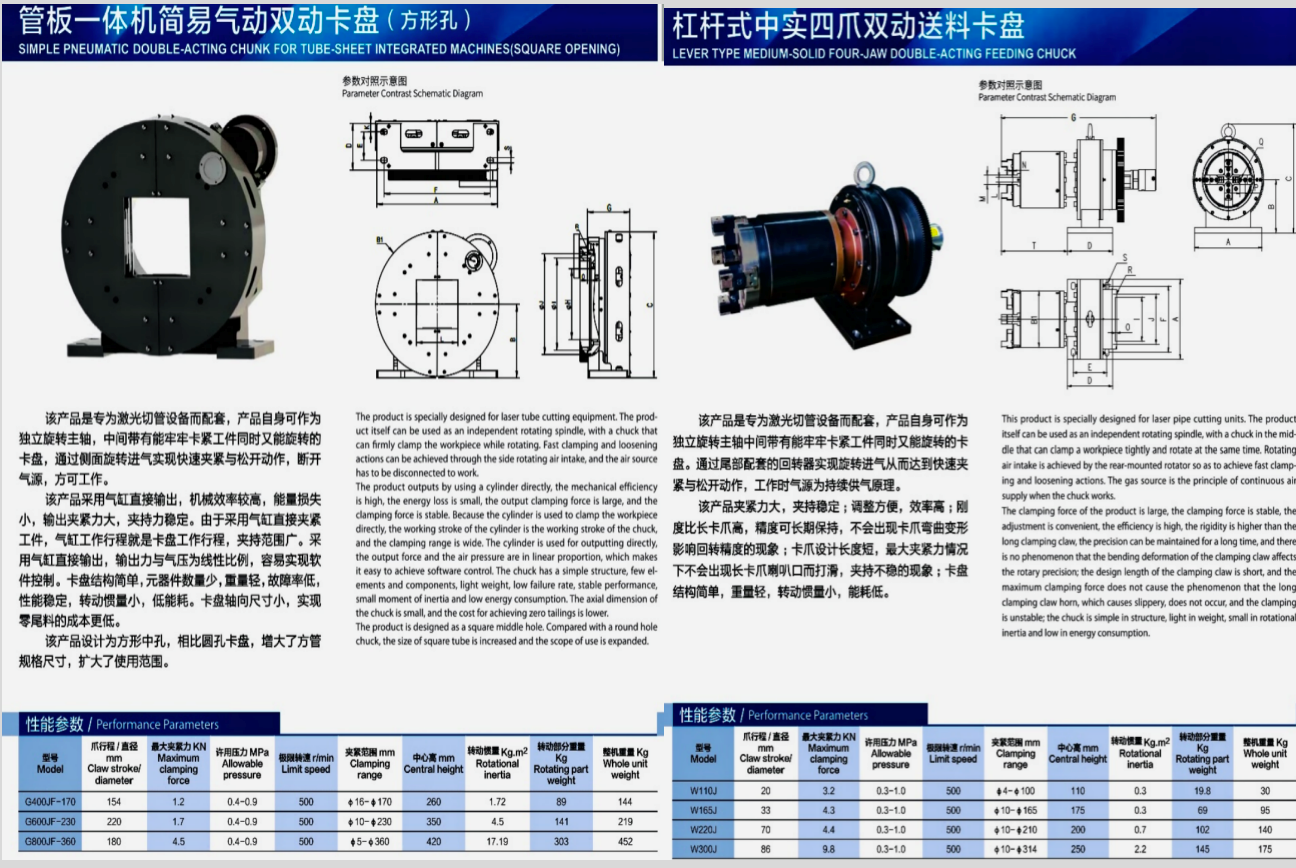

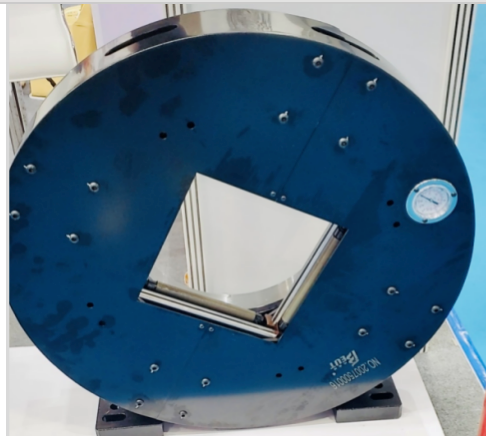

Auto Chuck & Manual Chuck

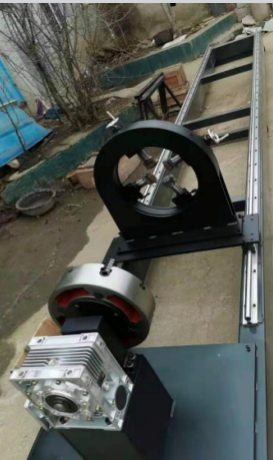

Rotary chuck
Mechnical section

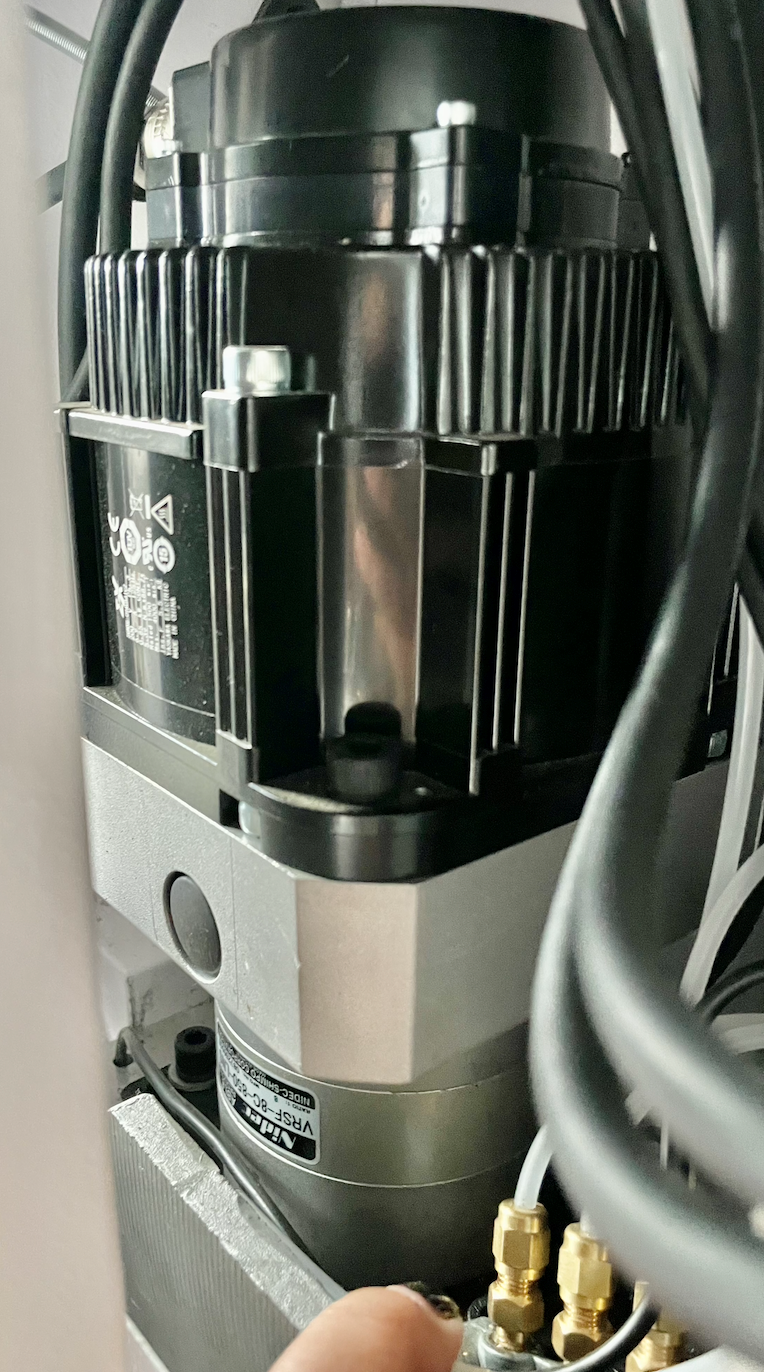

Japan Yaskawa servo motor with reducer

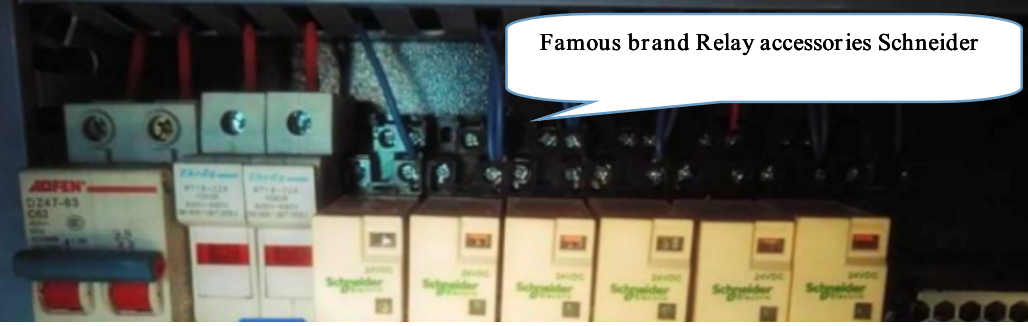

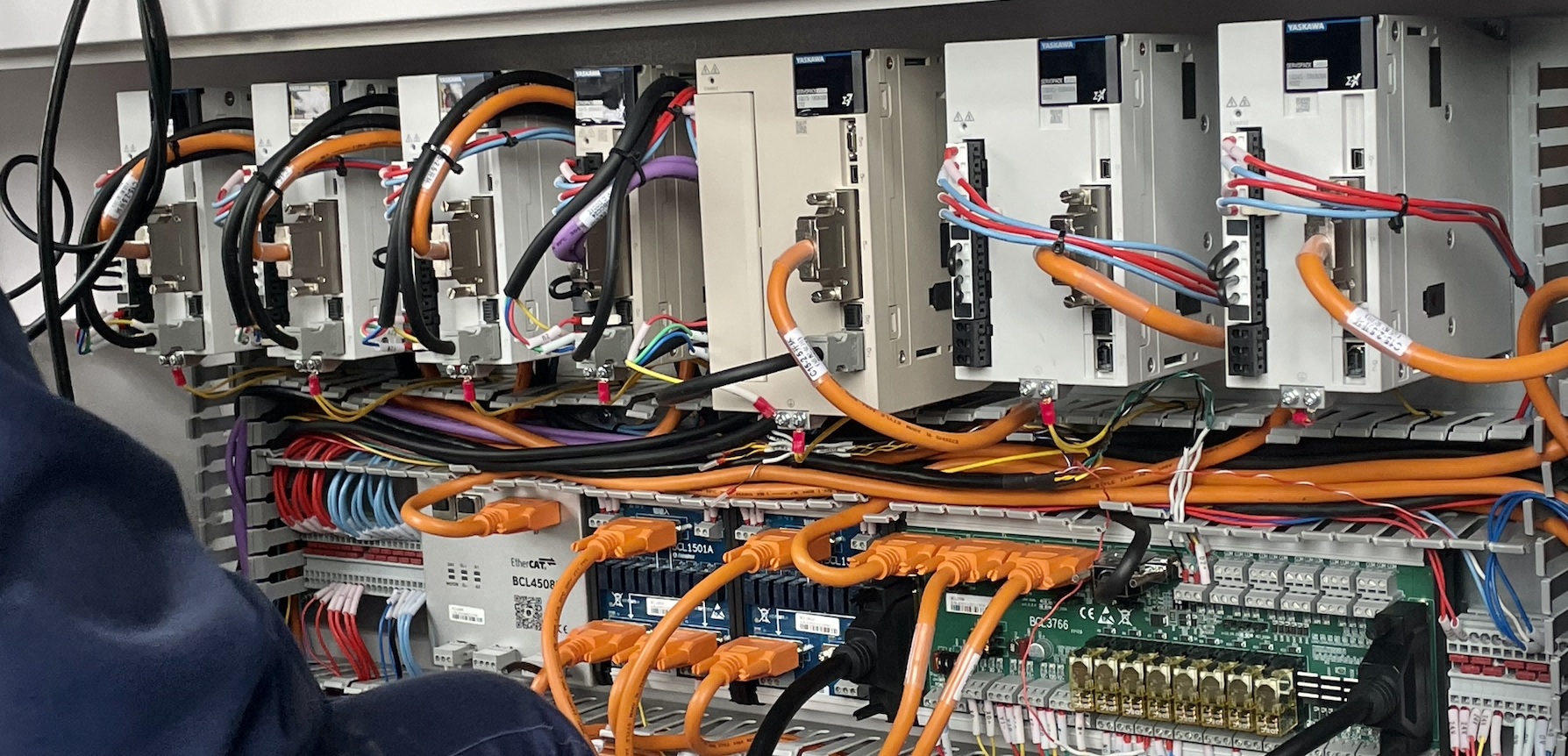

Control Cabinet
Schneider Electric components

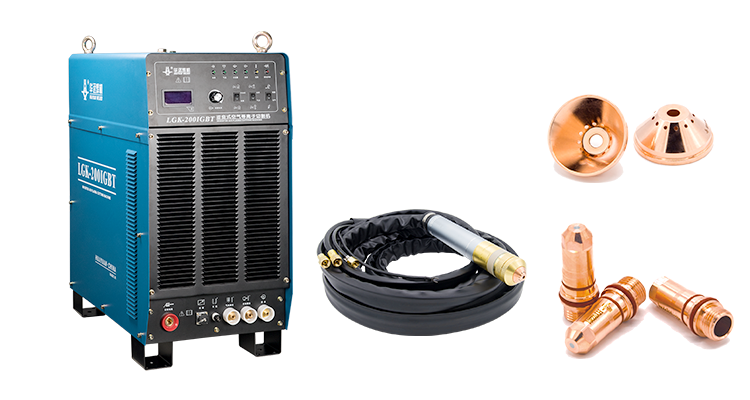

Power Source
