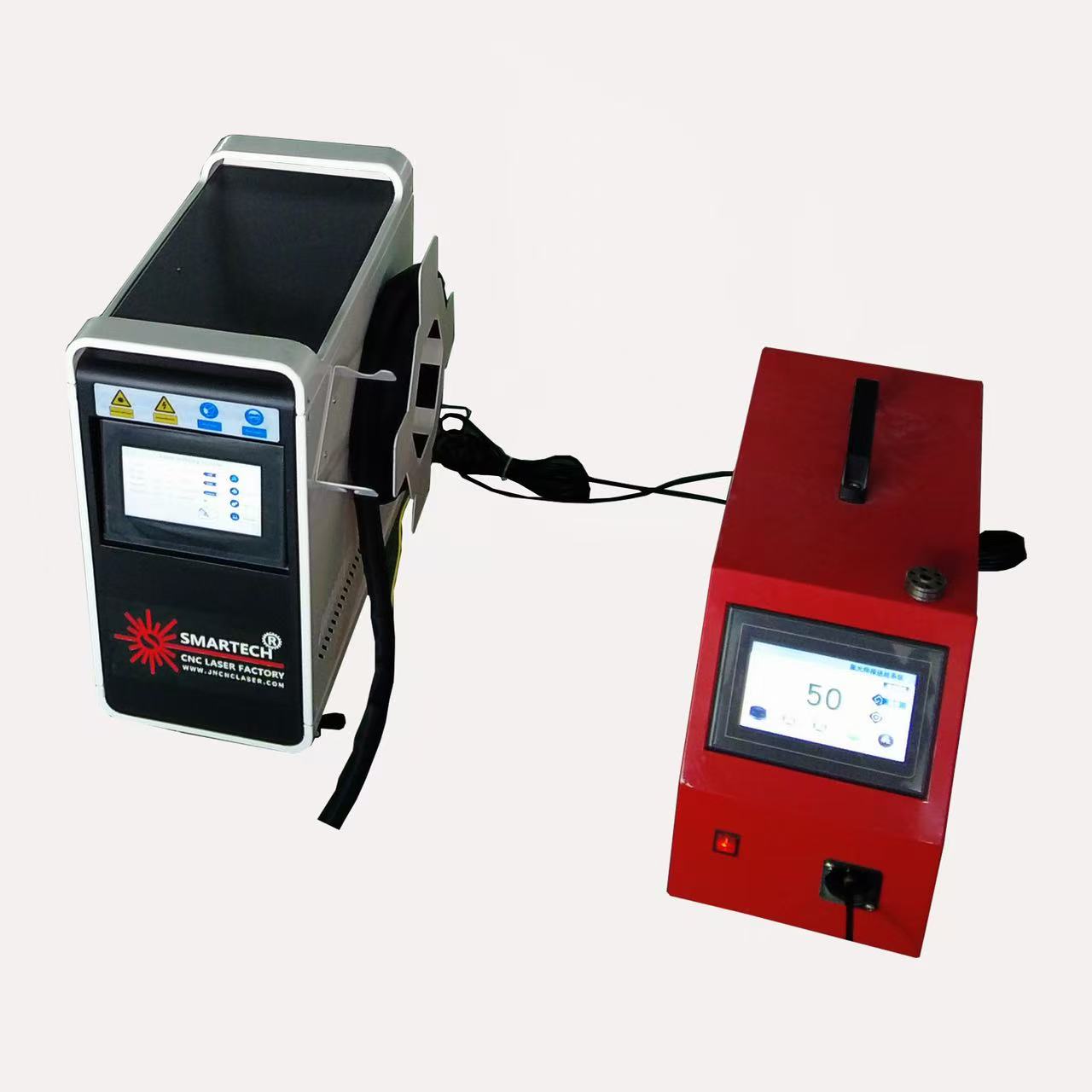

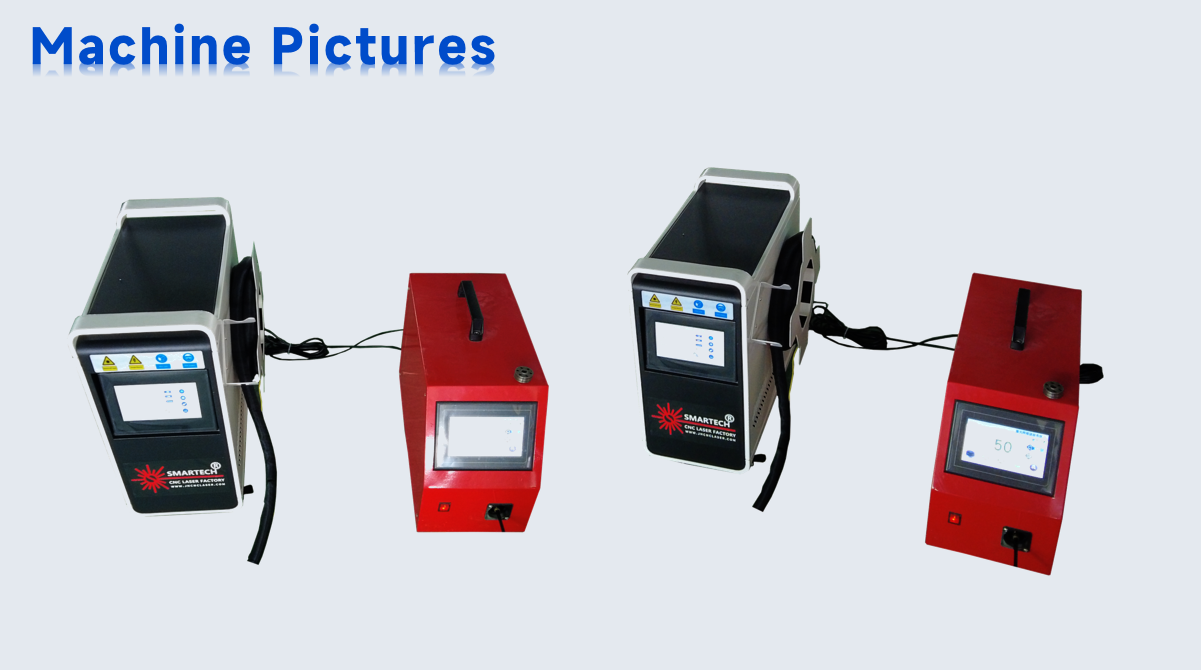

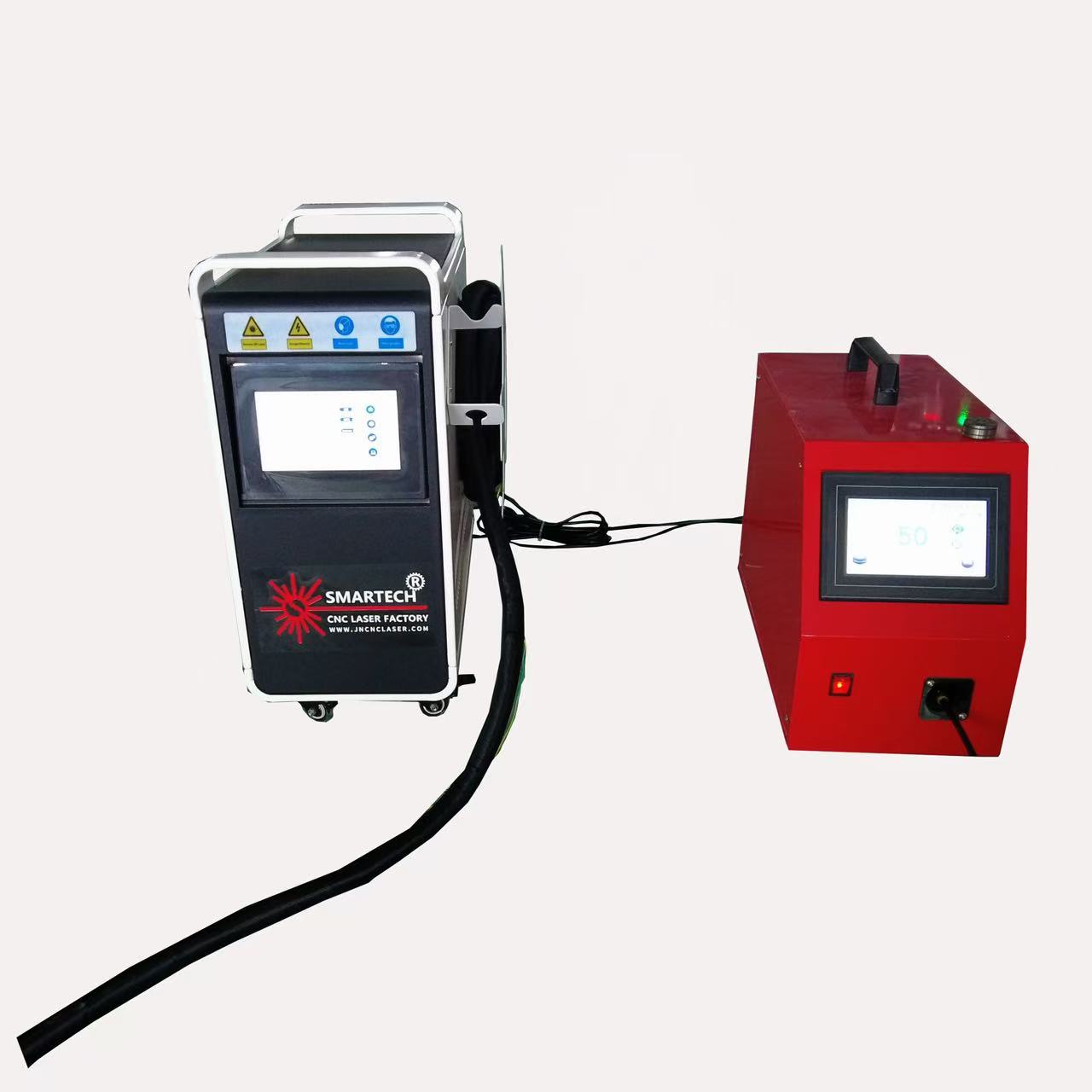

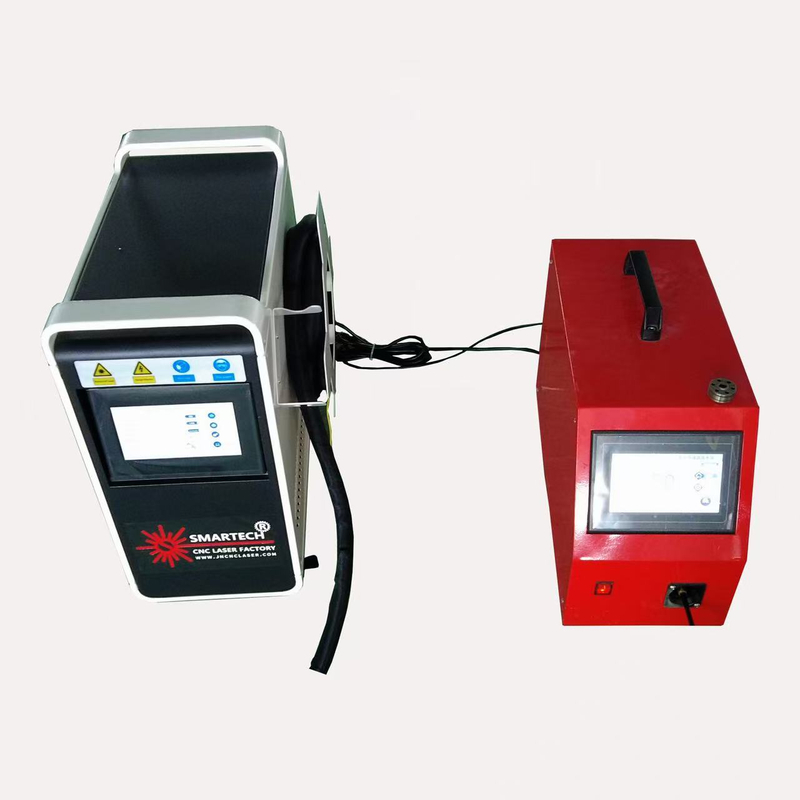

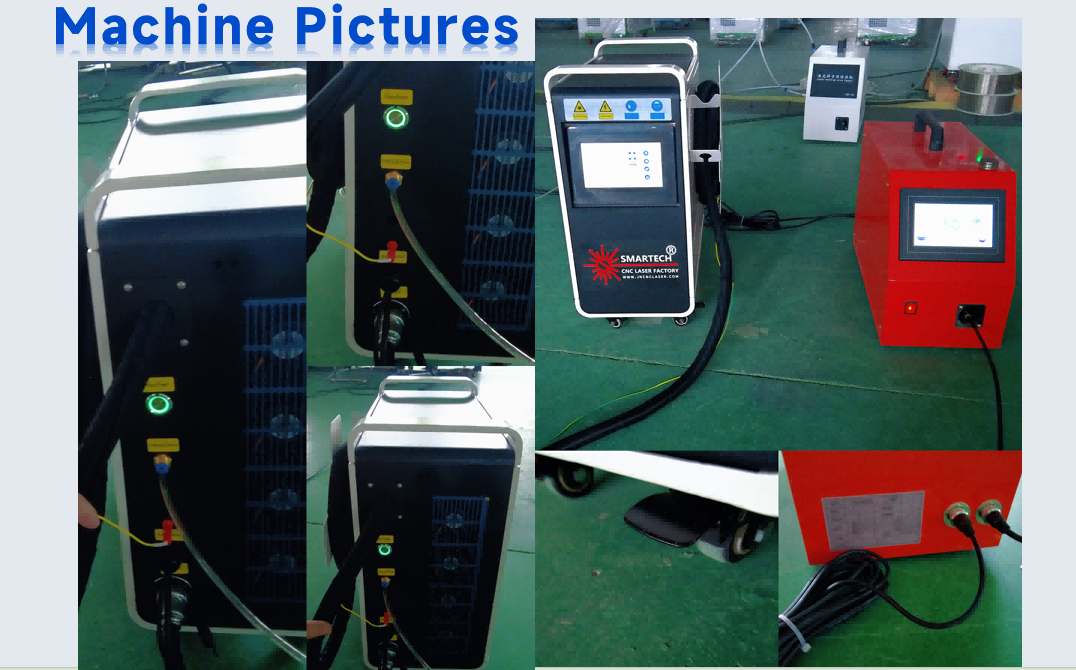

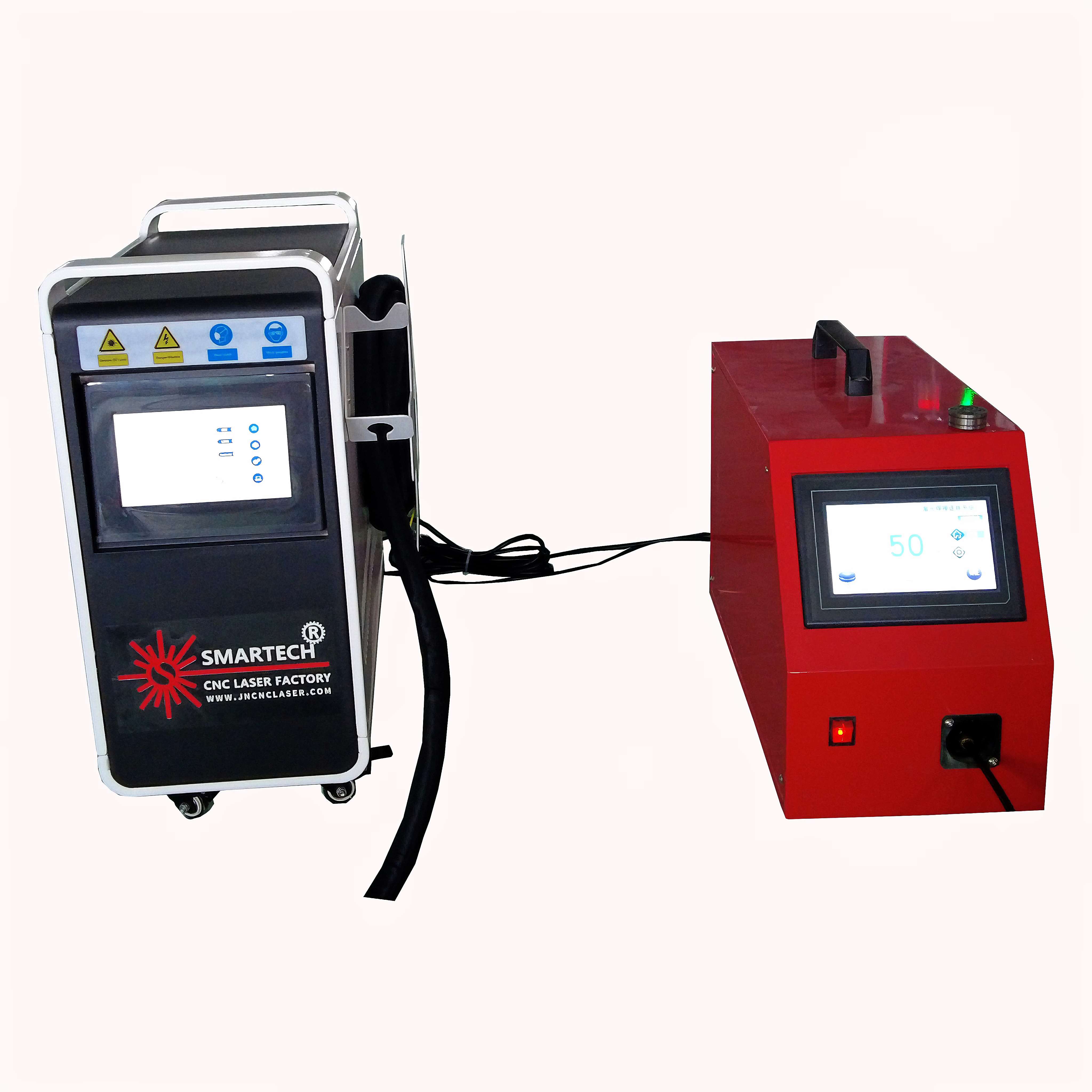

1500w Laser Welding Machine
Main Configuration:
#Fiber laser power raycus
# SUP28F laser head
# Wire feeding system;
#Multi-language operation interface, touch screen control System
#Schneider parts for electricity
#Length of welding torch 10 meters;
#AIR COOLING;
#Gun weight :0.7KG
#One-piece design,With universal walking casters
#Focus vertical adjustment range(mm):±10mm
#Scan width-Welding (mm): 0~8mm
Performance characteristics
●Adapt for various metal materials, Carbon steel, stainless steel, high-strength steel, aluminum, copper and alloy materials；
●The light can be emitted continuously or pulsed, not only for thermal conductivity, but also for continuous deep penetration. It can realize spot welding, butt welding, stitch welding, sealing welding, seam welding, cleaning,cutting.
●Adopt continuous Fiber laser, excellent beam quality, maintenance-free, photoelectric conversion efficiency is greater than 25%, and the service life of the pump source is greater than 100,000 hours;
●Fast processing speed;
●Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials);
●It can process parts with complex shapes and small parts, and can also be processed in vacuum;
●and Robotic arm and other automated institutions Combined, the processing can be automated;
●Can realize filler wire welding,Due to advanced processimethods, existproduct structures and materials can be improved.
PRODUCT SPECIFICATIONS
| Laser type | Continuous fiber laser | |
| Rated output power | 900w | 1500w |
| Applicable power | ≤800W | ≤1200W |
| Laser center wavelength | 1080nm(±10nm) | |
| Cooling method | Air cooling | |
| Maximum modulation frequency | 50kHz | |
| Power instability | ＜3% | |
| Fiber output interface | QBH | |
| Indicating system | Red light | |
| Supply voltage(V) | 220V±5% AC 50/60Hz | |
| Torch cable length | 10m | 10m |
| Torch type | 3 In 1 laser head | |
| Collimating mirror | D16*T5-F50 | |
| Focus mirror size(mm) | D20*T4.5-F150 | |
| Wire feed diameter | 0.8, 1.0, 1.2,1.6,2,2.5,3 | |
| Protective mirror size (mm) | D18xT2 | |
| Protective gas method | Coaxial protection | |

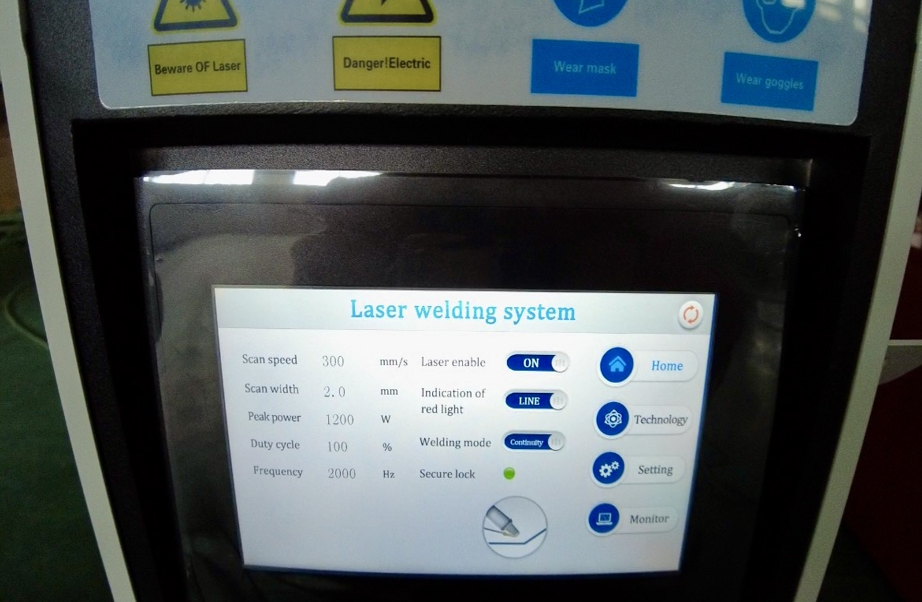

Control System

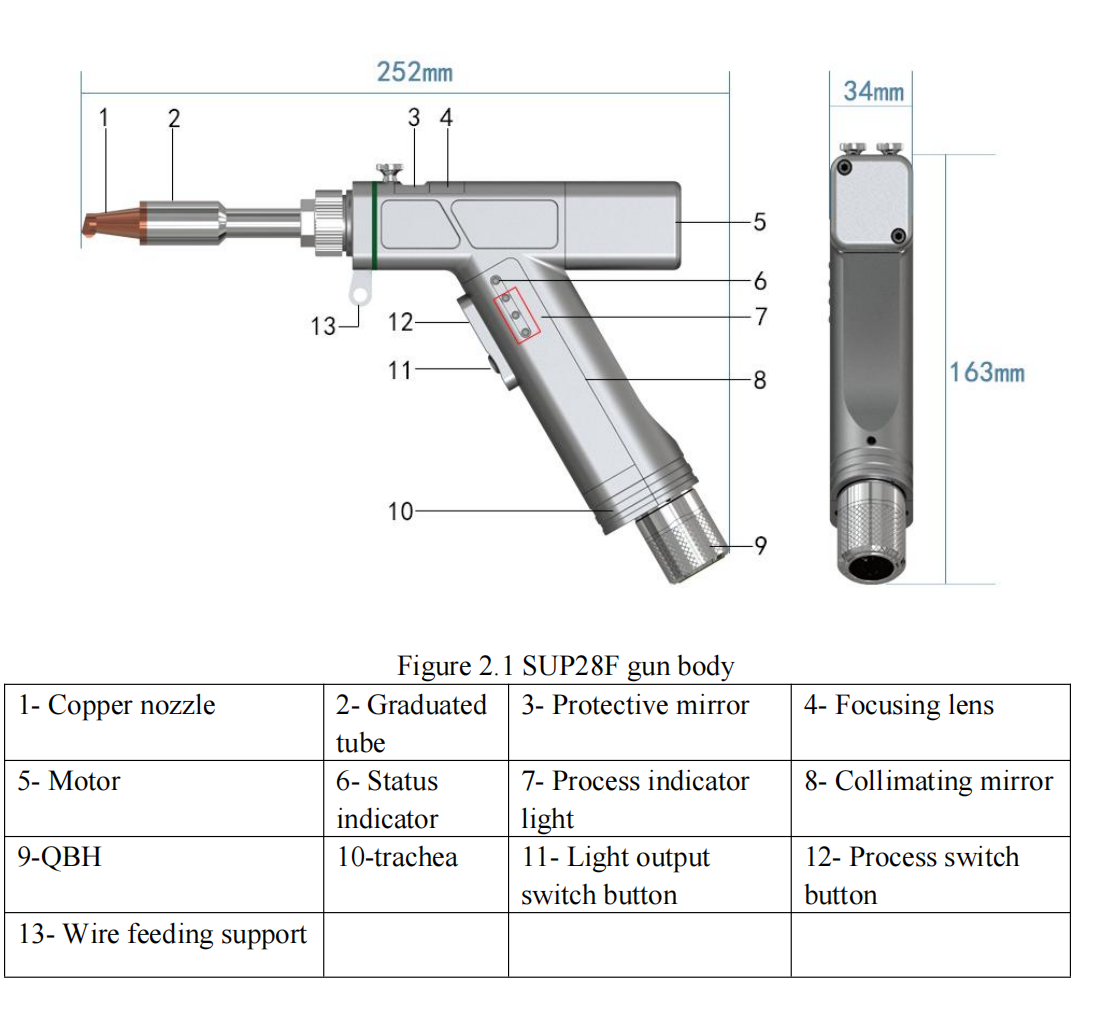

Laser Head

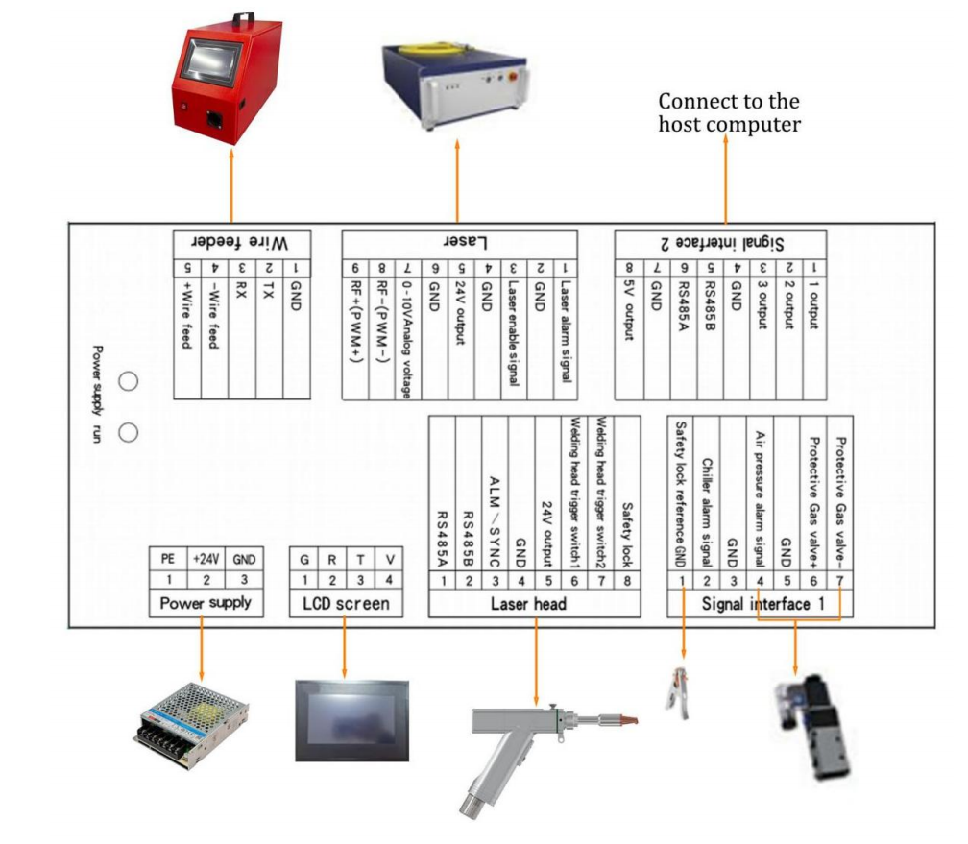

Wiring Diagram

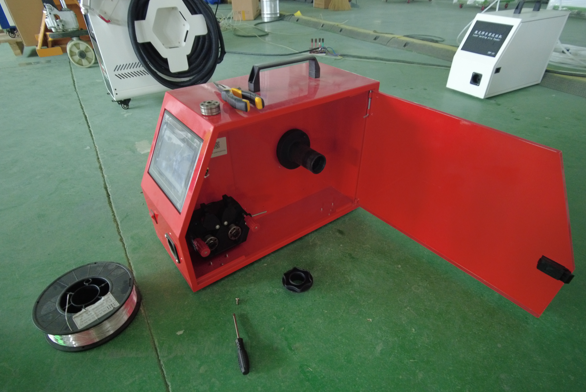

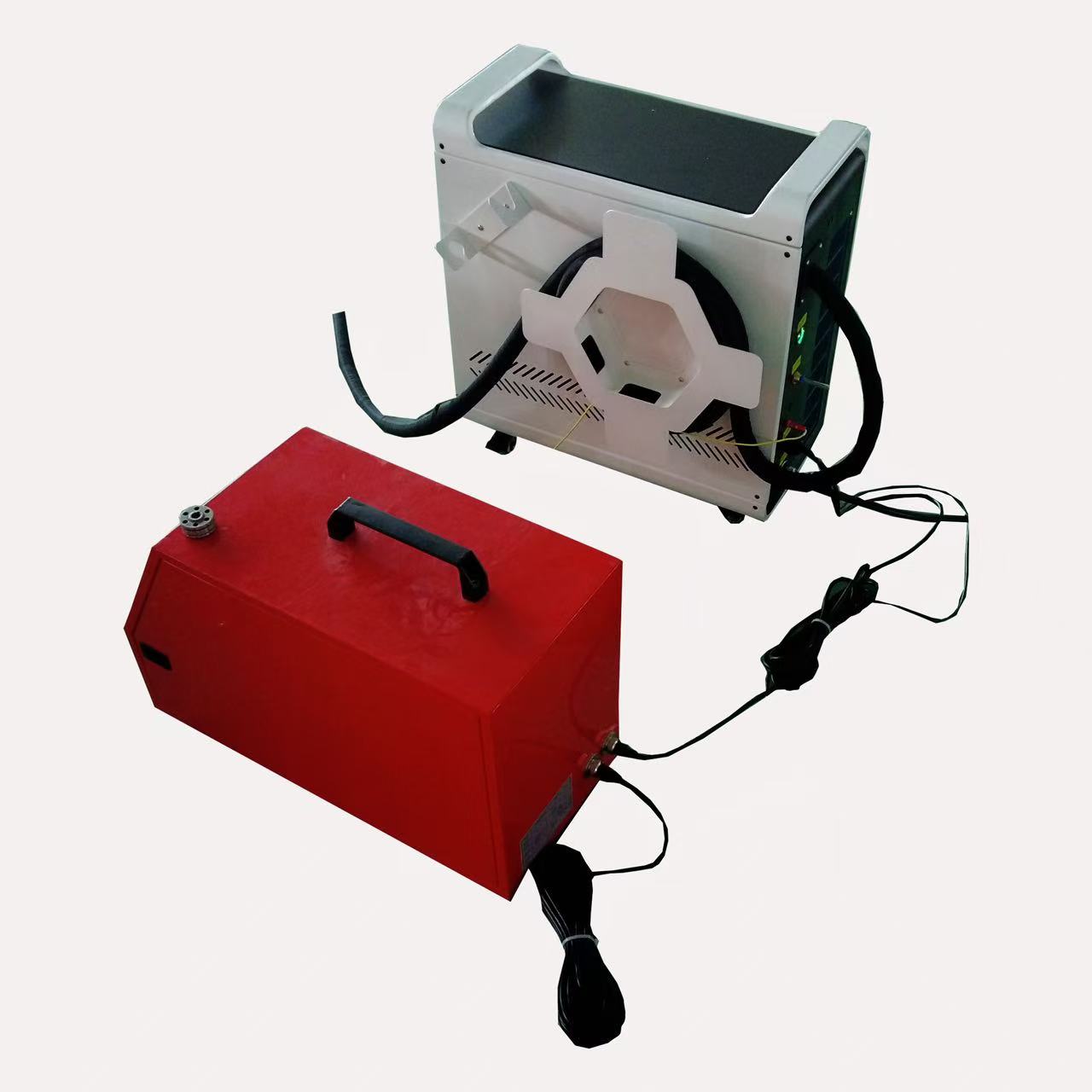

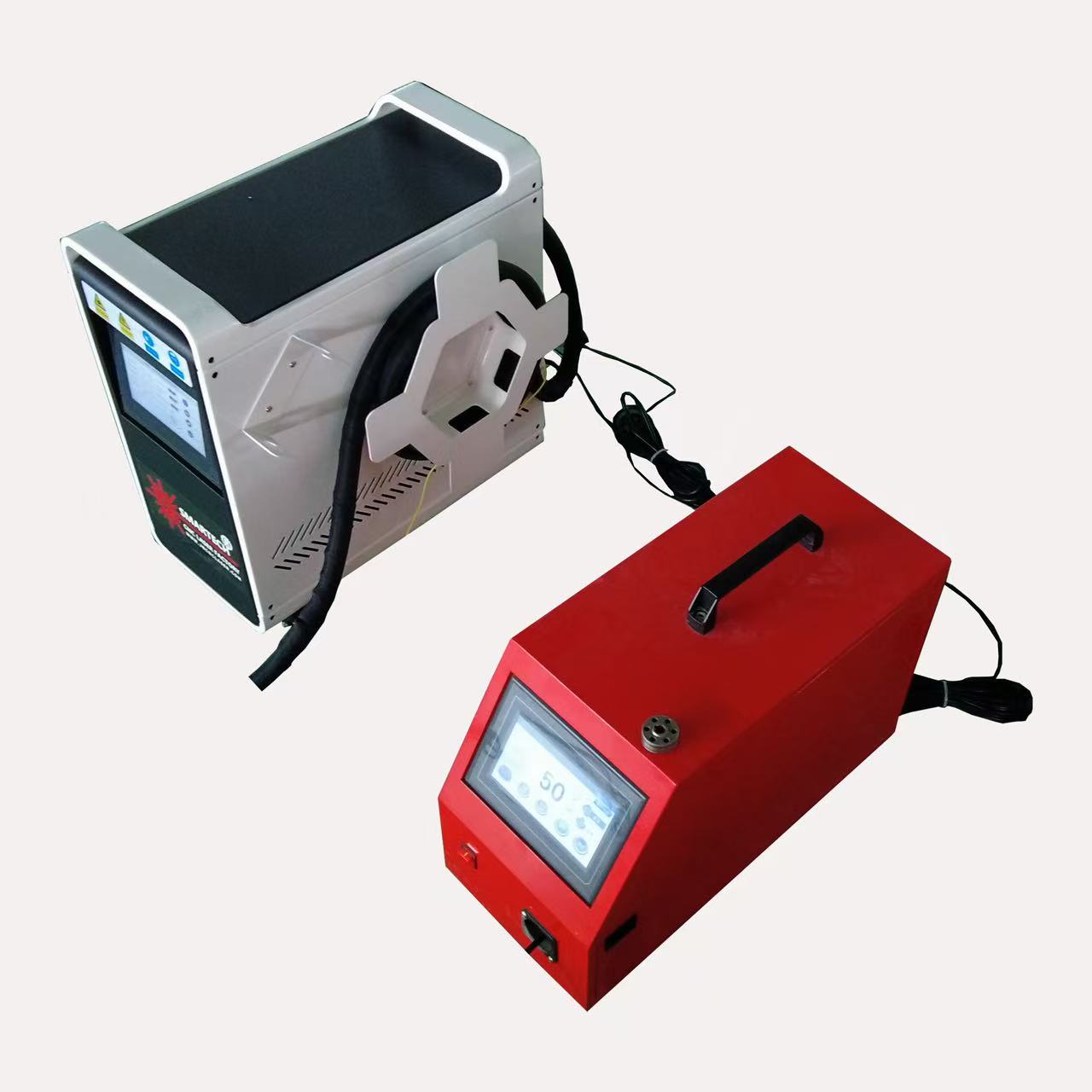

Wire Feeding System
Features of laser head:
@1.Easy installation, long life, low noise, low energy consumption;
@2.Small size, small weight, large torque, can be used with long-distance hand-held welding wire feeding;
@3.Wire feeding and welding control are synchronized, the wire feeding is stable and adjustable, suitable for use in different scenarios, and it is easy for the operator to master and quickly get started and skillfully operate.
@4.Software control, design wire feeding speed parameters through the control screen, can save multiple sets of data, and call it arbitrarily.
