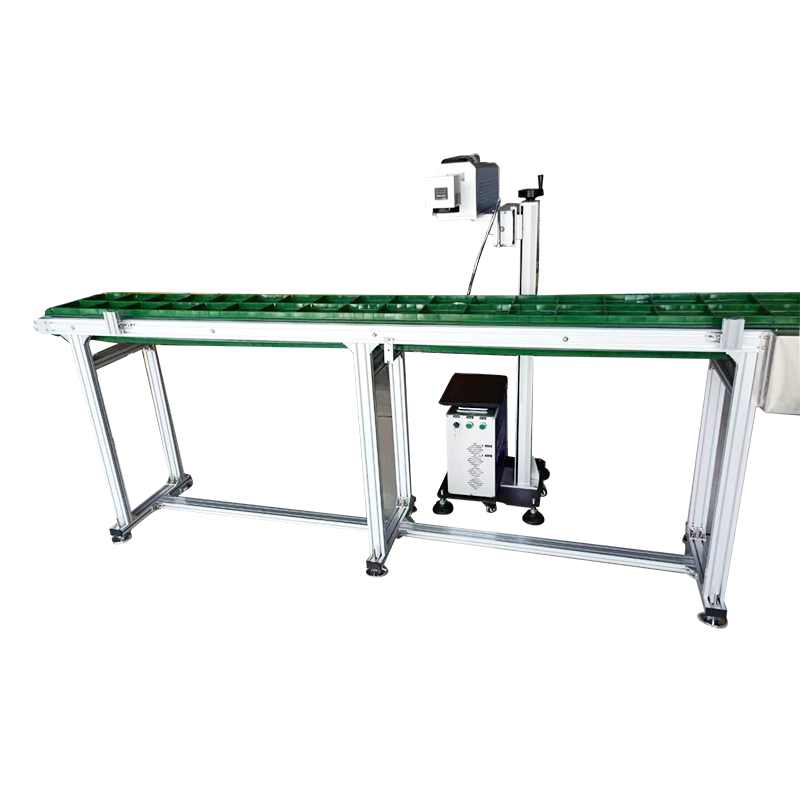

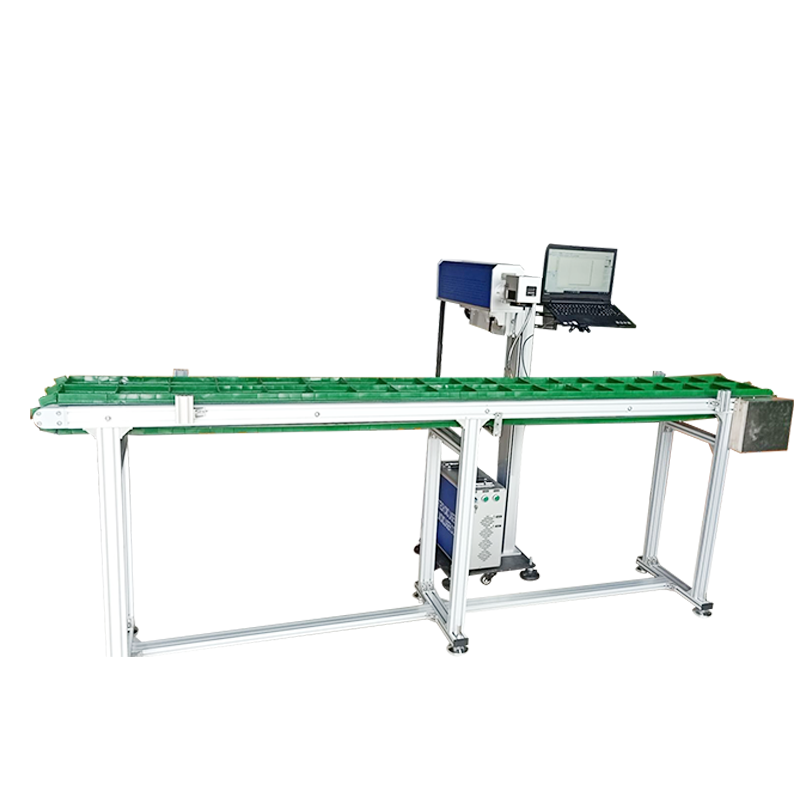

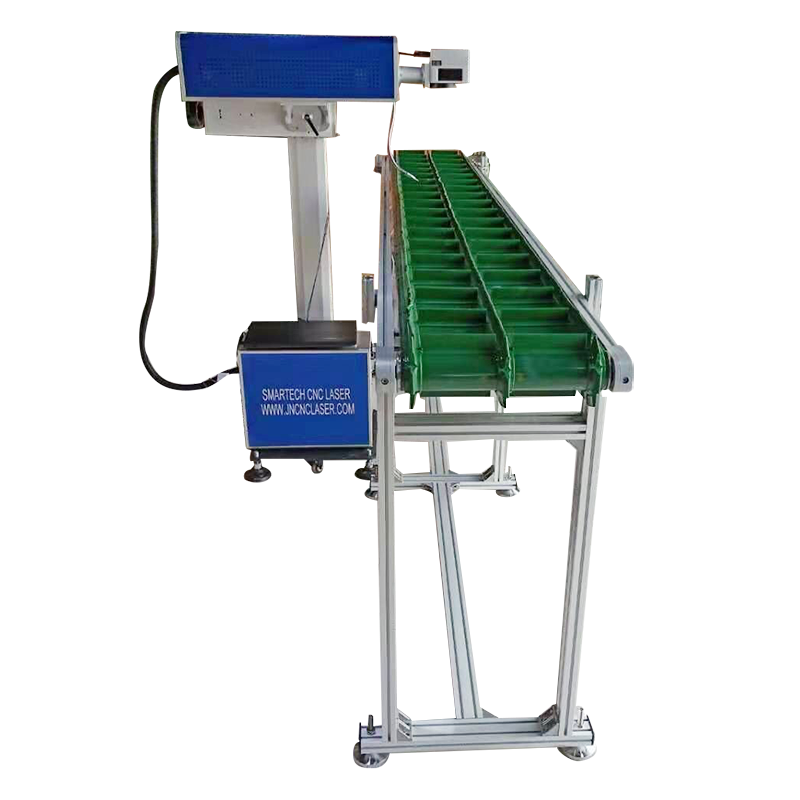

Flying CO2 Laser Marking Machine For Oyster Shells Production Line

Flying Laser Marking Machine Application laser marking machine can be used for marking date, serial number, bar code, 2D code,logo on PP/PET/PVC plastic, wood, bamboo,plywood,beech wood,carton,paper package etc. Flying Laser Marking Machine Main Features China top brand Fiber/ CO2 laser source / American Synrad laser source optional Advanced CO2l laser tube. Taiwan Mean well laser power supply; 7inch or 10inch touch screen in stead of computer. Software in touch screen directly in English and Spainsh. Double red light auto focus system; Red light indicator system for outline, size, location, direction; Special lifting mobile station; 8000 to 10000 bottles per hour. First layer is film,second layer is protective strong foam,third layer is Strong wooden case 650*500*1400mm Gross weight is:100KG Within 3 working days after get deposit 30% T/T in advance, 70% before delivery 3 years (replace parts during warranty(no human reason)) 8-10 years (If work 10 hours per day) Not include the consumption parts. Could provide CO/CE/SASO/CIQ/Invoice etc Certificates for customs clearance(according to your custom requirements)

*Advantages: @1.SMARTECH series laser marking machine application is very widely.it comes with LCD control online flying fiber laser wire marking coding machine is specially designed for production line, such as HDPE PVC PE plastic pipe cable, cable, bottles, electronics and other moving lines.  @2.long life span. laser life can up to 100000 hours @3.Windows-based marking software. real-time monitoring the laser power and pulse frequency @4.Very easy to operate, free maintenance. @5.Due to the special software&design, PEDB-600 fiber laser coding marking machine is ideally suited for integration within production lines, conveyors etc for marking products on the fly/dynamically.  @6.In-Line Dynamic Applications – suited for integration within production lines, conveyors etc.Especially It is able to laser mark components as they move. @7.High-performance digital galvanometer scanning system,perform high-speed and high-precision @8.It is in line with international safety and operating standards

Very easy to operate,comes with user manual.Machine support six languages,USA English,English,Japanese,Korean,Chinese,complex Chinese Main functions of the software:                                                                                  � Users can design their graphics freely. � Various types of fonts are supported. Such as True Type, SHX, JSF(Single line font defined by EzCad2), DMF(Dot Matrix Font), One-Dimensional bar code, Two-Dimensional bar code, and so on) � Flexible variable text: changes the text real time while in laser processing. Excel datasheet is supported. � Can through the serial port direct read text data � Can through the network direct read text data � Strong node editing function make the curve modification more easier � The software can support 265 “pencils”, which used to draw graphic and can be set different processing parameters. � Common types of images are supported. (bmp, jpg, gif, tga, png, tif…) � Common vector images are supported. (ai, dxf, dst, plt…) � Image processing (Grayscale, White / Black Transformations) � Powerful hatching functions, such as support round hatch. � More convenient IO operations and more easier to harmonize the auxiliary equipments. � Supports the dynamic focus (3 axis processing system) � Supports directly the SPI G3 fiber laser and the newest IPG_YLP and IPG_YLPM fiber laser � An opening language supporting system makes it easy to run the software in various languages platform.

Parameter of Flying Fiber Laser Wire Marking Machine Laser Type American RF /CHERENT /CHINA DAVE/GLASS Laser Tube Laser Tube life Time 20,000~30,000 hours/3000 hours Laser Output Power  30W/55W/80W/100W/130W For option Laser Wavelength  1064um  Marking Area  110×110mm / 160*160MM/220*220MM/300*300MM Marking Speed  8000-10000mm/s Minimal Character Size  0.2*0.2mm  Minimal Line Width  0.01mm  Power Supply  110v/220v/380v Cooling Method  Air-Cooling /Water cooling Repetition Rate  0~50KHz  Support Format PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX Software EZCAD NC YES Condition New Red Pointer Yes, with red pointer Field Lens Data F100M F160M F210M F254M Focus Distance 100mm 160mm 210mm 254mm Marking size 70*70mm 110*110mm 145*145mm 175*175mm Focus Distance for Each Marking Size: Detail description of Flying Laser Wire Marking Machine LCD Touch Screen Software installed on the LCD touch screen. The marking speed, power, frequency..all can be adjusted on the screen. It is very convenient. SMARTECH Laser all use latest version laser marking software. This software is ease-of-use, automation, database integration and vision inspection meet the needs of your project. High Speed Galvo Head Speed can reach 8000-10000mm/s, which can suitable for various speed production line.

New CNC router/laser machines sold by SMARTECH carry a 3-years warranty (fiber laser cutting machines carry a 5 years warranty) effective from the date of shipping. CNC machines sold through dealers must be registered with SMARTECH within 30 days of purchase to be covered by this warranty. We would send new parts or repair for you during warranty period for free.

Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. We will provide detailed Machine pictures and Test videos to customers before delivery.

Customized and OEM orders are welcome due to our abundant experiences.All the OEM services are free, customer only need to provide us with your logo drawing. function requirements, colors etc. No MOQ required.

None of your personally identifiable information ( such as your name, address, email address, bank info, etc ) will be disclosed or shared with any third parties. Contact All of your inquiries or questions or helps will be answered within 24 hours,even in holiday. Also, please feel free to call us if you have any emergency questions.

Alibaba Trade Assurance ( New,safe and popular payment terms) 30% T/T paid in advance as deposit, the balance paid before shipment. LC at sight.  Other payment terms: Paypal,Western Union and so on.

FAQ
