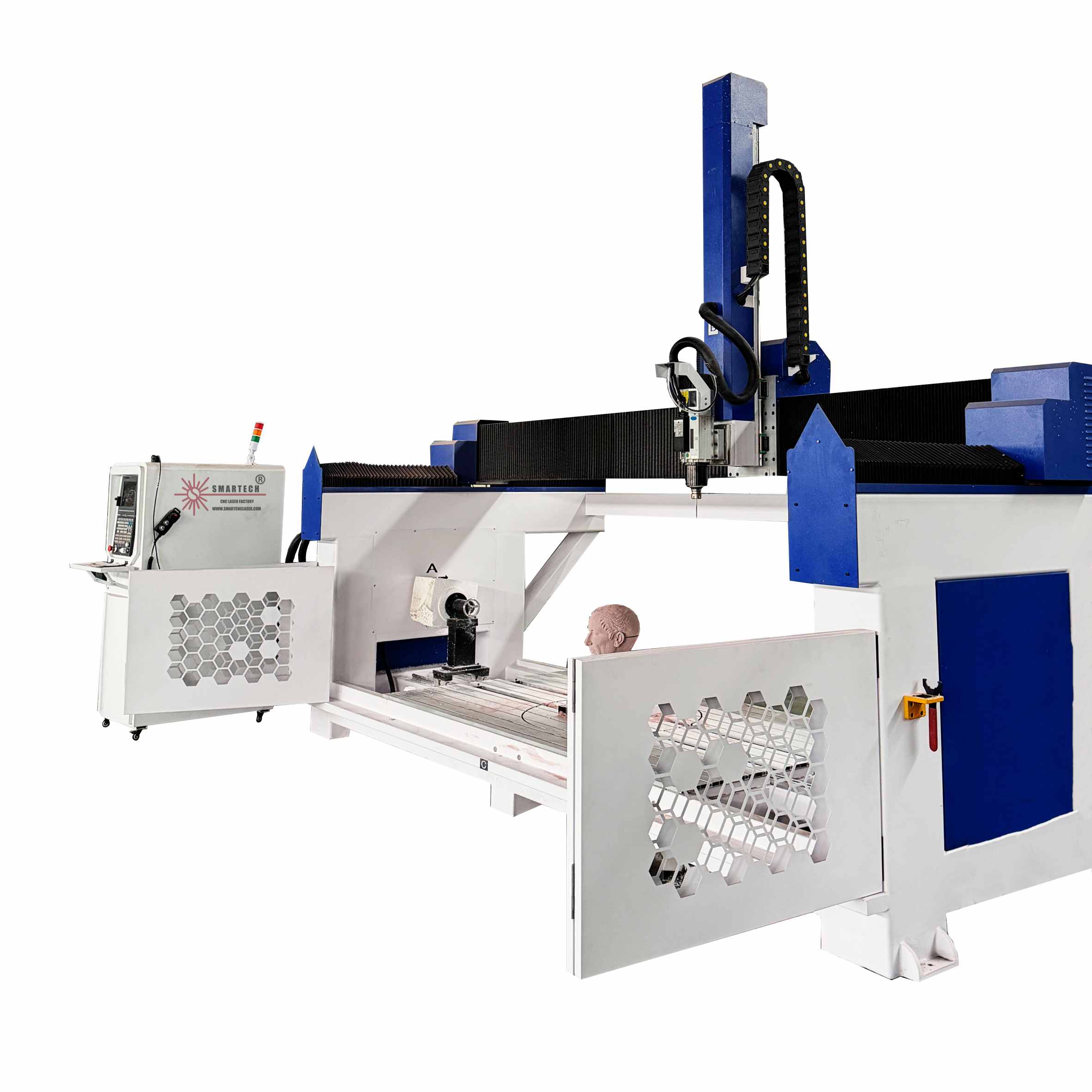

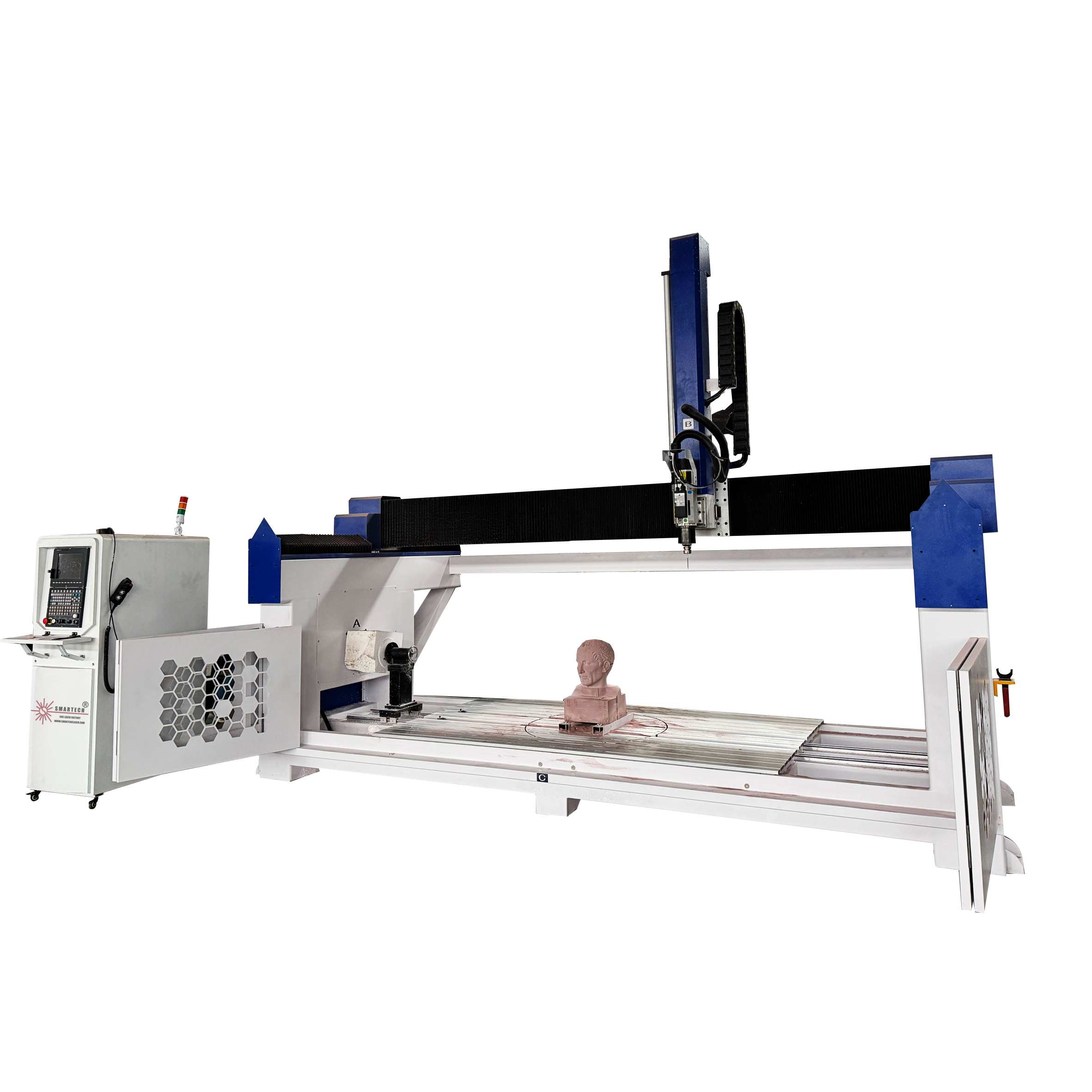

SW1530-5 Axis
SMARTECH
3100x2250X2200mm
Features
1. Machine Body: Steel Structure.Thickening of lathe bed,With high temperature heat treatment, high precision Taiwan TBI ball screw transmission,ensuring the stability and high precision.
2. 25 PMI linear guide, imported from Taiwan.
3. Double motors for Y axis, providing more power.
4. Cast steel structure and big thickness steel for main body----Strong type!
5. PMI/HIWIN Rail for 3 axis Helical tooth rack Original TBI Ball screw Idling 60-80m/min Working speed:20m/min
6. High precision rack gear
7. It adopts LNC or taiwin syntec control system, high accuracy and speed.
8. International top brand accessories,Japan Soft Limit Switch
9. Z axis travel can be suitable for processing large-scale three dimensional surface.
10.Intelligent processing protection can avoid mechanical collision when design files are too large.
11.Diversification of control can individually control process speed, traveling speed and tools change speed so improve the quality of processed products and efficiency.
Technical Data
Description Parameter

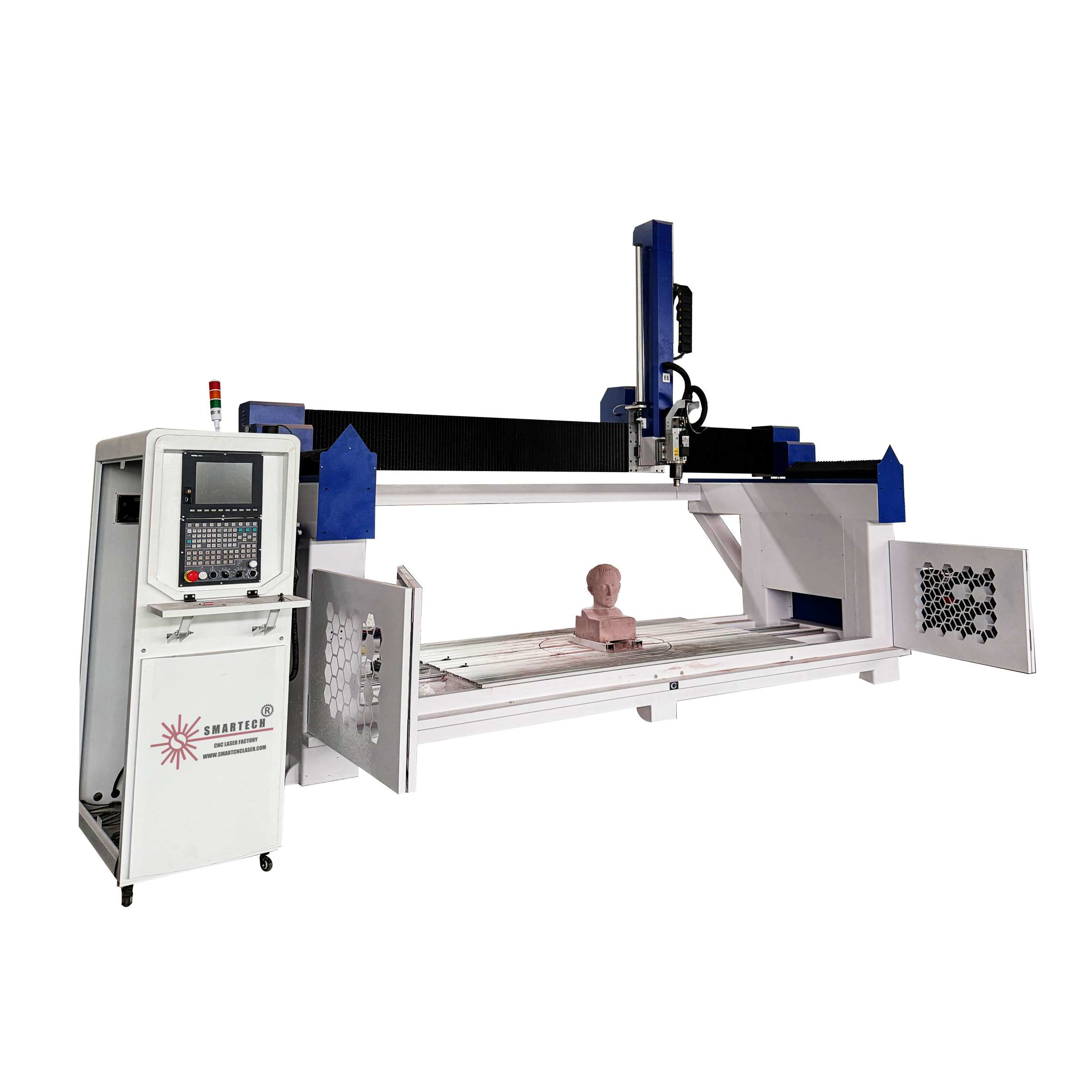

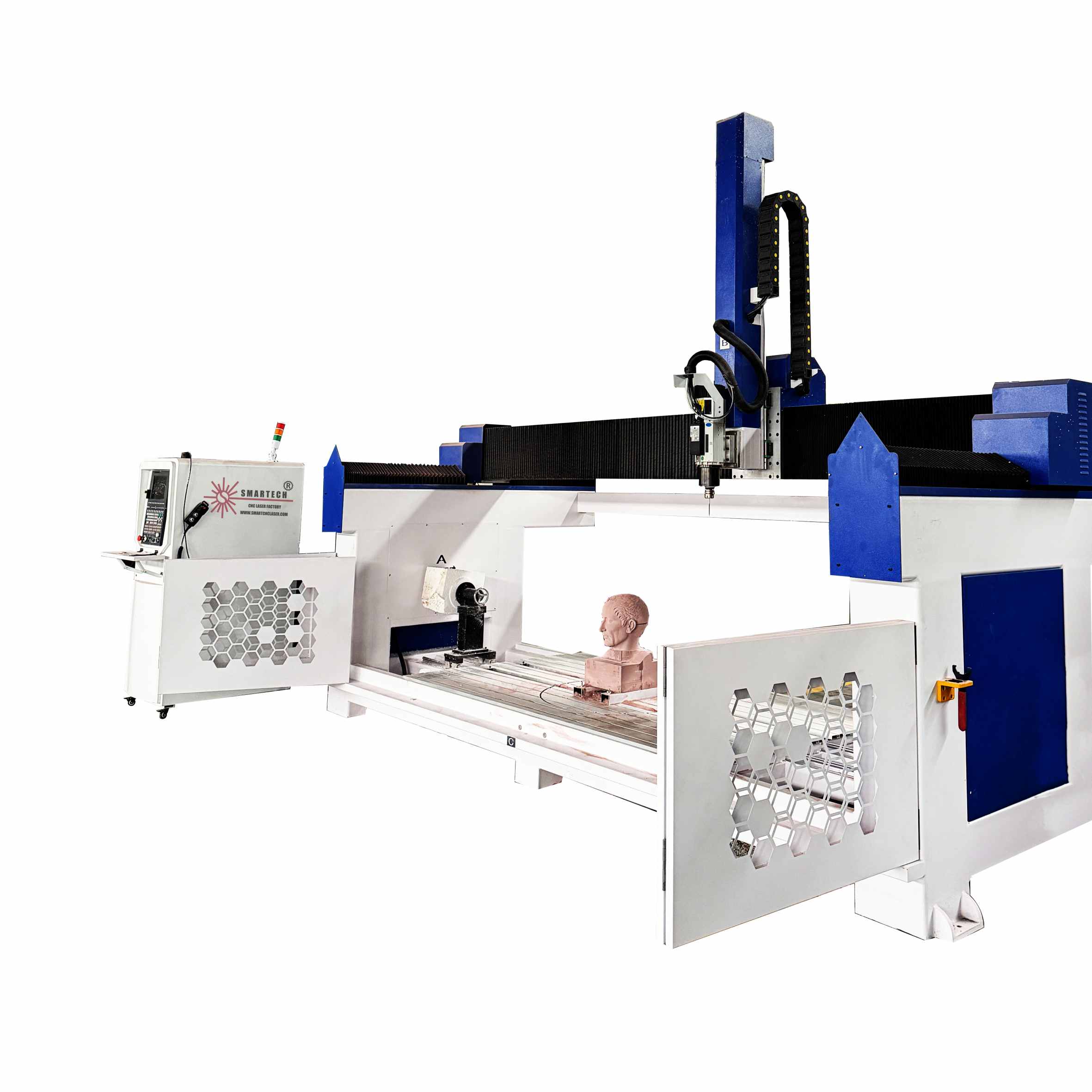

Model 1530 5 Axis CNC Router
X,Y,Z Working Area 1500x3000*1000mm
Traveling Positioning Accuracy±0.03/300mm(X,Y,Z Axis)
Table Surface T-slot table
Frame New type thicker and bigger heavy duty frame gantry
X, Y Structure Helical Rack gear, Taiwan PMI Linear Square Rail
Z Structure Taiwan TBI Ball Screw, Taiwan PMI Linear Square Rail
Spindle 9KW self cooling atc spindle
Max.Speed 0-60000mm/min
Max. Working Speed 0-40000mm/min
Inverter Best Inverter
Lubrication system Automatic lubrication system
Working Voltage AC380V, 3Ph, 50Hz
Command G Code, *uoo, *mmg, *plt
Operating System LNC System
Interface USB
Break point continuous carving function Have.
Collet ER25,ER32
Running Circumstance Temperature: 0℃～45℃ Relative humidity: 30%～75%
Packing Size Integrated: 3100x2250X2200mm
Net Weight 1750KG
Gross Weight 1800KG

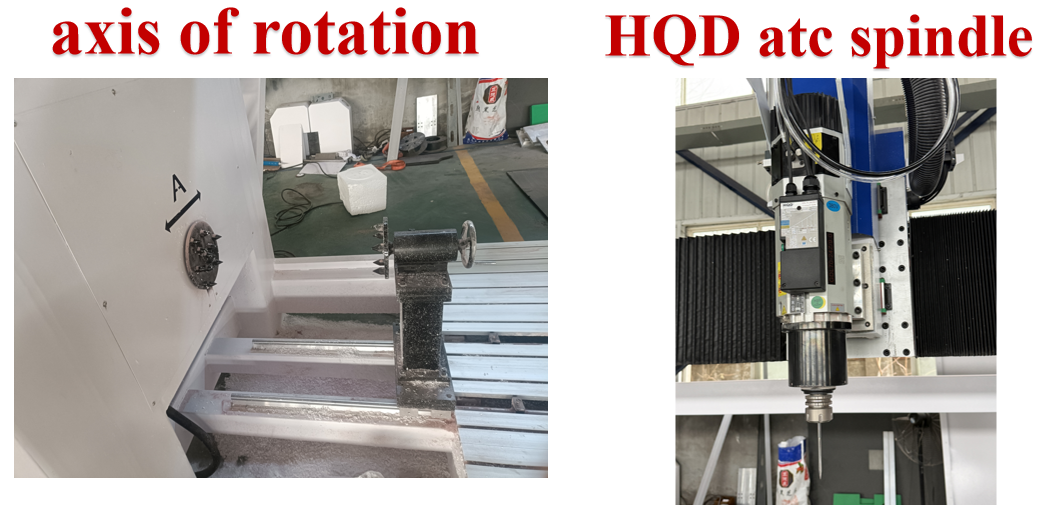

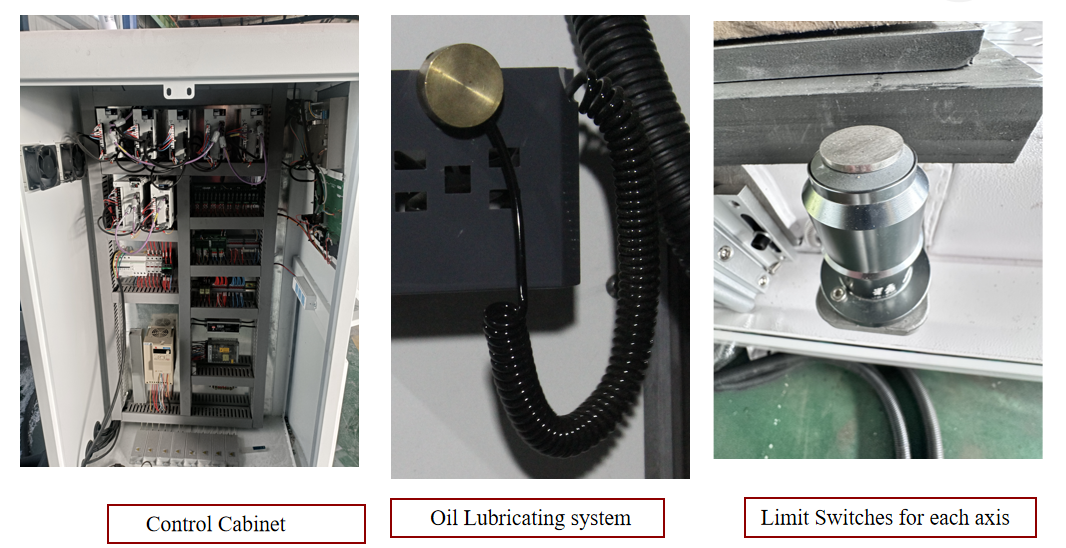

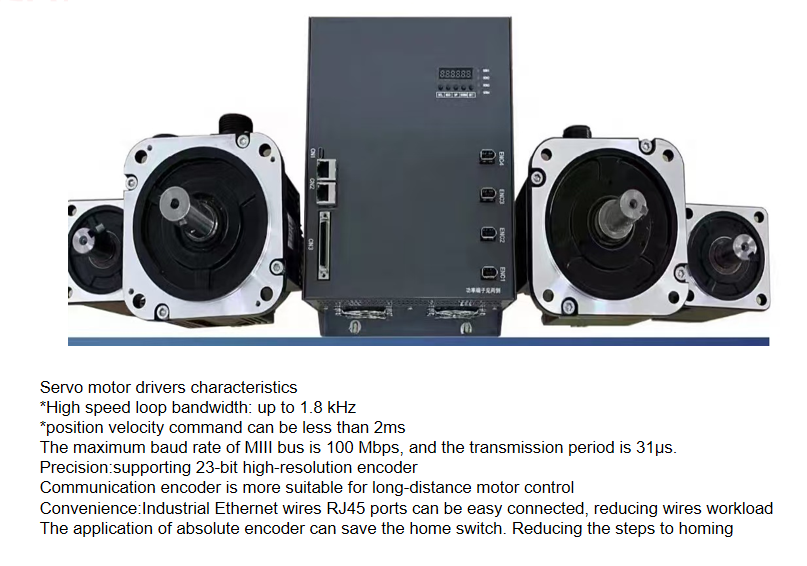

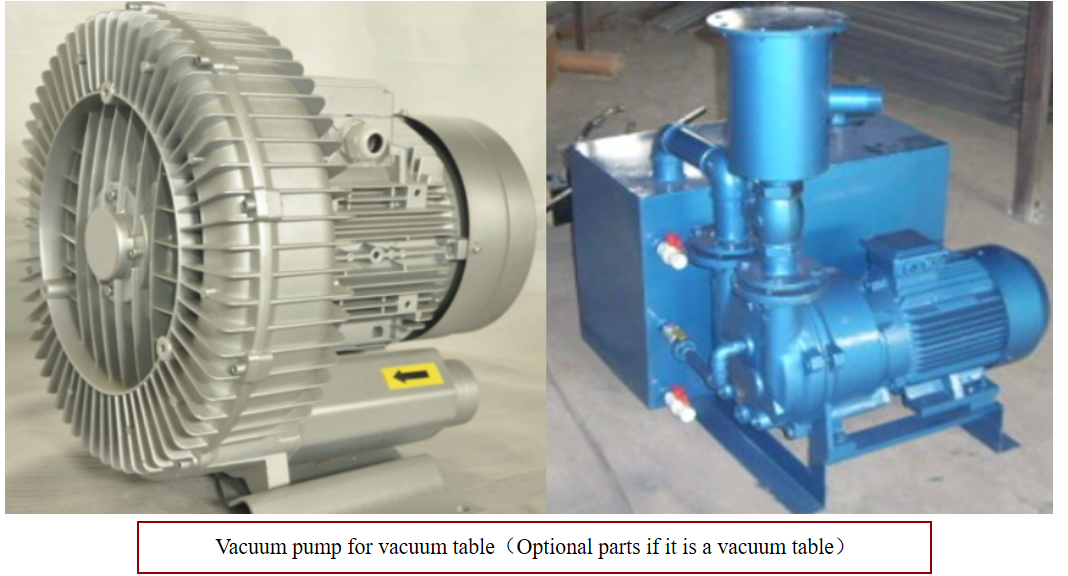

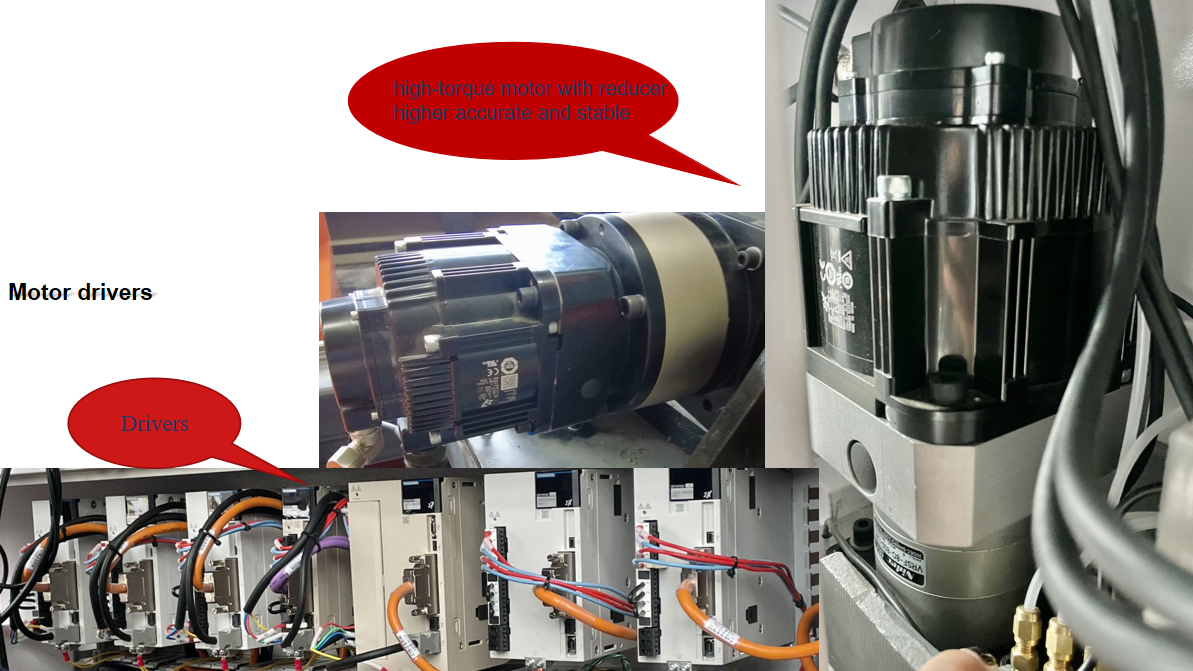

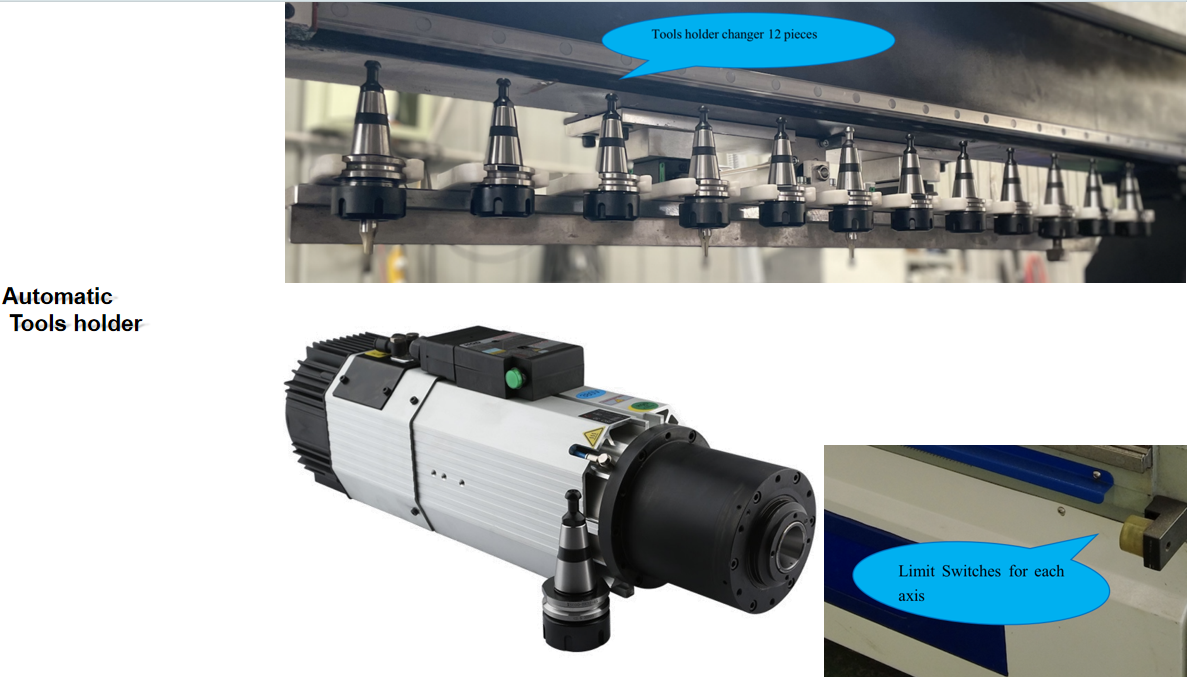

Machine parts
Working samples
About us
