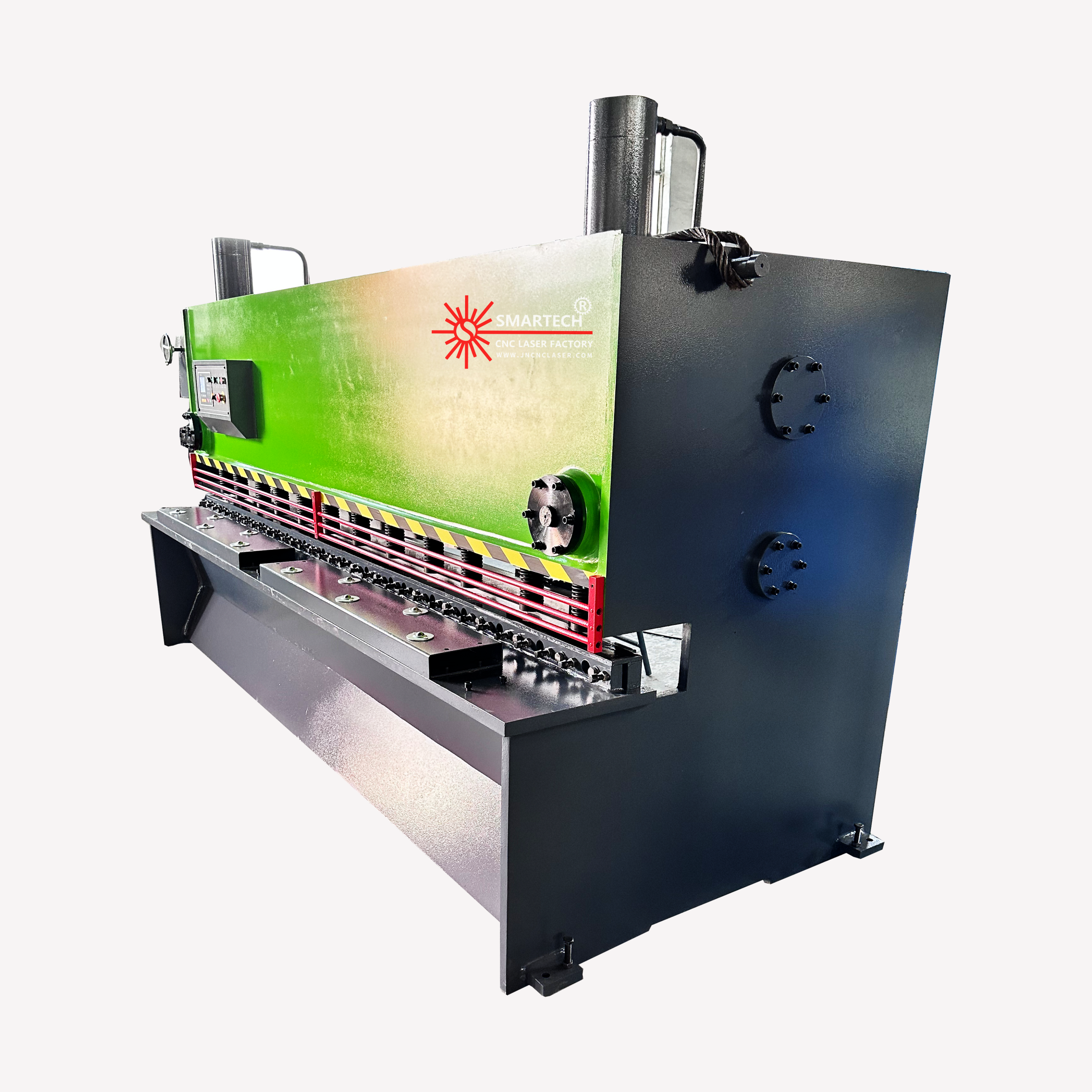

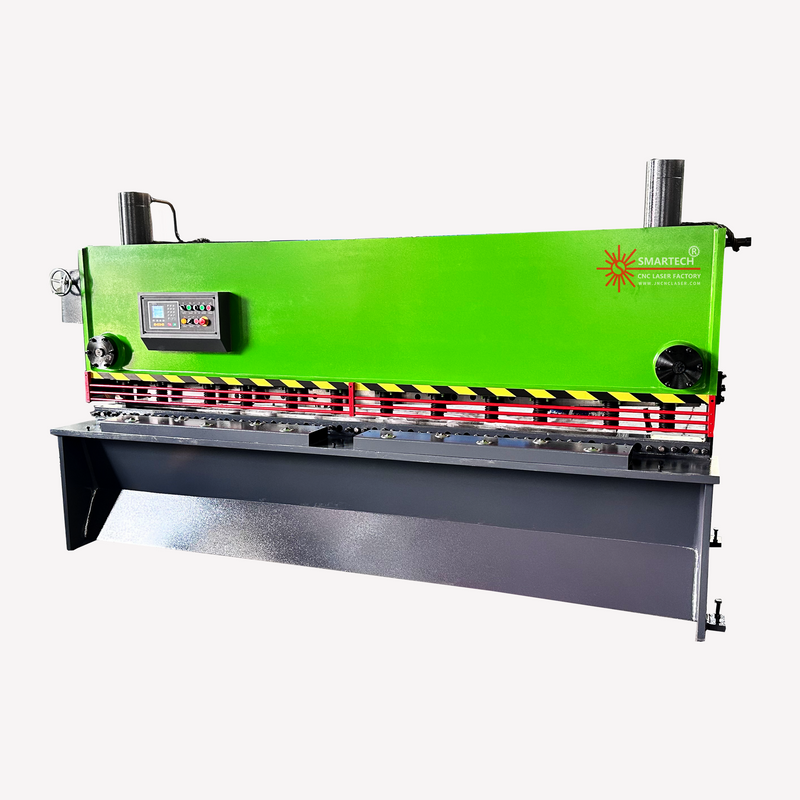

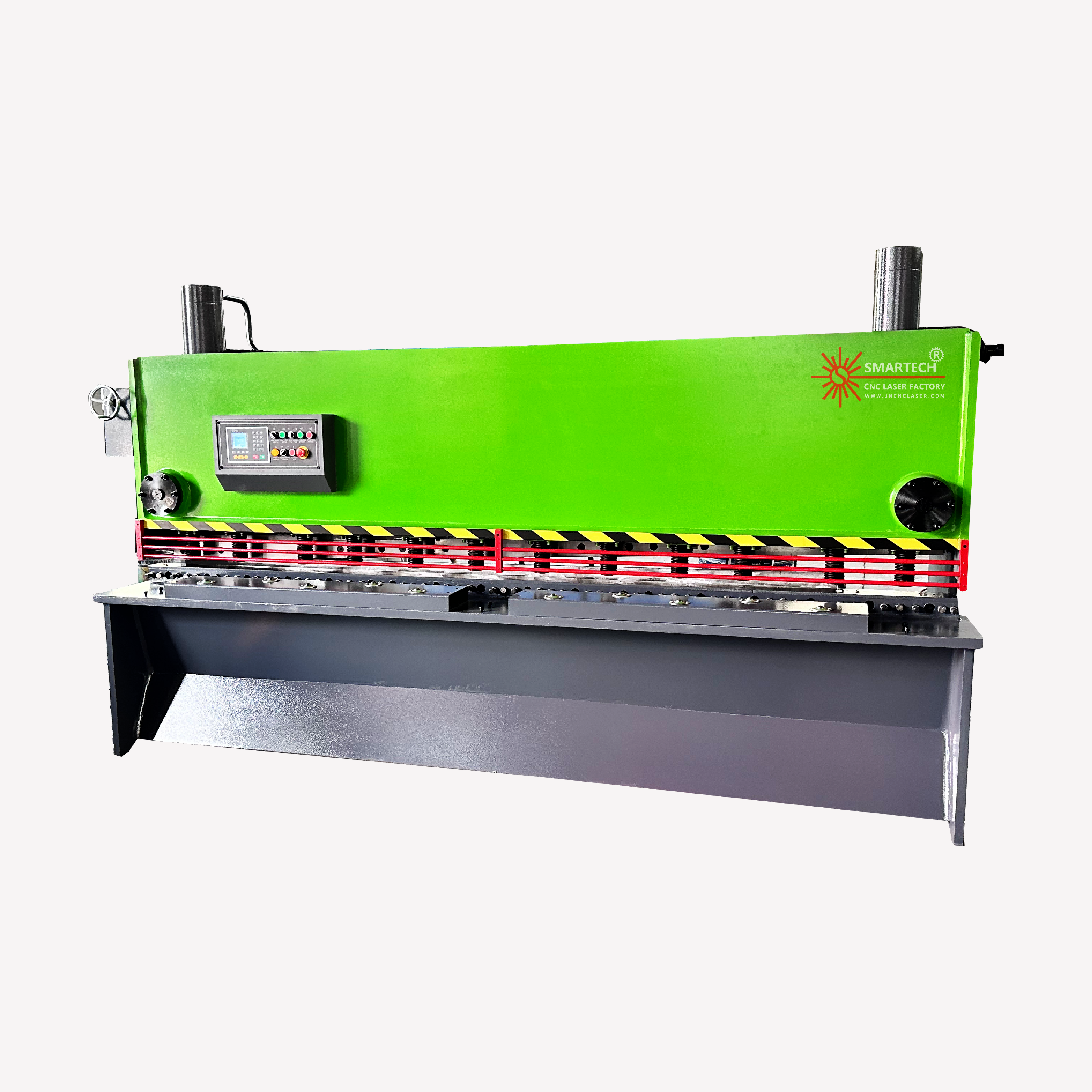

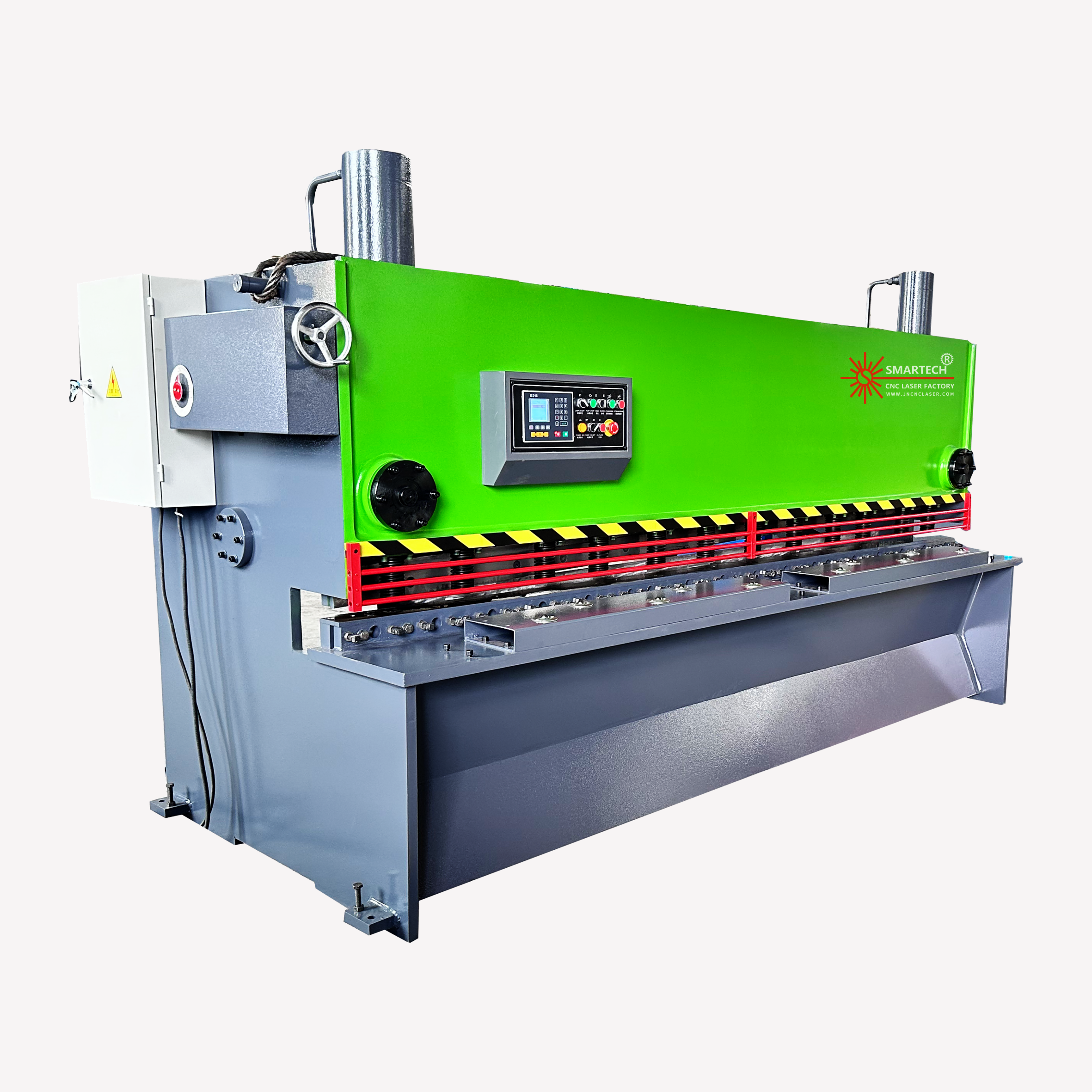

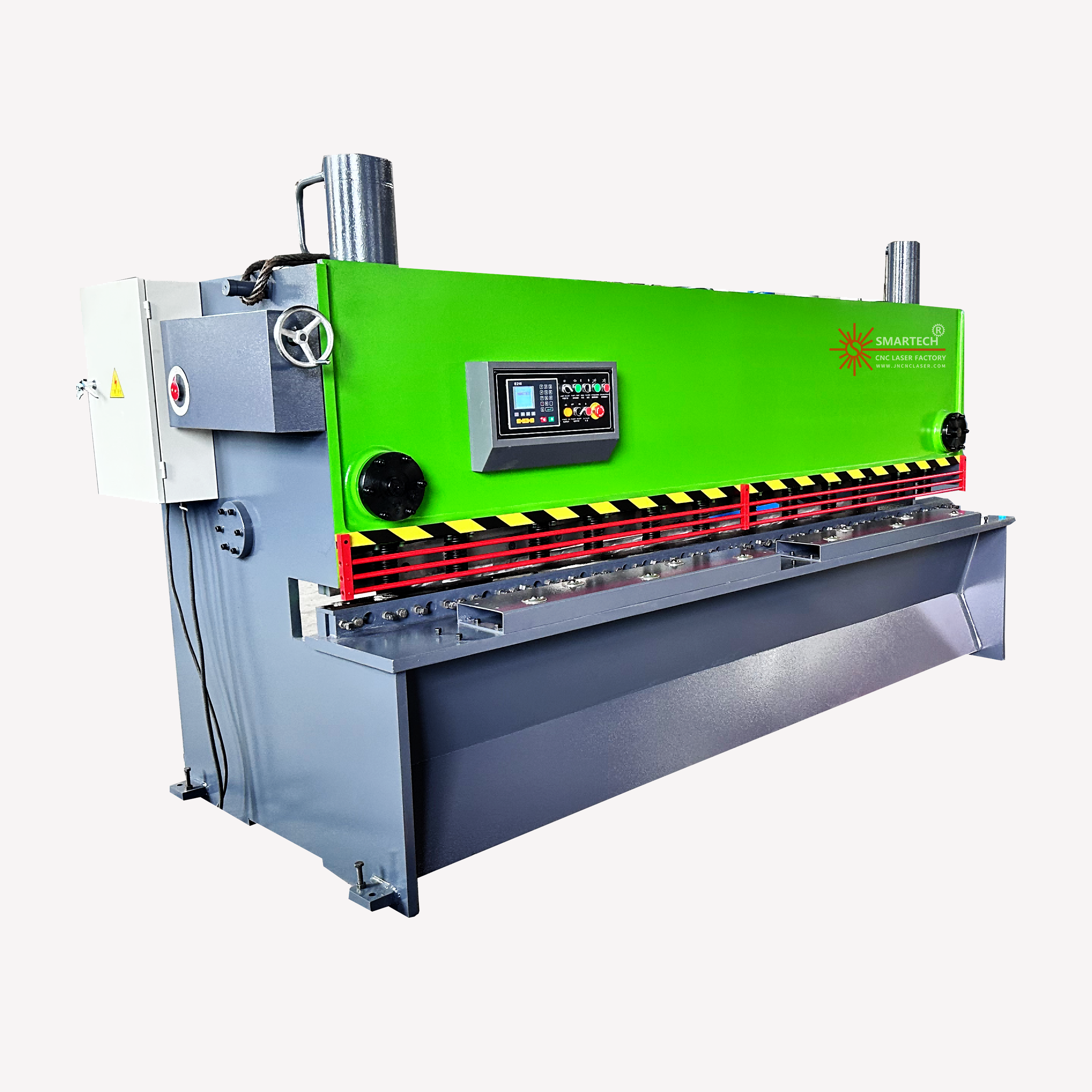

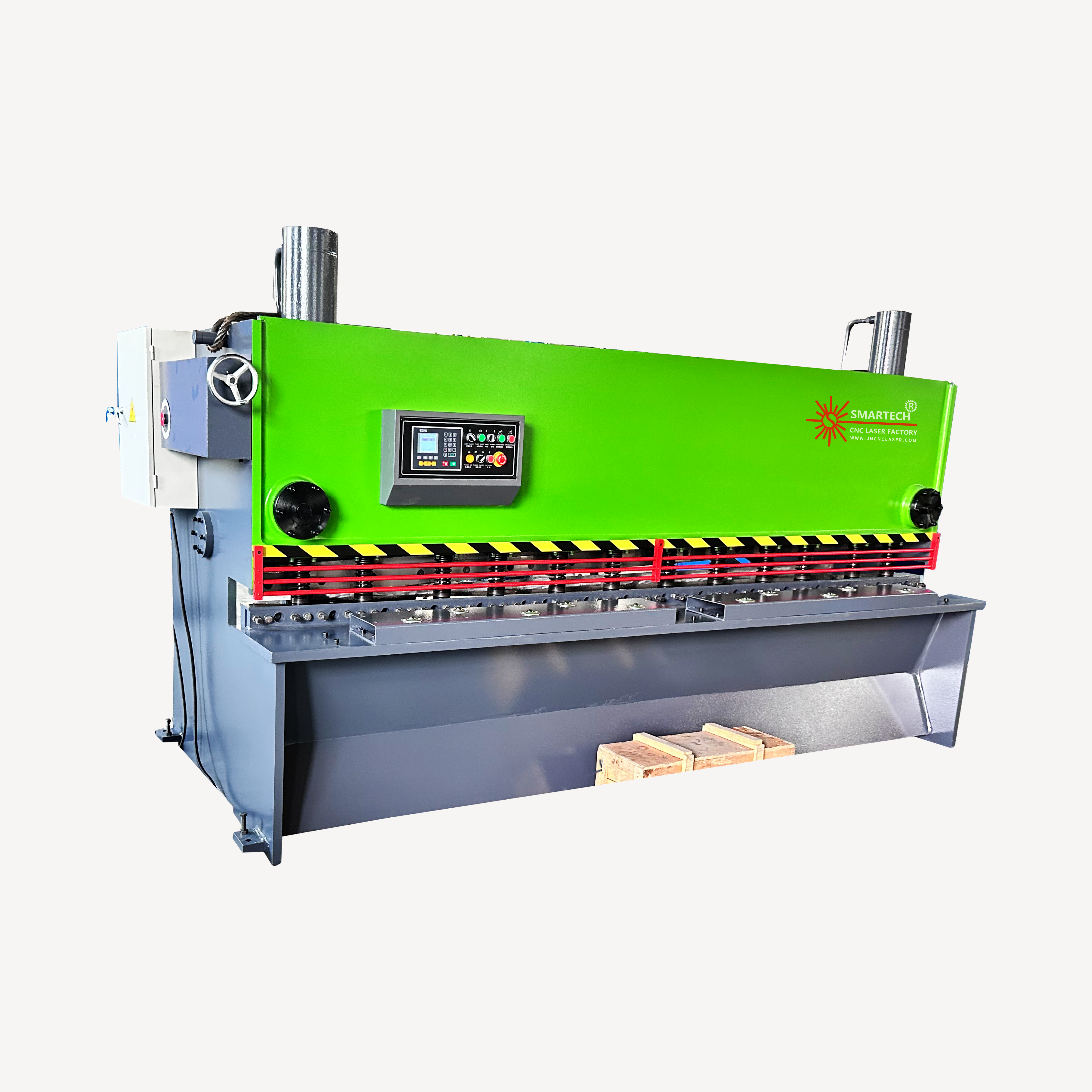

shearing machine
Model:Smart-6*2500/3200/4000
Maximum board width: 2500mm/ 3200mm/4000mm
Shear Angle:15°
Number of trips：12-25L/MIN
Main motor：model：Y2 132L-4/7.5KW E21 control system
Dimensions:3130*3840*4630

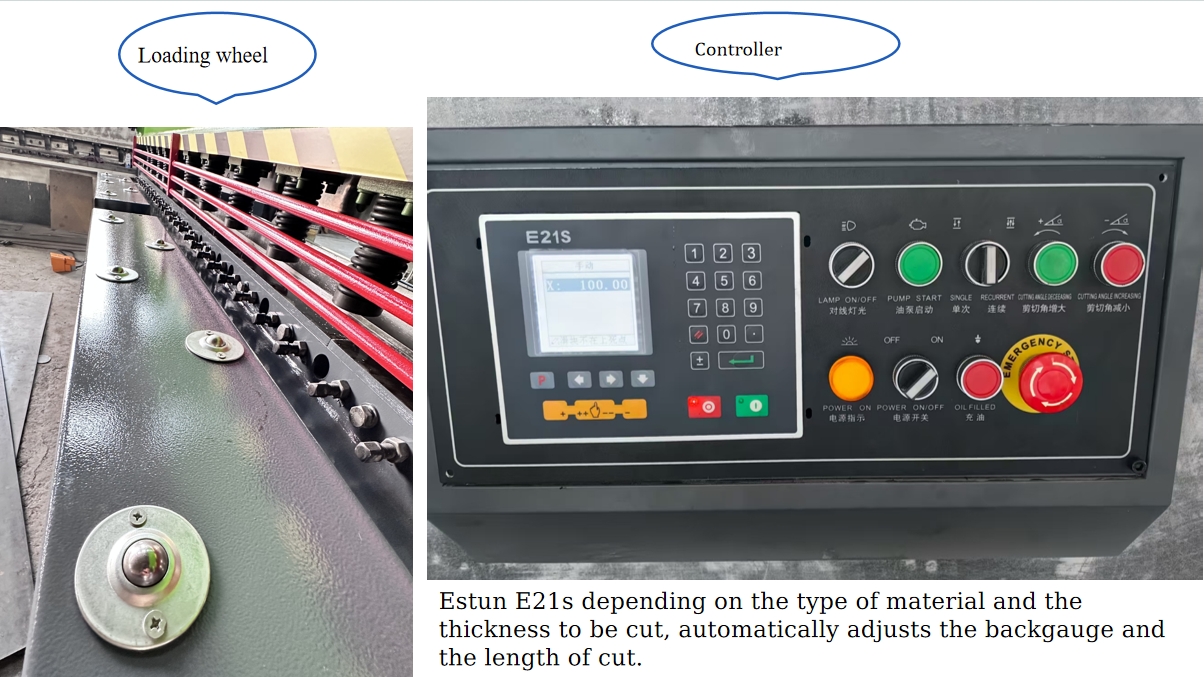

1,The machine is fitted with CNC controller special for shearing machines.
2,The position of rear stopper is displayed in real-time manner.
3,Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
4,It is provided with a counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
5,Back gauge with precision ball screw and linear guide, to ensure the positioning precision, so that brings the higher accuracy of processing
PRODUCT SPECIFICATIONS
| Item | parameter | unit | ||
| Maximum plate thickness that can be cut | 6 | mm | ||
| Maximum board width that can be cut | 2500 | 3200 | 4000 | mm |
| Sheared sheet strength | 450 | N/mm2 | ||
| Shear Angle | 0.5°~1.5° | |||
| Maximum distance of back gauge | 600 | mm | ||
| Number of trips | 12~25 | L/min | ||
| Column distance | 2700 | 3430 | 4200 | mm |
| Blade length | 2600 | 3300 | 4100 | mm |
| Working table height from ground | 750 | mm | ||

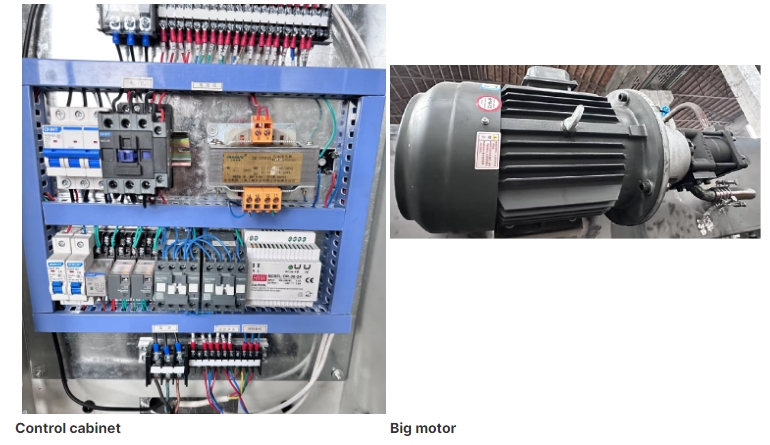

| Main motor | model | Y2 132L-4 | ||
| power | 7.5 | KW | ||
| Speed | 960 | r/min | ||

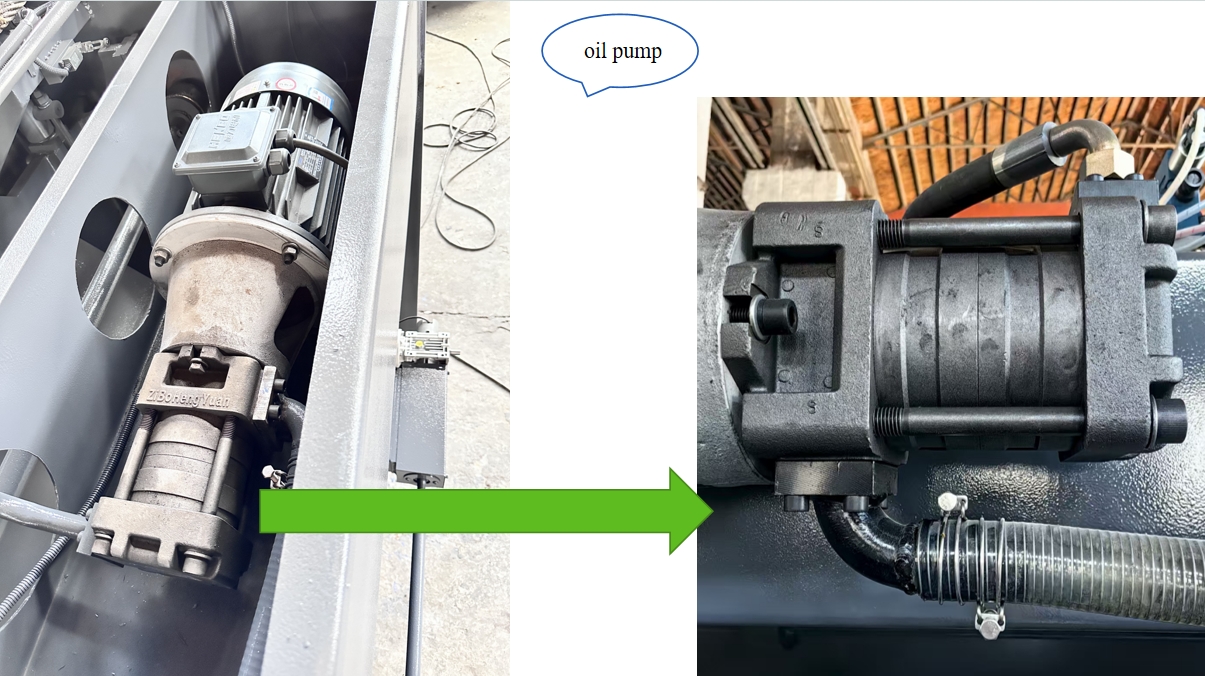

| Oil Pump | model | 25MCY 14-1B | ||
| Displacement | 25 | ml/r | ||
| pressure | 31.5 | Mpa | ||
| Dimensions | long | 3130/3840/4630 | mm | |
| Width | 1510/1675/1850 | mm | ||
| high | 2100/2100/2100 | mm | ||
