SMARTECH

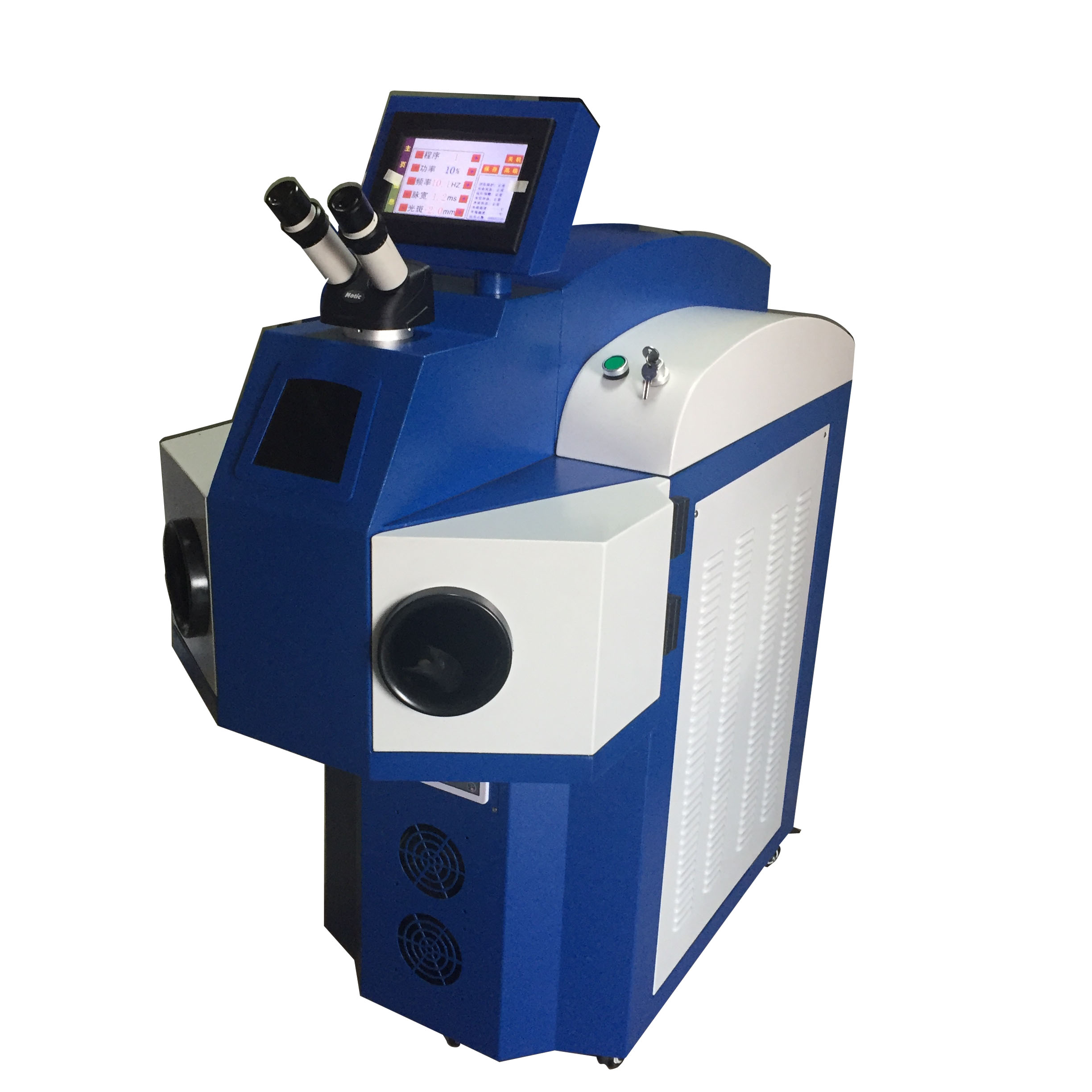

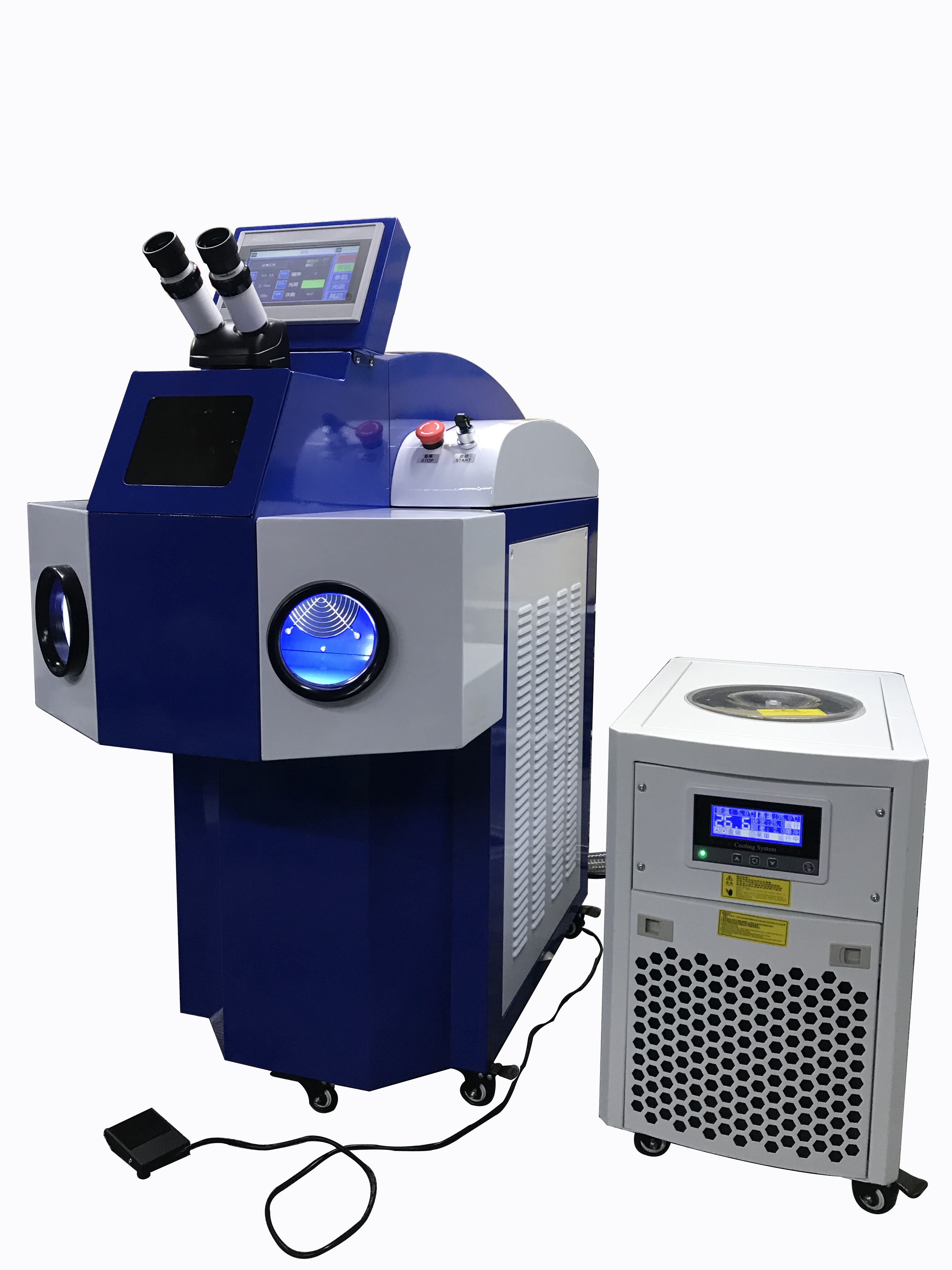

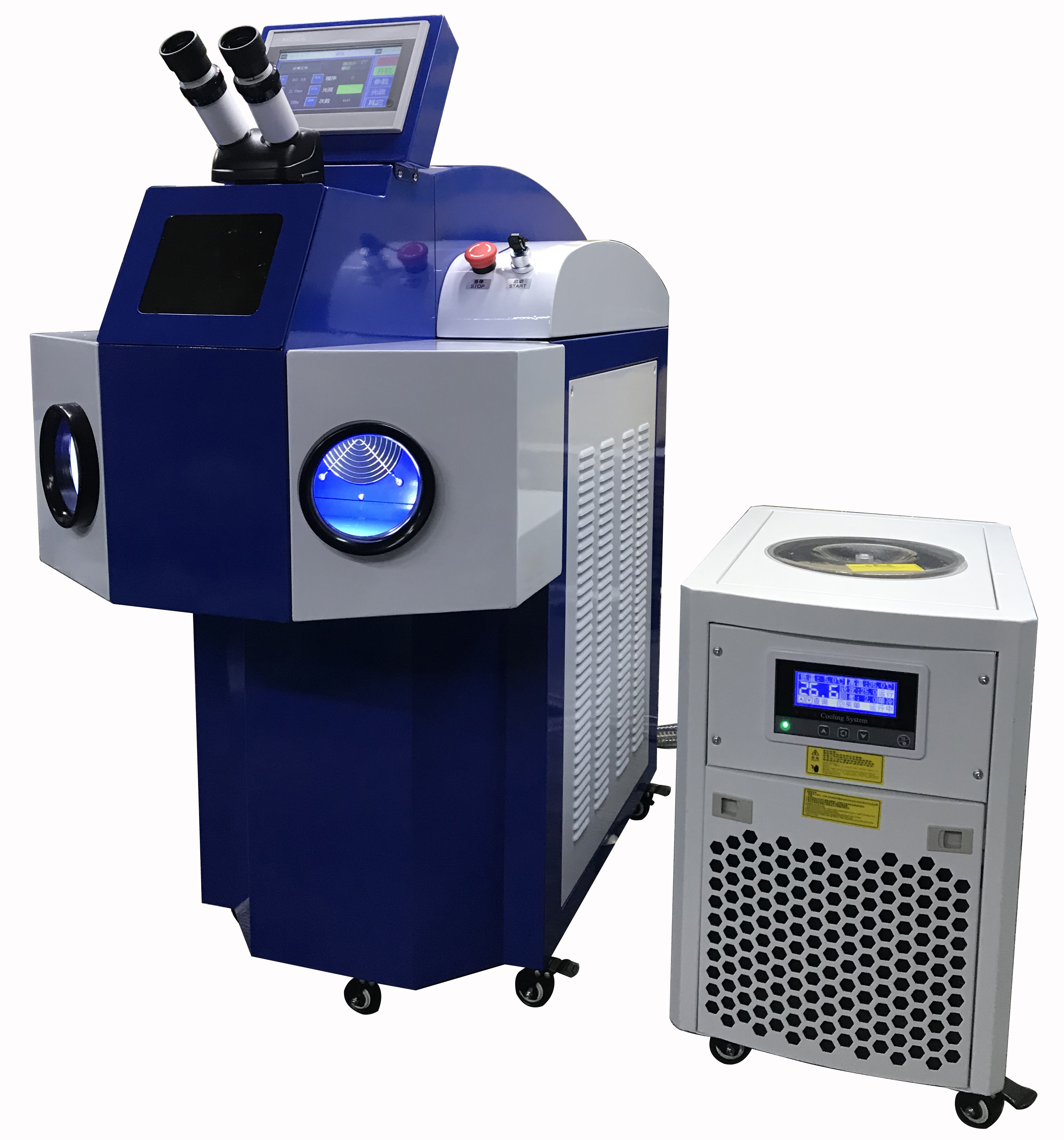

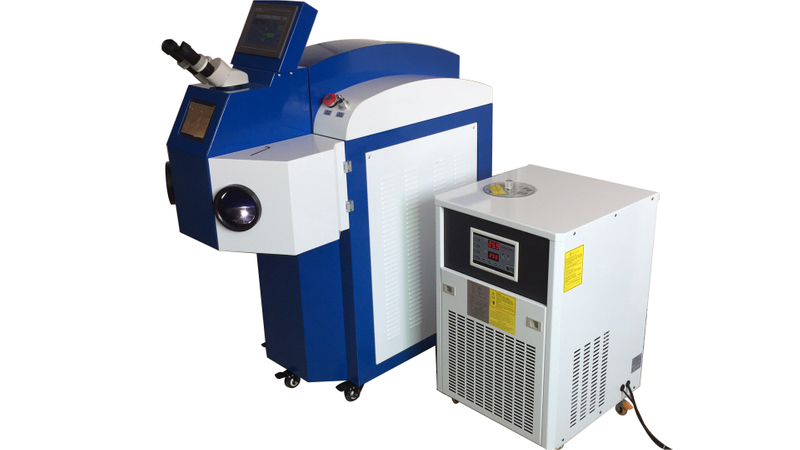

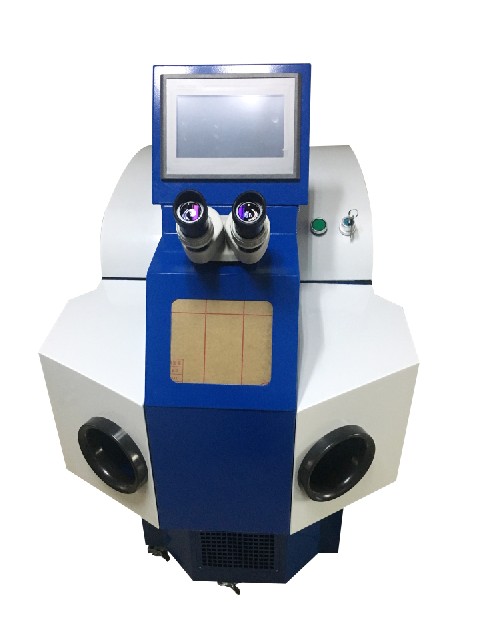

laser spot welding machine
Model: Smart -J Series
Maximum average power ：200w
Laser wavelength ：1064nm
Max pulse anergy:120j
Laser welding depth:0.1-3.3mm
The pulse width :0.3-20ms
Battery laser welding frequency:0.5-20hz
Adjustable range of spot size:0.2-2mm
Machine power consumption:≦6kw
Machine weight:130kg
Package size :110x65x135cm
Laser power supply power 3KW, boost energy control, water temperature, water pressure, alarm detection
Stainless steel 304 water tank, automatic water addition, dual water level monitoring, silent and low consumption circulating water pump
10X microscope, binocular fine adjustment, German coated lenses
Neodymium Yttrium Aluminum Garnet (Nd:YAG)
High energy density xenon lamp, effective service life500Thousands of times
Special optical lens, focal length110mm
720PHD camera, capacitive touch screen
Metal emergency stop button switch, safety protective cover
| Name | Technical Parameters |
| Maximum average power | 200W |
| Laser wavelength | 1064nm |
| Max Pulse energy | 120J |
| Laser welding depth | 0.1-3.3mm |
| The pulse width | 0.3-20ms |
| Batter, laser welding frequency | 0.5-20Hz |
| Adjustable range of spot size | 0.2-2mm |
| Machine Power consumption | ≤6kw |
| The demand for electricity | 220V±0%/50Hz/30A |
| Environment | clean, no dust or less dust |
| Temperature | 55℉(13℃)to 82℉(28℃) |
| language | Chinese, English, Korean, Russian (can be customized) |
| Humidity | 5% to 75%non-condensing |
| Installation environment | Installation Location: 4 square meters |
Profile:Smart-200W laser spot welding machine is used for perforation and spot welding of sand hole for gold and silver jewelries. Laser spot welding is an important application of laser materials processing technology. Spot welding is thermal conduction, namely, the laser radiates the surface of the part, and the heat on the surface expands inside through heat conduction. By controlling parameters such as laser pulse width, energy, peak value and repeating frequency, the part will melt, and thus forming specific molten pools. Due to its unique benefit, the product has been successfully applied to gold and silver jewelries processing, and welding of small-sized parts. Characteristics
● Energy, pulse width, frequency and facular can be adjusted within a wide range to achieve different welding effects. The parameters are adjusted by the control rod in the sealed cavity, simple and efficient.
● Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient in optical/electrical conversion. The focusing cavity's service life is 8 to 10 years, and the service life of the xenon lamp is over 8 million times.
● World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation.
●without maintenance for working 10000 hours
● Personalized design in compliance with ergonomics principles.
