SMARTECH

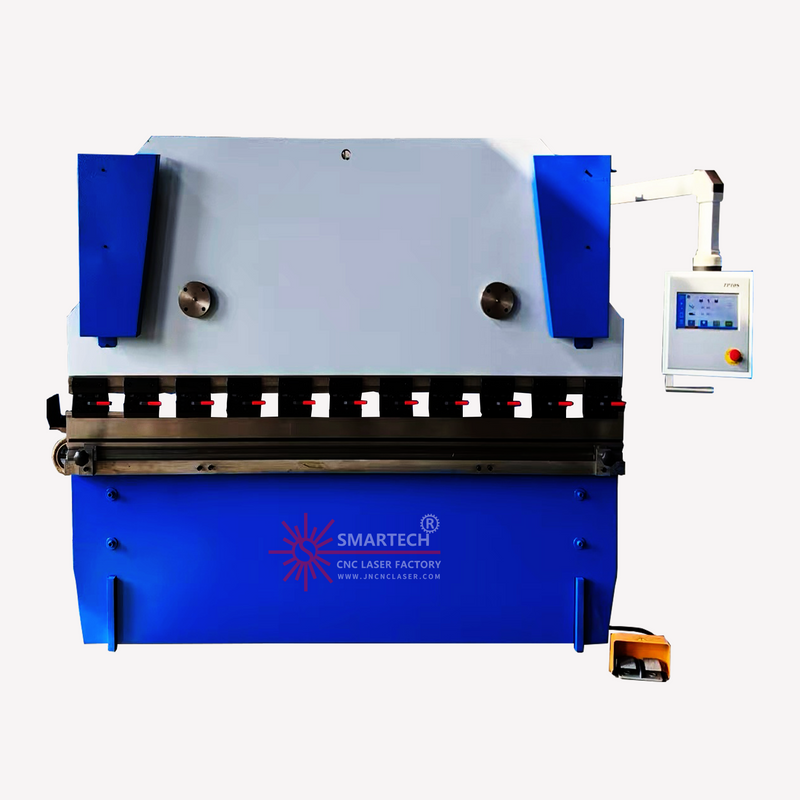

Model:Smart-80T-2500
Pressure:80T/100T/125T/160T
Bending Length: 2500mm/ 3200mm
Heavy duty frame 40mm thickness
High precision ball screw transmission
Oil Pump:10MCY14-1B
Double Servo Motor
Quick Clip
Linear Guide Rails
High precision mouds

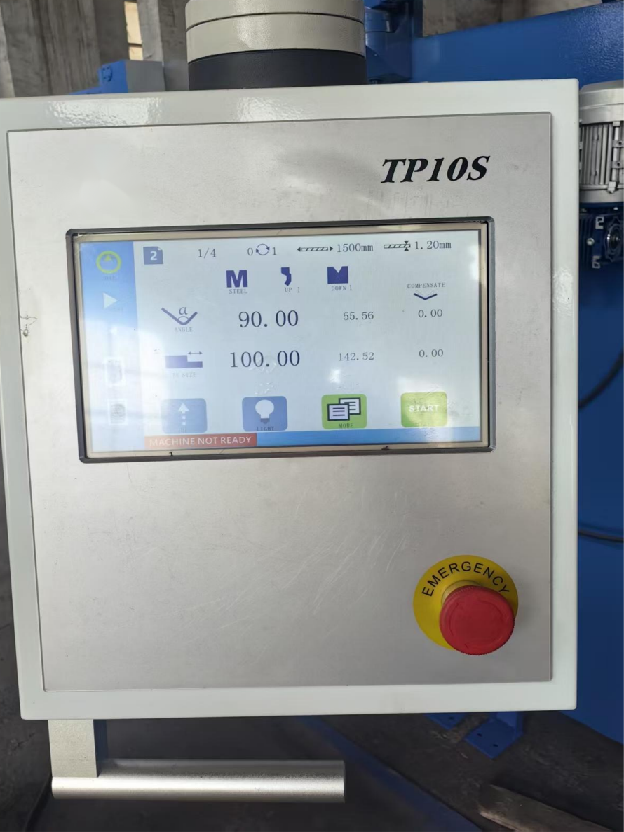

E21 Control System
Machine details
Materil auto clamps

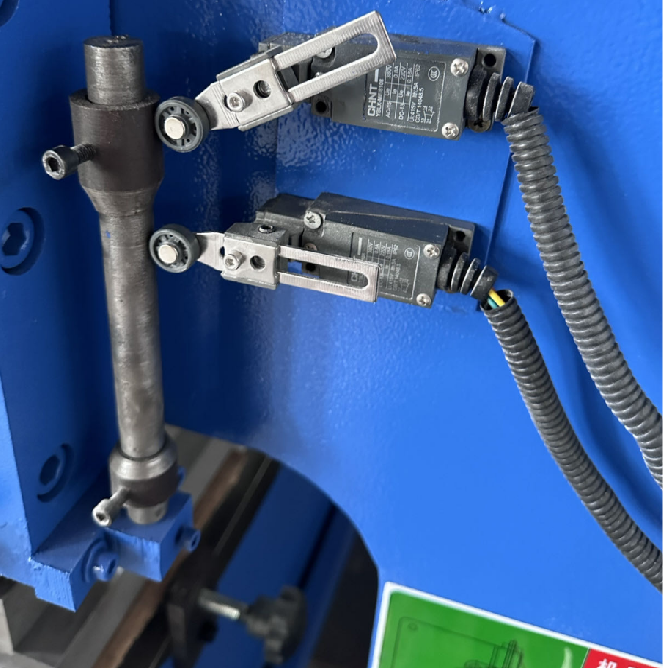

CHNT Limit Switch

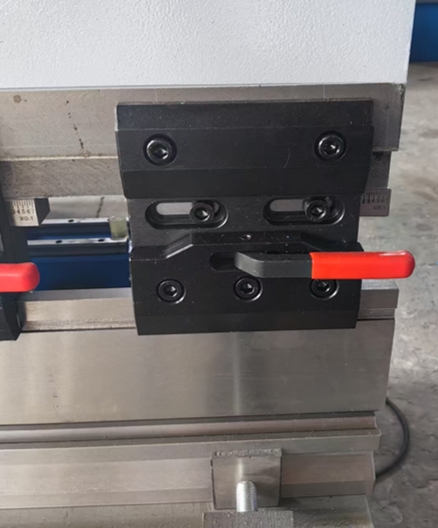

Quick clamp:can quickly clamp the material

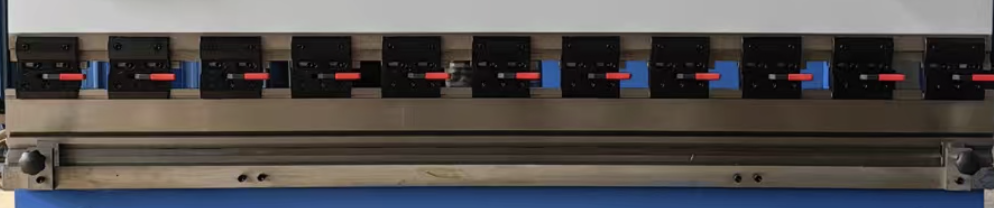

Mold Standard molds are provided randomly; in order to ensure the processing accuracy of the workpiece, advanced technology is adopted and equipped with Combine the upper and lower molds; the molds can also be designed and made according to user requirements.

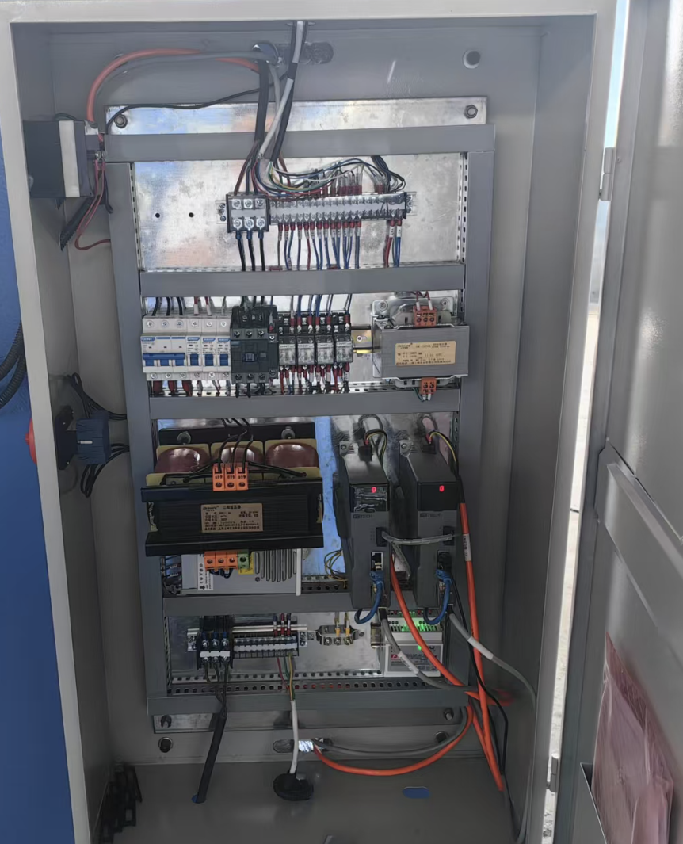

Control cabinet
| Name | Unit | Numeric | ||
| Nominal force | Thousand Bulls | 800 | ||
| Workbench length | Millimeters | 2500 | 3200 | 4000 |
| Workbench width | Millimeters | 160 | ||
| Distance between columns | Millimeters | 1850 | 2550 | 3200 |
| Throat Depth | Millimeters | 280 | ||
| Maximum stroke | Millimeters | 120 | ||
| Maximum closed height | Millimeters | 350 | ||
| Slider no-load stroke times | Times/min | 10 | ||
| Slider travel speed | mm/s | 60 | ||
