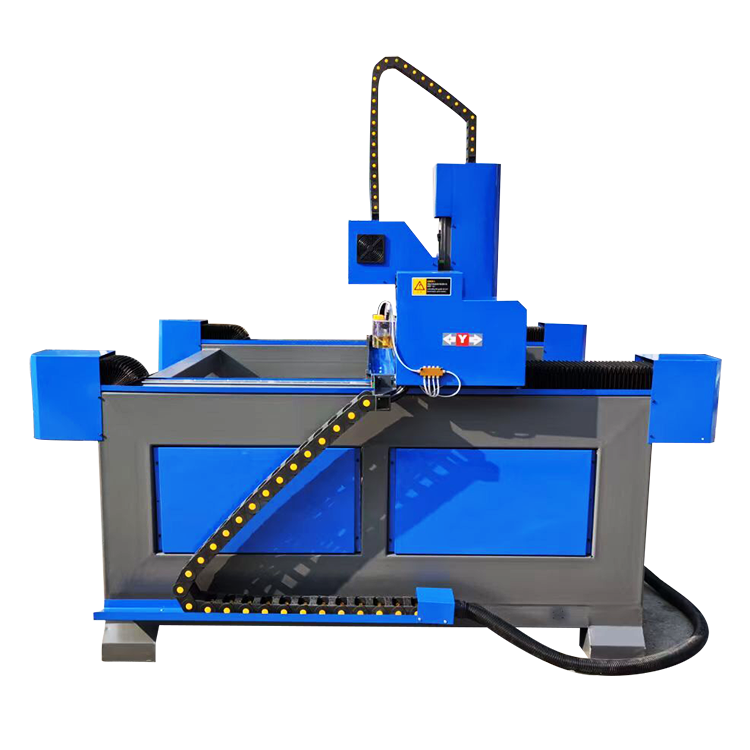

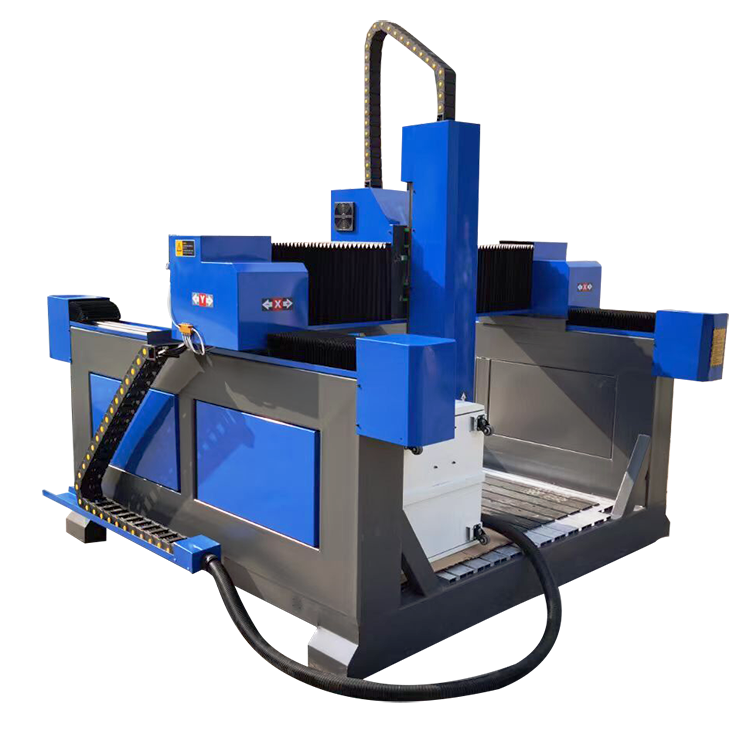

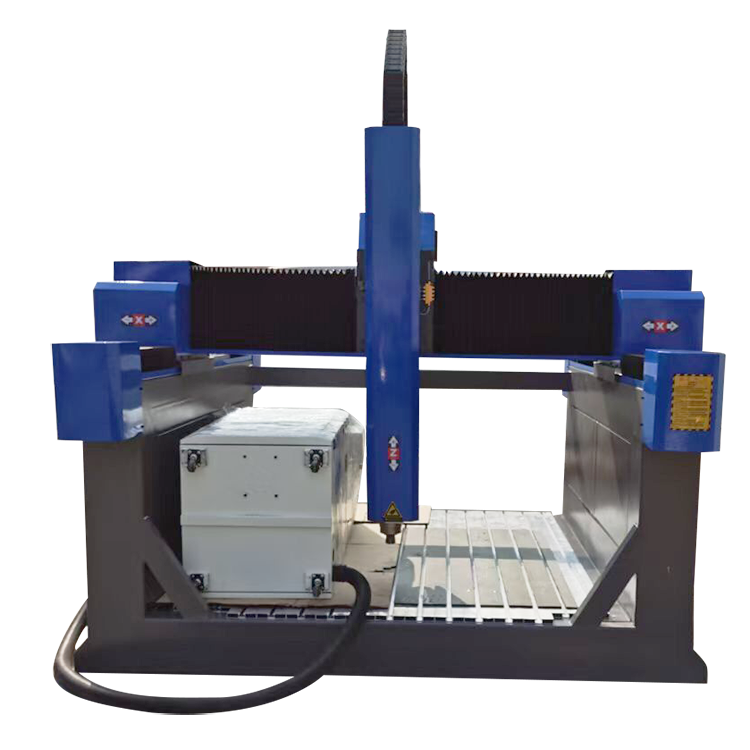

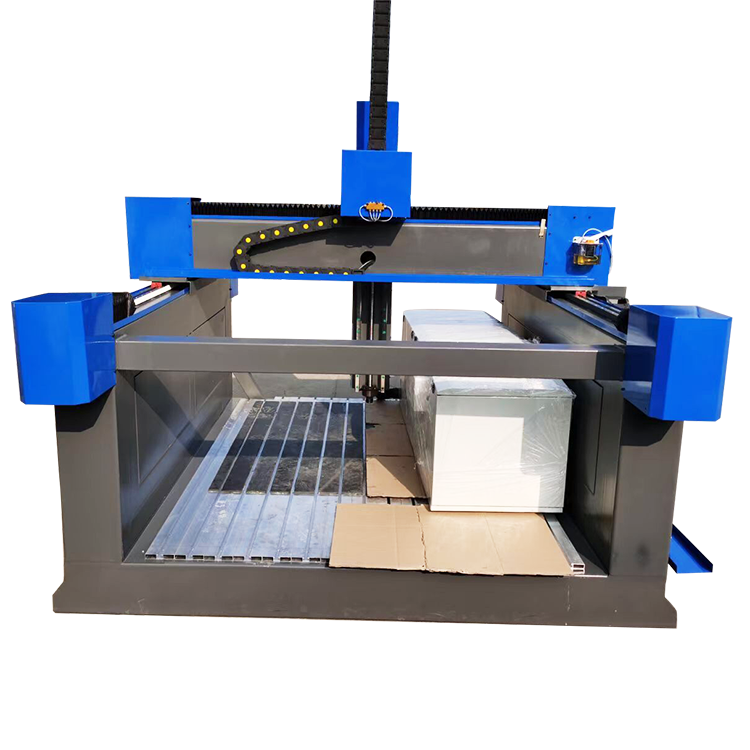

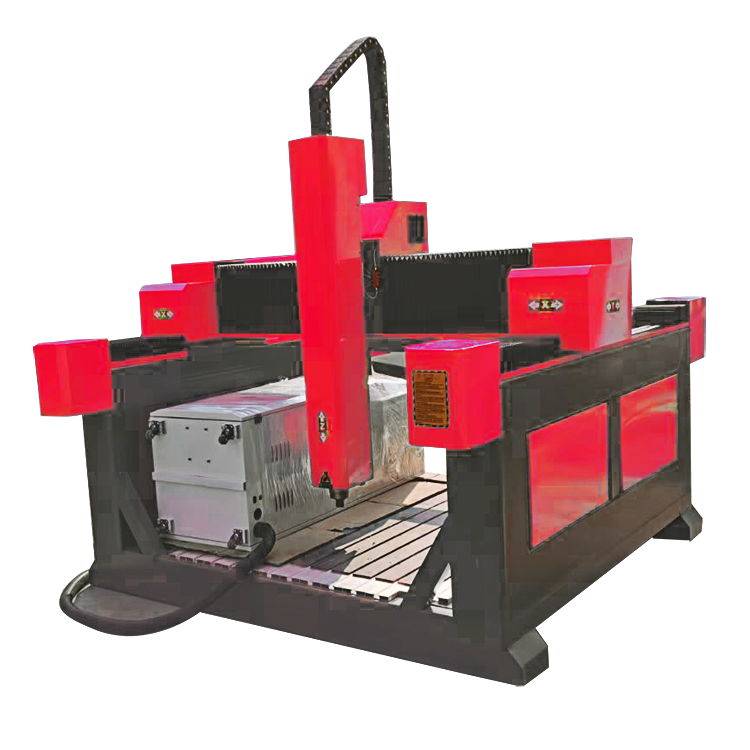

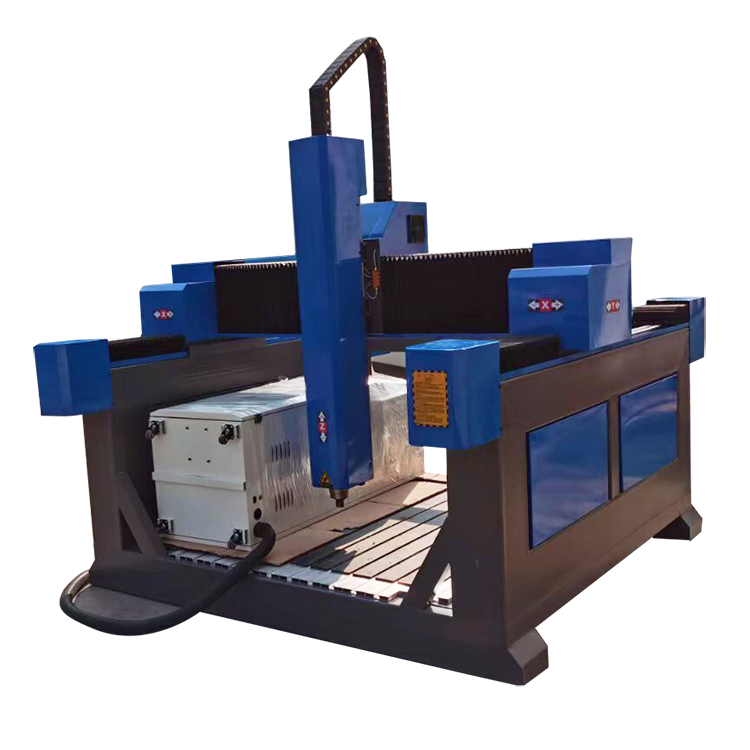

CNC Stone Machine for Marble and Granite Engraving
Working are:1300x2500mm

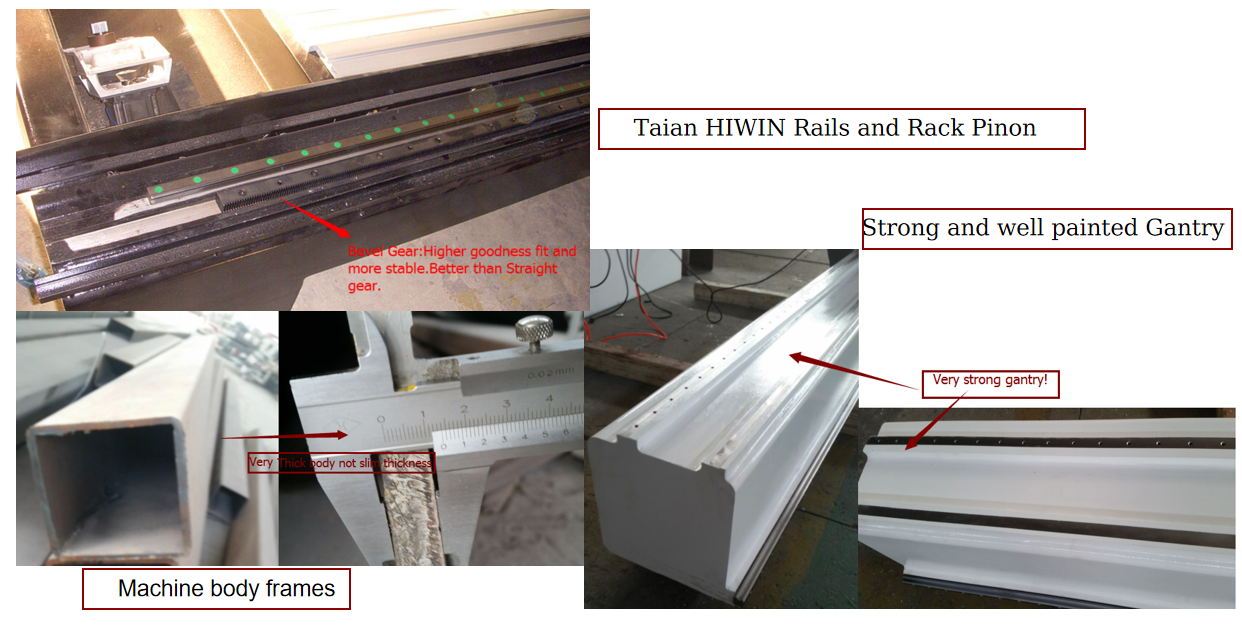

#Heavy duty steel tube frame(could load 10 tons materials,10 years guarantee without deformation) #OriginalHIWIN Rails imported from Taiwan.
#Helical rack pinion gear transmission(more stable)
#T-slot table
#water tank(Stainless steel not carbon steel) with door (holding water after tools cooling)
#Auto Tools sensor
#Mach3 with computer
#Best inverter (best in China)
#Original Lead Shine Stepper motor and drivers Yako 2811 MA

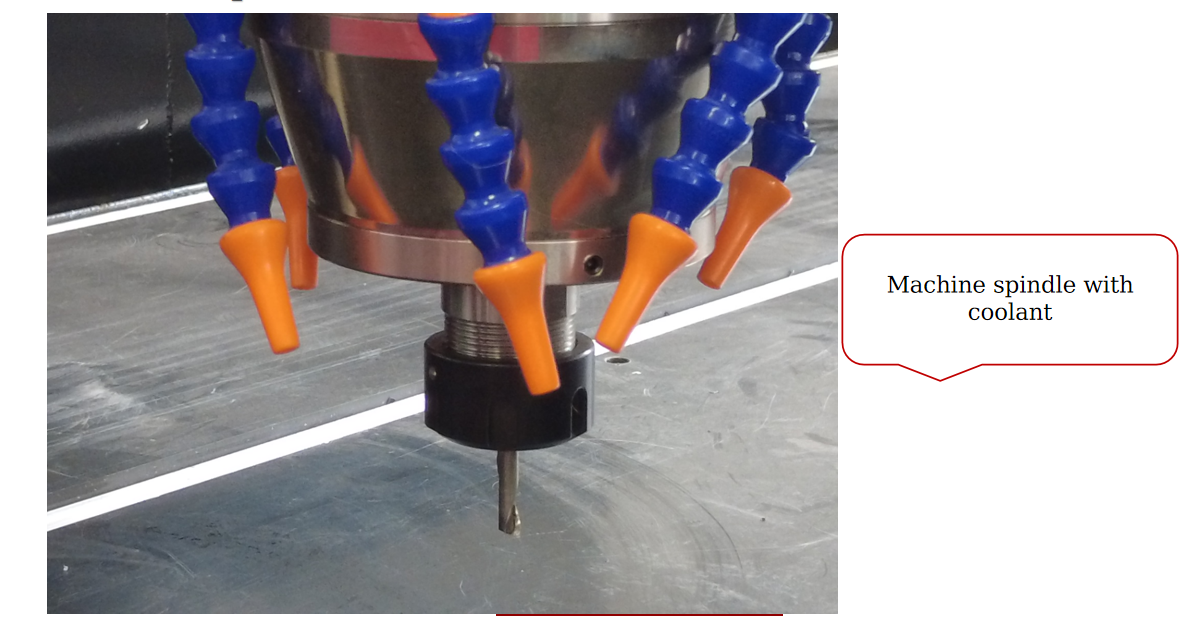

#5.5 KW Water-cooling especial spindle for hard materials
#Water chiller for better cooling efficiency
#including Ucancam original Software
#Limit switches for all x,y,z axis
#Cooling sprayers
#Whole set tools
#Used for Aluminium,granite,marble,glass,wood,foam etc
@1.Original big power spindle ,very powerful and top quality.
@2.Leadshine stepper motor system, powerful,precision and durable
@3.Heavy duty frame and gantry
@4.3 Axis could do both 2D/3D Engraving and Cutting.

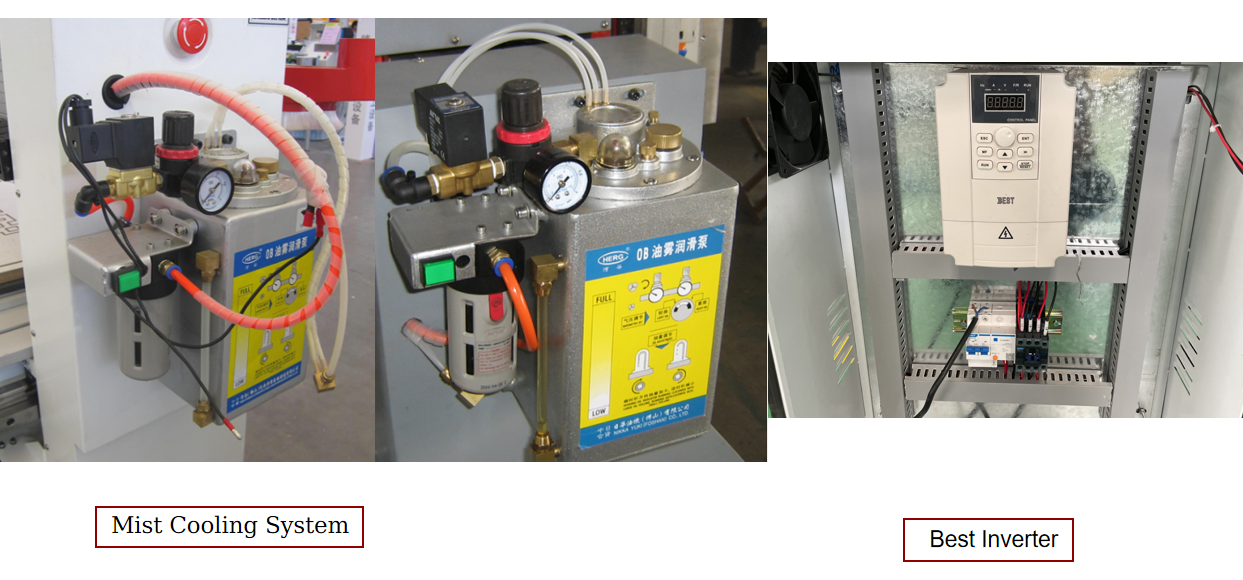

@5.Intelligent control: adopting DSP/Mach3/ nc studio controller.Very easy to master,especiall for beginners. @6.China best brand inverter,save your electricity cost.

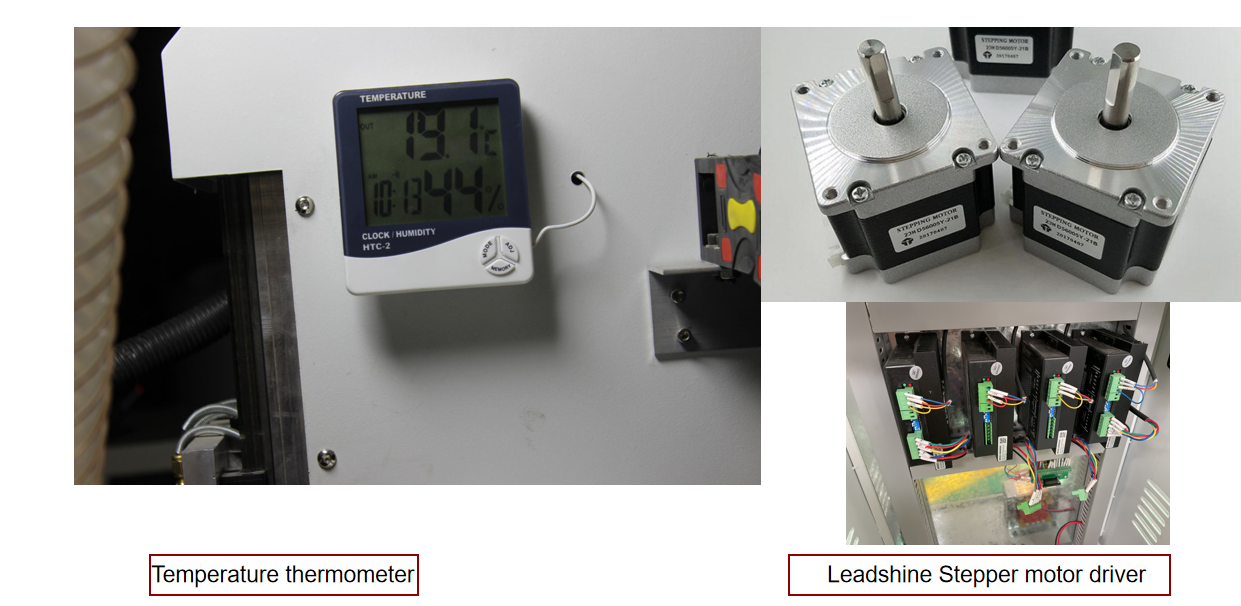

@7.Temperature monitor could show the spindle temperature,huminity and timing clock help take rest for machine more friendly.
@8.Original imported rails,could ensure the machine precision and longer life span.
@9.Widely applications,which could be used for wide materials,such as:wood,mdf,acrylic,plastic,pvc etc

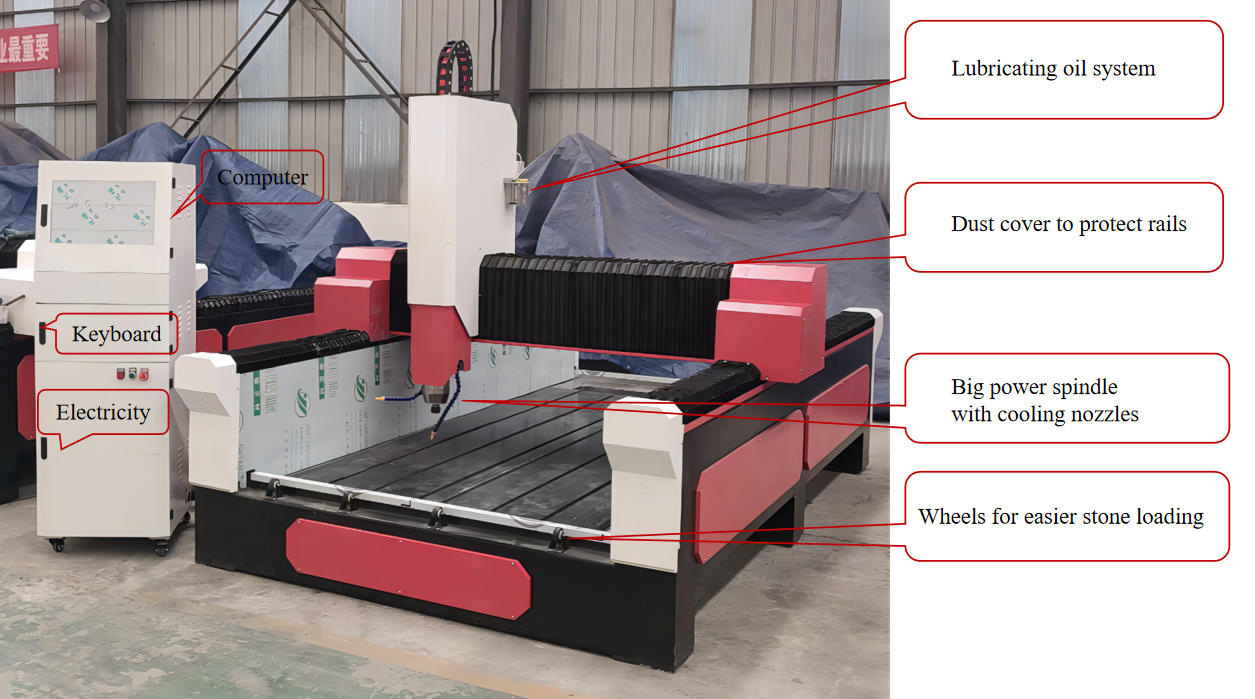

@10.Lubricating system which help you maintain machine rails more conveniently.

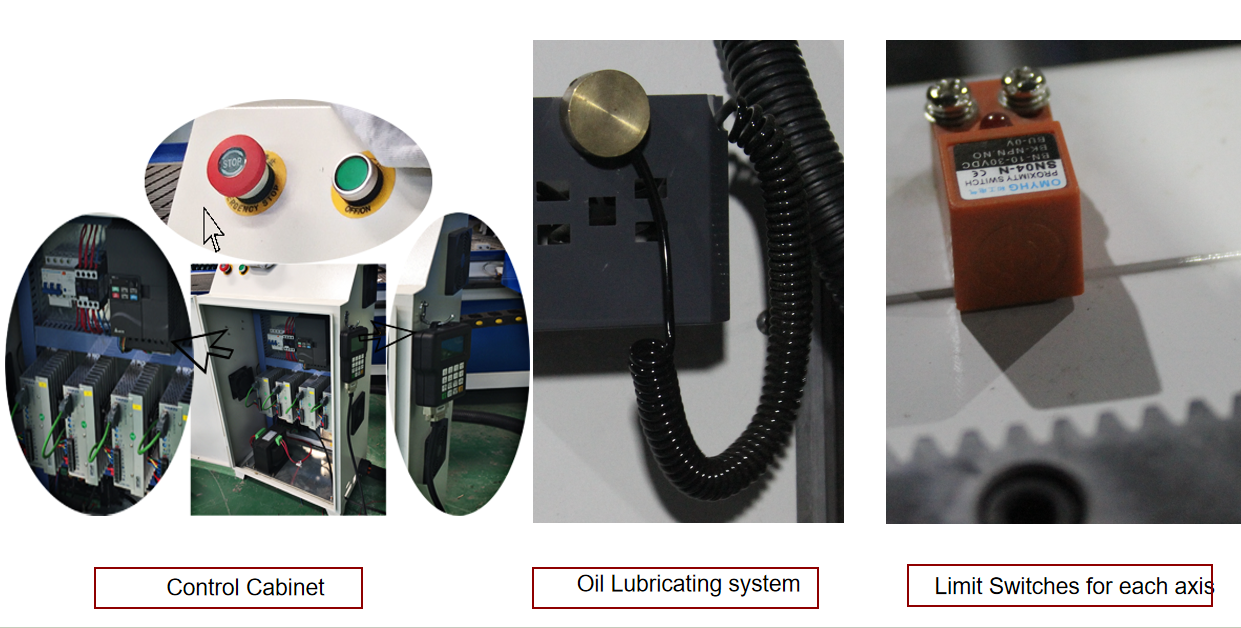

@11.Machine is equipped with limit switches for each axis,machine will stop if oversize.which is more safe. @12.Each SMARTECH machine is installed with leakage protector to ensure operators' safety in case of leakage or wrongly operation.
@13.Each SMARTECH machine would be debugged well before delivery, so you could use machine directly after its arrival and no need to install parts.
@14.The price is really very competitive to help each entrepreneur improves their business.
@15.Aluminium towing chains instead of plastic types,which is higher quality.
PRODUCT SPECIFICATIONS
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x250mm |
| Table Size | 2050×3500mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z repositioning Positioning Accuracy | ±0.05mm |
| Lathe Structure | Steel Structure |
| X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings |
| Z Structure | Ball Screw, Shaft Linear Bearings |
| Max. Consume power | 11 Kw |
| Max. Speed | 0-32000mm/min |
| Max. Working Speed | 0-20000mm/min |
| Spindle Power Motor | 5.5 KW water-cooling spindle |
| Spindle Speed | 0-24000RPM |
| Working Mode | Stepper |
| Working Voltage | AC220V/50/60Hz,1PH |
| Command | G Code, *uoo, *mmg, *plt |
| Operating System | DSP(Digital signal processing) /Mach3/Nc studio |
| Interface | USB |
| Flash Memory | 512M |
| Collet | ER25/32 |
| X,Y Working Delicacy | <0.01mm |
| Software | Artcam/Ucancam/JD paint software |
| Running circumstance | Temperature: 0℃～45℃Relative humidity: 30%～75% |
| Packing Size | Integrated: 3700X2250X1870mm |
| Net Weight | 2500KG |
| Gross Weight | 2800KG |
