Smart Split Fiber Laser Marking Machine 20W 30W 50W 60W 100 W Best Price

Availability:
  • Fiber Laser
  • SMARTECH
  • Laser Marking
  • 110mm×110mm/160x160mm/200x200mm/300x300mm
  • 20W/30W/50W
  • write blue
Product Overview

@1.There are 10W/20W/30W/50W ,Which power should I choose ? Common Fiber Laser Power 10W/20W/30W/50W ,The bigger power,marking efficiency would be greater. --20W fiber laser engraver is the most pop choice. Basic 20W fiber laser can meet 90% work. --10W is good for shallow marking work. --30W for some deep engraving, or match with big size F-theta lens for big size marking. --50W for some deep engraving or high precision thin thickness cutting work(0-0.5mm). The bigger power,price would be higher.                                      **********Your machine model is equipped with 20W @2.There are many sizes for the machine,which size should I choose ? --SF110 110X110mm Small size, Deep engraving. --SF160 160x160mm Standard device for Smartech. --SF300 300x300mm For big size engraving.

*Main functions of the software:
� Users can design their graphics freely. � Various types of fonts are supported. Such as True Type, SHX, JSF(Single line font defined by EzCad2), DMF(Dot Matrix Font), One-Dimensional bar code, Two-Dimensional bar code, and so on) � Flexible variable text: changes the text real time while in laser processing. Excel datasheet is supported. � Can through the serial port direct read text data � Can through the network direct read text data � Strong node editing function make the curve modification more easier � The software can support 265 “pencils”, which used to draw graphic and can be set different processing parameters. � Common types of images are supported. (bmp, jpg, gif, tga, png, tif…) � Common vector images are supported. (ai, dxf, dst, plt…) � Image processing (Grayscale, White / Black Transformations) � Powerful hatching functions, such as support round hatch.
� More convenient IO operations and more easier to harmonize the auxiliary equipments. � Supports the dynamic focus (3 axis processing system) � Supports directly the SPI G3 fiber laser and the newest IPG_YLP and IPG_YLPM fiber laser � An opening language supporting system makes it easy to run the software in various languages platform.
FEATURES AT A GLANCE
Applied materials

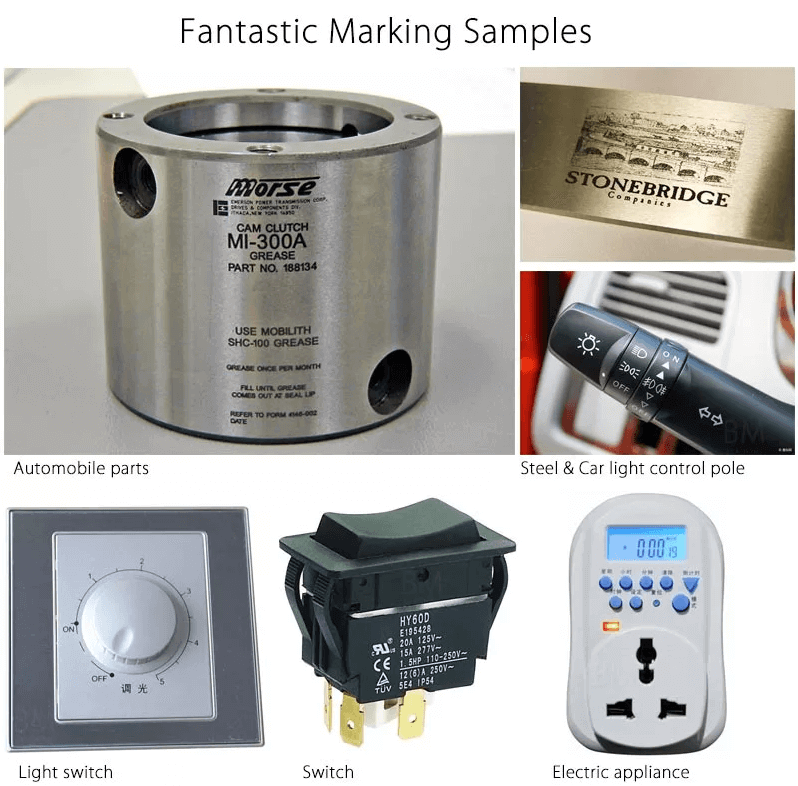

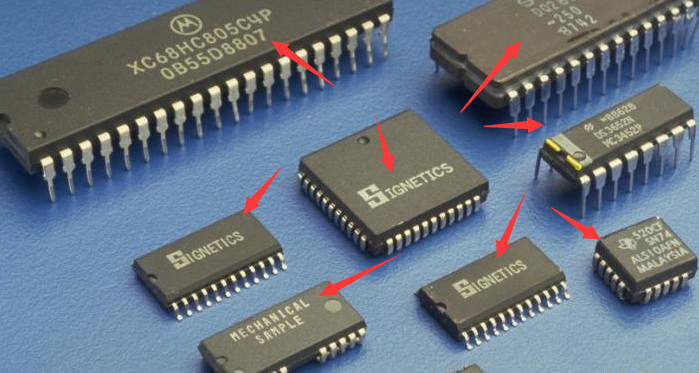

Metal and a variety of non-metallic materials, copper, iron, steel, aluminum, high hard alloy, oxide, electroplating, coating, ABS, epoxy resin, ink, engineering plastics.It is applied to the fields with high requirements on depth, smoothness and fineness, such as clock, mould industry, bitmap marking and engraving, etc Great improvement has been made on the machine structure, adopting the digital control system, which has the characteristics of high speed and high accuracy.The optical system USES the closed structure, the appearance is more beautiful, the operation is more convenient.The machine is equipped with a new external water-cooling system with low noise and high temperature adjustment accuracy. The special control software can automatically arrange and modify text, symbol, graphics, image, barcode, qr code and serial number automatically increment. Applicable fields It is suitable for some machining occasions which require more details and higher precision.Widely used in electronics, jewelry, glasses, hardware, automobile, communication products, plastic keys, IC and other industries.
Optional part:(For some special working demands.)
@1.Auto feeding system----Improve working efficiency
(used for mass production,such as production dates/bottle caps’ numbers marking on packages etc high demands on marking quantity efficiency)

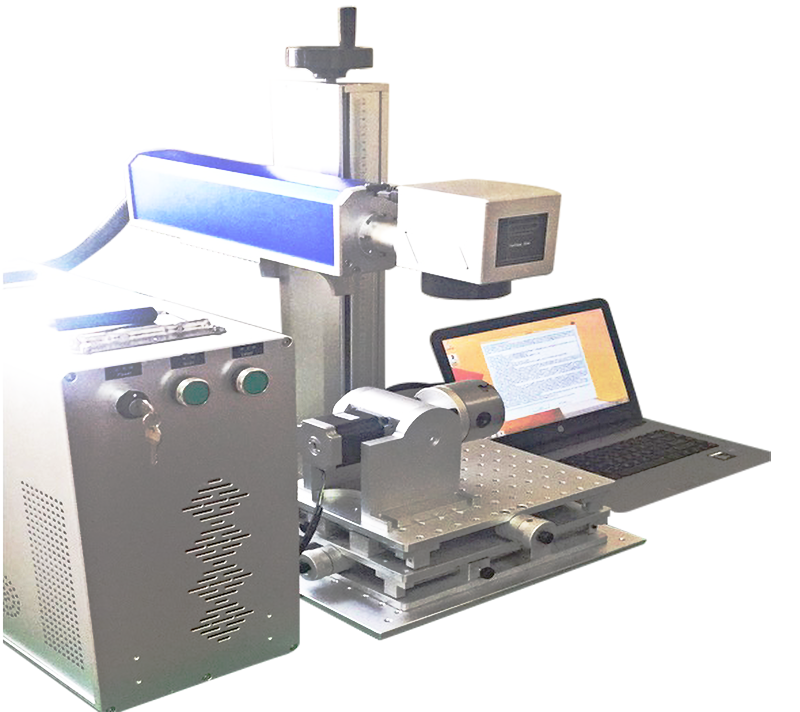

@2.Stent and working table 2D and 3D with rotary device for option (Used For round materials’ processing.such
as:glasses,bottles,rings etc)
@3.Aufo focus up down system--no need to caculate distance by hands wheels.(Upgrade from hands
adjustment into electricity distance adjustment between materials and galvanometer)
@4.Optional sliding X,Y moving table or pens rotating working table(especially for pens marking demands)
@5.If change into Mopa type(Used for Colorful marking for stainless steel,Tell us if you need marking colorful works.)
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Products Details Model: SP20/SP30/SP50 Laser power  20W/30W/50W Laser wavelength  1064nm  Repeating frequency  20-80KH Z  Divergence angle  0.3mrad  Beam Quality(M )  1.2-1.5 Minimum focusing spot  0.01mm  Minimum line width  0.02mm  Minimum character  0.5mm  Repeating precision  0.001mm  Marking speed  <=7000mm/s  Marking depth  0.01-2mm  Standard marking range  160x160mm (Max 300*300 mm) Optional Rotary or Roller Cooling mode:  air cooling  Power supply  110/220V 50H Z  Laser source Chinese Huachen or as customer demand
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: How long is the warranty? is it free or extra ? A: Yes, The warranty is one year, free of charge. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
