Product Description
*Power supply: 380V/50Hz
*Spindle power: 4.5Kw
* Spindle speed: 24000rpm
*Working pressure: 0.5-0.6MPa
*X-axis travel; 550MM
*Y-axis travel: 400mm
*Z-axis travel: 300mm
*Motor: Leadshine Stepper
*Driver:Leadshine

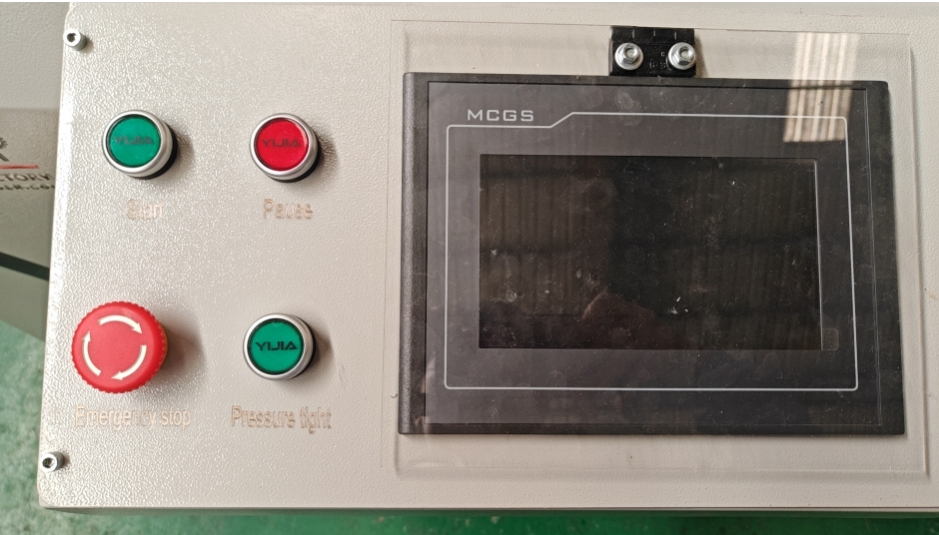

*Control System: Red sea
*Power Supply: Meanwell from Taiwan
*Inverter: Best
*Electricity brand: Delix
*Package: Plywood carton *Warranty: 3 years
Features:
1. Main performance characteristics:
*Suitable for drilling, milling, round holes, special-shaped holes, plane engraving and other processing of aluminum alloy profiles
*The system adopts Red Sea CNC System
*Using electric spindle, high precision, good safety and high reliability
*X-axis adopts high-precision helical gear and helical rack, Y-axis and Z-axis adopt high-precision ball screw transmission, stable transmission and high precision
*Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity
*The table is flipped 180°. -90~0°~+90°, the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the table over, with high efficiency and high precision

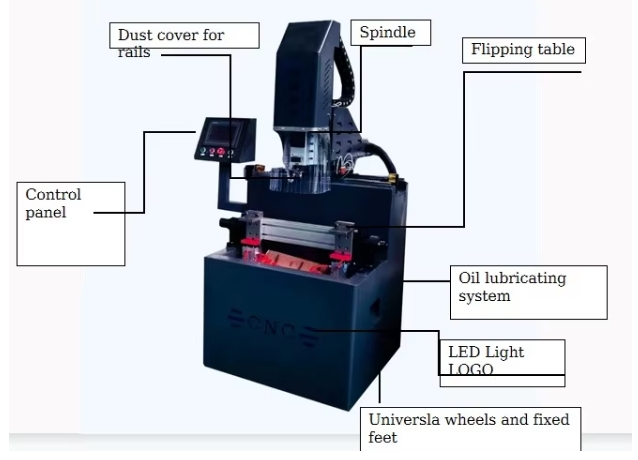

Machine Structure
Technical data
Parts Item | Parameters | Part Item | Parameters |
CNC machine system | Customized system english | Power supply | 380V/50Hz |
Motor | Leadshine | Spindle power | 4.5Kw*2 |
Driver | Leadshine | Spindle Rotating | 18000/24000RPM |
Power Supply | CHNT | Working pressure | 0.5-0.6MPa |
Limit Switch | Omron | X axis travel | 550MM |
Rack Pinion | High Precision | Y axis travel | 400mm |
Rails | HIWIN from Taiwan | Z-axis travel | 300mm |
Spindle | HQD | Power source | CHNT |
Spindle quantity | Double | Tool holder | ER20,ER25 |
Inverter | Best | Turning angle | 180°. -90~0°~+90° |
Cylinder | Hansanhe pneumatic | Weight | 300KG |
Electromagnetic valve | Delixi | Processing range | 1000*120mm |
Control System-Multilingual

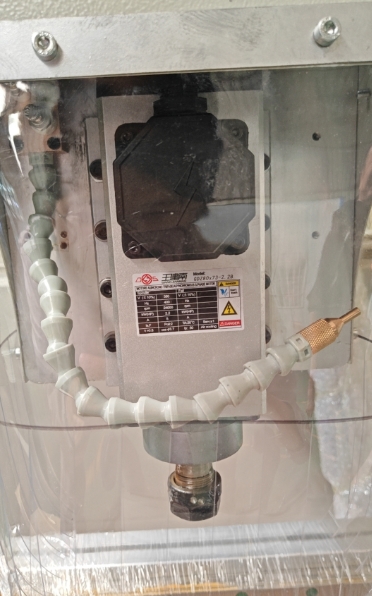

Cutting Head-high speed air cooling spindle
180 rotate Cylinder clamping aluminum table
Worktable can be rotated to 180°(-90° -0°- +90°),
Clamping profile one time,
three sides processing.
it can process deep and special-shaped holes through workbench;
high efficiency and precision.

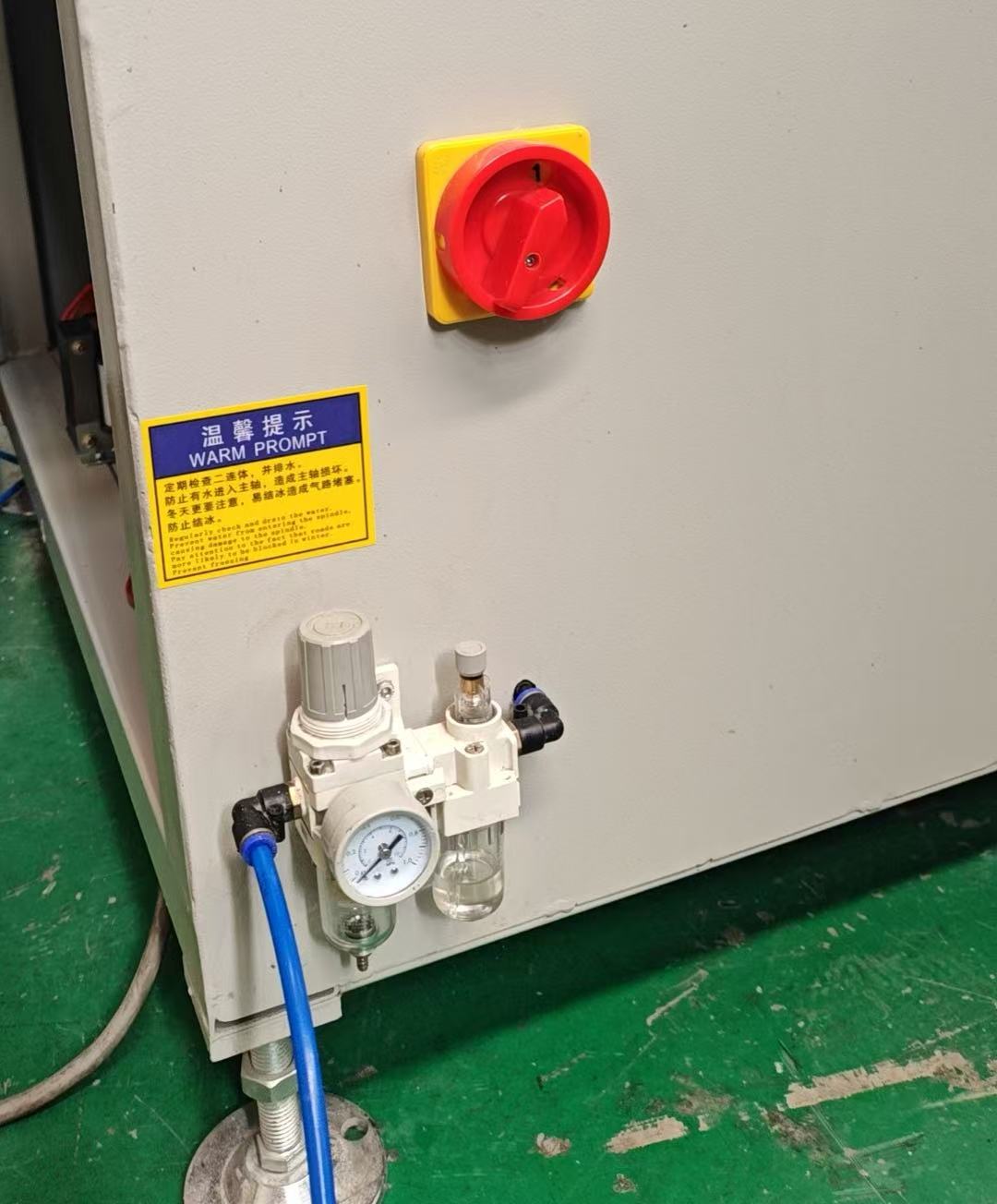

Oil-Water Separator
During CNC machining, guide rail lubricant, spindle lubricant or hydraulic oil may be mixed into the cutting fluid to form a floating oil layer.
The oil-water separator separates these oils by physical or chemical means to prevent the oils from affecting the cooling and lubrication properties of the cutting fluid.
After removing oil and impurities, the cleanliness of the cutting fluid is improved, bacterial growth is reduced, the replacement frequency is reduced, and costs are saved.
Electricity system
The main electrical parts: circuit breakers,
AC contactor are all
SCHNEIDER or Delix famous brands.

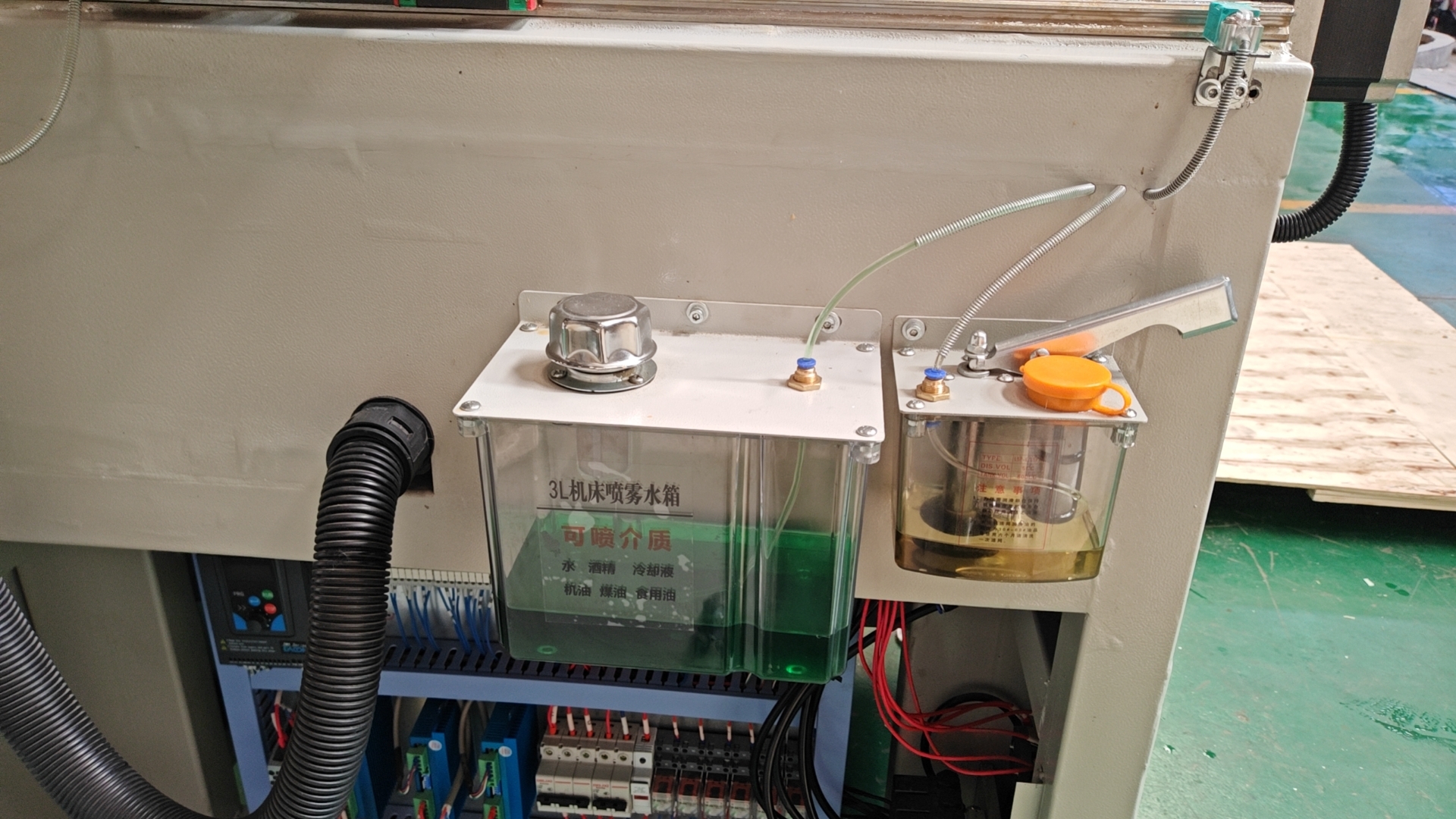

Machine tool spray tanks and oilers
The machine tool spray tanks Cool cutting tools and workpieces by mist or spray to prevent high temperatures from causing tool wear or material deformation.
Rinse chips and keep the processing area clean.
The oiler automatically lubricates moving parts such as guide rails, screws, and bearings to reduce friction and wear.
It is divided into centralized lubrication systems and single-point oilers. Common types include grease lubrication or oil mist lubrication.
