SMARTECH

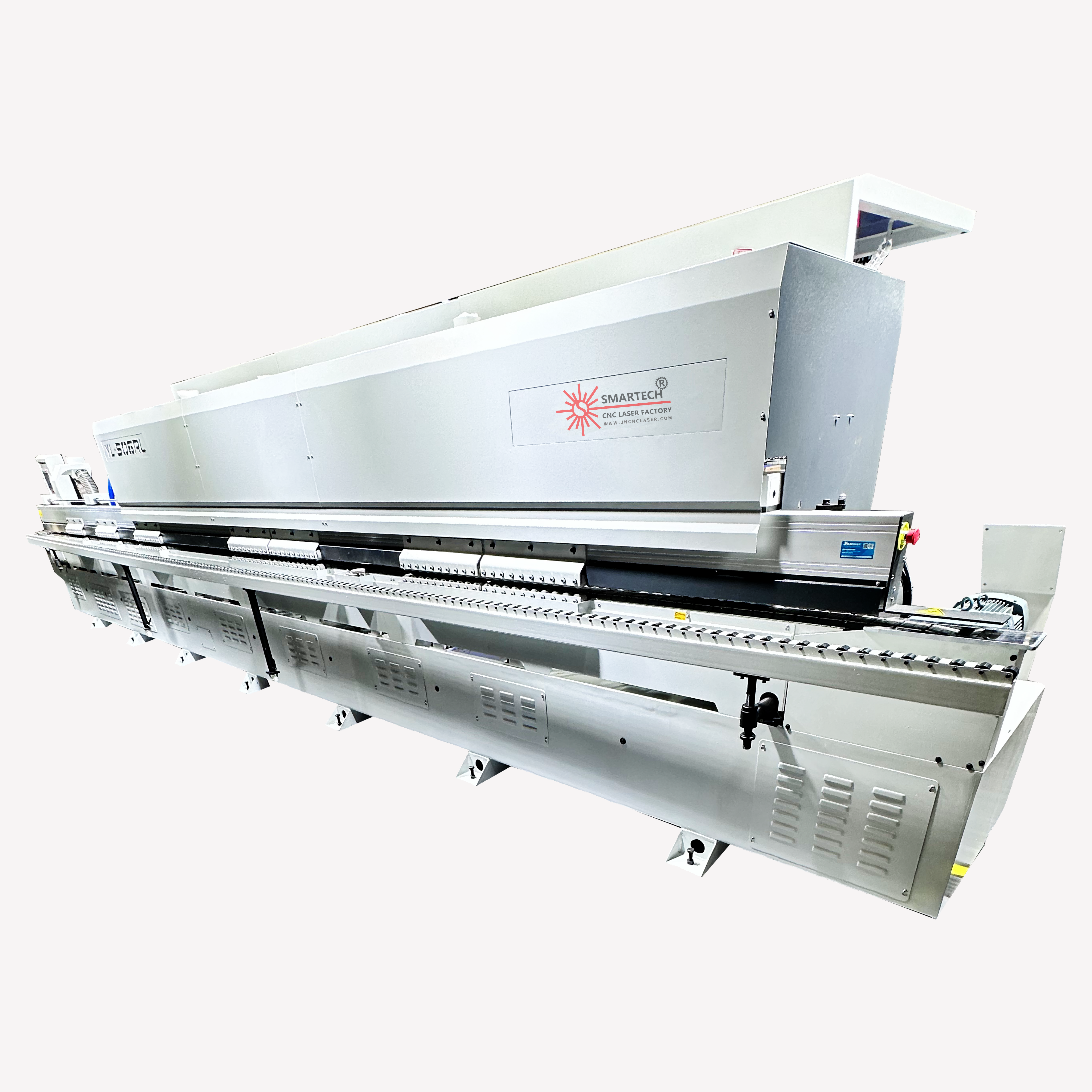

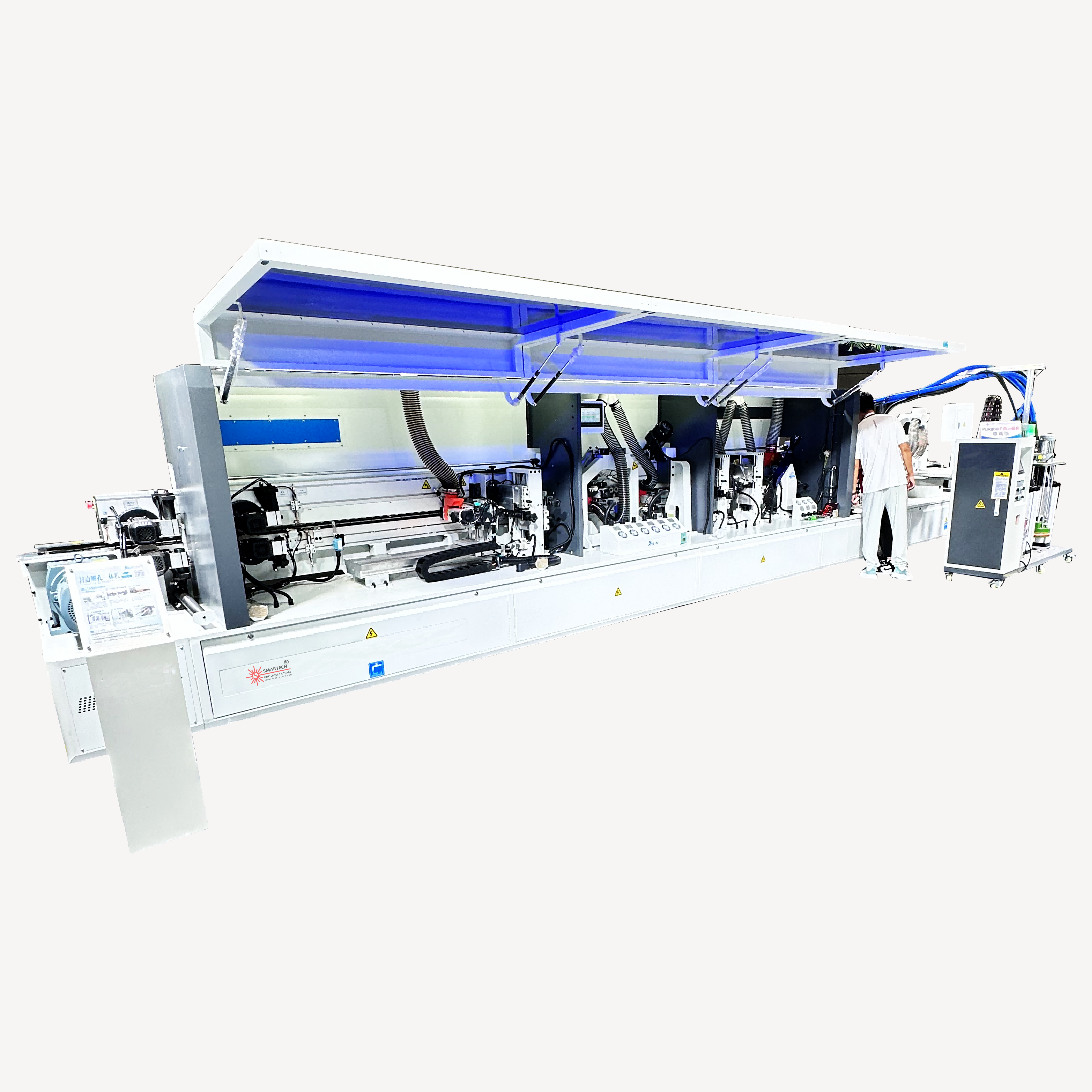

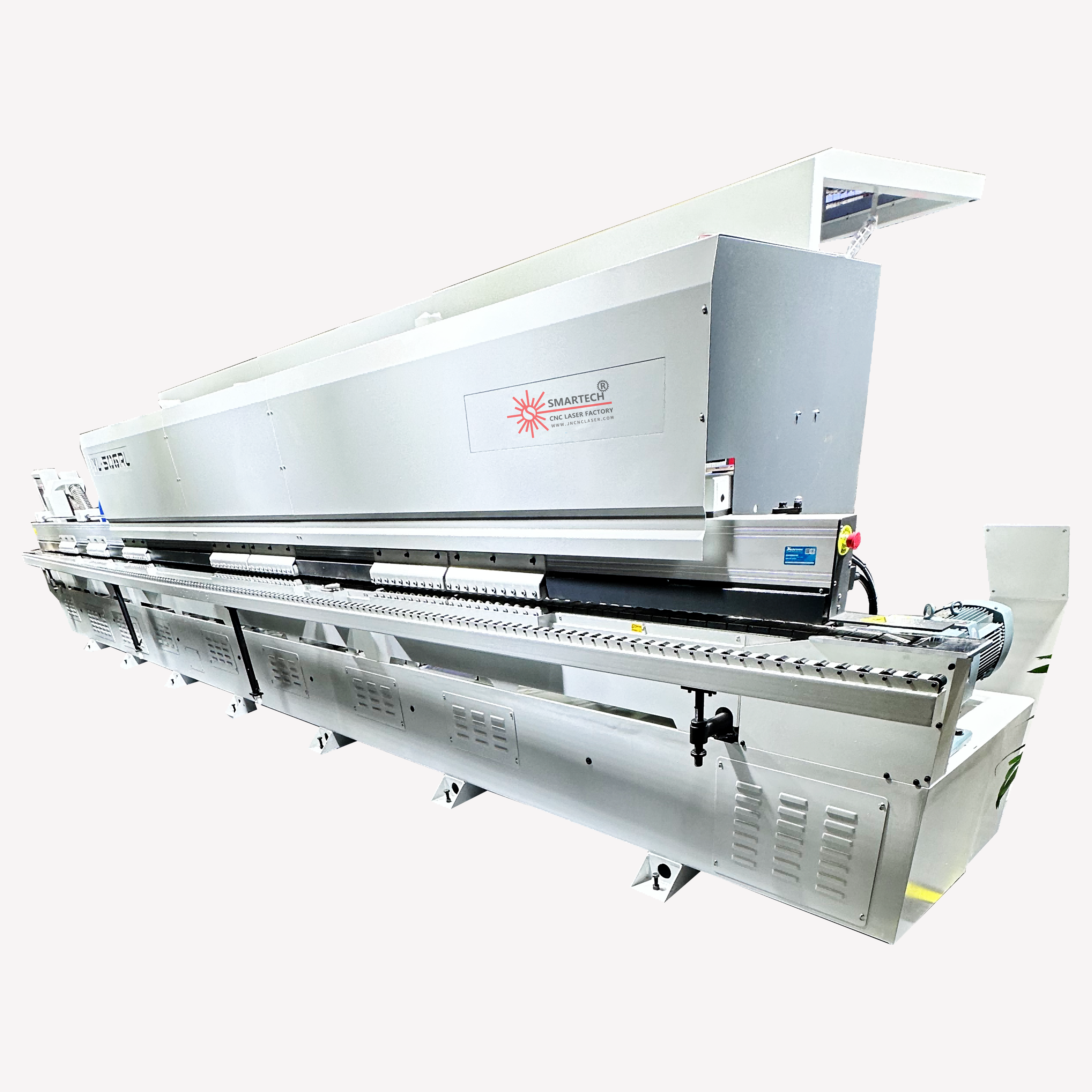

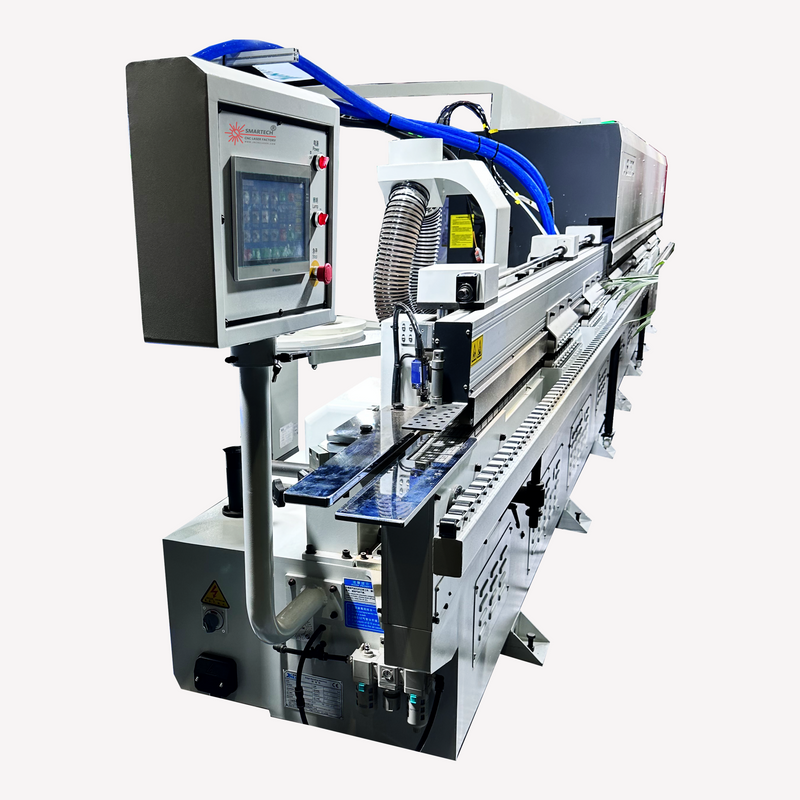

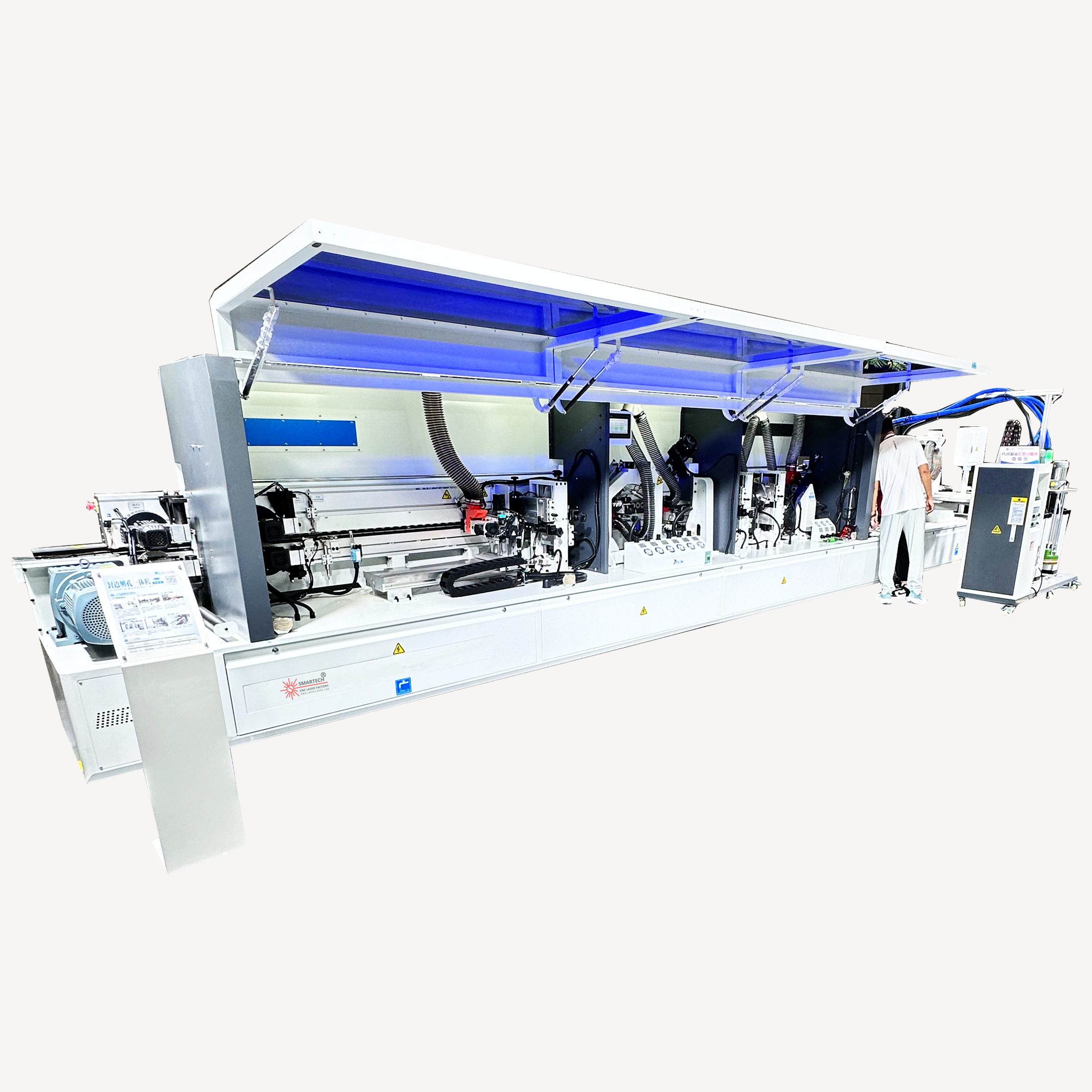

Automatic Edge Banding Machine

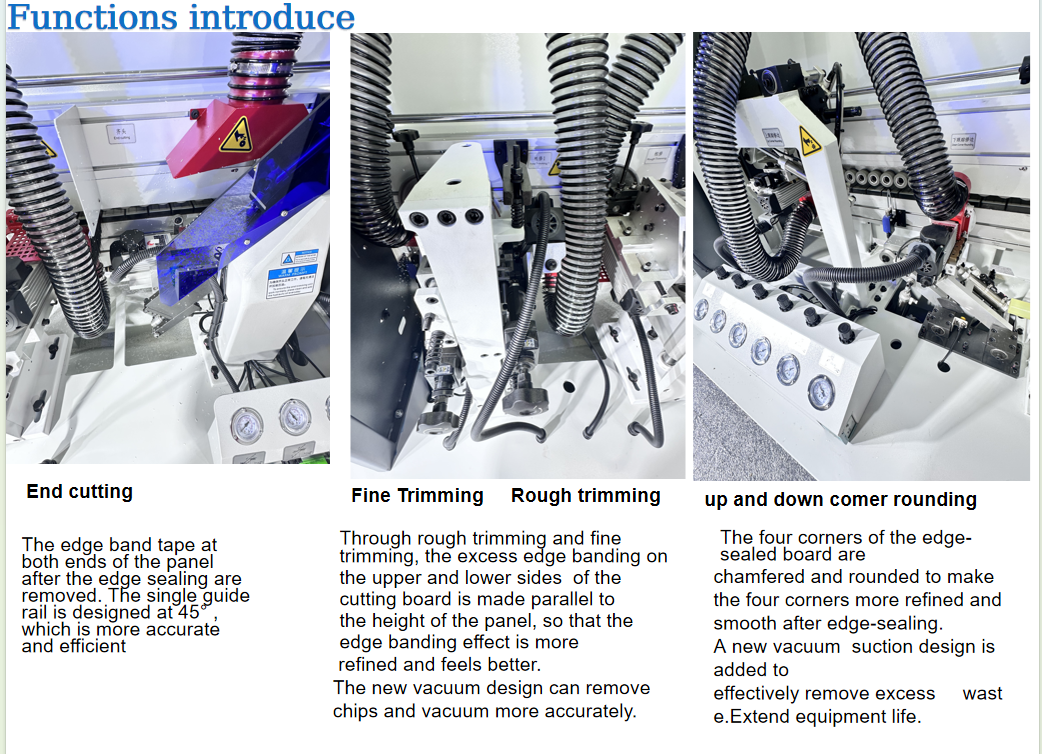

Functions:1.)Separation → 2.) Pre-miling→3.Double color PUR →4.) Six wheels pressing→ 5.) Pneumatic top glue pot → 6.)End cutting →7.) Rough trimming → 8.)Fine trimming→9.) Corner rounding → 10.)Scraping 1 → 11.) Scraping2→12.)Cleaning →13.) Buffing 1 →14.) Buffing
Application:This machine has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, six-wheel eccentric pressing and laminating with glue scraping device, double guide rail high-speed head-aligning belt avoidance, switchable double edge scraping device, four-motor high-speed contour tracking belt avoidance, double polishing, so that the edge banding effect is better.
| Model | |
| Total power | 31kw |
| Overall size | 8700*900*1750mm |
| Feeding speed | 15-19-23m/min |
| Tape thickness | 0.4-3mm |
| Panel thickness | 9-60mm |
| Panel length | ≥120mm |
| Panel width | ≥45mm |
| Working pressure | 0.6Mpa |

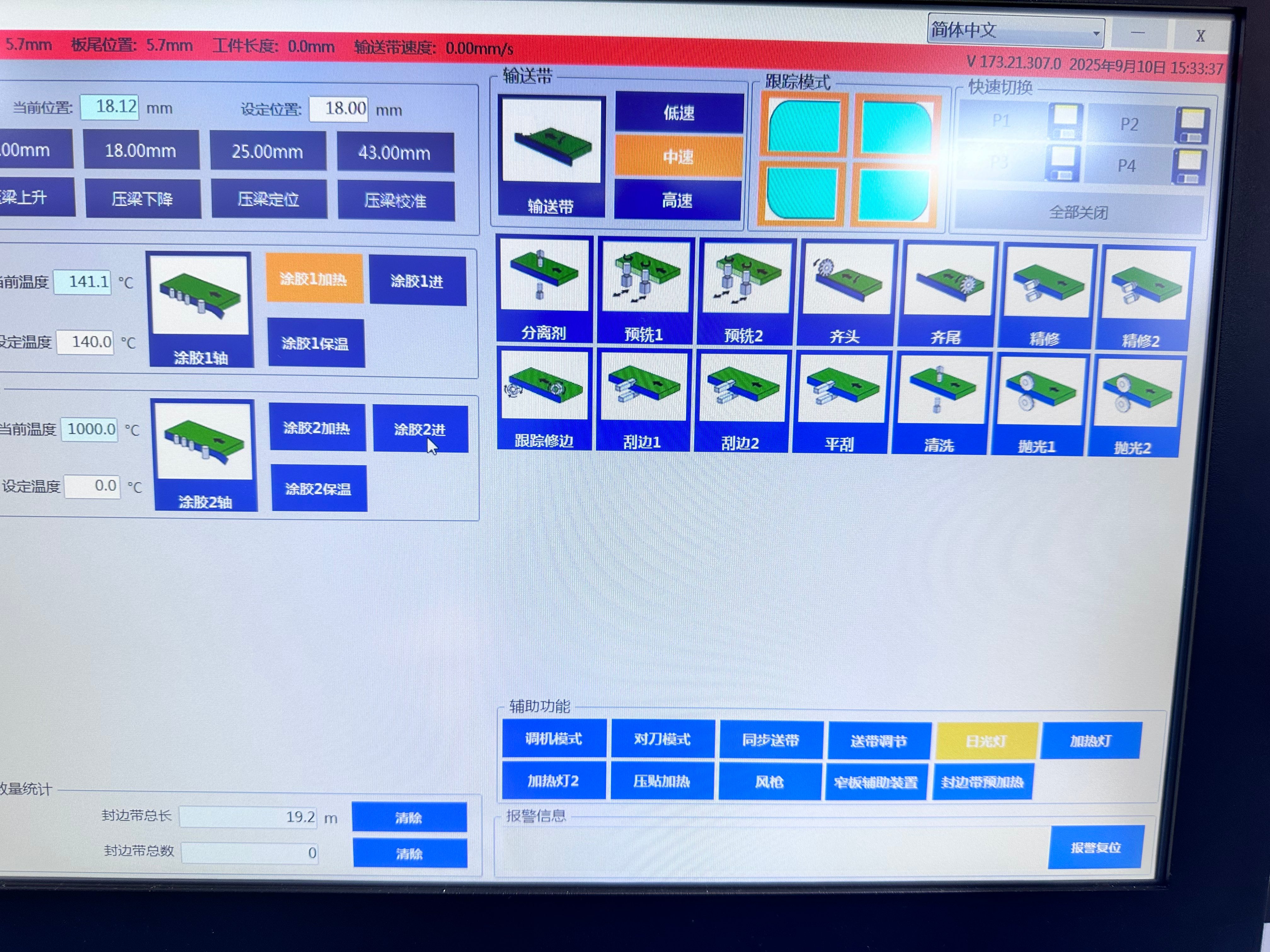

Central control screen
Main functions: start and stop equipment, function selection, parameter settings, warning prompts, and other functions, easy to operate with simple training.
PUR free cleaning glue pot
Spray the separating agent on the board that needs to be pre-milled to form an isolation layer on the upper and lower sides of the board to prevent dust from sticking to the board after pre-milling and making it difficult to clean.

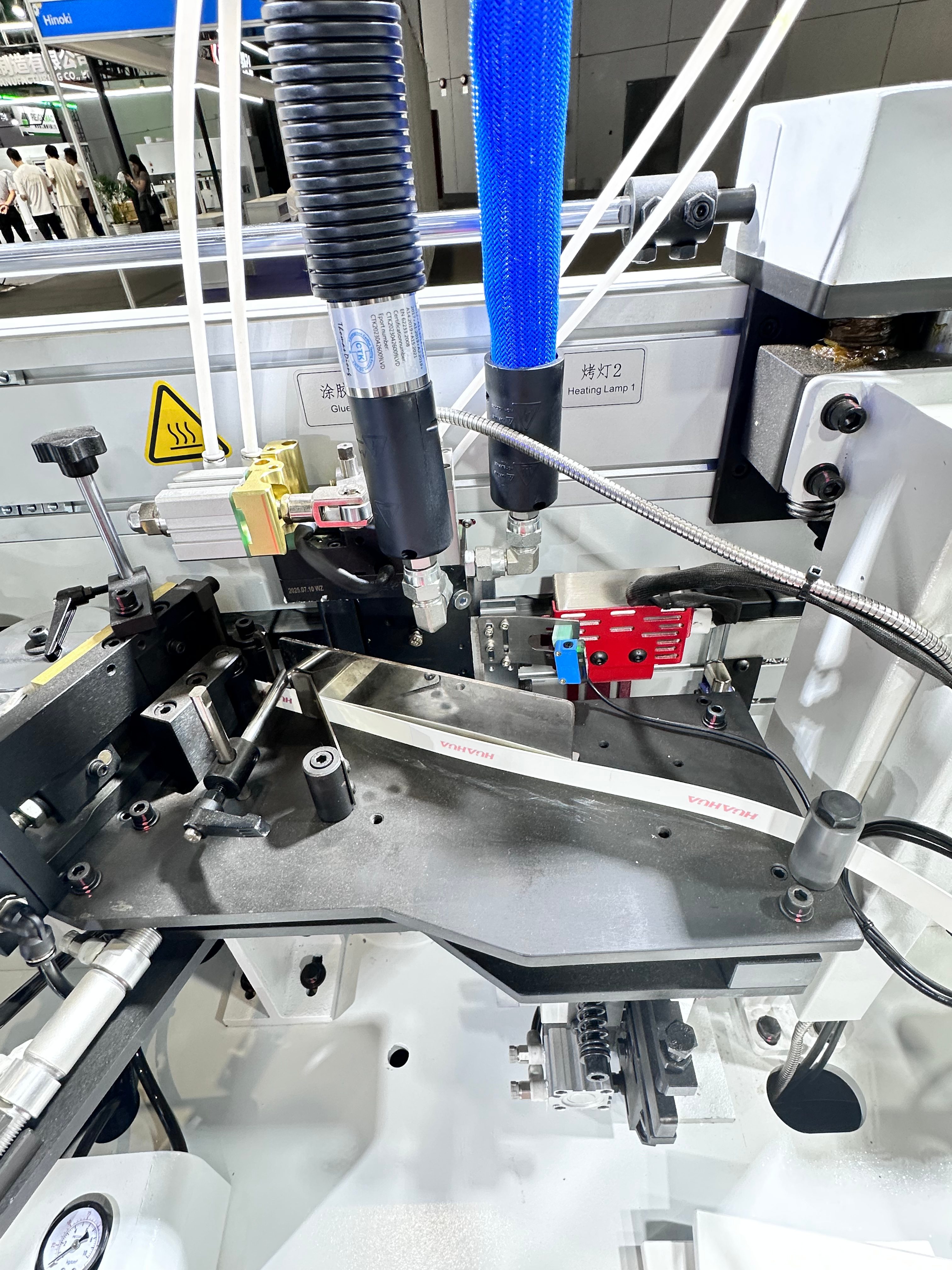

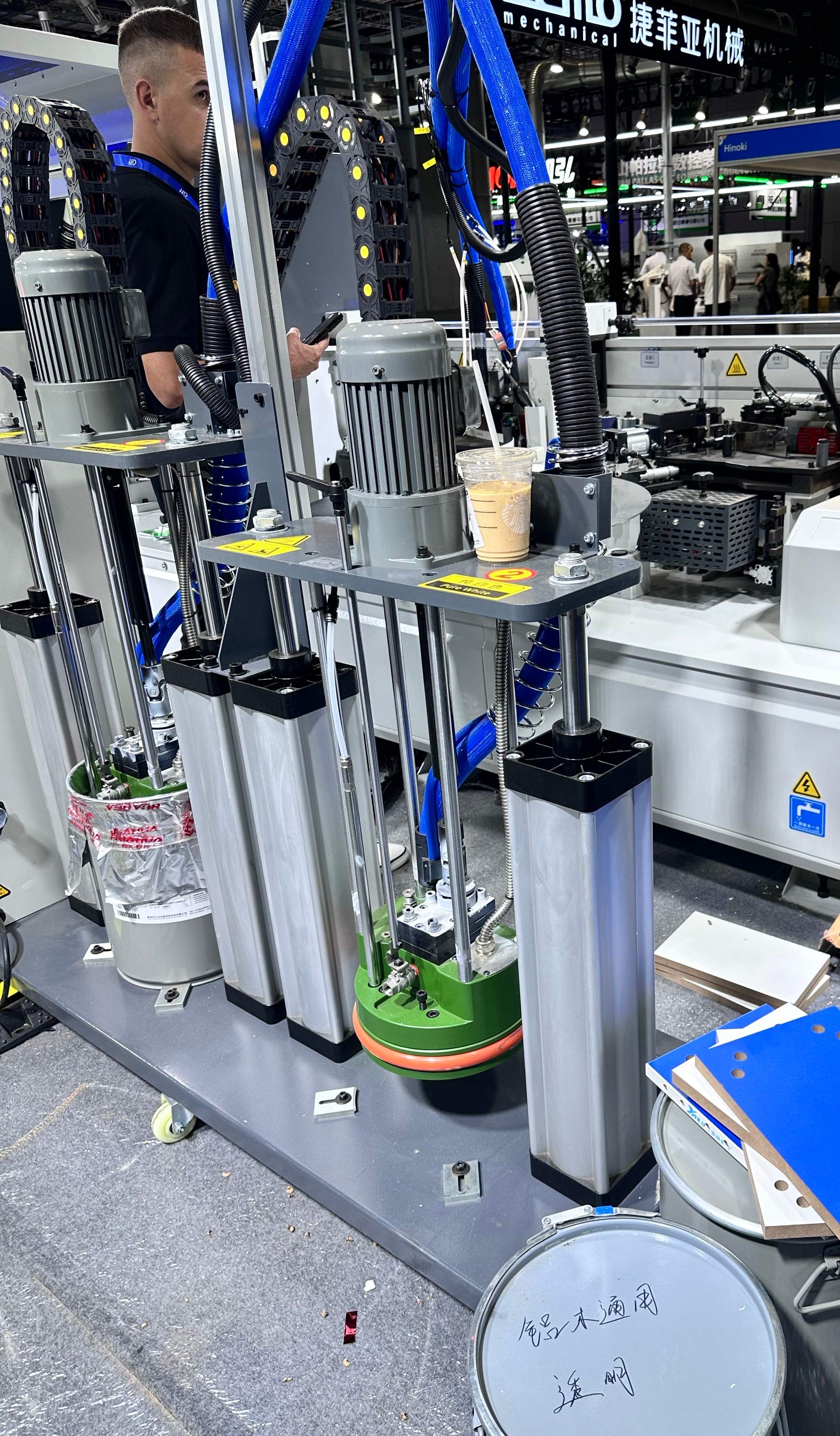

Pneumatic gluing pot
The no-clean PUR two-color glue pot can reduce problems such as cleaning the glue pot and wasting glue. The glue line is small, and PUR glue is highly sticky

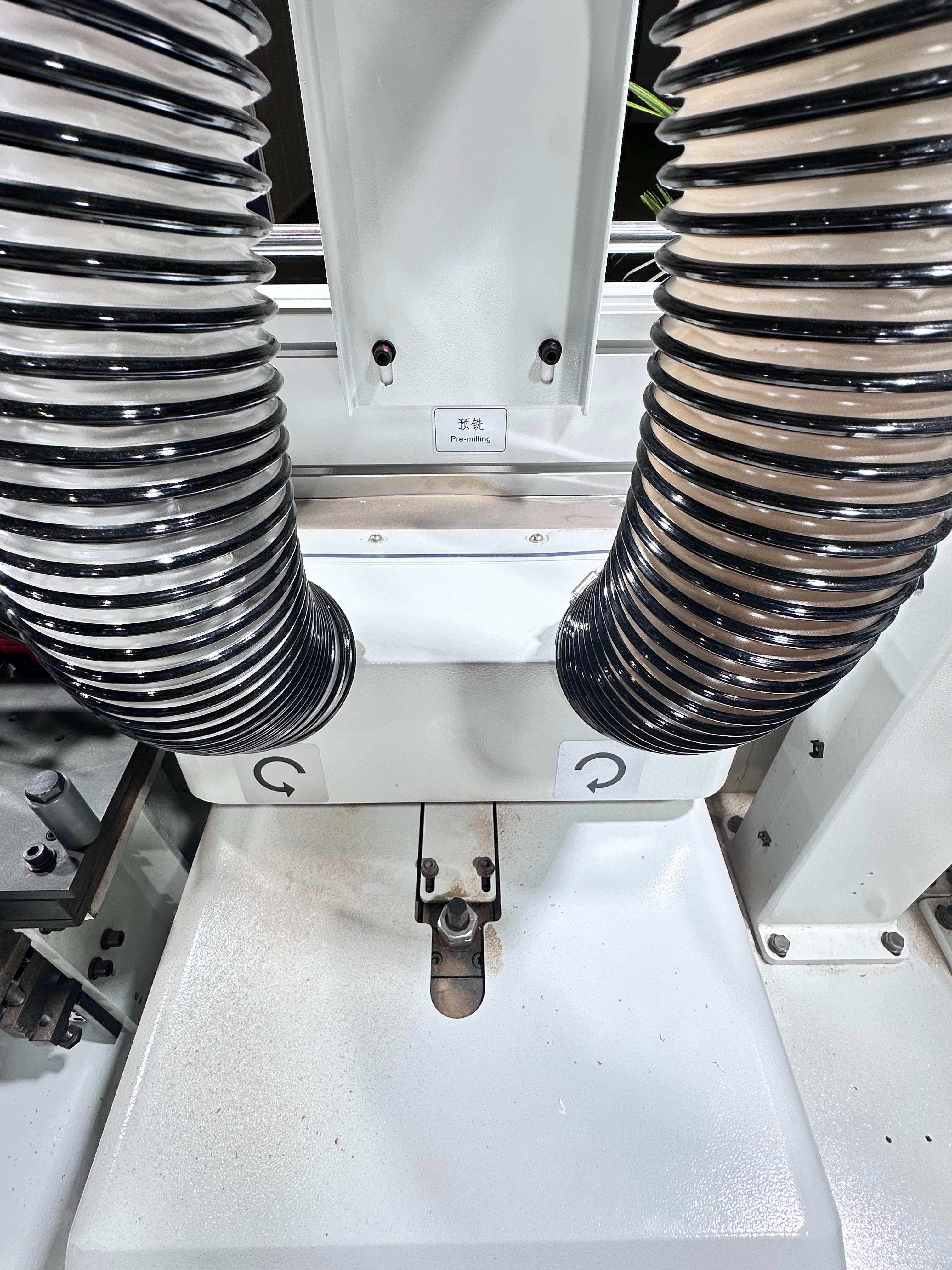

Pre-miling
The edge of the panel is cut and trimmed, make the edge of the panel is more smooth and flat,without burr. Make the edge band tape and panel fit more tightly, after the edge of the glue line is smaller.

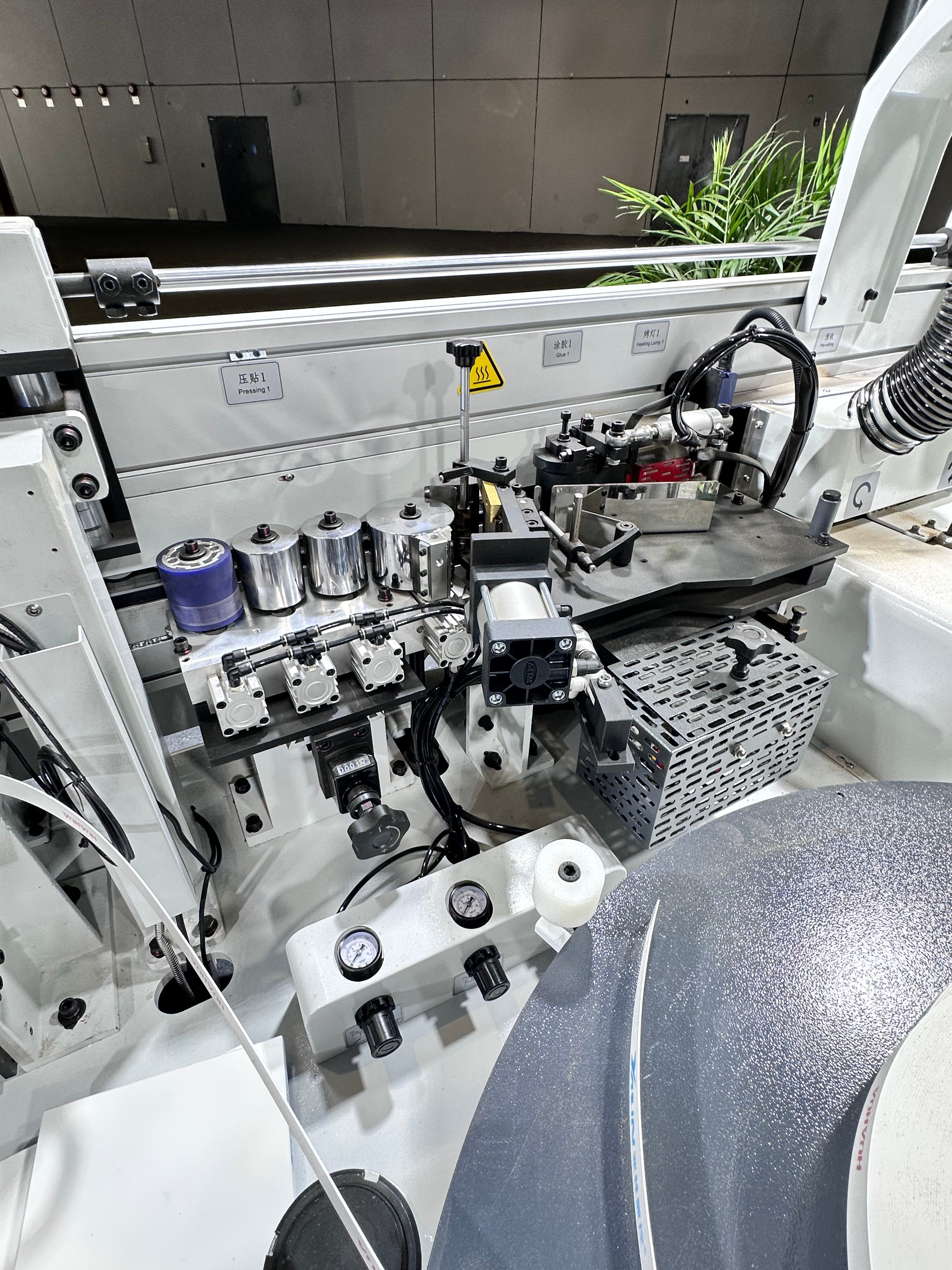

pressing 1

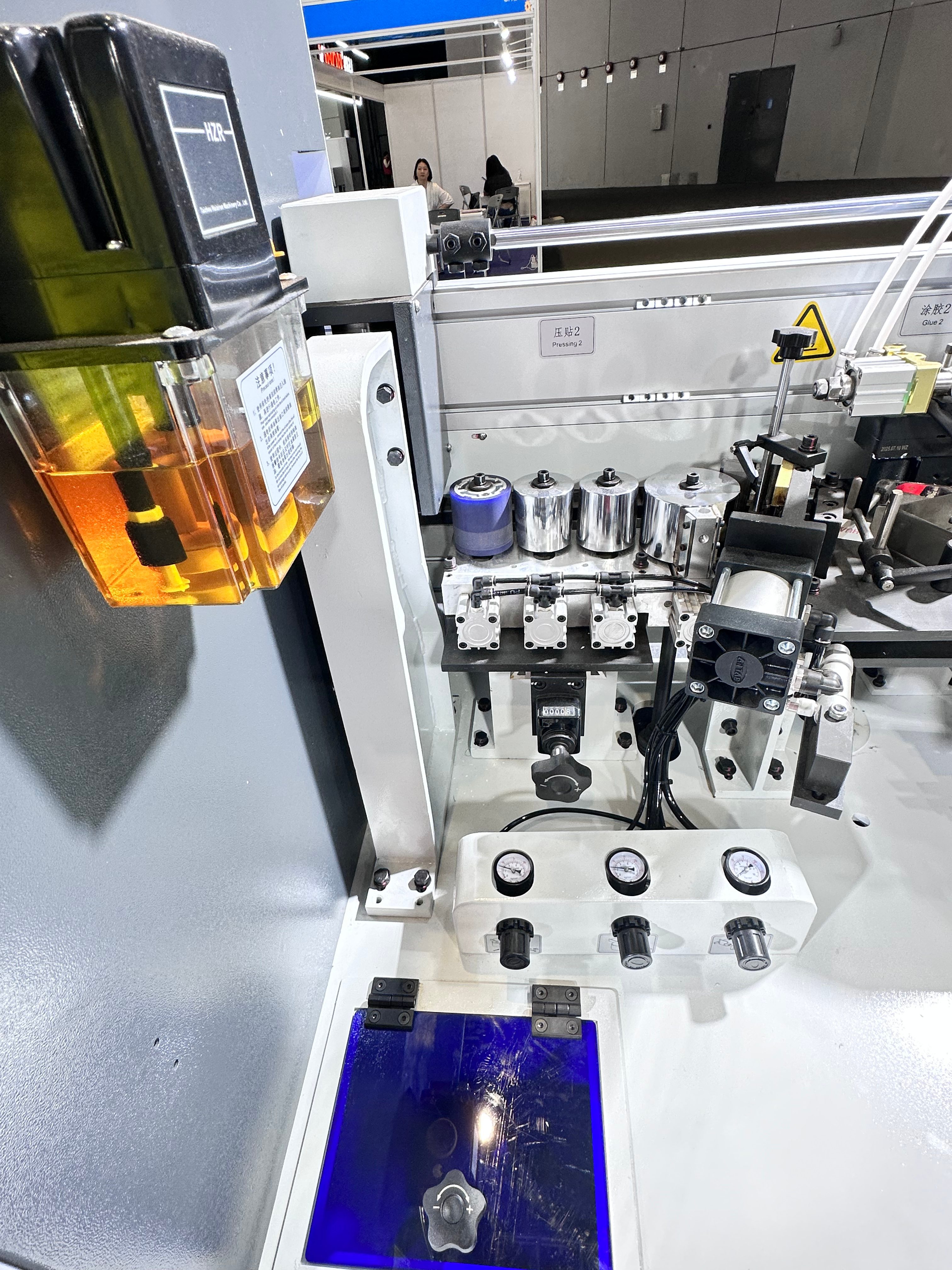

pressing 2
Baked glue
