Precision Corner Cleaning Machine Automated Window Profile End Milling Solution

Special door and window manufacturing machinery corner assembly machine, suitable for aluminum profile PVC UPVC new and old construction industry.

Availability:



Inquire Add to Basket

Brand:
SMARTECH

Product Description

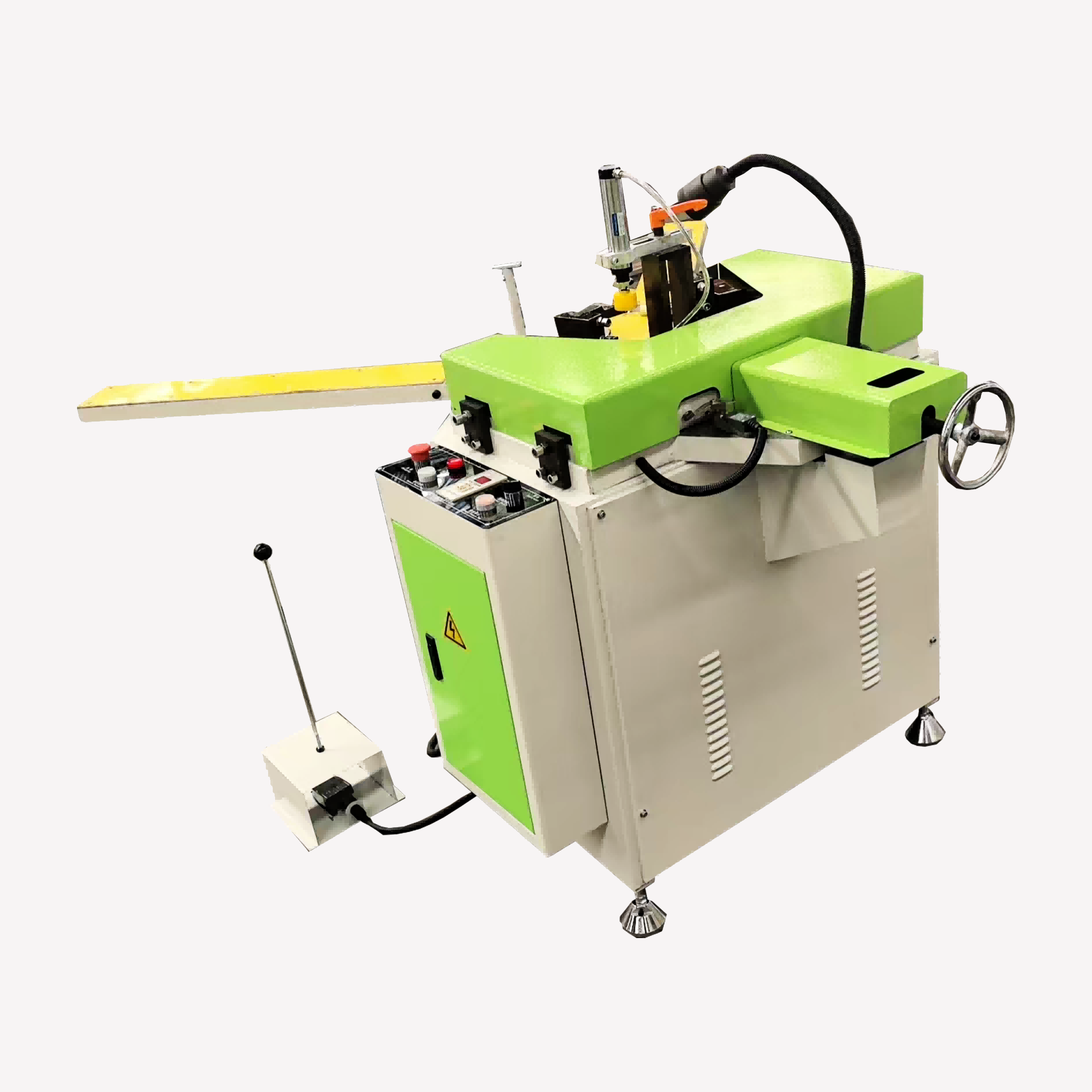

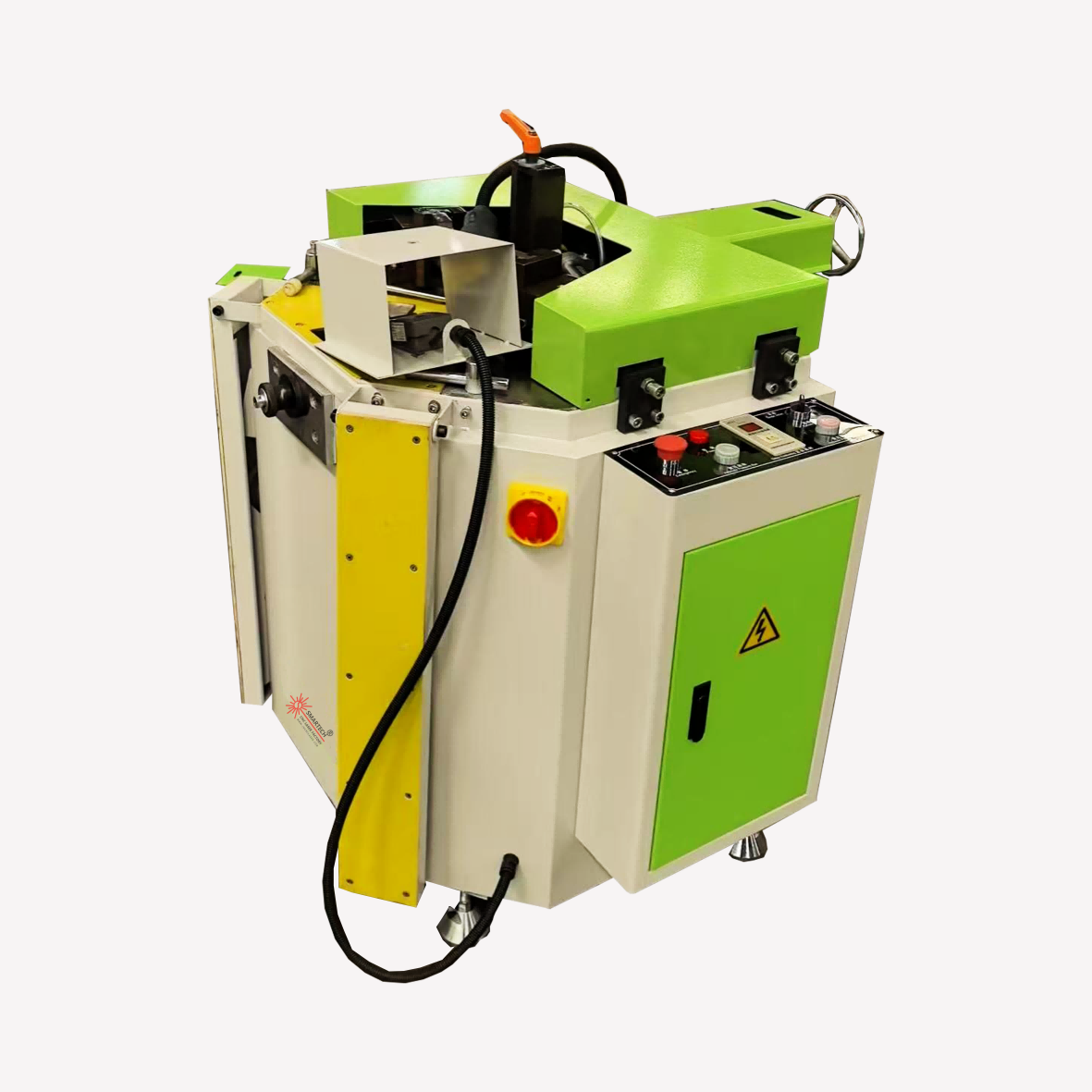

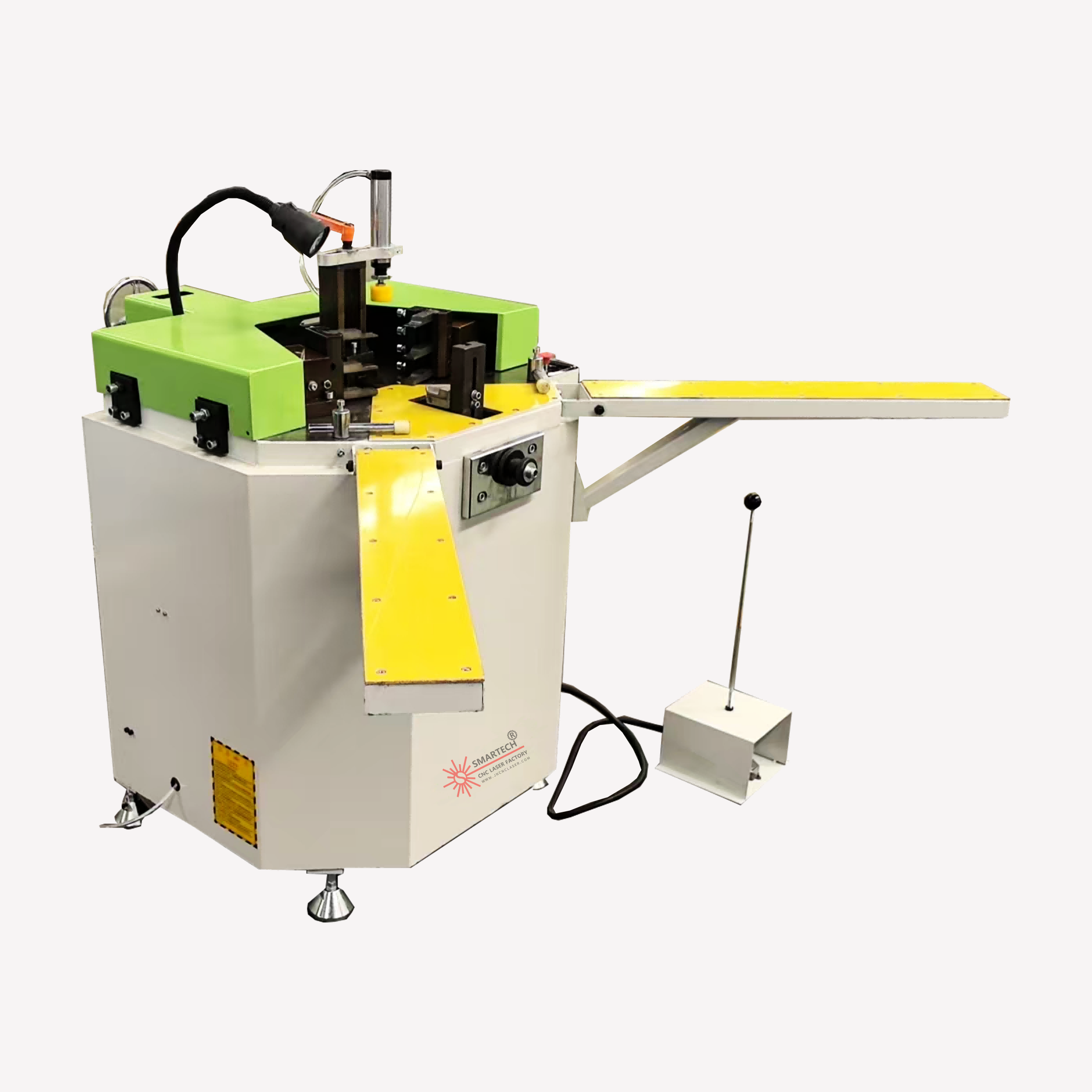

Precision Corner Cleaning Machine Automated Window Profile End Milling Solution

1. Tool magazine design: Three sets of profile processing tools are installed to reduce tool changing time and increase work efficiency. Commonly used tools can be used fixedly for a long time. Tool changing method: The tool holder rotates to change tools and locks, and the tool changing speed is 3 seconds.

2. The adjustment method is handwheel adjustment. The hand wheel cooperates with the counter to make the adjustment precise and remember the values when processing various profiles. When replacing the profile, adjust to the required value. The position adjustment is completed.

5(1)(1)

3. Positioning is pneumatic lift plus electric adjustment: pneumatic lift increases the convenience of placing and retrieving profiles during work; electric adjustment eliminates the need to disassemble the positioning plate when replacing profiles. The positioning plate can be electrically adjusted up and down.

4. Optimize the operation schedule to make the operation more comfortable for the staff.

5. The circuit design is optimized to minimize the cylinder stroke when wasting no work. The processing time of corner assembly is one-third faster than that of the same model. Save labor, time and electricity.

6. The mechanical transmission structure is an optical shaft matched with a copper sleeve. Under long-term and high-load working conditions, the wear is minimal and the service life is longest.

7. Simplify the positioning structure behind the profile, making adjustment more convenient and faster.

8. Assemble high-quality hydraulic station. The oil temperature heat dissipation function is added to ensure the service life of the working components and the power stability during long-term and high-load work.

PRODUCT SPECIFICATIONS

Power supply	380V 50Hz
Motor power	2.2KW
Fuel tank capacity	45L
Rated oil pump pressure	18Mpa
Air source working pressure	0.5～0.8Mpa
Gas consumption	2L/min
Processing profile height	120 mm
Processing angle code size	80 mm
Working size:	1880 2320 1200mm
Transportation size	110012001200
