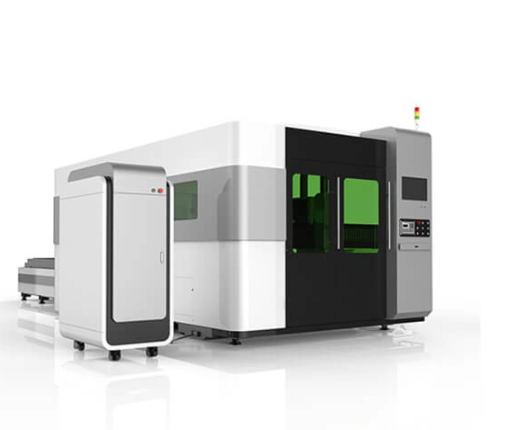

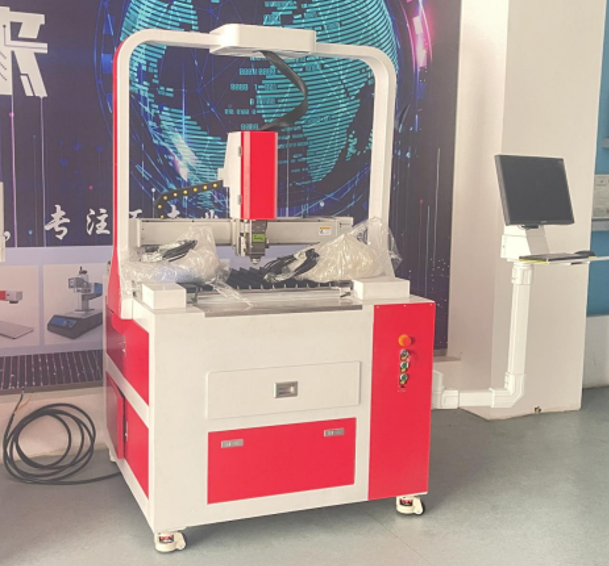

High Prescion Fiber Laser Cutting Machine

Laser, cutting head, platform, CNC system, laser power supply and chiller

1

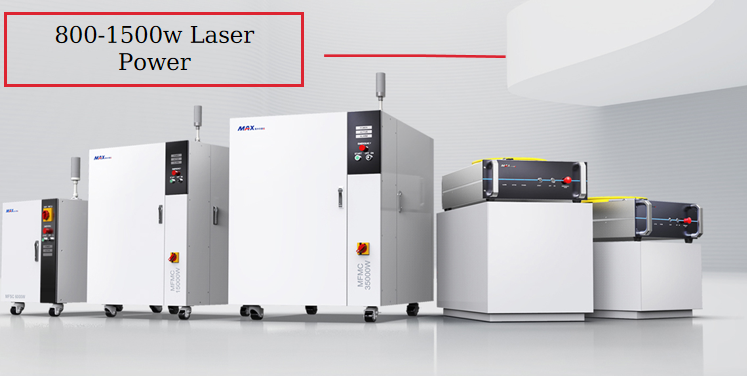

Laser

Raycus

1500W/2000W

Max

1500W/2000W

2

Head

BT240S-2D

3

CNC system

4

Chiller

S&A

1.5KW/2KW

5

Cutting platform + cabinet

Gantry

6

Field lens

F330

Main equipment

1

Linear Guides

TBI

2

Motor and driver

Raiser servo motor

L7

3

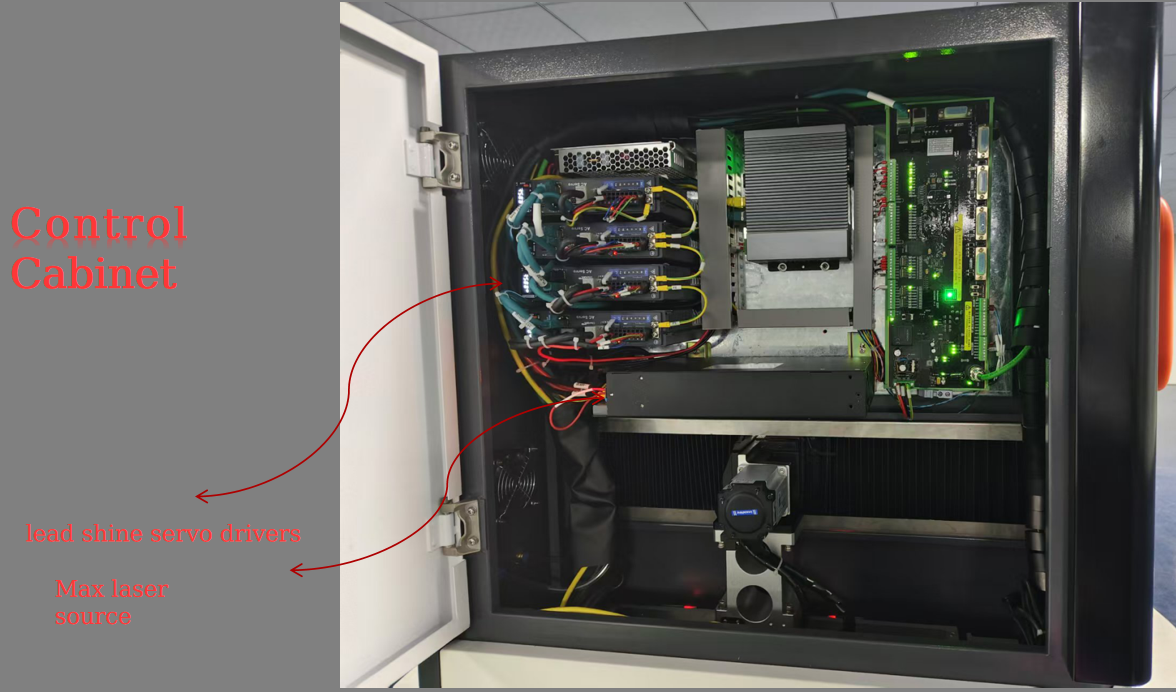

Electrical components

Chint/Delixi/Schneider

1.1

Overall structure:

Material: Carbon steel,Aluminum alloy,

It adopts mature bed structure and mechanical, electrical and hydraulic integrated layout, and has good dynamic and static characteristics.Good thermal stability and good long-term precision stability, high processing efficiency. The machine tool should include a cutting host, special tooling, laser, chiller, control part, cutting protection gas system device, etc. The overall structure and layout, design features, configuration and parametersnet.

1.2

Processing Capabilities

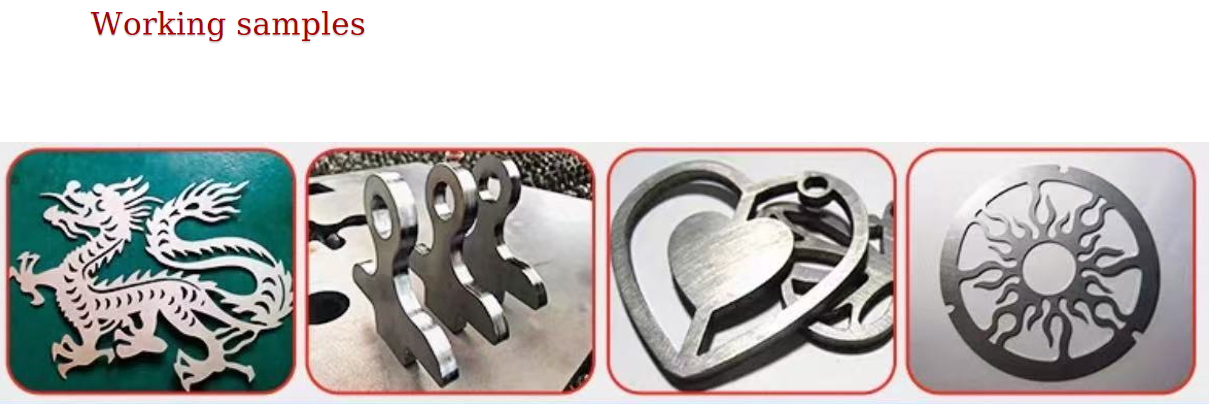

Suitable for metal cutting

2

Welding host

2.1

Workbench:

The workbench is used to place the four-axis module, automatic height adjustment, control screen and other devices.

1250*1200*2050mm, evenly distributed mounting screw holes in the welding area; integrated workbenchControl computer, control buttons, mouse, keyboard and other items, monitor or control screen are placed on the workbench. Maximum load: 200KG

2.2

Three-axis module: VoltAnte customized, precision ground screw module

Three-axis motion module. The three axes of the three-axis module are controlled by the control system.X/Y/Z axis (horizontal/vertical/vertical moving axis of laser welding head) travel:

600/500/80mm; X/Y axis positioning accuracy ≤ 0.05mm, Z axis repeat positioning accuracy:

0.02mm; Maximum positioning speed of X and Y axis: 50m/min Maximum positioning speed of Z axis:

20m/min
