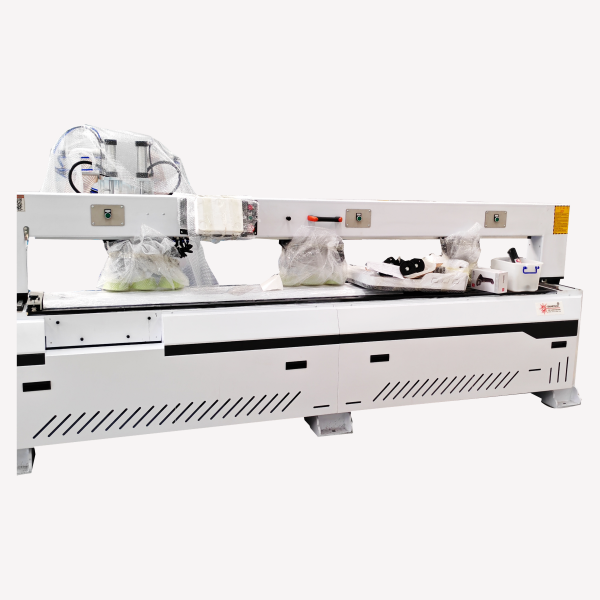

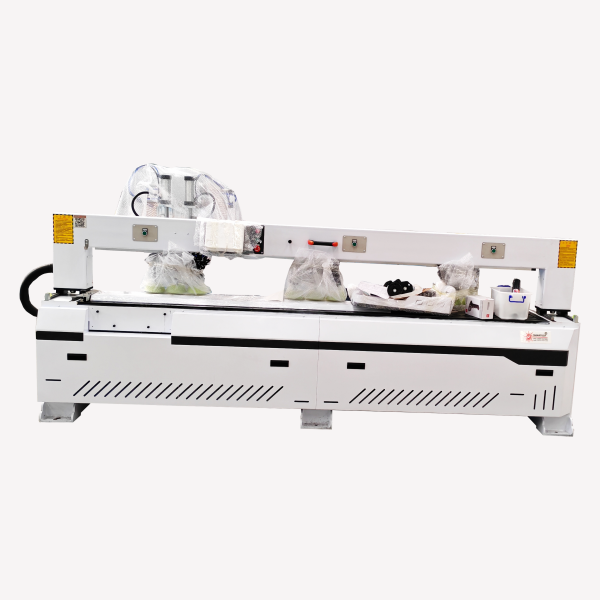

All In One Horizontal Vertical Drilling machine
#Movable beam positioning
#X axis travel size:2800mm
#Machine size:3450X1800X1450mm
#Minimum work piece length and width:100*50mm
#4.5 KW x 2 Horizontal heads + 2.2KWx 2 Vertical Heads
#5.5 KW Inverter
#Touchwin controller (touching panel)
#Automatic positioning
#American original Banner Laser displacement sensor
#Servo motor driver 750W*3 pieces
#Y movement: Rack and pinion, gear drive/Taiwan
#Z movement:Pneumatic cylinder
#Dedicated positioning device
#Oil lubrication system
#Laser Scanner
Application: The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting
PRODUCT SPECIFICATIONS
| Model | Sidle drilling machine |
| Machine size | 3450*1800*1450mm |
| Minimum work piece length and width | 100*50mm |
| Work piece thickness | ≤50mm |
| Y movement | Rack and pinion, gear drive/Taiwan |
| Z movement | Pneumatic cylinder |
| Guide | Linear 25square/Taiwan |
| Max. speed | 15,000mm/min |
| Max. drilling speed | 10,500mm/min |
| Max drill diameter | 100mm |
| Spindle power | 4.5kw*2 (Horizontal Drilling Head)+ 2.2KWx2(vertical drilling head) |
| Spindle speed | 18,000/24,000rpm |
| Inverter power | 15kw |
| Air pressure | 0.6-0.8Mpa |
| Drive motors | Servo |
| Working voltage | AC380V/50-60Hz, 3-phase /220V 50HZ/60HZ |
| Command code | G code |
| Interface | USB 2.0 |
| Collet | ER32- 3.175mm, 6mm, 12.7mm |
| Barcode scanner | Yes |
| Controls | Touch win controlling system |
| Packing dimensions | 3500 x 1900 x 1500mm |
| Net weight/Gross weight | 1100/1150kg |
| Standard equipment included | 1.Dedicated positioning device 2. oil lubrication system |

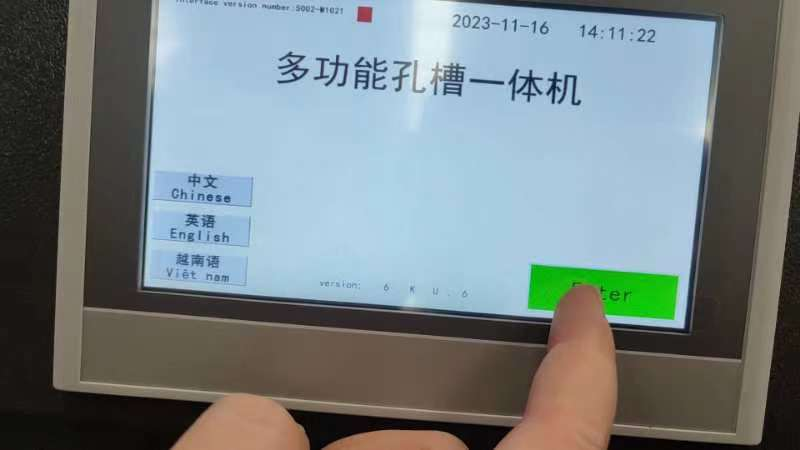

Ouching Screen Control Panel

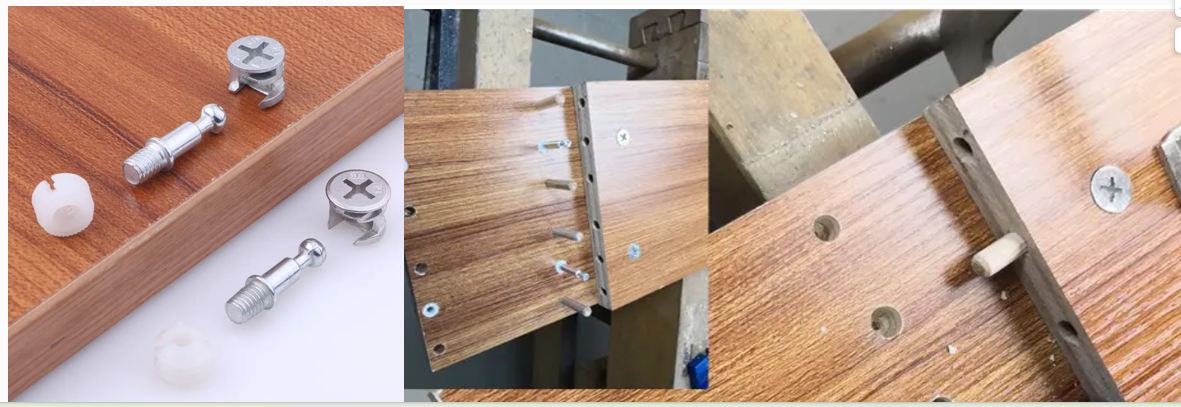

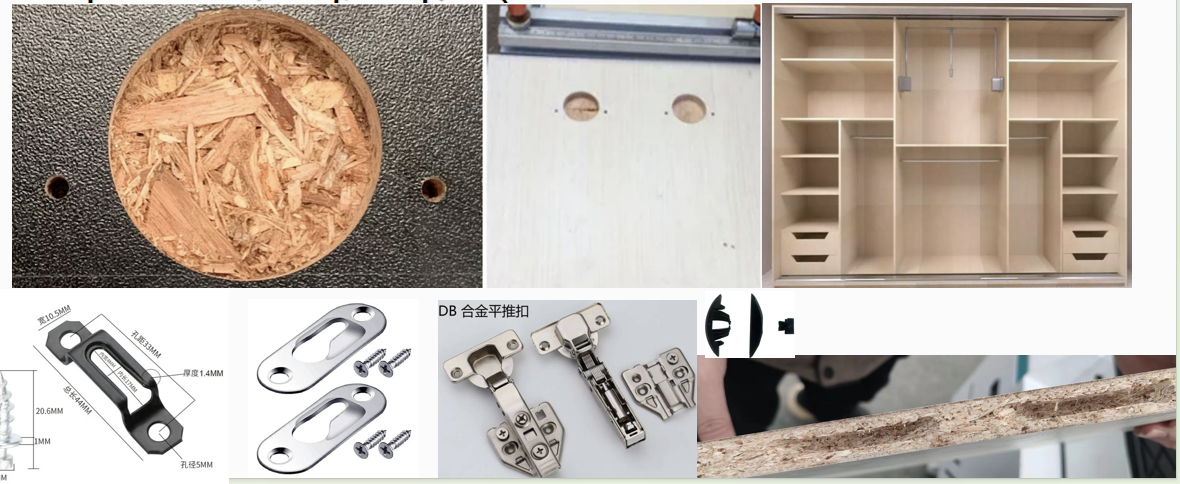

Machine working samples: (3 in 1, invisible parts, blind hole mode, slotting mode, combined graphics, invisible handle, straightener, hinge drill, supports code scanning function)
