SMARTECH
1840*1360*1350mm.
15kw

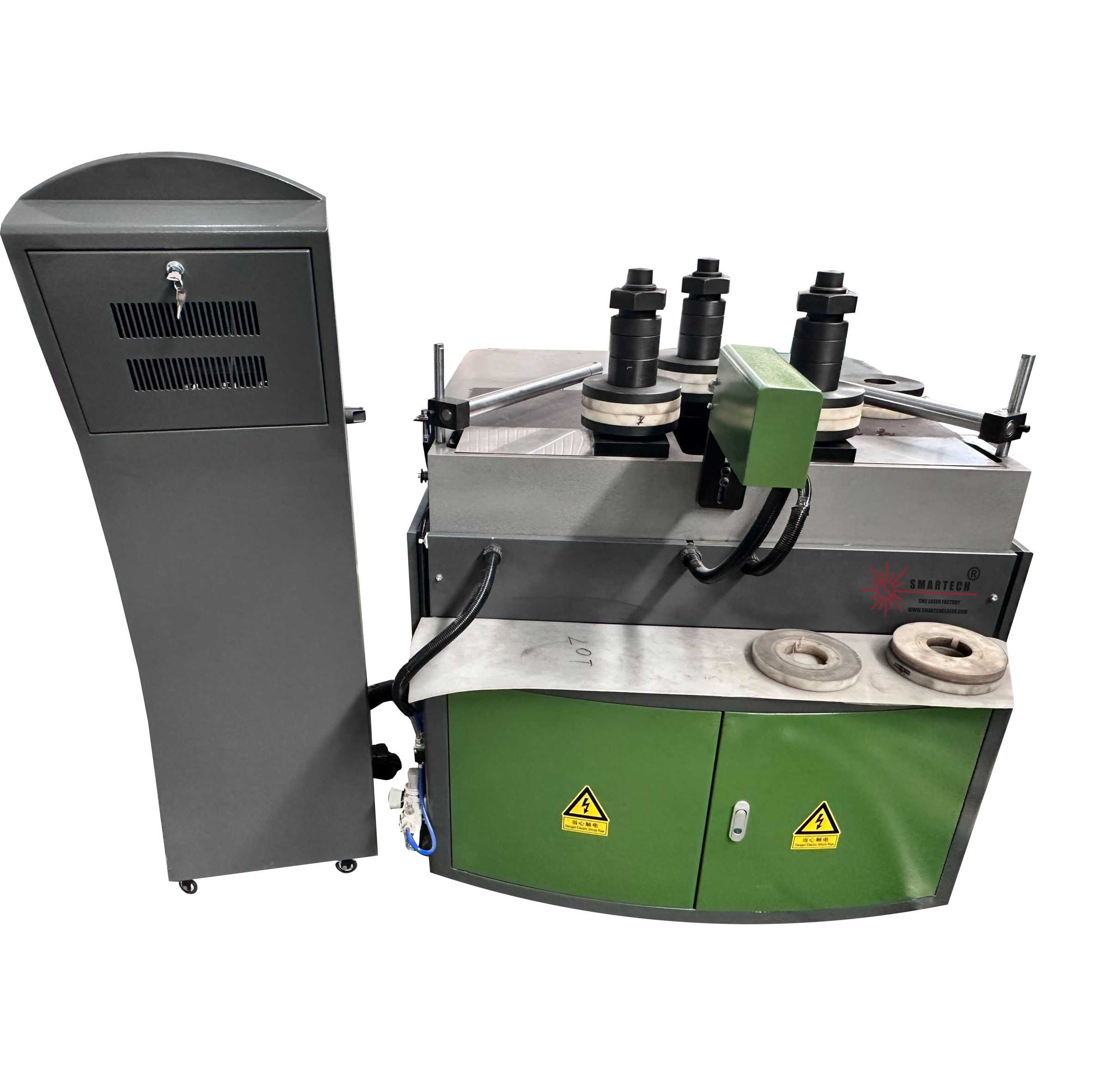

Equipment Advantages：

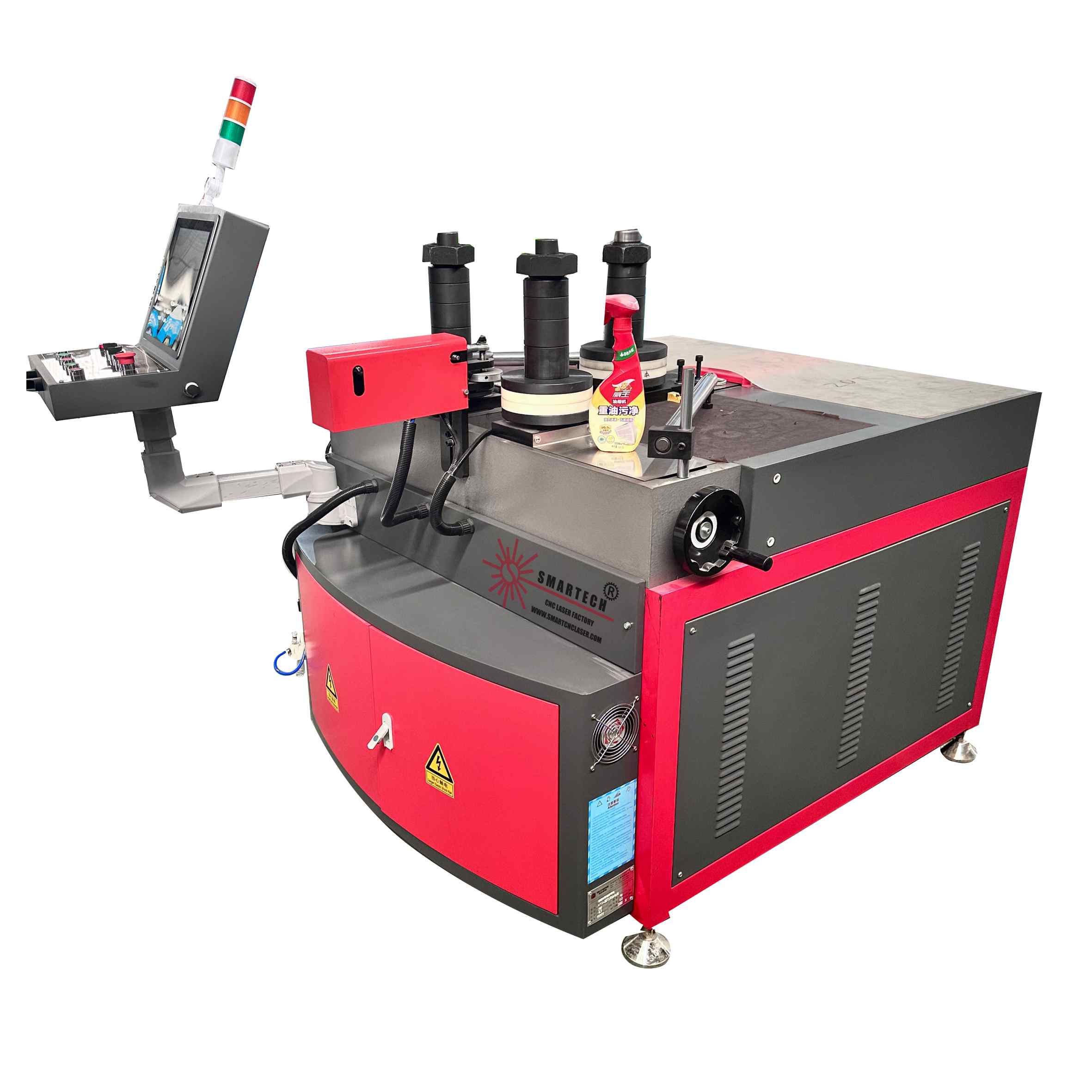

Suitable for bending arc processing of various metal profiles or irregular profiles (aluminum alloy window and door profiles, heat insulation broken bridge profiles).machine adopts a fully automatic CNC system and specialized bending arc software, which is simple and convenient to operate. The machine has high strength and reliable mechanical strength and rigidity, and operate stably and reliably in various complex environments. It can compensate the system according to the rebound data of the profile, and the machining accuracy is high. The use CNC hydraulic system control ensures precise positioning. Its product performance meets the advanced European CNC bending arc machine standards.
Equipment Parameters:
1. Total power 15KW.
2. Power supply: three-phase four-wire AC380V, 50HZ.
3. Roll speed:0-15 revolutions/minute.
4. Maximum diameter of roll mold: 280mm, material: nylon.
5. Roll diameter: 15/mm (customizable) (40 chromium, heat treatment processing).
6. Fixed shaft center distance: 350-750mm adjustable
7. Y-axis cylinder thrust:20/30/ 40 tons.
8. Y-axis cylinder positioning accuracy: ±0.1mm.
9. Maximum torque of X axis: 3000 N.m*3=9000 N.m.
10. Y-axis feed stroke: 0-22mm.
11. Roll shaft length: 400mm.
12. Processing profile range: High 400* Wide 200mm.
13. X-axis positioning accuracy: <0.5mm; Y-axis repeat positioning accuracy ±0.1mm.
14. Minimum processing radius 100mm (inner arc) one-time bending molding (depending on the actual size of the material).
15. Dimension of operating console:*width*height=500*510*1500mm.
16. Dimension of main machine: length*width*height=1840*1360*1350mm.
17. Total weight: 2500kg.
Equipment Configuration:
1. system: Siemens PLC controller (good stability)
2. Operation screen: Siemens ten-inch touch screen (easy to use)
3. Japanese Y hydraulic system, cylinder seals are imported seals (long life) The machine is equipped with sufficient 46# anti-wear hydraulic oil.
4. Reduction device: Taiwan brand
5. Linear scale: Xinhe
6. Electrical components: France Schneider
7. Detection switch and limit switch: Taiwan brand
8. The motion trajectory of the top shaft is a straight "I" structure (moving smoothly)
9. The overall sheet metal of the equipment is antistatic spraying, and the frame is welded with galvanized pipes that do not rust
10. This machine is equipped with an anti-tilt bracket to prevent shaft from tilting.

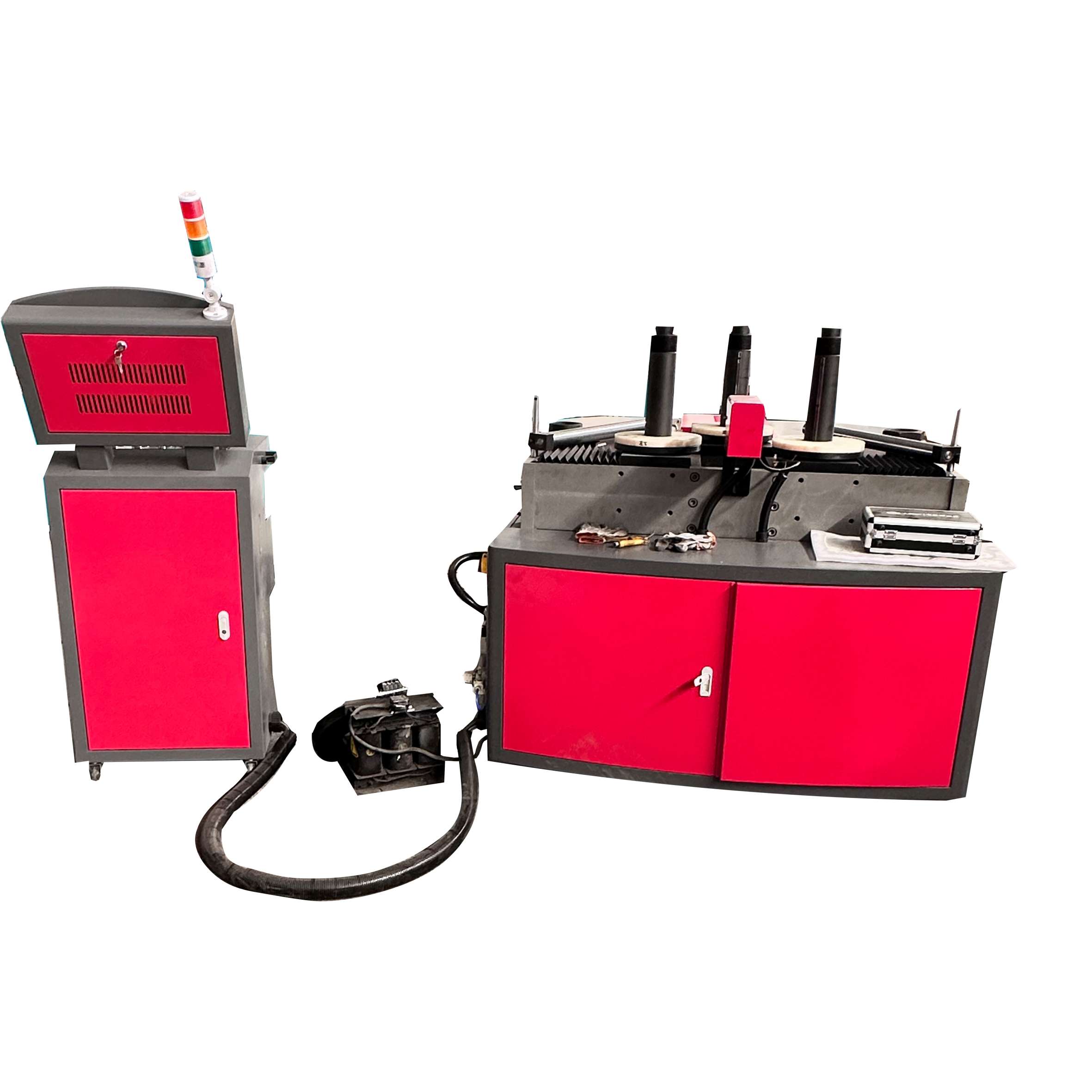

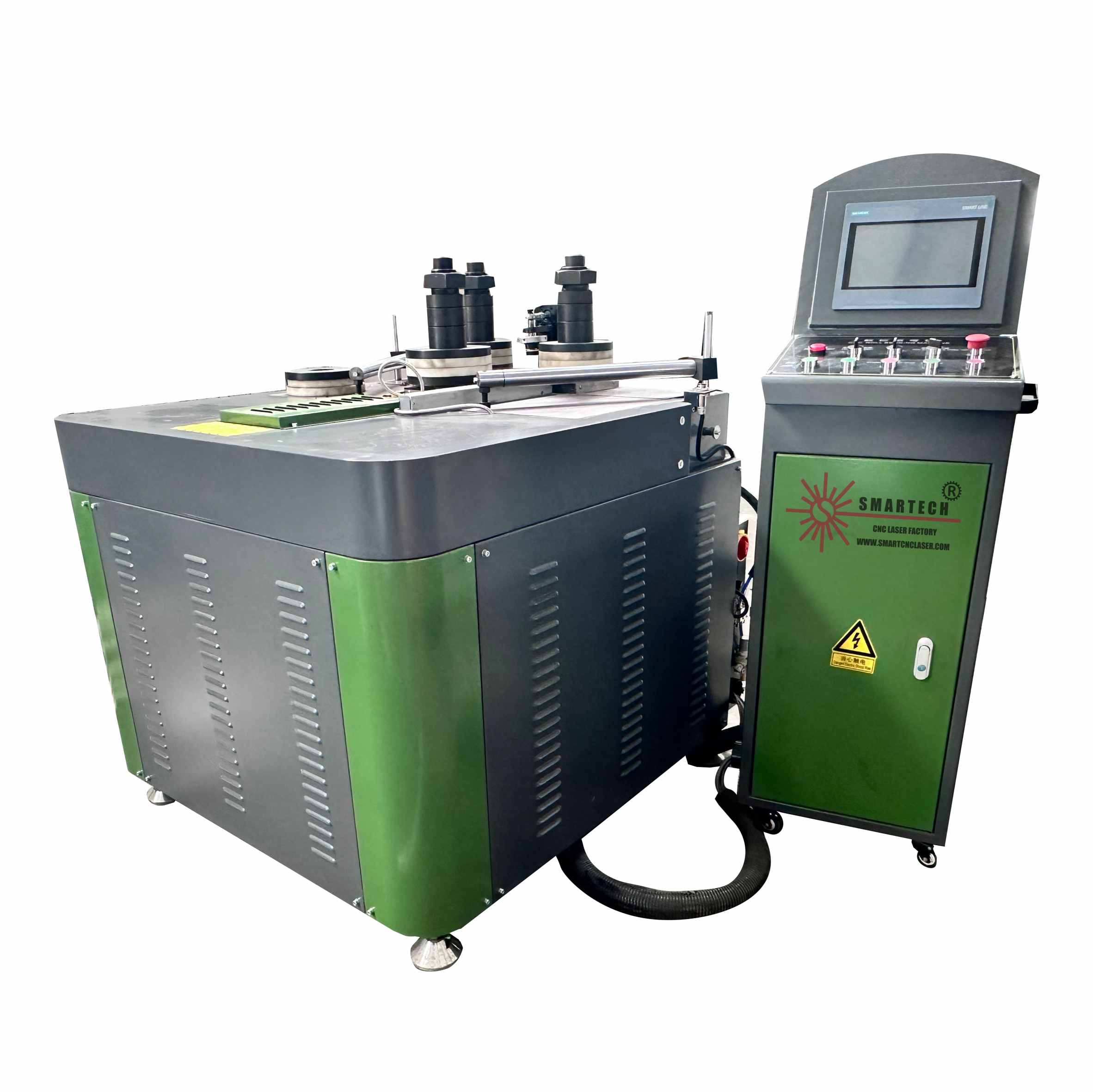

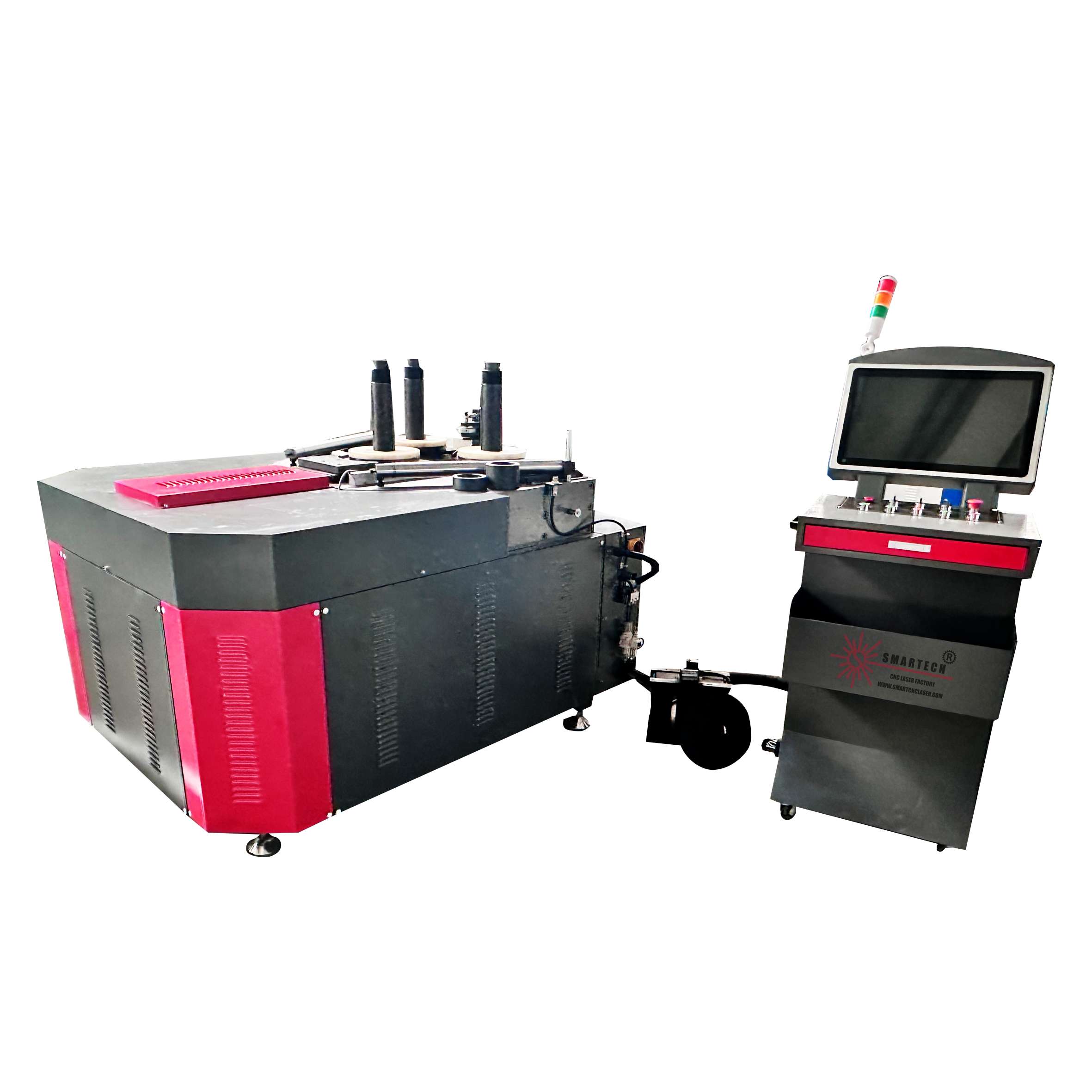

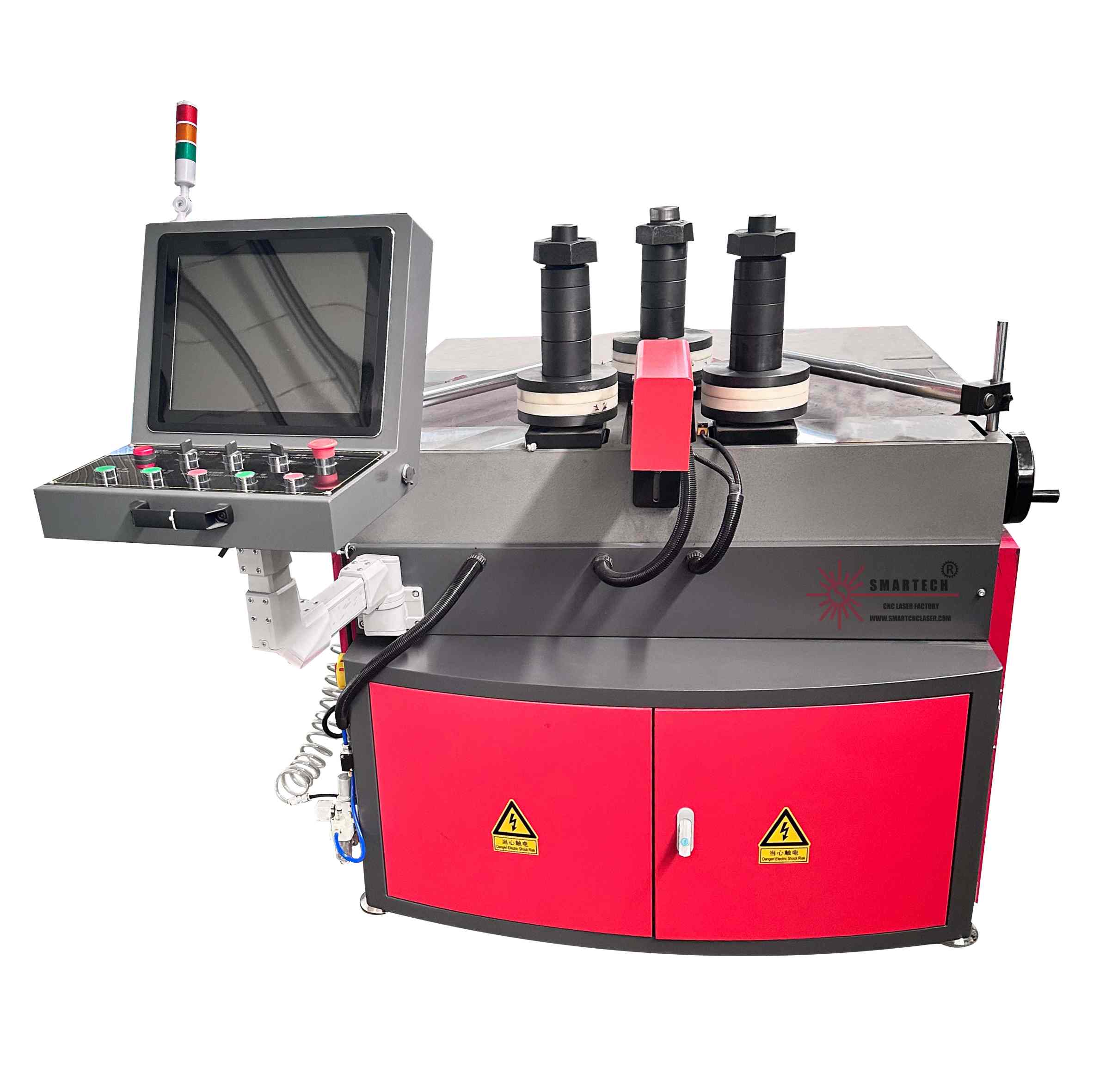

Machine Details:

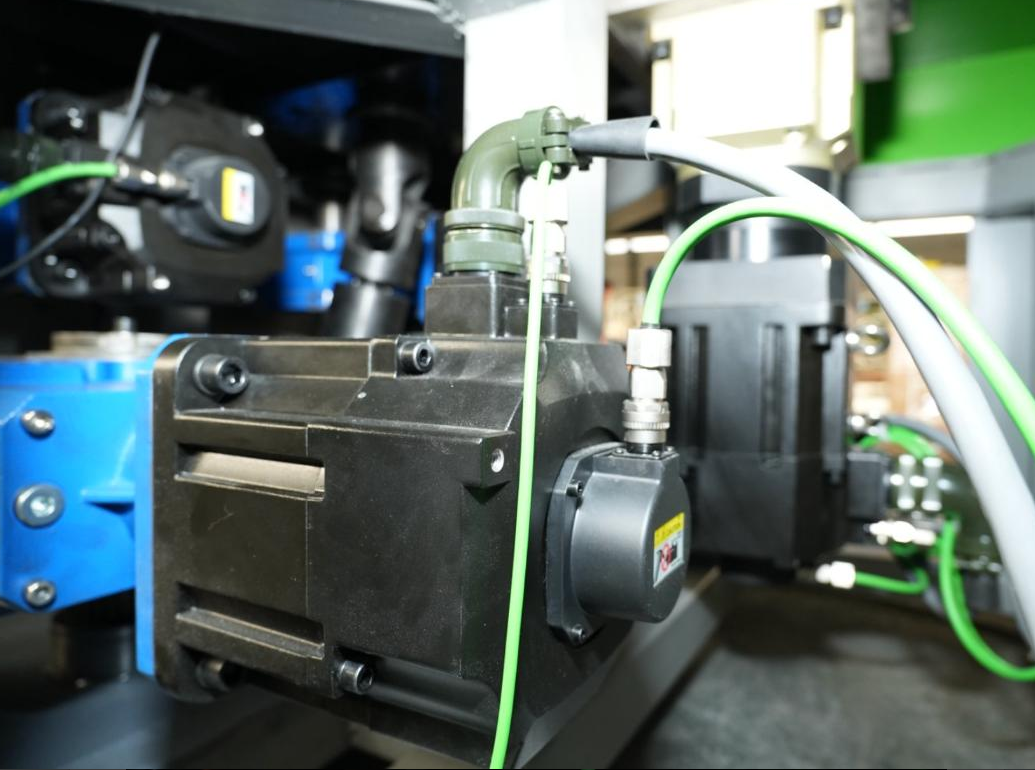

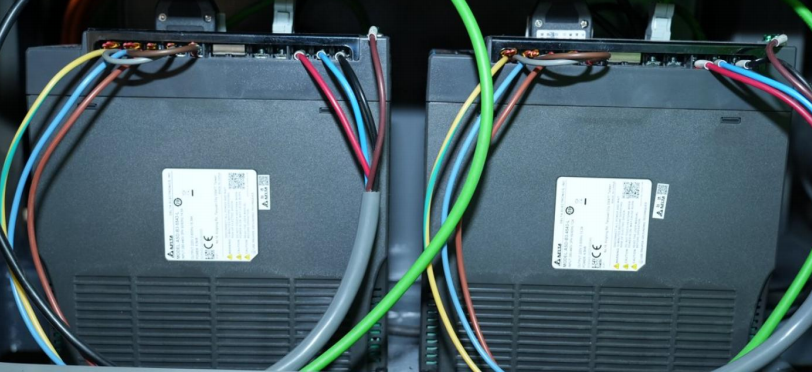

---Servo Motor & drivers(higher precision and more stable):

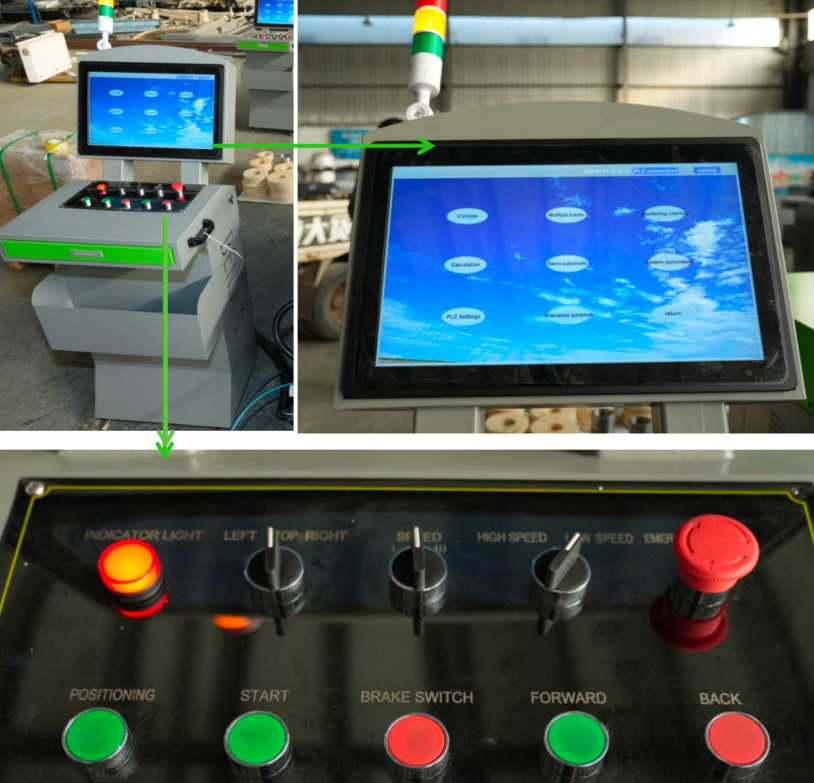

---Industrial Touching Screen Controller(professional and easy to operate)

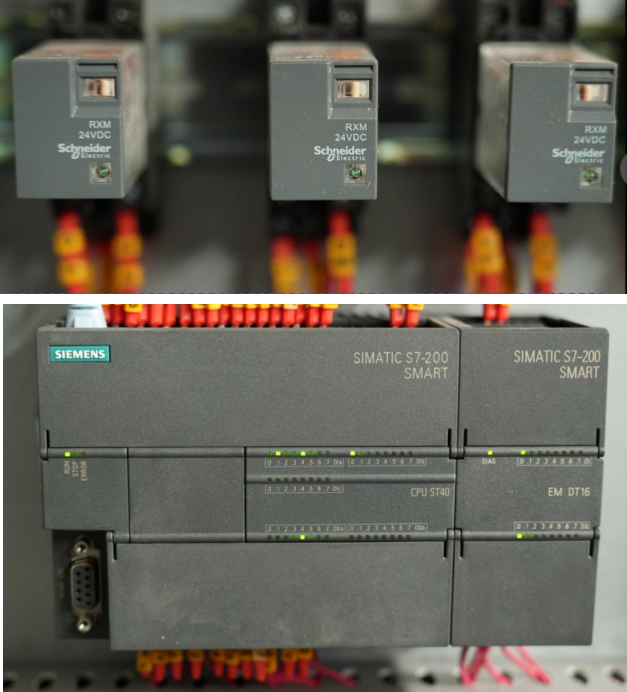

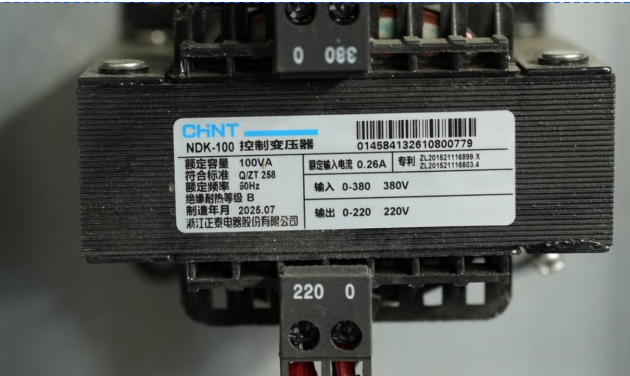

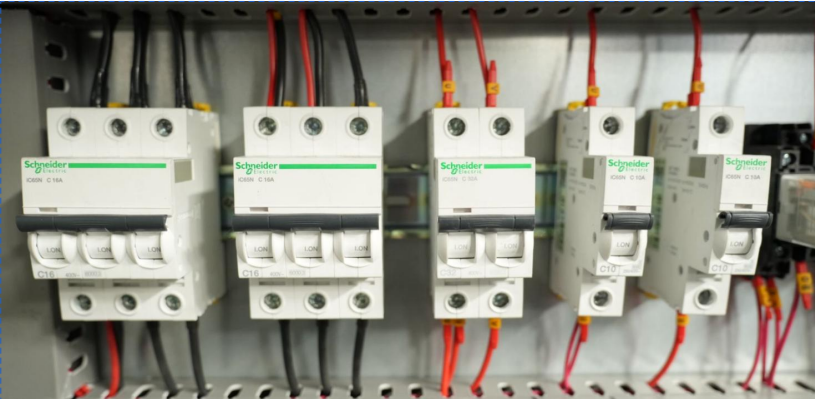

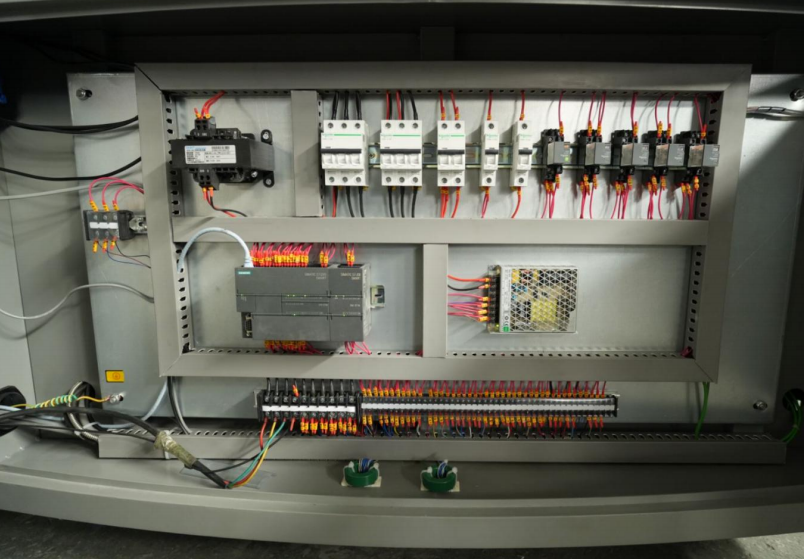

---Electricity Control Box with famous brands parts:

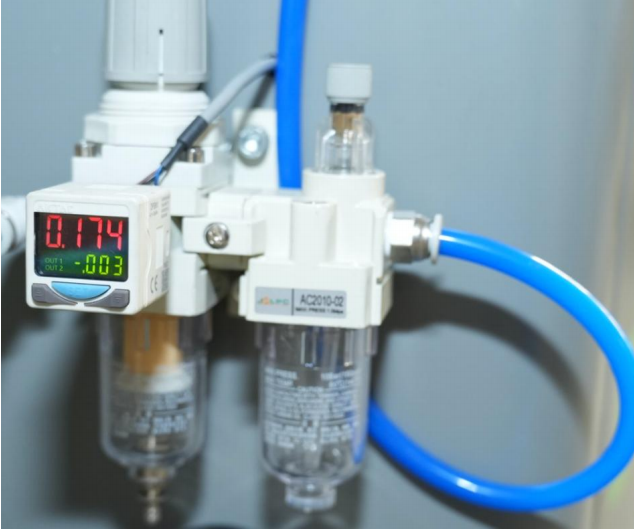

---Air Pressure Valve (Display air pressure data more intuitively):

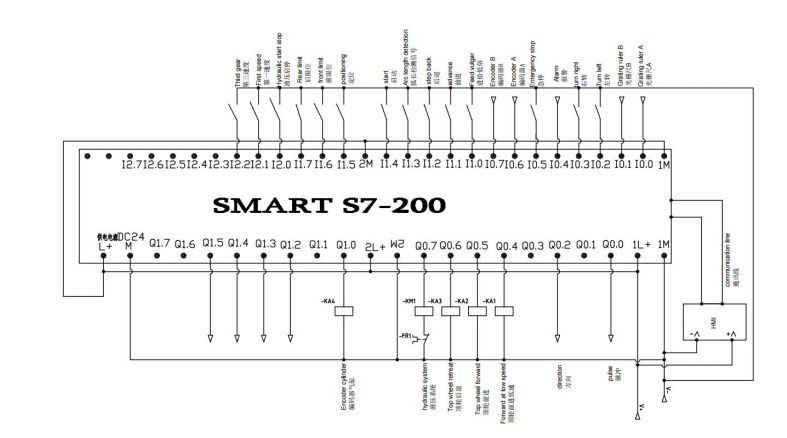

Electrical drawing for system:

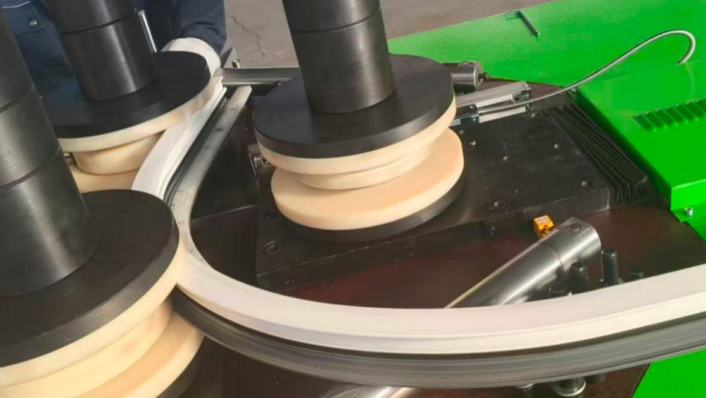

Machine working samples made by our machine:
C-type bending:

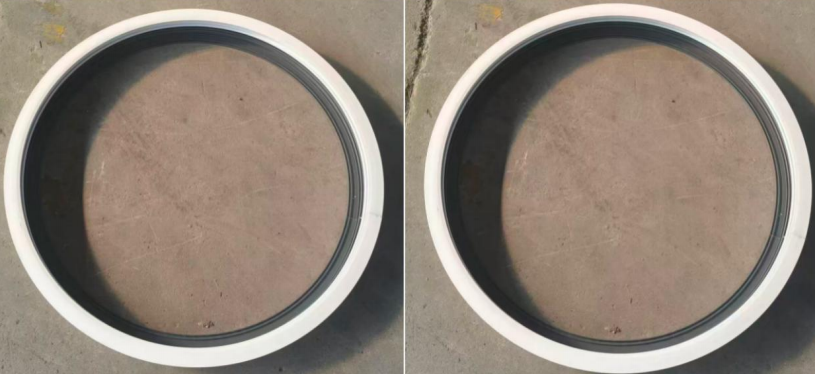

O-type bending:

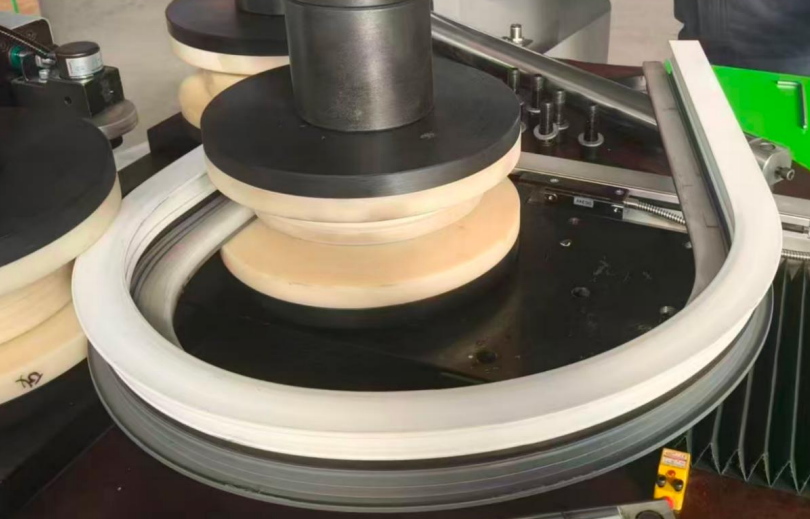

U-type bending:
