Flying Co2 Laser Marking Machine For Nonmetal Online Marking Plastic Bottle Acrylic Wood PCB Best Price Flying Co2 Laser Marking Machine

Availability:



Inquire Add to Basket

Model:
Flying Co2 laser marking
Brand:
SMARTECH
Code:
New Product 2020
Size:
510*660*1450mm
Power:
10W/20W/30W/50W
Machine Color:
as your preference

Product Description

Product Overview

Flying Co2 laser marking

Optional parts @1.Auto sensor transferring conveyor belt   @2.Rotary device for round materials @3.Smoke purifying---help clean smoke by laser machines.   Package Three layers:first layer->Thin Film;Second layer->Protect plastic->Third,Strong wooden case Dimension 510*660*1450mm Weight 250 /280  (Net/ gross) Delivery Time 10 working days after receiving deposit Payment 30% T/T in advance, 70% before delivery Warranty 3 years (replace parts during warranty(no human reason) Applications: What is the application area of CO2 laser marking machine ? It with the co2 laser, which is a general-purpose model, small size and high degree of integration. The main processing object is non-metal, widely used in food packaging, pharmaceutical packaging, architectural ceramics, clothing accessories, leather, fabric cutting, craft gifts, rubber products, electronic components packaging, shell nameplate and so on. Suitable for paper, wood, glass, leather,glass ceramics, resin plastics, bamboo products, PCB boards, etc


FEATURES AT A GLANCE

   *Standard Working size 500x500mm *made-in-China radio frequency laser (metal seal) or a glass laser tube   *JCZ main board & EZCAD software *SINO-GALVO 7110 Scanner *Industrial computer *Water/air cooling system *control cabinet *stent and working table *optical system *Taiwan Mean well power supply  *data connection *user manual*Double red lights focus(it will be combined with the red light of the scanner, to help you quickly find the right focal length.)

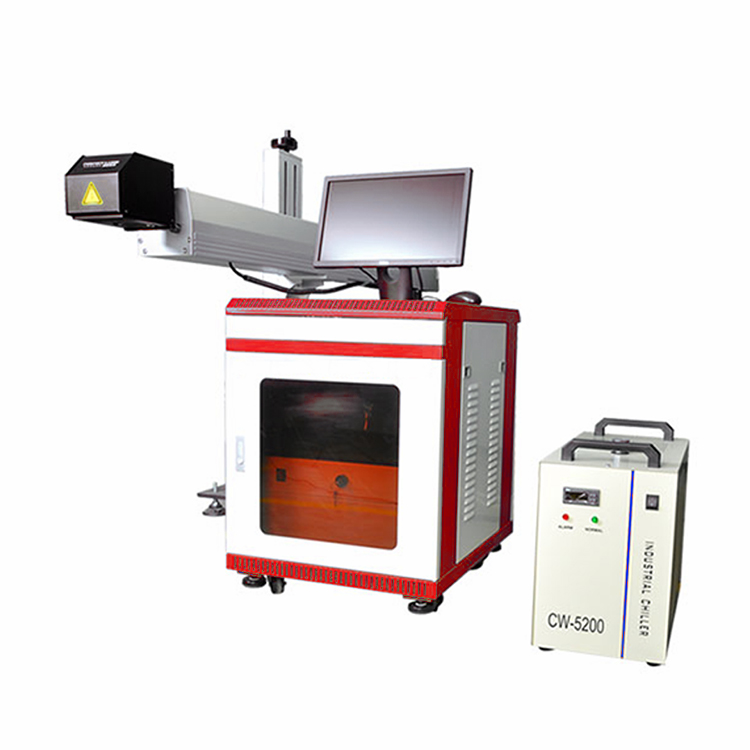

 co2 laser marking machine with water cooling system

 Right elevation

 Left elevation

 Front elevation

PRODUCT CONFIGURATION

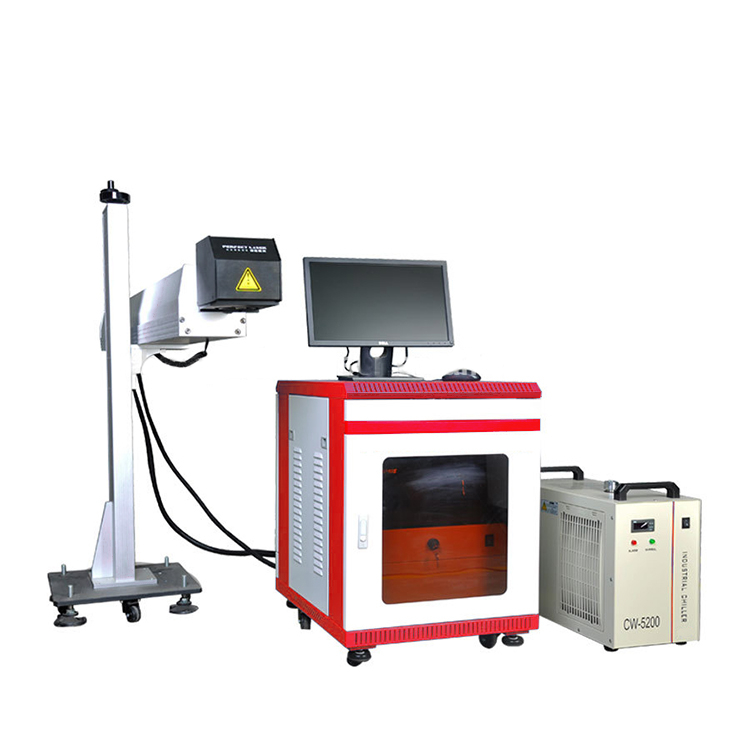

 co2 laser marking machine with air cooling system

Features:

High precision and speed. Marking depth can be controlled easily. Continue working no need maintenance. 2. U.A.S imported RF tube together with high speed galvanometer and path expander fans system. stable path fast marking 3. With glass CO2 tube .High power big working site with lower price. 4. Industry computer, strong anti-interference and adaptation stable working position for 24 working. 5. Red position system avoids material waste. 6. Multi-function software with friendly interface support win7/xp/2000/win7/8/10 together with many languages version. Supporting True Type font and single line font JSP, DMF, One-dimensional code and VIN 7. supporting bmp, jpg, gif, tga, png, tif file together with ai, dxf, dst, plt. Work on 256 level grey image. Image processing for grey conversion, black white conversion and dot. 8. Free control system and outside equipment. 9.Using imported laser source, high quality strong beam energy,focus marking point is small, ultra-fine marking. 10.Small heat affected area. Prevent material deformation, damaged or burnt. High rate of final products. 11.Using digital galvanometers, lower drift, higher positioning speed, higher performance and higher precision. 12.The overall design meets CE requirements.Wide range of applicable materials. 13. with high-speed marking, could fulfill the bulk and production line marking needs. 14.With high power configuration, besides marking, also could engrave and cut on nonmetal materials. 15. Could mark the larger object with big sizes. 16. Longer lifespan, although fiber laser marking machine is very long could be 100,000 hours, the RF co2 laser marking machine’s lifetime is even longer, can be 200,000 – 300,000 hours. Why SMARTECH?

Professional manufacturer since 2002 year,with rich experiences. 2.Reasonable prices list,we never ask for wild price,but a competitive price in the market,if you think our price is still higher,please contact our sales person to send them the date and we would give you the professional analysis for free objectively and honestly. 3.Best quality, for all of our cnc laser machine, we could assure a 3 years warranty except for the big sale ones,for any parts damage during warranty period, we could send new ones to you for free which means we are confident in our machine parts and good quality parts are used for machine. 4.Warm service, for each set of machine, we would send you operating or training videos with english scripts for free before machine delivery. So you could understand machine better. 5.Fast delivery. For all of our standard laser machines, we could deliver out within 7 days. 6.OEM service, which means we could mark your own logo or brand on the marking machine if you are machinery distributor which could help you expand your market. 7.Flexible payment terms. Except for T.T, we also accept Credit card, letter of credit,DP,Alibaba etc ways. 8.Door to door service is also available.

PRODUCT SPECIFICATIONS

 NO. Model SCO2-10W/30W/50W/60W/80W/100W/130W 1 Laser power 10W/30W/50W/60W/80W/100W/130W 2 Working area 110*110mm 175mm*175mm 200*200mm 300*300mm/500x500mm/customized 3 Laser Wavelength   10640nm 4 Response time 0.5ms 5 Frequency of pulse ≦30KHZ 6 Max marking depth ≤0.3mm (adjustable according to materials) 7 Marking speed 0-10000mm/s 8 Marking lines 1-10 lines(in the marking area) 9 Minimum line width 0.01mm 10 Minimum character 0.015mm 11 Repeat Positioning accuracy ±0.001mm 12 Resolution ratio 0.1mm 13 Marking content Text,pattern,date,bar code,etc 14 Graphic format supported bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. 15 Operation system Microsoft Windows XP or Windows 2000 or Windows7,windows 8.1/10 32 bits/64 bits 16 Control software EZCAD marking control software or laser2.1 marking control software 17 Unit power ≤5KW 18 Operation temperature 5℃-40℃ 19 Relative moisture ≤ 90%,no fog 20 Supply Voltage 220V/50Hz/15A 21 Beam quality M2 <1.5 22  Focus Spot Diameter <0.01mm

Successful Project

machine recommendation

FAQ  -Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
