Furniture Legs Making Multi Spindles Cnc Wood Router 1530 Rotary 4th Axis With 8 Heads 3D Woodworking CNC Router Machine

Availability:



Inquire Add to Basket

Model:
Cnc Wood Router 1530
Brand:
SMARTECH
Code:
New Product 2021
Size:
3100 * 1950 * 1850mm
Power:
AC380V/50/60Hz,3PH
Machine Color:
as your preference

Product Description

FEATURES AT A GLANCE

      Parameters: X,Y,Z Working Area 3000*1500*300mm for flat working, 300mm diameter, 3000mm length for rotary axis Table Surface T-slot Table  Frame Cast Iron Structure X, Y Structure 25# HIWIN linear guide, helical rack Z Structure Hiwin Rail Linear guide and TBI Ball Screw Max. Power Consumption (Without Spindle)2.2 kw~3kw Spindle Power 8* 2.2kw water cooling spindle Spindle Speed 0-24000RPM Drive Motors servo motor Working Voltage AC380V/50-60Hz,3PH (Option: 220V/1phase) Command Language G Code Operating System DSP/NC studio control system Rotary device 8 sets, 300mm diameter Computer Interface USB Software Compatibility Type3/UcancameV9 Software, (Option: Artcam Software) Optional parts Japanese YASKAWA servo motor, Italy HSD air cooling spindle Dust collector Movable flat table

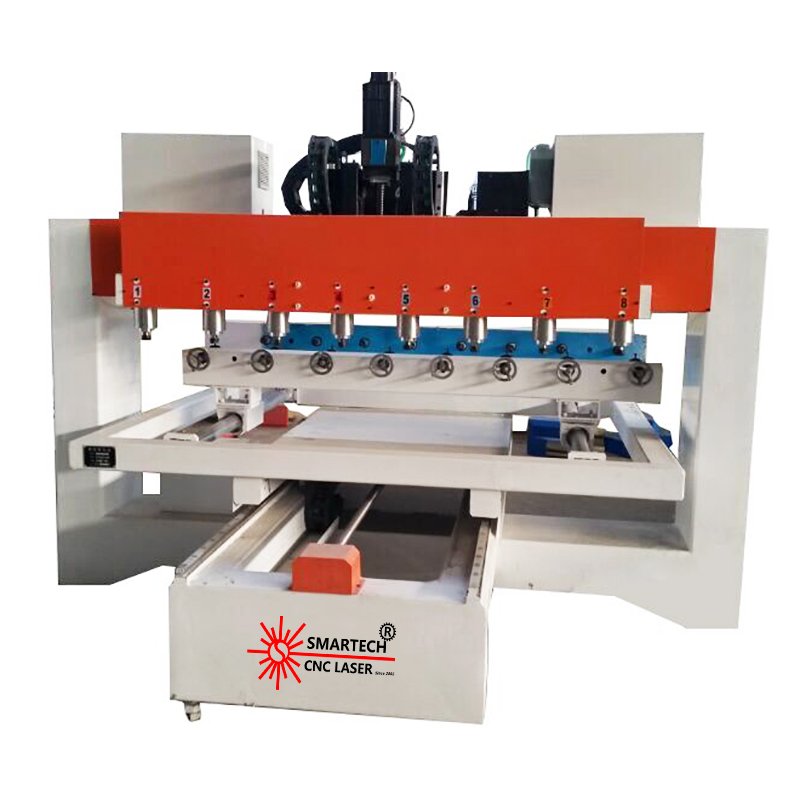

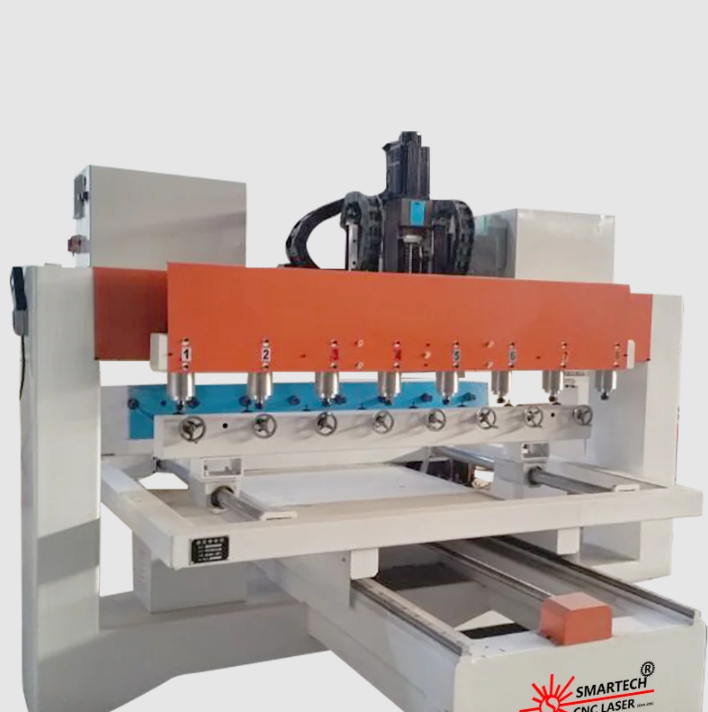

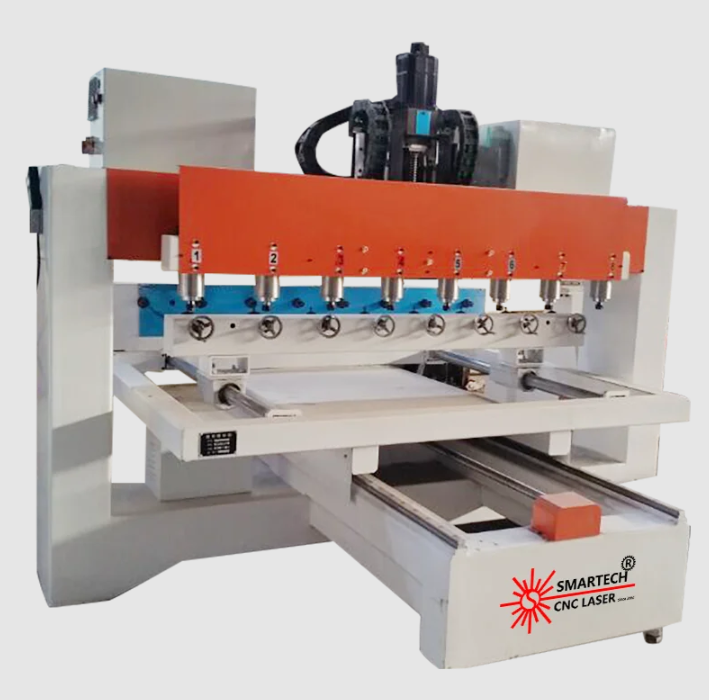

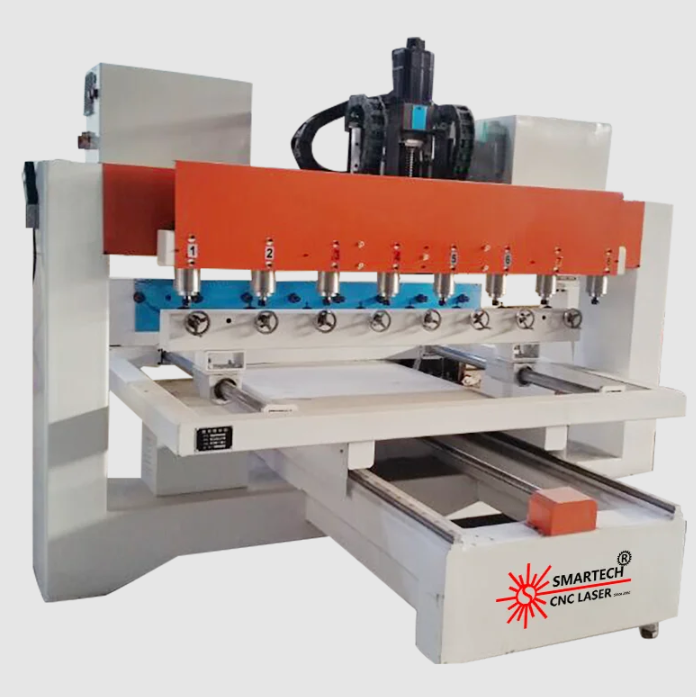

 Furniture legs Making Multi spindles Cnc Wood Router 1530 Rotary 4th Axis With 8 Heads 3D Woodworking CNC Router Machine

SWR 1530 Series cnc router machine working size is 3000 * 1500mm,equipped with 300mm rotary device, is professionally used for
processing cylindrical products, such as wooden table legs,railing etc. All machine sizes and specifications could be customized
according to your requirements.

 Right elevation

 Left elevation

 Front elevation

PRODUCT SPECIFICATIONS

  1.SMARTECH 4 axis CNC router adopted HIWIN25 linear square rails, XYZ axis adopts import ball screw, move smoothly, high accuracy carving. high-speed low noise. 2.SMARTECH 4 axis CNC router has widened machine head part assembly additional body-weight.and ancillary shorting, make the whole machine move more smoothly. 3.SMARTECH 4 axis CNC router with computer connection directly, support break, continue carving after cut off electric. 4.SMARTECH 4 axis CNC router has multi functions, it can make the machine work on flat or cylinders.

PRODUCT CONFIGURATION

Spindle:

 China HQD 2.2 kw air cooling  spindle. ER25 collet.  Good quality and high precision.     4.5kw, 6kw,  7kw for options

Motor:

  Leadshine pure servo motor and driver,        powerful and high quality, with alarm function. Chinese easy servo motor or YASKAWAservo  motor for options.

Controller:

 DSP A18 four-axis control system. handle-   controlled, fast reading speed. Intelligent   processing memory, supports power fail to safeguard and break point function.

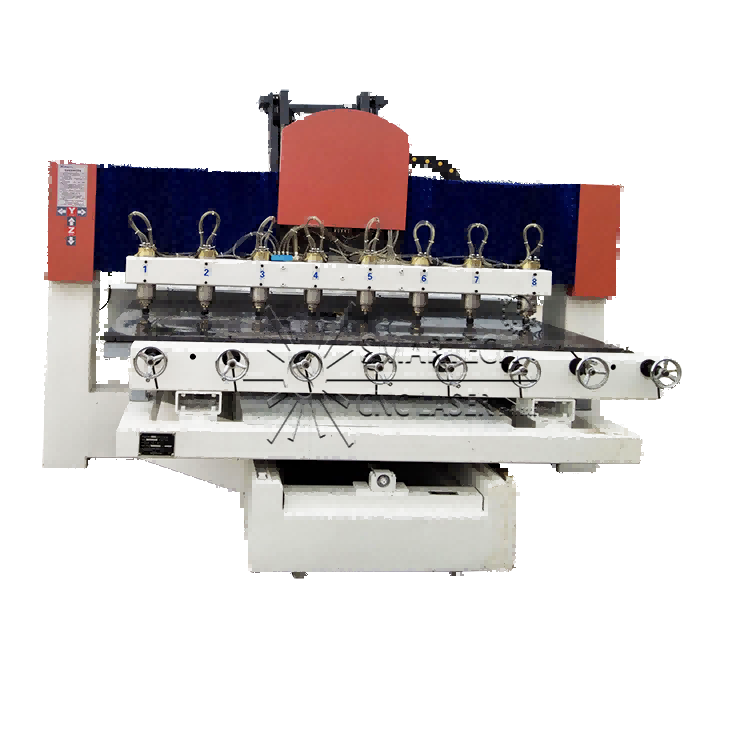

 Multi spindles8 spindles, 8 rotary axis, higher working efficiency.

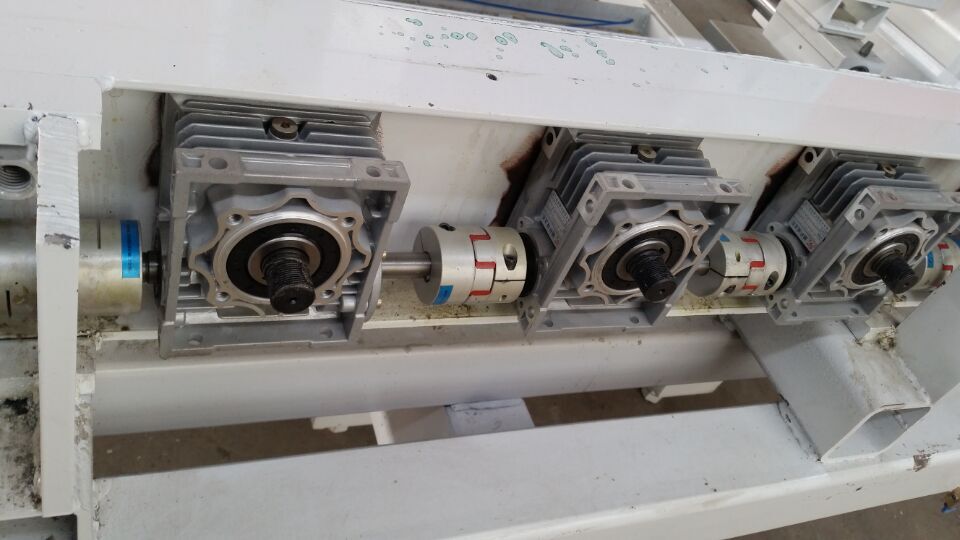

 Multi rotary devices big chuck. Could be made according to your requirements.

 Kits in tool box                                                 collet                                                              tools

  Z axis                                                               Hard Limit                                                          Japan OMRON limit

 Servo Motor                                Dust Collector(optional single bag- double bag)            water pump

Successful Project

Features:

 1.SMARTECH 4 axis CNC router adopted HIWIN25 linear square rails, XYZ axis adopts import ball screw, move smoothly, high accuracy carving. high-speed low noise. 2.SMARTECH 4 axis CNC router has widened machine head part assembly additional body-weight.and ancillary shorting, make the whole machine move more smoothly. 3.SMARTECH 4 axis CNC router with computer connection directly, support break, continue carving after cut off electric. 4.SMARTECH 4 axis CNC router has multi functions, it can make the machine work on flat or cylinders.
