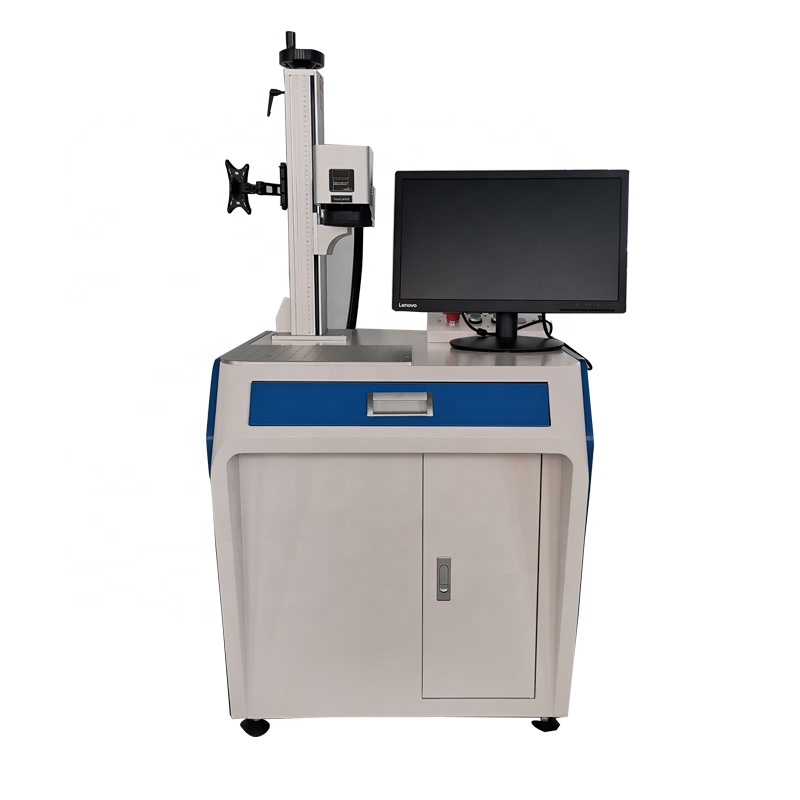

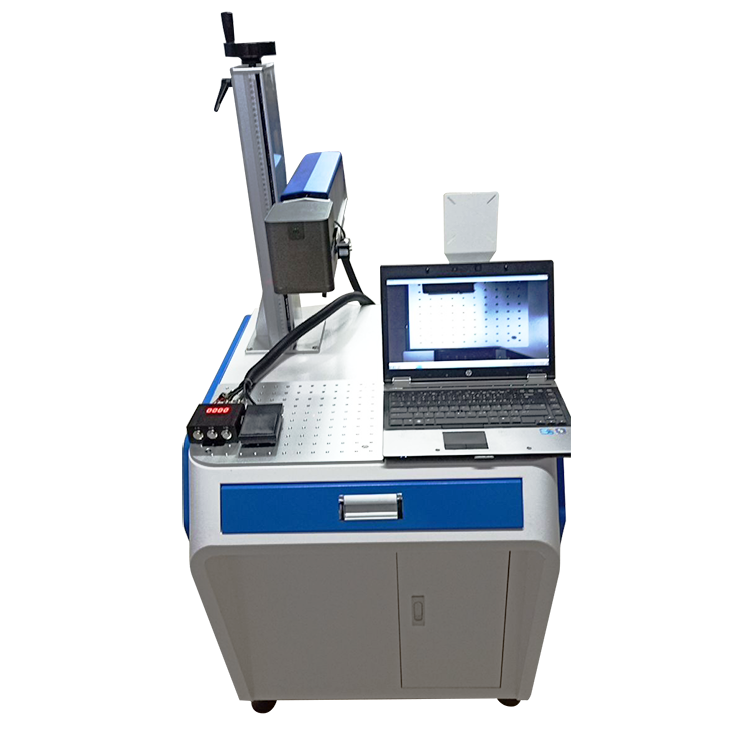

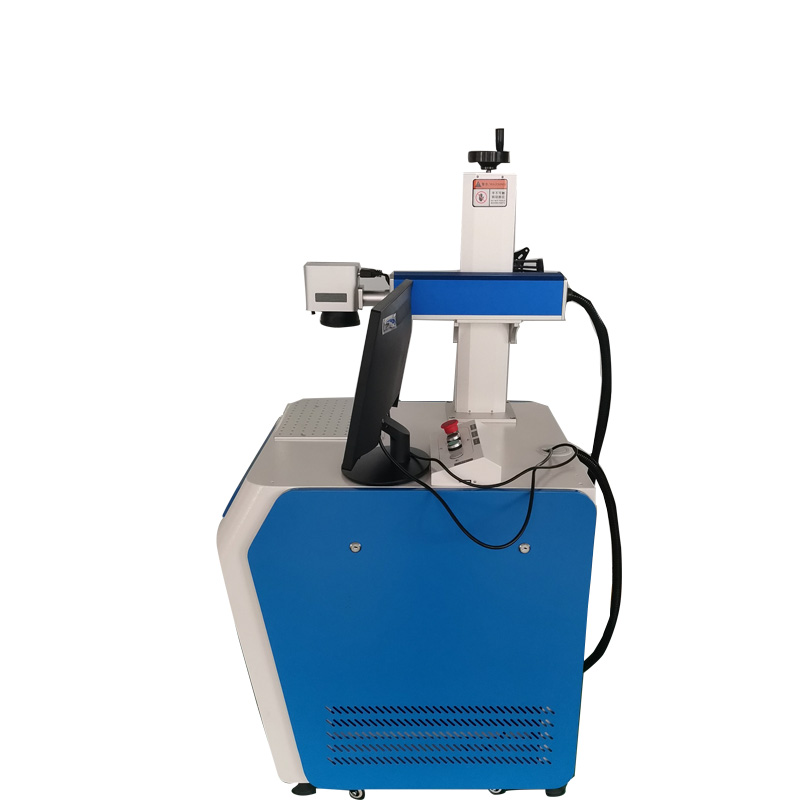

SJP Series Laser Engraving Marking Machine For Pens

pens laser marking have two types,one is laser marking machine with special pens rotating table;another is laser marking machine with rotary device. If you need one machine especially for pens marking. the most effective choice is laser marking machine with rotating table
Availability:
  • SJP-10/SJP-20/SJP-30

  • SMARTECH

  • AS YOUR PREFERENCE

Quick Details

After-sales Service Provided:Online support, Free spare parts, Video technical support, Engineers available to service machinery overseas

Laser Type:Fiber Laser

Working Accuracy:0.001mm

Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Application:Laser Marking

Applicable Industries:Building Material Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company

Condition:New

CNC or Not:Yes

Cooling Mode:Air Cooling

Control Software:EZCAD

Place of Origin:Jinan, China

Brand Name:SMARTECH

Certification:CE, FDA

Warranty:3 Years, 3 Years

Laser Source Brand:RAYCUS

Product name:laser marking machine for pen

Name:fiber laser marking machine

Marking Speed:7000mm/second

Laser wavelength:10.64um

Marking Depth:0-0.5mm

Working Area:200*200mm optional

Working Voltage:AC220V 50 Hz

Applicable Material:Metal Plastic

The SJP series fiber laser marking machine adopts a top-notch fiber laser and an excellent scan system with high-speed vibrating mirrors, leading to stable output power, high-quality laser beam, fast marking speed and extraordinary overall performance. This fiber laser marking machine is delicate in appearance and handy to operate, with low cost of depreciation, free from any maintenance and without any consumable or malfunction in a long-time continuous running, perfectly satisfying clients in need of large-scale production.

30W Fiber Laser Marking Machine Price
metal laser marking machine for sale
High speed
Ultra-low consuming
CE and FDA

Product Description

 1. This industrial marking machine enjoys an excellent manual focusing system and user-friendly operating structure.
2. The imported fiber laser is protected with an isolated layer, effectively lifting its stability and extending its service life.
3. The laser beam is top-quality consistently both inside and outside, much more excellent than those of traditional laser markers.
4. The laser beam TEM00 mode of the fiber laser has a less than 200um focus spot diameter and 1/4 more expanded angle than YAG-DP, resulting in stunning performance in marking small and subtle labels.
5. The laser has a high rate of converting input electric power into output light power, leading to less than 500W electric consumption in total, accounting for 1/10 of the electric consumption of YAG laser.
6. The fiber laser marking machine with a small body, a long service life, and a maintenance-free guarantee is suitable for any working environment.
7. Its performance in fast-speed marking is remarkable, tripling or even quadrupling the marking speed of traditional ones.
8. It supports various marking software and formats like CorelDraw, AutoCAD, Photoshop, PLT, PCX, DXF, BMP, SHX, TTF, etc, and has auto-coding ability for serial number, batch number, date, bar code, etc.


Technical Parameters of Fiber Laser Marking Machine

Model

SJP-10/SJP-20/SJP-30

Laser power

10W/20W/30W

Laser type

Fiber laser

Machine   power

500W

Minimum line   width

0.015mm

Wave length

1064nm

Repetition   rate

20KHz-100KHz

Marking   speed

7000mm/s

Marking   scope

50*50/110*110/2 a00*200/300*300mm   (optional)

Operating   voltage

AC220±10%   50Hz / AC110±10% 60Hz

Cooling type

Air cooling   and protection system

Acceptable   graphic format

PLT, PCX,   DXF, BMP, AI

Operating   temperature range

15-35°C

Minimum   character

0.15mm

Repeat   position accuracy

±0.001mm

Net weight

42kgs

Standard Accessories
A semiconductor module
A set of high-speed vibrating mirrors
A set of marking control system
An industrial computer
A marking work table
A red laser pointer
A pedal switch
A set of marking software
A user manual.

Packaging & Shipping

Terms & Condition of Purchase: After we receive PO from customer with stamp, we give PI for customer.

Lead Time: After receiving customer's deposit, within 5 - 7 days.

Wooden Box: There is total one wooden box.
SJP-50

 Machine   Dimension

32" x 30" x 56" (800mm x 750mm x 1420mm)

 Machine Weight

264lb (120kg)

 Package

Wooden box

 Packing Size

35‘’x35‘’x62‘’   (900mm x 900mm x 1570mm)

 Gross Weight

440lb (200kg)
