New Arrival SMARTECH Best Price CNC Oscillating Knife Cutting Machine For Corrugated Paper Packaging Box Making

Availability:



Inquire Add to Basket

Model:
Garment Shops, Building Material Shops
Brand:
Smartech
Code:
Building Material Shops
Size:
3600*2280*1600
Power:
220/380V
Machine Color:
red

Product Description

Product Overview

CNC Oscillating Knife Machine For Leather/ bags/garment/fabric/pvc/carpet/cloth/kt board

 Applicable materialsLeather, cardboard, paper honeycomb, corrugated cardboard, glass fiber, carbon fiber, sticker, film, KT-board, foam board, acrylic board, rubber, cloth, fabric, gasket material, garment cloth, footwear materials, bags materials, non-woven fabrics, carpets materials, car mat materials, sponge, PU, EVA, XPE, PVC, PP,PE, PTFE, ETFE and composites. AdvantagesSMARTECH CNC oscillating knife leather cutting machine is designed for production with small quantities and can save  Features: Automatic CNC Oscillating Knife Cutting Fabric Leather PVC Cutter Machines for sale 1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance; 2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life; 3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc. 4. SMARTECH digital cutting machine was designed easy to install, set-up and operate; 5. Being equipped with infrared sensor and emergency stop devices, guarantees safety; 6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;

FEATURES AT A GLANCE

  (1)Cutting function of oscillation tool It can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat ) (2)Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line. (3)Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line. (4)Location: Location with laser. (5)Drawing function It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc. (6)Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.

 Right elevation

 Left elevation

 Front elevation

PRODUCT SPECIFICATIONS

 Quotation for CNC knife cutting machine Model SO-1625 (1600mm*2500mm) Optional part Auto feeding system Knife tools include Oscillating knife；V-cut；Increasing tool；CCD camera;Auto feeding system Working table Fixed working table Working area 1300*2500mm Material fixed way Vacuum suction system Control system LED Touching screen Cutting speed 0-1,500mm/s(according to different cutting materials) Cutting thickness ≤25mm Cutting accuracy ≤0.1mm Drive system Yaskawa servo motor and driver Transmission system PMI linear square rail and Megaoyne belt Instruction system HP-GL compatible format Vacuum pump power 9.0KW Graphic format supported PLT, DXF, AI, etc. Compatible CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. Safety device Infrared sensors and emergency stop devices double protection. Connection Network port Working voltage AC 220V±10%, 50Hz/60Hz Package Wooden case Machine size 3250*2150*1350MM/3050×2100×1350mm(SO1625/SO1325) Packing Size 3600*2280*1600/3200×2180×1600mm (SO1625/SO1325) Net weight 1500/1300KGS (SO1625/SO1325) Gross weight 1700/1500KGS(SO1625/SO1325)

PRODUCT CONFIGURATION

 anti-collision sensor

 beveling knife

 helical rack pinion,rails

 oscillating knife, ccd camera,bevelling knife

 oscillating knife， beveling knife，ccd camera

 oscillating knife， ccd camera head

 oscillating knife， beveling knife，ccd camera

 towing chains,oil lubricating,quick stop button

 9kw vacuum pump

 anti collision system

 Control panel

 Transfer equipment for air compressor

  and vacuum pumpAviation plug

  yaskawa drivers for machine

 cutting samples

 emergency stop

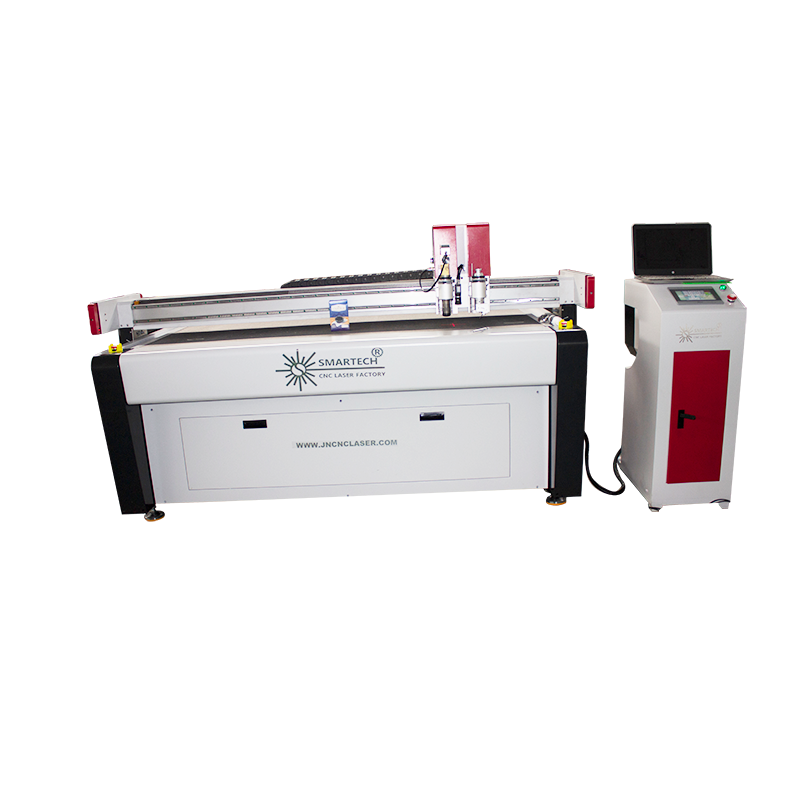

 front view

 Japan omron limit switch

 PMI rails from taiwan

 yaskawa motor

 CCD Camera

 CNC Oscillating knife/Creasing head

 Helical guide rails

SALES AND SERVICE NETWORK

Successful Project

machine recommendation

FAQ  -Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
