SMART-200/300W
SMARTECH

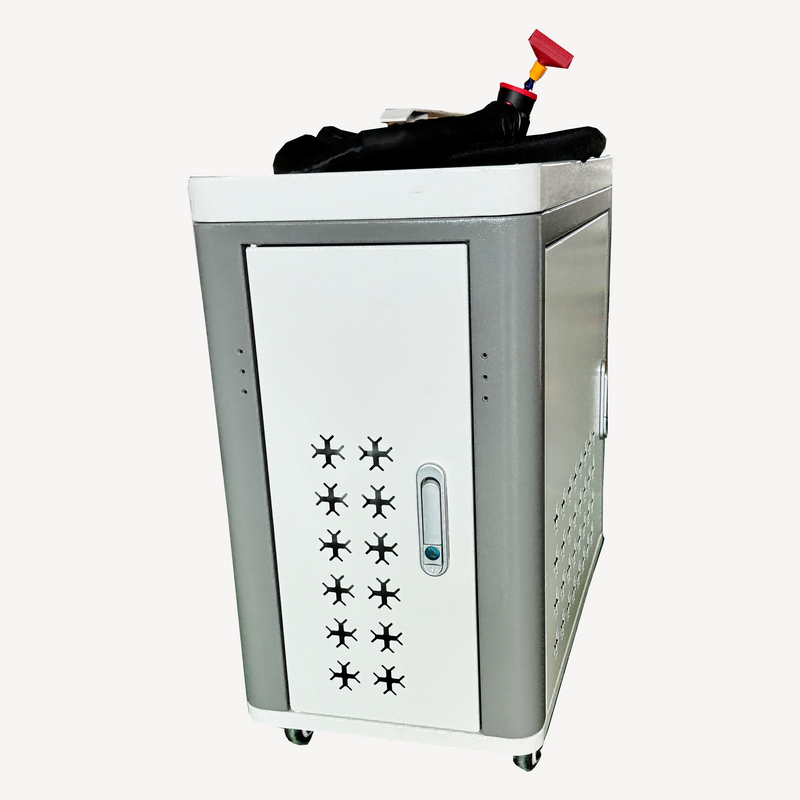

200W Pulsed Laser Cleaning Machine
Type of laser operation: Pulsed
• Power:200W/300W
• Laser Source:jpt
• Cooling method: air cooled
• Beam wavelength: 1064 +5 nm
• Laser switch-off time: 2 μs
PULSE CHARACTERISTICS
• Adjustable pulse duration: Yes
• Optical fiber length: 5m
• Control system: Touching PLC
• Electrical parts: Schneider brands.
• Protective glasses
• Spare protective lens
• Leakage protector to protect operator's safety
• Working voltage:220/380V
• Warranty: 5 years
HEAD • Handheld • Mini And Portable • New Generation
1) Non-contact cleaning without damaging the part matrix.
2) Precise cleaning, which can realize selective cleaning of precise position and precise size.
3) No need for any chemical cleaning fluid, no consumables, safe and environmentally friendly.
4) The operation is simple, just turn on the power, and it can be hand-held or cooperate with a robot to realize automatic cleaning.
5) The cleaning efficiency is very high, saving time.
6) The laser cleaning system is stable and requires almost no maintenance.
It meets the cleaning needs of most small parts in enterprise production workshops, such as mold cleaning, rust and paint removal of structural parts, and oxidation layer removal of aluminum alloys, etc. The cleanliness can reach Sa2.5-3.0, which can effectively remove residual glue, oil stains, coatings and paint rust on the metal surface. The damage to the substrate is less than 3nm, without changing the physical and chemical properties of the substrate.
PRODUCT SPECIFICATIONS
| Technical Parameter | 300W | 200W |
| Laser Type | nanosecond pulse fiber | nanosecond pulse fiber |
| Laser power life span | 100000 Hours | 100000 Hours |
| Power range (%) | 1-4000(adjustment ) | 1-3000(adjustment ) |
| Repeat frequency (KHz) | 20-300(adjustment) | 20-200(adjustment) |
| Cooling mode | Air | Air |
| Laser switch-off time | 2 μs | 2 μs |
| Laser wavelength | ±1064NM+5 | ±1064NM+5 |
| Max output power (W) | 300 | 200 |
| Maximum single pulse energy(MJ) | 5 | 5 |
| Optical fiber length | 5M/10M | 5M/10M |
| Laser safety classification | IV | IV |
| Weight | 79 Kg | 69 KG |
| Size | 97×107×77 cm | 97×107×77 cm |
| Package size | 1088×110×80 cm | 1088×110×80 cm |
| Voltage | 220/380V | 220/380V |
DHCP300S
Laser cleaning is a green and environmentally friendly surface treatment technology that can widely replace traditional cleaning and texturing processes such as chemical, grinding, and sandblasting. It has the advantages of non-contact, low thermal effect, small damage, and applicability to various materials.
Very Easy to operate Touching Control panel ·8 different modes can be switched and selected quickly to facilitate production and debugging ·Multilangual languages for options-Russian,English,Spanish,Turkish,Arabic etc
