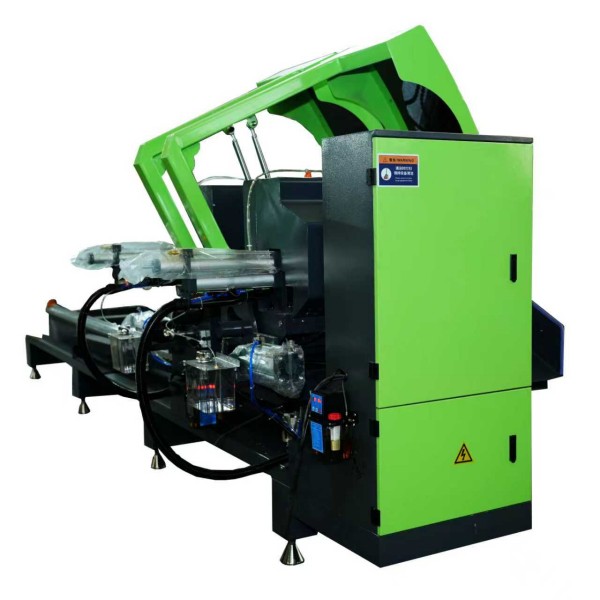

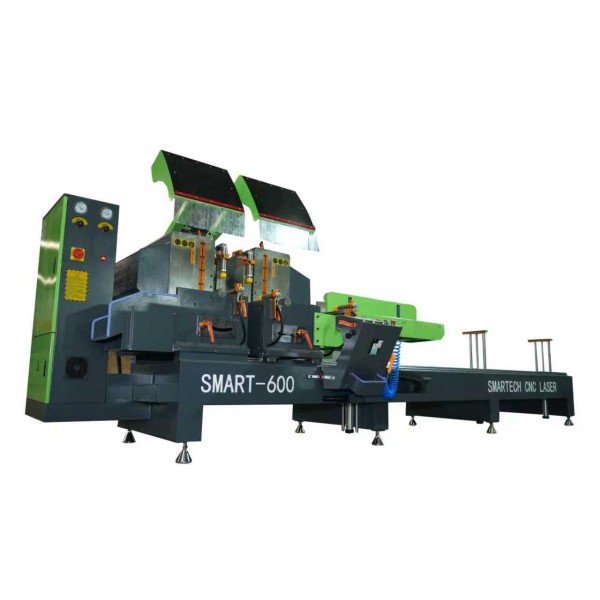

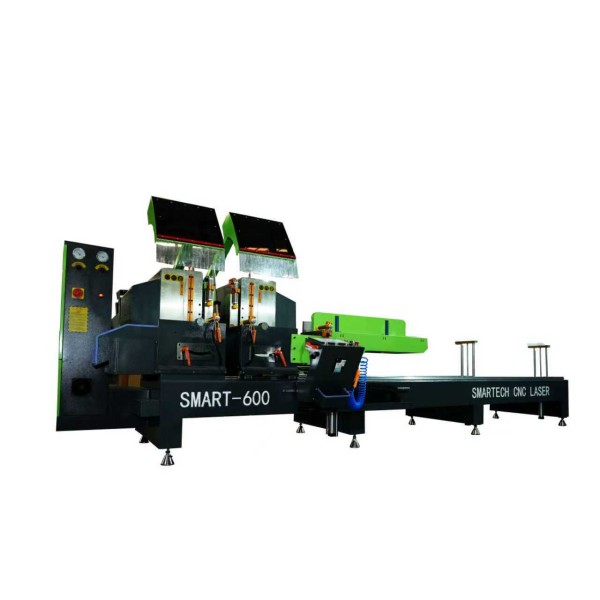

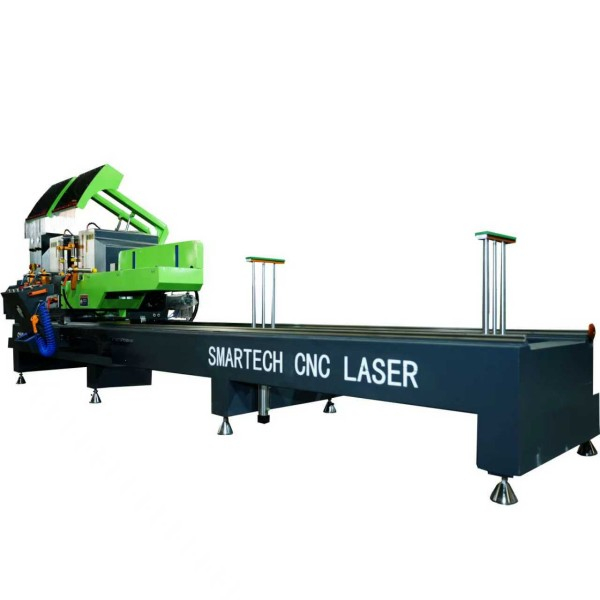

Aluminum Door & Window Frames CNC Cutting Saw

Availability:
Inquire Add to Basket

  • SMARTECH

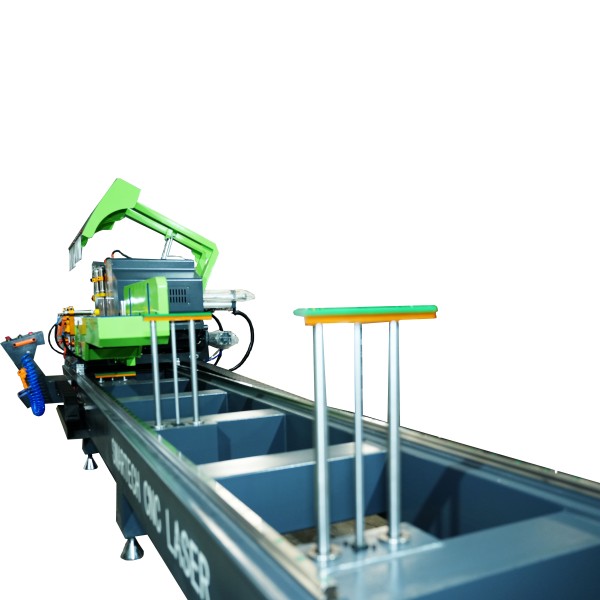

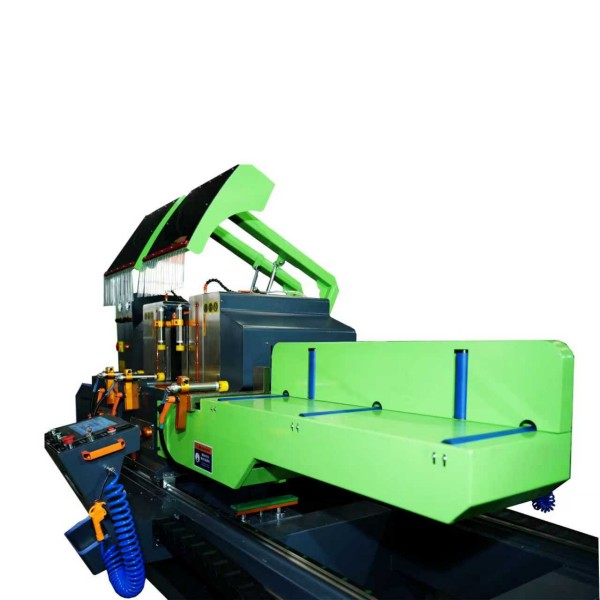

Aluminum Door & Window Frames CNC Cutting Saw

*CNC System:Rea sea-BK-GL070

*Motor driver: Servo

*Touch screen: kinco

*PLC :Leadshine

*Spindle:GTW

*Spindle speed:3000RPM

*Working pressure: 0.5-0.8MPa

*Sawing length:400*4200mm

*Saw blade:Dia. 600*Dia.

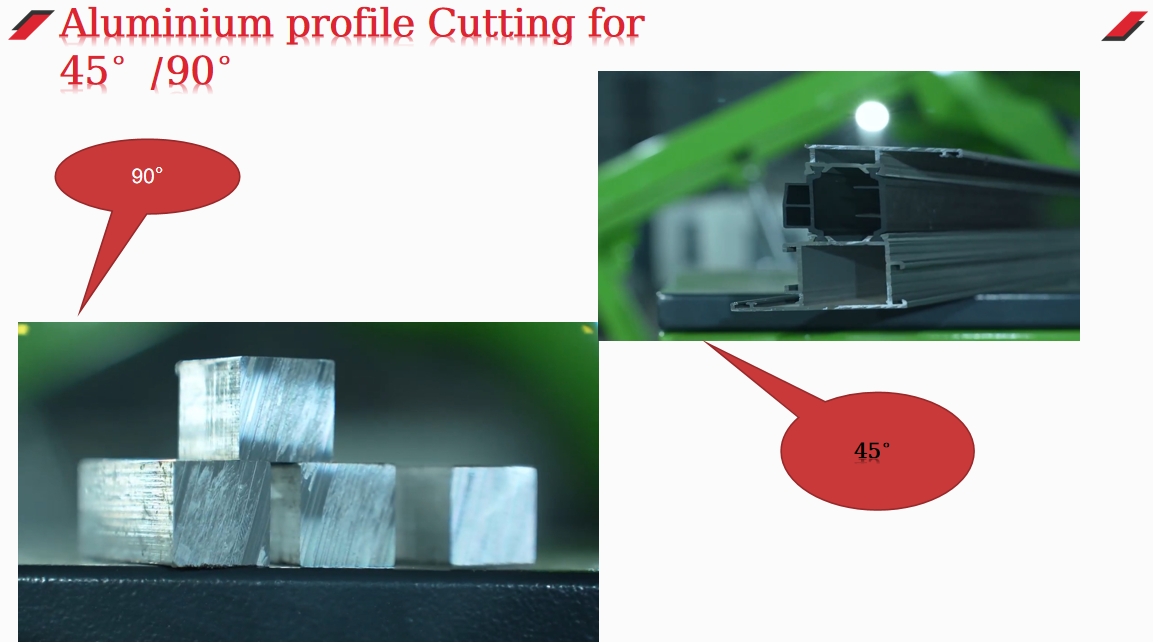

*Saw angle:45°/ 90°

*Electrical components:Delixi

*Machine size:5900*1600*1700 mm

1

Configuration
Brand
Technical Parameters
Specification
cnc system
Rea Sea-BK-GL070
Power supply
380V/50HZ
Motor
DongLing
Input power
6.0KW
Driver
Dong Ling
Working pressure
0.5-0.8Mpa

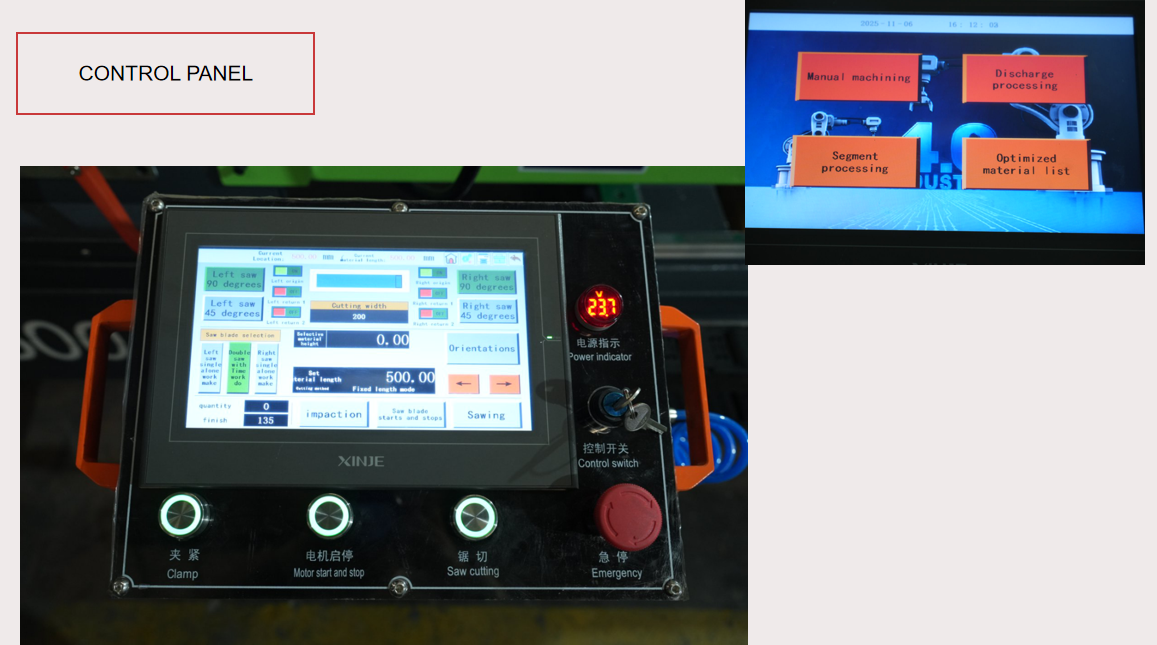

Touch screen
seven inch kinco
Saw blade specifications
Dia. 600mm
PLC
Leadshine
Saw length
400-4200mm
Spindle
GTW
Spindle speed
3000RPM
Electrical components
Delixi
Saw angle
45°/ 90°
Cylinder
Baidi

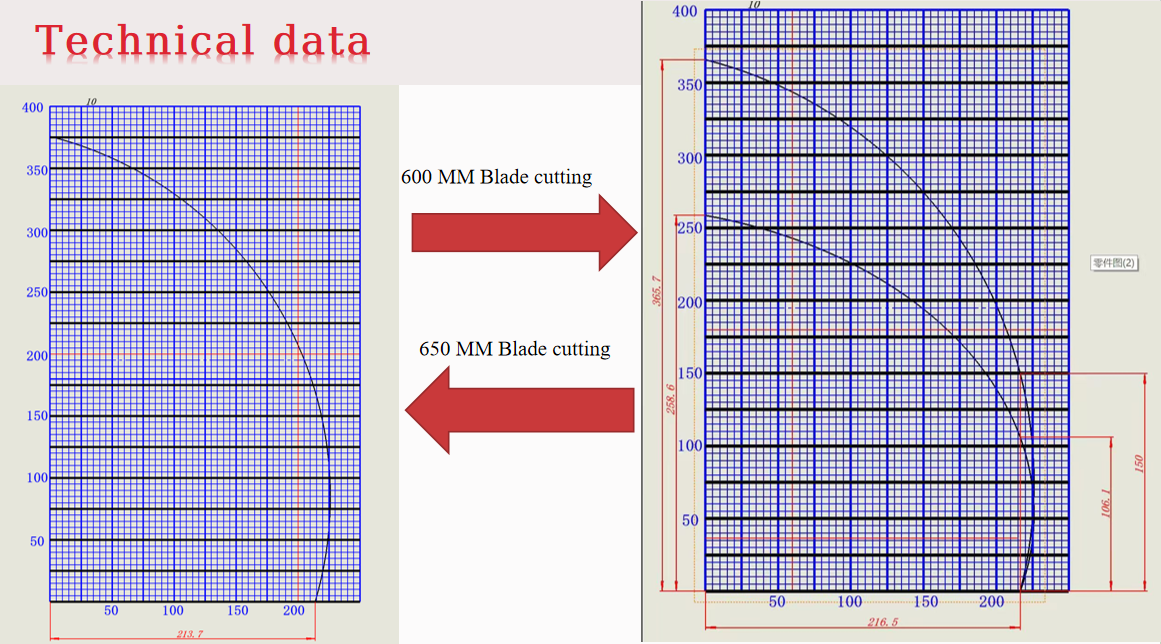

Sawing height
45°190mm/ 90°250mm
Dimensions
5900*1600*1700mm
Sawing width
175mm

1

2

3

4

5
