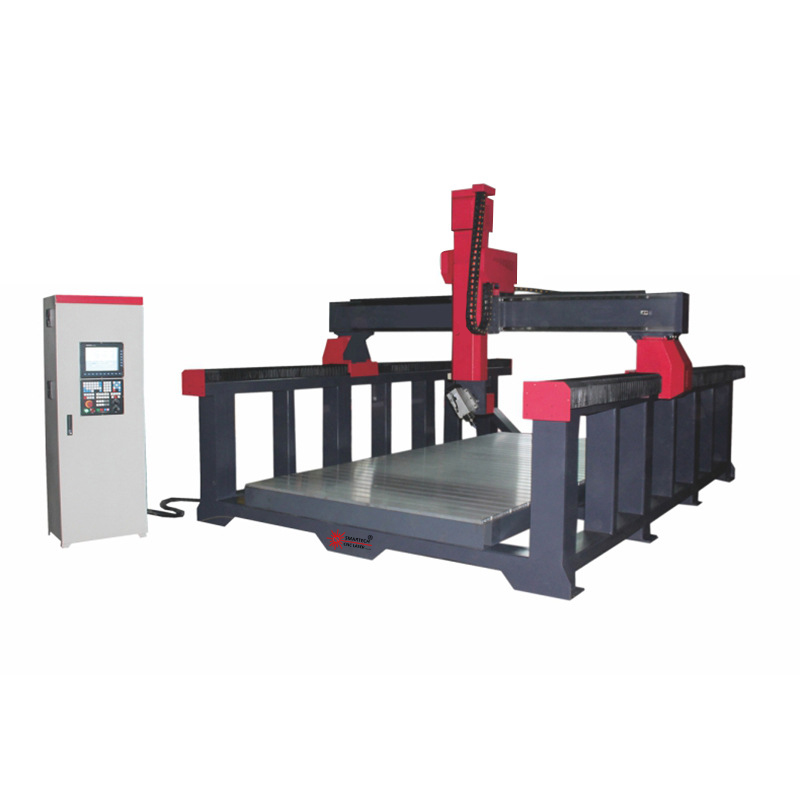

Best Price Smart 4 Axis Cnc Router

Availability:



Inquire Add to Basket

Model:
4 axis cnc router
Brand:
SMARTECH
Size:
1200x2400mm
Power:
10W/20W/30W/50W
Machine Color:
as your preference

Product Description

Product Overview

New arrival top ranking Smartech Best Price 4 axis cnc router

Machine Body: Steel Structure.Thickening of lathe bed,With high temperature heat treatment, high precisionTaiwan TBI ball screw transmission,ensuring the stability and high precision. ·30 HIWIN linear guide, imported from Taiwan. Double motors for Y axis, providing more power. ·Cast steel
structure and big thickness steel for main body----Strong type!HIWIN Rail for 3 axis   Helical tooth rack Original TBI Ball screw Speed:Idling 60-80m/min  Working speed:20m/min Artcam software & Extra plastic tool holders as a gift for free (sometimes they break - 4 pcs) Herion rack gear Command :G code


 Equipment features:
1.It adopts Europe OSAI or taiwin syntec control system, high accuracy and speed.
2.International top brand accessories,Japan Yaskawa servo motor, Italy HSD spindle and so on.
3.Z axis travel can be suitable for processing large-scale three dimensional surface.
4.Intelligent processing protection can avoid mechanical collision when design files are too large.
5.Diversification of control can individually control process speed, traveling speed and tools change speed so improve the quality of processed products and efficiency.
Applicable industries and materials:
Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone,Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper and so on.
Application Industries
Suitable for Furniture Industry, Mould Industry, Craft Industry, Stone processing factories, Furnace (fireplace) making, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries, etc.

FEATURES AT A GLANCE

  SW Series 1224 4 Axis CNC Router without rotary device 1200x2400mm table with 1200 mm Z axis - 220 volts / 3 phase / 60 hertz Vacuum and T-slot table HQD 9.0 ATC spindle 12,000 - 24,000 RPM Linear tool rack - 8 tools Yaskawa motor driver Delta or Fuling inverter Limit switches at both ends of the X and Y axis Helical rack and pinion Z sensor Coolant Attachment (non ferrous metals) Auto Lubrication System 2 (two) Tongyou 7.5kw air vacuum pumps Dust collector Compressor


PRODUCT SPECIFICATIONS

SW—1224  X,y, axis working travel 2400×1200mm Z axis working travel    950mm C axis working travel   ±213° A axis working travel   ±120° resolution   0.005mm reposition accuracy   0.05mm command   G code *.u00*.mmg*.plt table   Vacuum surroundings for software   OSAI system work mode   YASKAWA Servo motor working voltage   AC380V/50Hz spindle power   Italy HSD 7.5kw spindle spindle rotating speed   0-24000rpm/min Table size   1250*2500mm



PRODUCT CONFIGURATION

 delta inverter

 optional linear tools changer

 9kw air cooling spindle

 control box

 Servo System

 motor with reducer

Successful Project

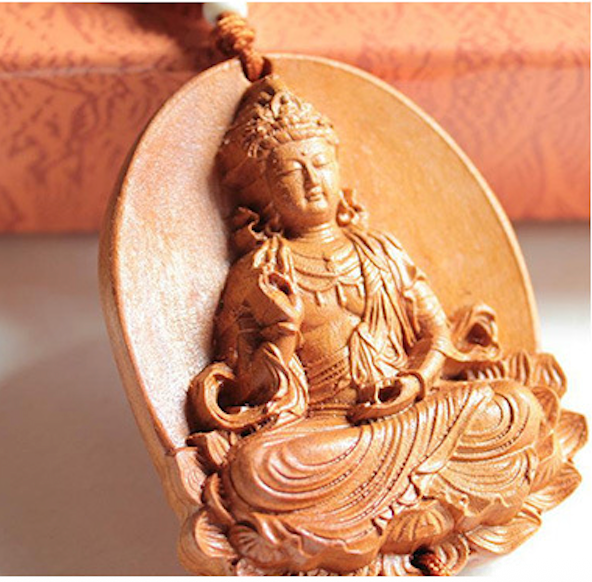

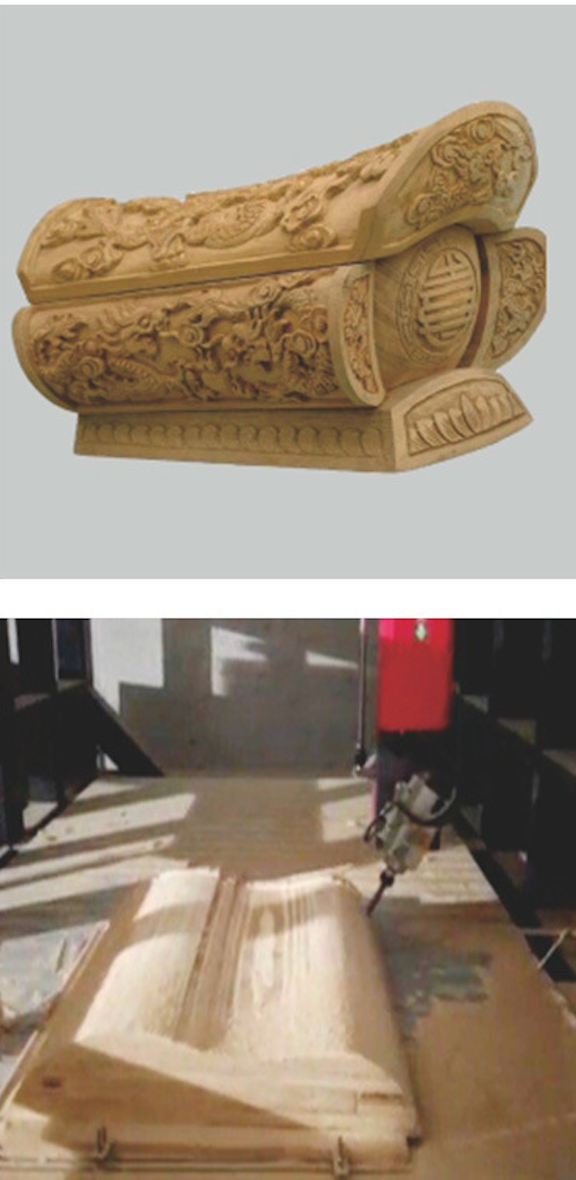

 Machine working samples

  Tools come with 5 pieces collets

 Project in marble engraving

SIMILAR PRODUCTS

FAQ -Q What is the payment terms?
A:Western Union,Cash,T/T
-Q How long is the delivery date?(After getting the deposit)
A:Delivery time is 5-7 working days for standard machine models,please confirm with us before payment.
-Q How about the shipping ways?
A:By sea or by air
-Q Is on site training is available ?
A: Yes, we could provide training in our factory or at your workshop after machine arrival.
-Q Where is your factory located? How can I visit there?
A:Jinan City, Shandong Province, China,about 2hours train from Beijing and Shanghai.
-Q Can I arrange sample for cutting test?
A:Yes, always welcome.
-Q How about your laser machine package?
A: Standard export wood package with free fumigation
-Q How about the quality guarantee period?
A:5 Years for whole machine

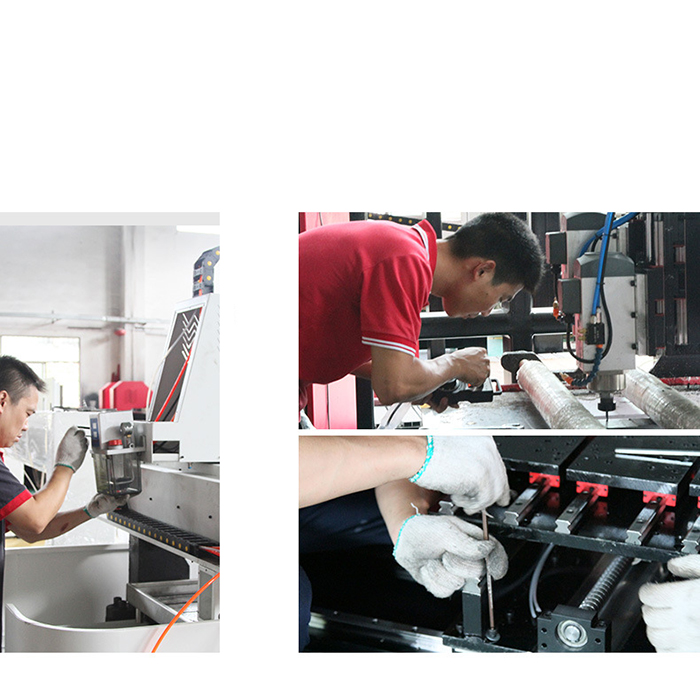

-Q How can you guarantee the production quality ?
A:We have 15years experience of QC team; strictly quality
control system in our production process.
 -Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
