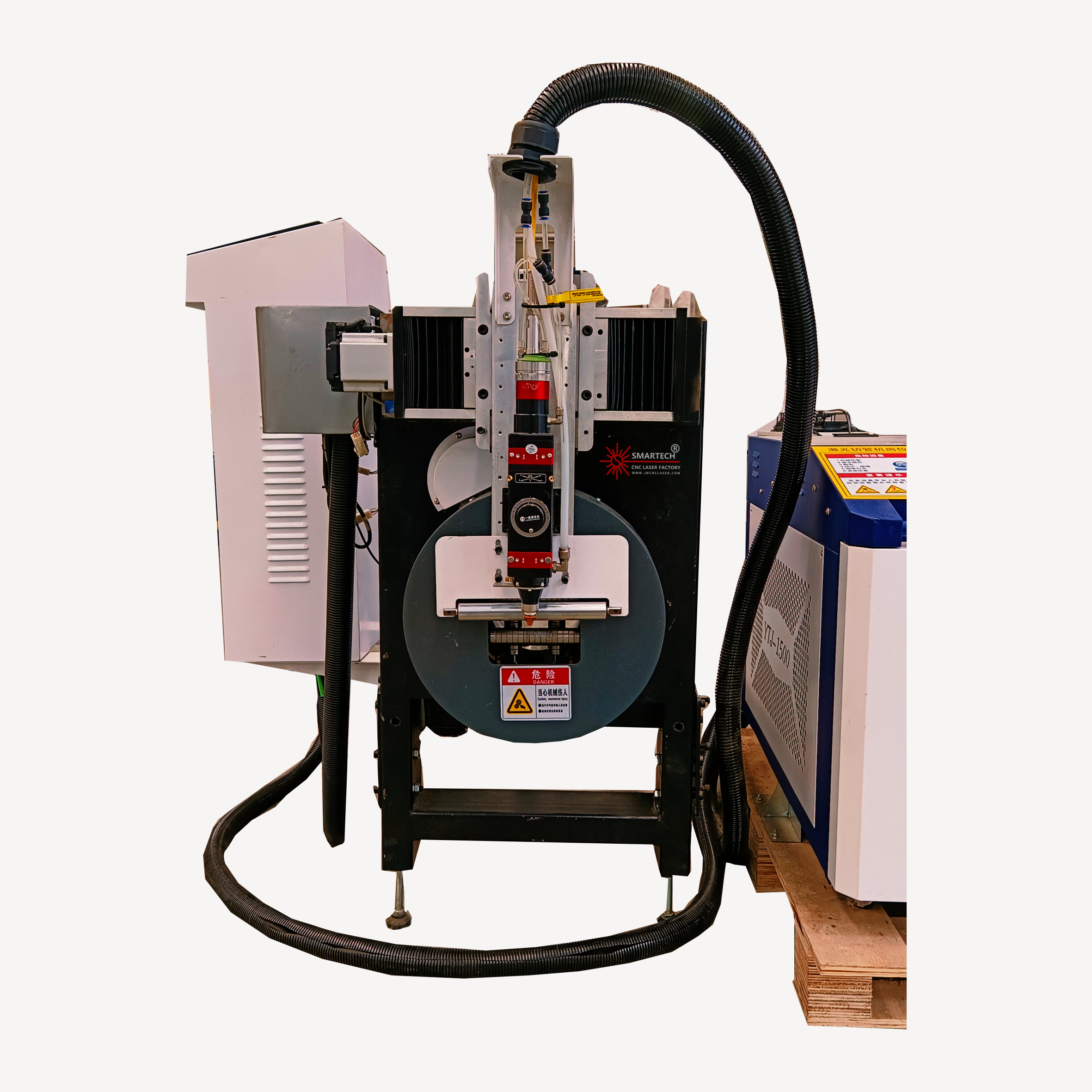

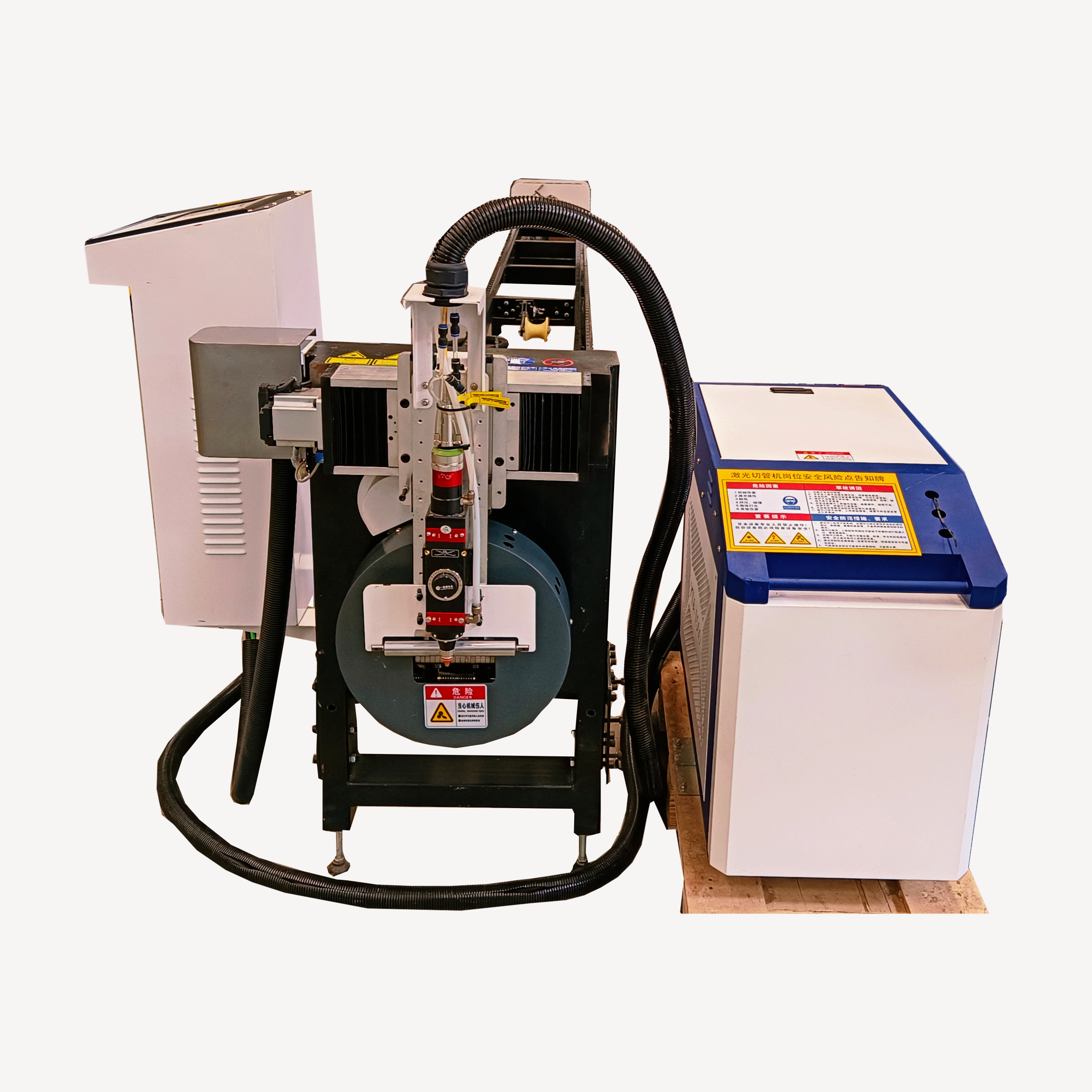

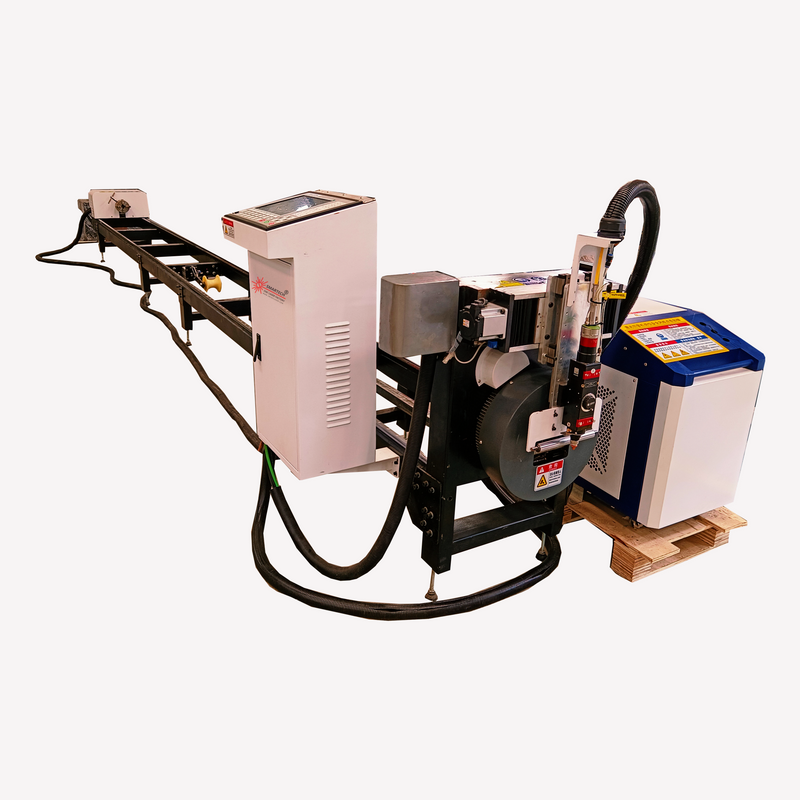

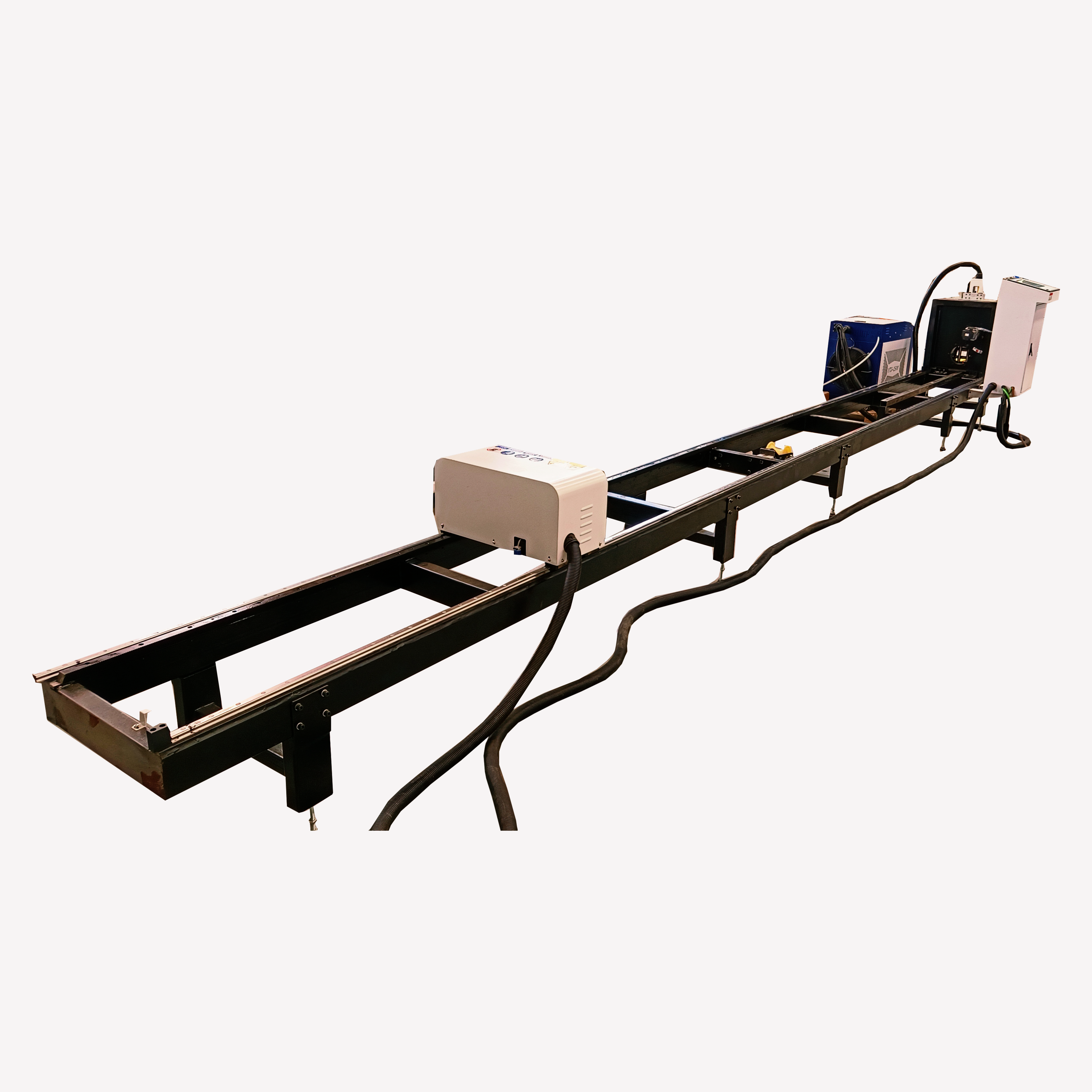

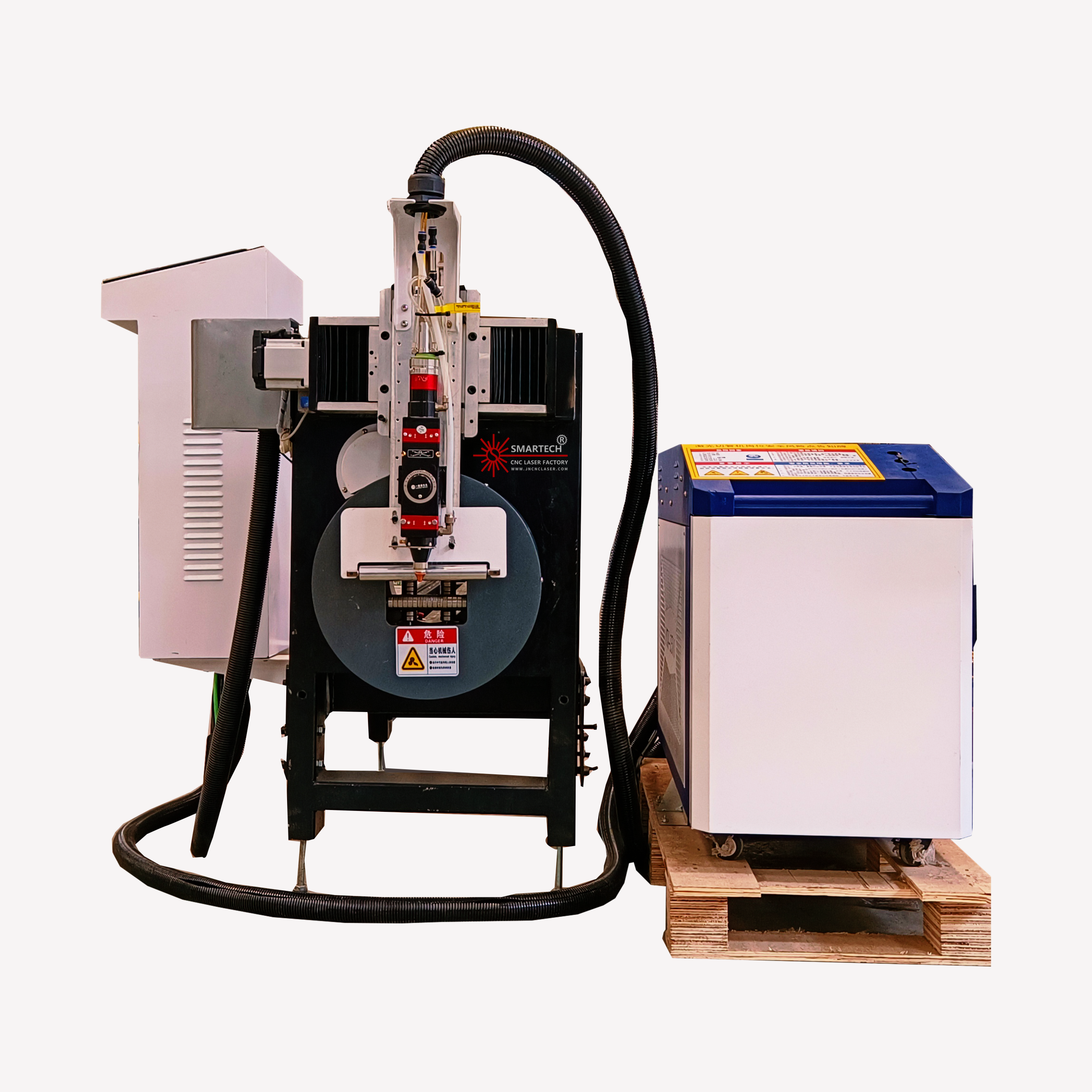

Fiber Laser Tube Cutting Machine High Precision CNC Tube Laser Cutter for Metal Pipes
Main Configurations:
Model: SFT1060
#Working diameter:8-100 mm
#Laser Source:- raycus - 1500W
#Controller- Fangling
#Head- Smart Laser
#High precision Chuck 8-100 mm
#Servo motor drivers
#Reducer--China made
#Rack- high prescion
#Rails - Taiwan
#Water chiller
#Annealing , anti vibration heavy bed.
#AVENTICS
| Model | SFT1060 |
| Working Area | Chuck size 8-1060 mm |
| Effective Cutting Length | 6000mm |
| Fiber Laser Source | RAYCUS |
| Laser Type | EC Smart |
| Laser Power | 1500W |
| Complete machine power | 52/55 KW |
| Chuck speed | 2-6 seconds/rev |
| Beam Quality M2 | < 0.373 |
| Positioning Accuracy | ± 0.01 mm/m |
| Re-positioning Accuracy | ± 0.01 mm/m |
| Max Movement Speed | 0-6000mm/min (depending on material and thickness) |
| Max Cutting Speed | 0-2000mm/min (depending on material and thickness) |
| Power Supply Voltage | 3-phase 380V/50Hz |
| Working Table | Rack working platform |
| Control System | Cypcut control system(Options:Fangling/Au3tech) |
| Reducer | Japan Shimpo (Options: Italy MOTOVARIO ) |
| Minimum Clamping Wall Thickness | Red dot indicator |
| Compatible Software | CorelDraw/AutoCAD/Photoshop/AI Support Graphic Format |
| Support Graphic Format | LXD/.DXF/.PLT/.AI/.Gerber/.DWG |
| Water Cooling System | Constant temperature water chiller |
| Machine Weight | 1300 kg |
| Auxiliary Gas | oxygen,nitrogen,air |
| Electrical components | Schneider made in France |
| Remark | Automatic exchange worktable, cover(option |
| Machine size | 8500*1000*1600mm |

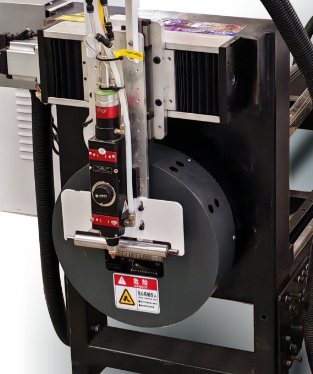

Cutting Head
1.Highly dustproof.
The dustproof grade is IP65, and the light path is completely enclosed, so the possibility of lens contamination is almost zero.
2.Motion picture zero focus.
The scale can be adjusted flexibly to unify the zero focus position and no longer worry about adjusting the process parameters.
3.Efficient water cooling.
The focusing lens, collimating lens and nozzle have built-in cooling function, which can solve the problem of cutting heating.
4.Optimized structural design.
Integrated body design, improved QBH optical fiber interface no longer stuck due to water leakage, rust and other reasons.
