UV Laser Marking Machine Professional Ultraviolet Laser Marker

Laser UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a litle heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorb ultraviole laser it is widely applied onindustrials; with very litle heat affecting area, it won't have heat effect,there is no buring problem,pollution-free,non-toxic,highmarking speed,high efficiency,the machine performance is stable,low power consumption.

Availability:



Inquire Add to Basket

Brand:
SMARTECH

Product Description

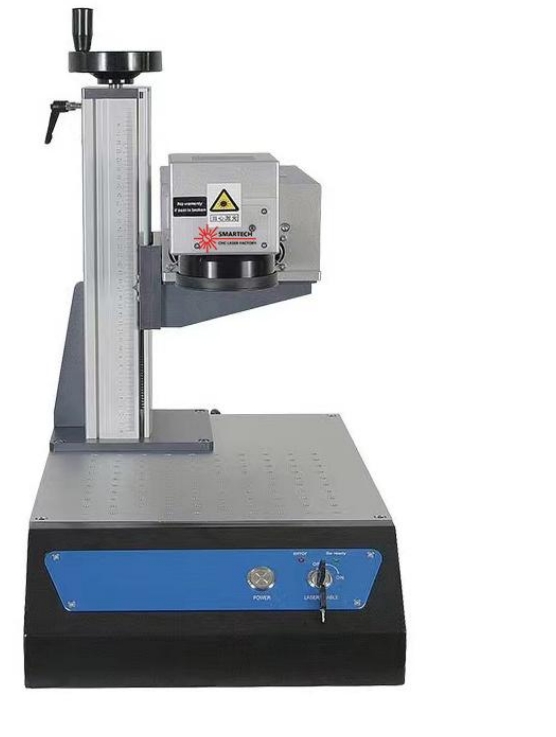

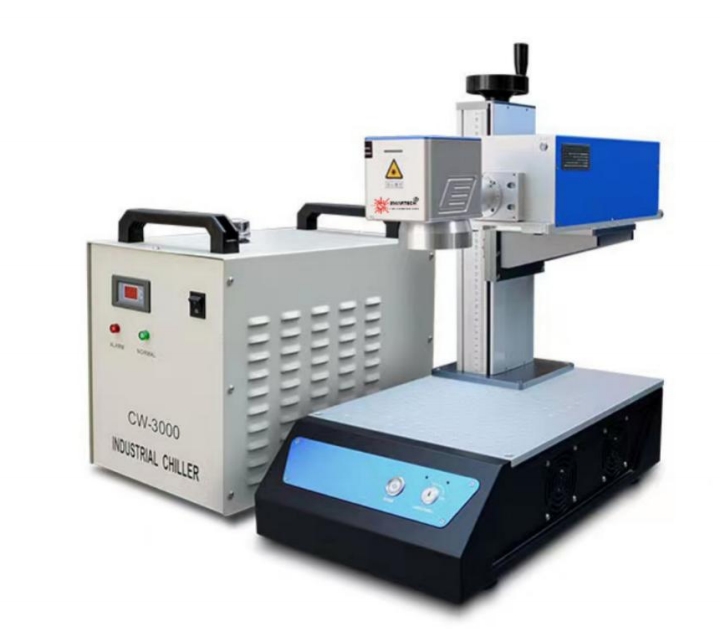

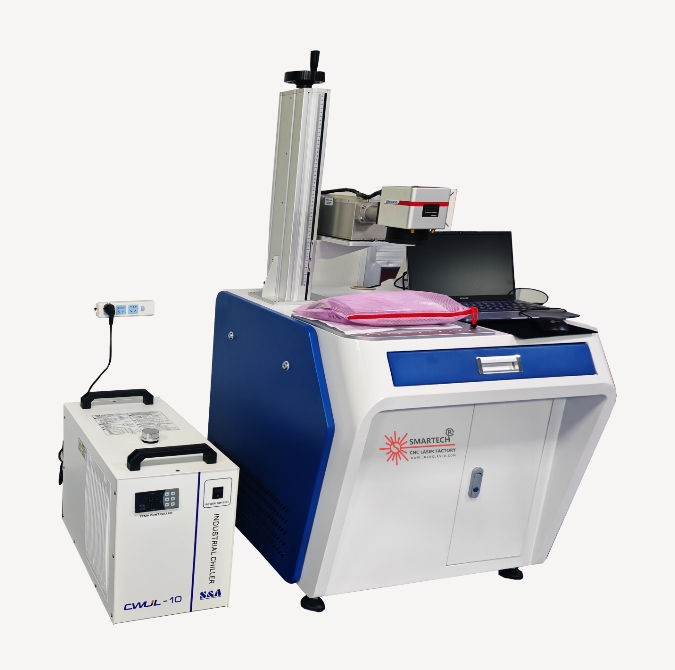

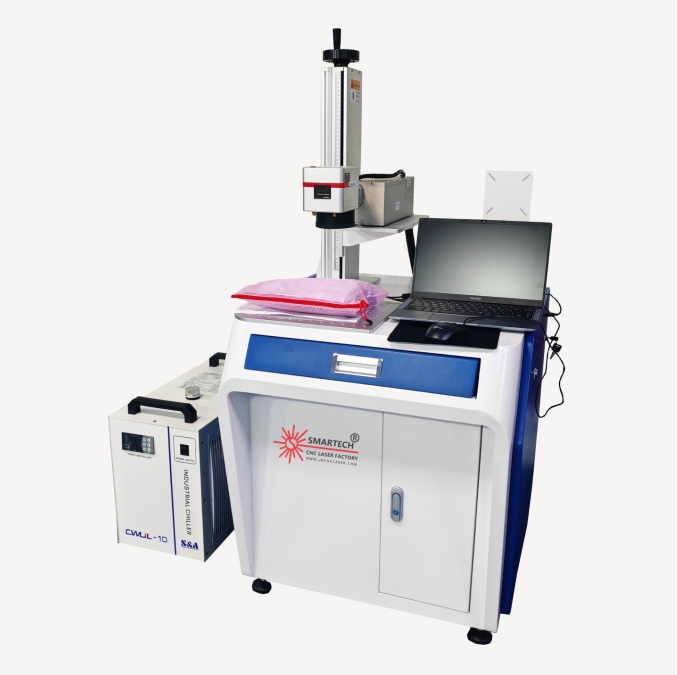

UV Laser Marking Machine

Laser UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a litle heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorb ultraviole laser it is widely applied onindustrials; with very litle heat affecting area, it won't have heat effect,there is no buring problem,pollution-free,non-toxic,highmarking speed,high efficiency,the machine performance is stable,low power consumption.

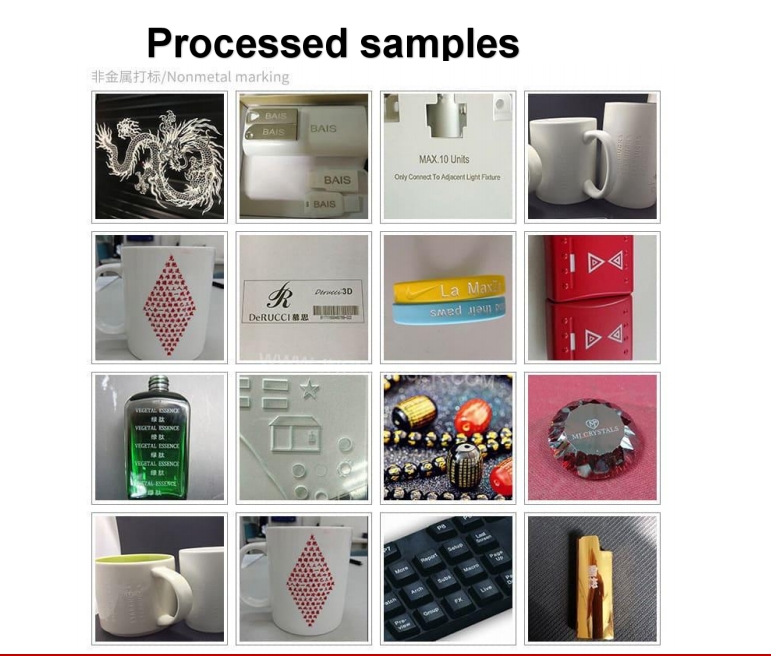

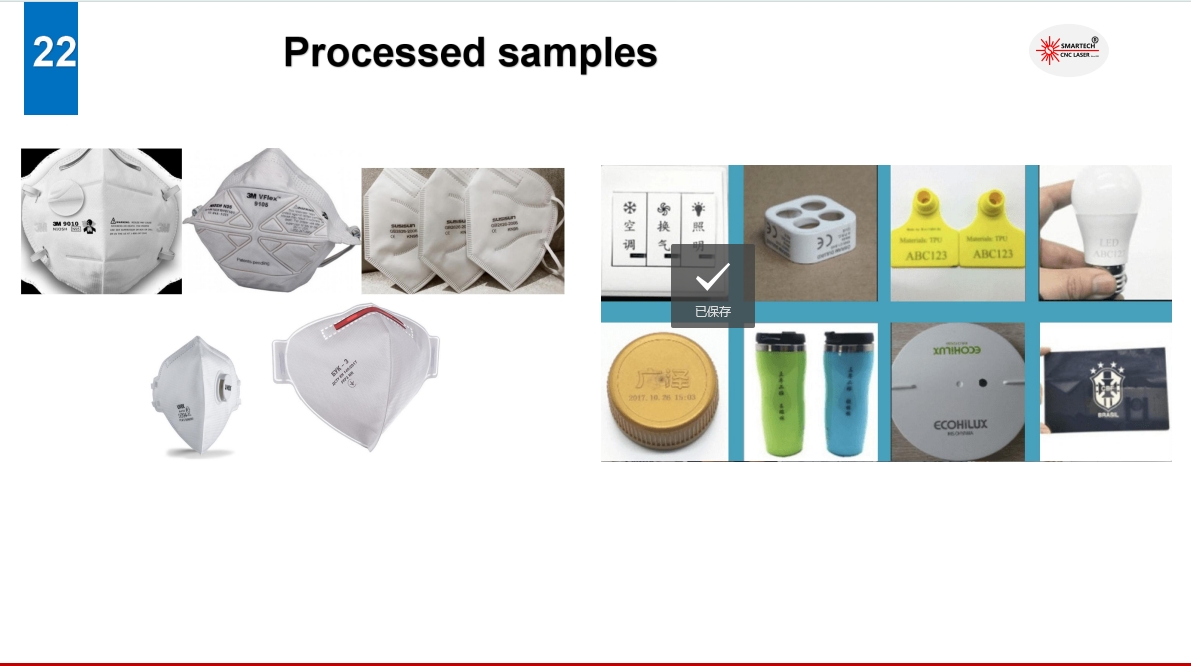

(1)lt is widely used in masks,and become fans for COVlD 2020Also for electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phonescreen,LCD screen) and communication products. (2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry productshardware machinery, tools, measuring tools, cutting tools, sanitary ware.

(3)Pharmaceutical, food, beverage and cosmetics industry.

(4) Glass,crystal, arts and crats of surface and internal thin film etching,ceramic cuting or engraving, clocks and watches and glasses.

(5) lt can be marked on polymer material, majoritly of the metal and non-metallic materials for surface processing and coating filmprocessing, pervious to light polymer materials, plastic. etc..

微信截图_20250623115202

Features

(1)Adopting doubling technique of intravenous frequency has greatly improve the stability oflaser.Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality asthe fundamental mode.

(2) The machine takes 355nm pumped purple light laser device as the light source. Narrower pulsewidth and smaller heat affection contribute to generate peak power. The higher the peak power is, thewider the adapting range of materials is. This implement perfect printing in some relatively hardmaterial. (3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effectso it's very suitable for precision marking. Higher pulse repetition frequency meets the need of quickmarking and high production efficiency.

(4)High efficiency of the photoelectric conversion and long service life.

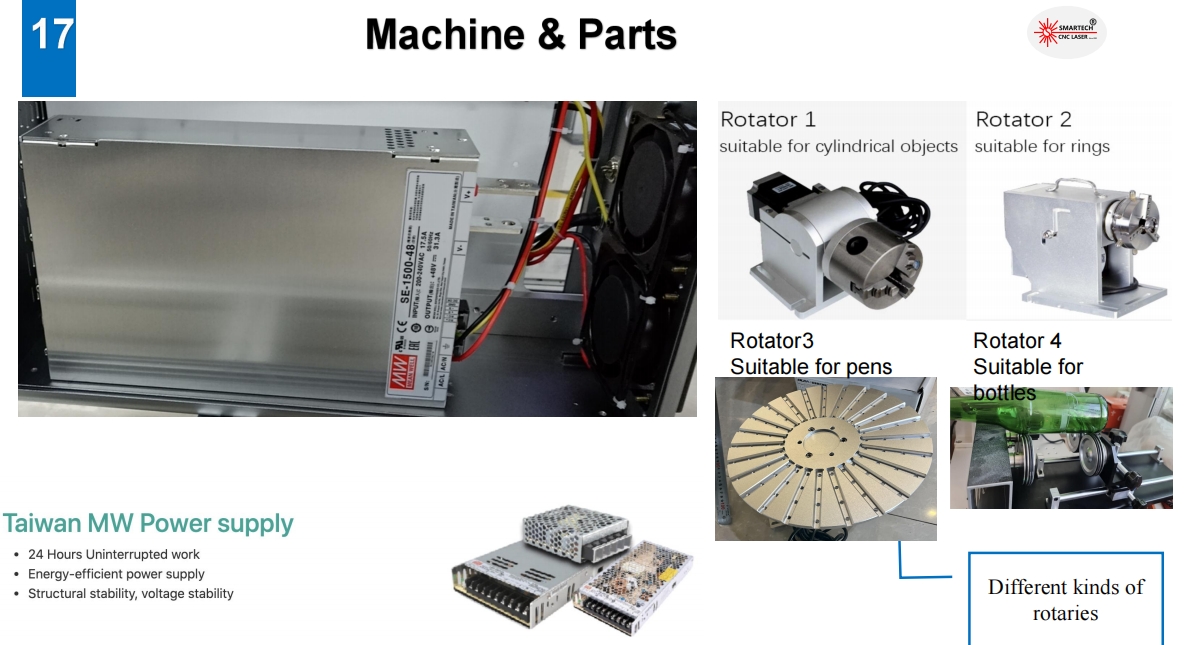

(5) Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency

(6)The mark is of environmental protection, comply with RoHS standard.

(7) lt can support logos and graphs desianed in DXF fomat from Auto-CAD, PLT, BME Al. JPG. etc

(8)lt can mark date, bar code and two-dimension code automatically.

(9) Superior performance, good stability, high conversion rate and low energy consumption.

(10)Faster and more efficient marking efficiency.

PRODUCT SPECIFICATIONS

Model	SJ-UV3	SJ-UV5	SJ-UV8	SJ-UV10
Max. power	3W	5W	8W	10W
Laser wavelength	355±1nm	355±1nm	355±1nm	355±1nm
Beam quality	m ²＜1.2	m ²＜1.2	m ²＜1.2	m ²＜1.2
Laser repetition frequency	10KHZ~50KHZ	10KHZ~50KHZ	10KHZ~50KHZ	10KHZ~50KHZ
Min tuning Q laser pulse	30ns	30ns	30ns	30ns
Beam divergence angle	＜0.3mrad	＜0.3mrad	＜0.3mrad	＜0.3mrad
Standard marking range	200*200mm	200*200mm	200*200mm	200*200mm
Optional engraving range	300300/150150mm	300300/150150mm	300300/150150mm	300300/150150mm
Engraving depth	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm
Engraving linear speed	12000mm/s	12000mm/s	12000mm/s	12000mm/s
Min. line width	0.01mm	0.01mm	0.01mm	0.01mm
Repetition accuracy	±0.003mm	±0.003mm	±0.003mm	±0.003mm
Marking format	Graphics, text, bar code, 2D codecode, date, shift number.batch number, serial number,document link (support the graphic import of any design software)	Graphics, text, bar code, 2D codecode, date, shift number.batch number, serial number,document link (support the graphic import of any design software)	Graphics, text, bar code, 2D codecode, date, shift number.batch number, serial number,document link (support the graphic import of any design software)	Graphics, text, bar code, 2D codecode, date, shift number.batch number, serial number,document link (support the graphic import of any design software)
Marking format

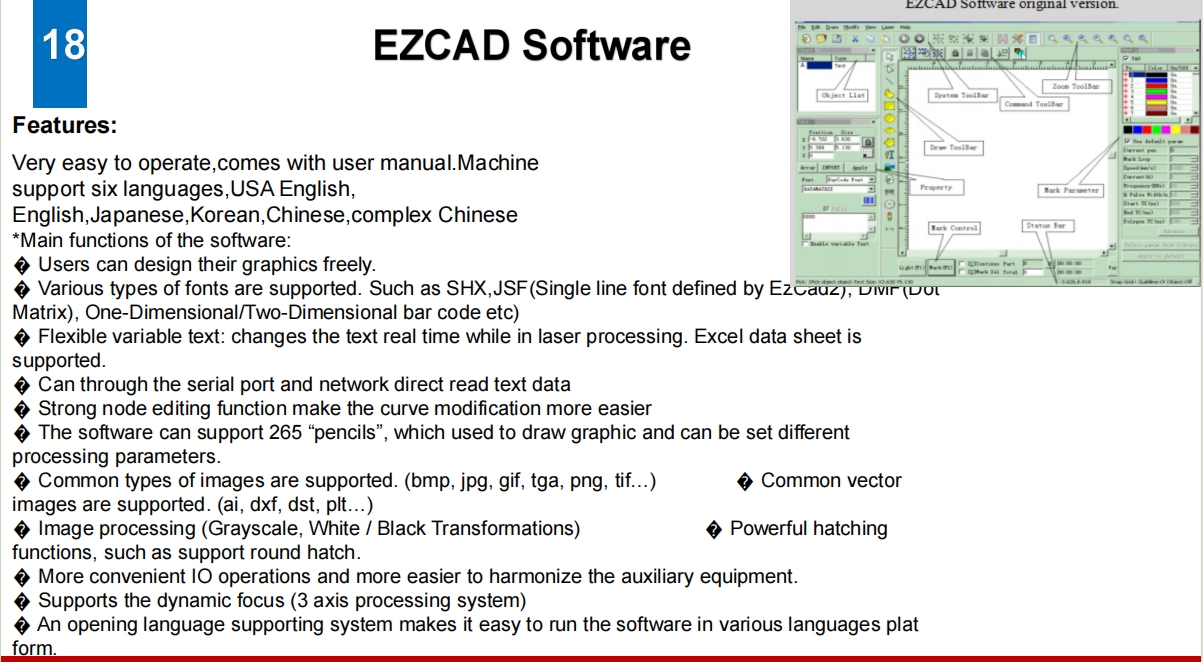

Operating system	WIN XP, Win7,support PLT, PCX, DXF, BMP and other file formats, adopt SHX, TTF
Power consumption	≤3KW	≤3KW	≤3KW	≤3KW
Electrical connection	220V±22V/50HZ/15A	220V±22V/50HZ/15A	220V±22V/50HZ/15A	220V±22V/50HZ/15A
Laser unit	UV	UV	UV	UV
Working temperature	15~30°C (no dust andrequired air-conditioner)	15~30°C (no dust andrequired air-conditioner)	15~30°C (no dust andrequired air-conditioner)	15~30°C (no dust andrequired air-conditioner)
Relative humidity	＜80%	＜80%	＜80%	＜80%

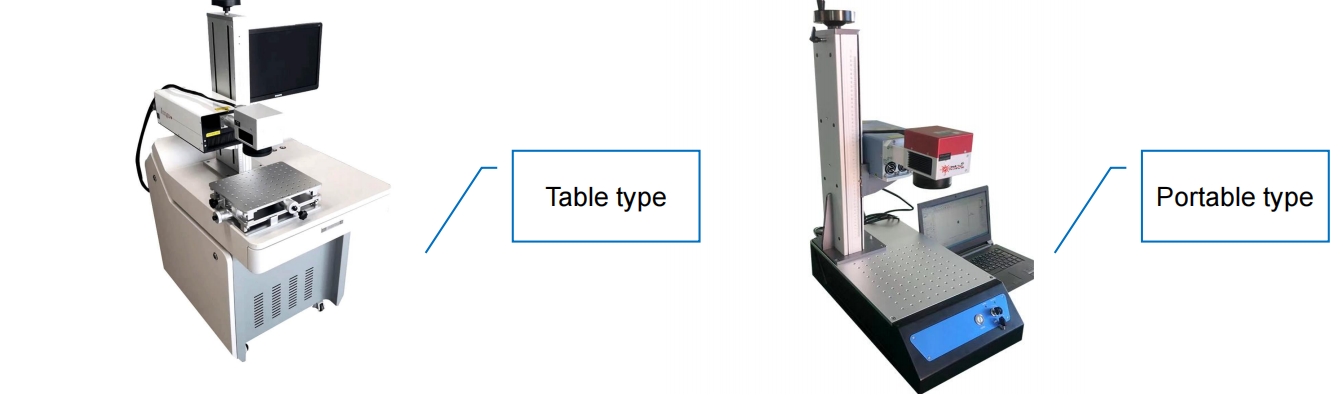

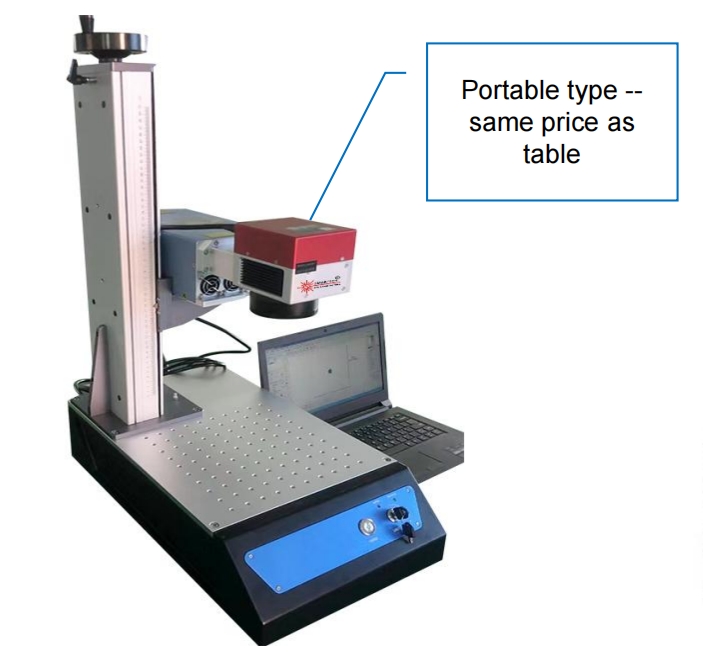

There are table type and portable type machine,which type should l choose ?

-First Difference between table type and portable type is the size.lf your workshop is big enough,youcould select the table type.but if you wanna an air shipping for international express shipping way, it isbetter to select the portable type to help save some shipping cost.

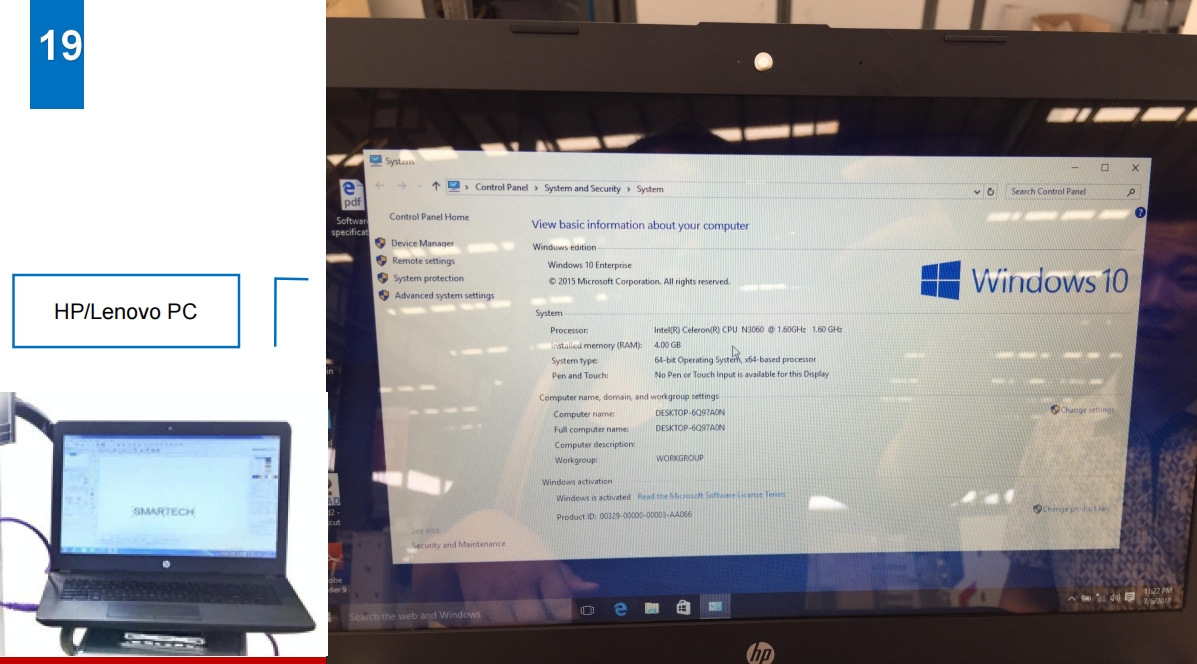

-Secondly,the table type comes with computer,while the portable type comes with laptop.Butconfiguration is the same 4GB Installed memory(RAM).

-Thirdly,outward appearance.Internal configurations are all the same except for the outwardappearance difference.

微信截图_20250623152417
