500W Pulsed Laser Cleaner Professional Tire Mold Cleaning Rust Removal System

Type of laser operation: Pulsed
• Power:500W
• Laser Source:Max
• Cooling method: water cooled
• Beam wavelength: 1064 +5 nm
• Laser switch-off time: 2 μs
PULSE CHARACTERISTICS
• Adjustable pulse duration: Yes
• Optical fiber length: 10m
• Control system: Touching PLC
• Electrical parts: Schneider brands.
• Protective glasses
• Spare protective lens

Availability:



Inquire Add to Basket

Brand:
SMARTECH

Product Description

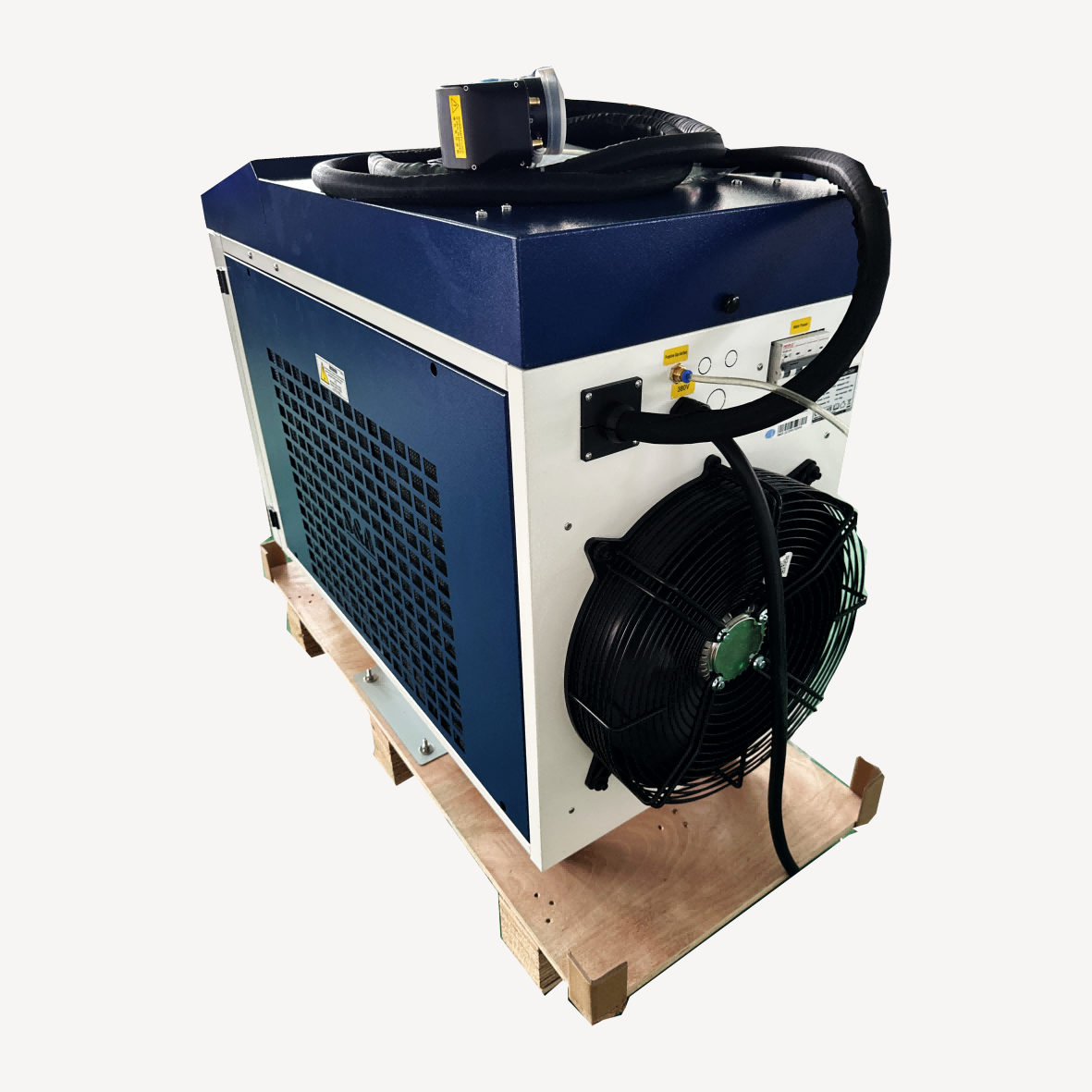

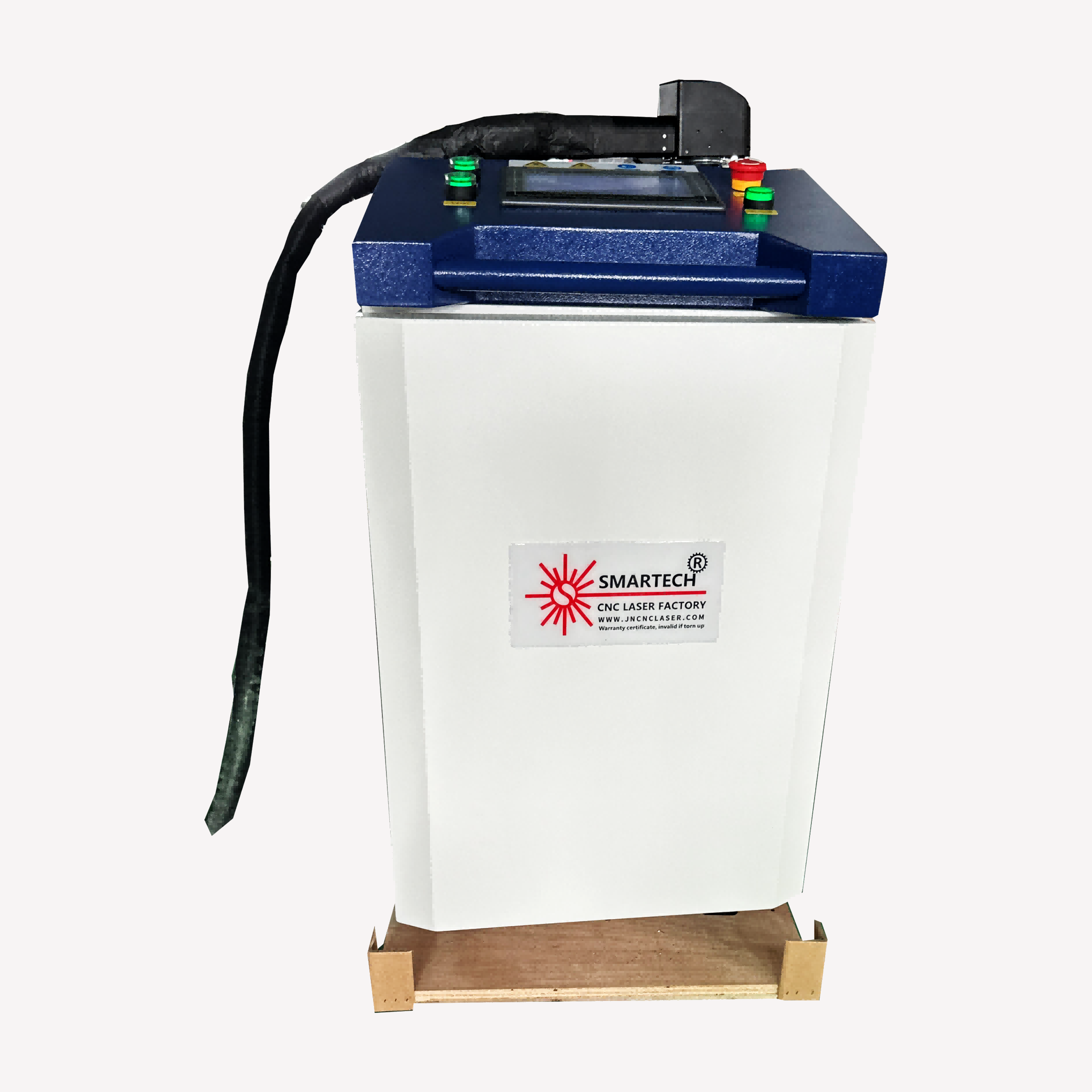

500w Pulse laser cleaning machine

Type of laser operation: Pulsed

• Power:500W

• Laser Source:Max

• Cooling method: water cooled

• Beam wavelength: 1064 +5 nm

• Laser switch-off time: 2 μs

PULSE CHARACTERISTICS

• Adjustable pulse duration: Yes

• Optical fiber length: 10m

• Control system: Touching PLC

• Electrical parts: Schneider brands.

• Protective glasses

• Spare protective lens

• Leakage protector to protect operator's safety

• Working voltage:220/380V

• Warranty: 5 years

HEAD

• Handheld

• Mini And Portable

• New Generation

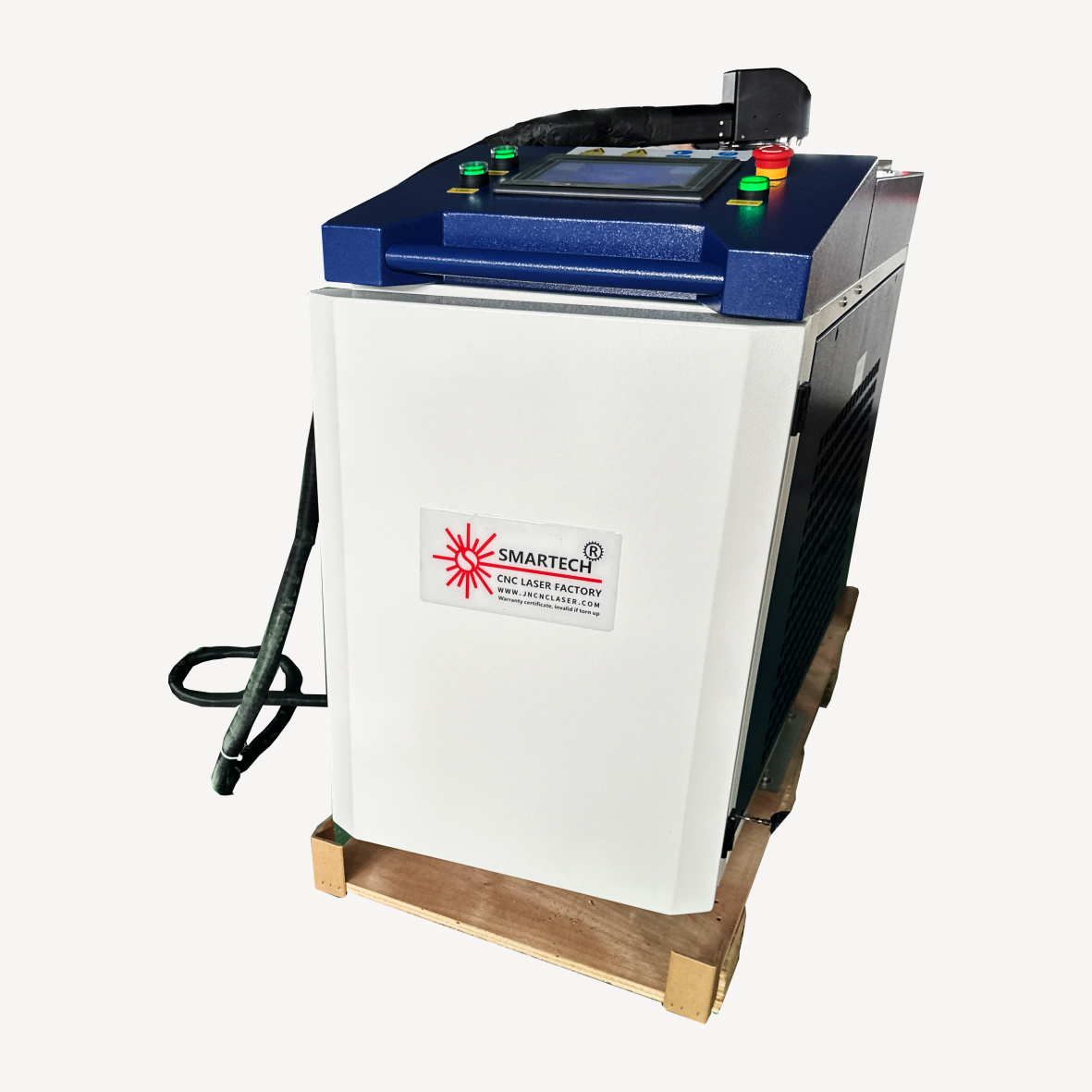

861404b3c8fdc4b4846257ae7db3a2d

Technical Parameter	500W
Laser Type	Pulse fiber laser
Laser power life span	100000 Hours
Power range (%)	10-100(adjustment )
Repeat frequency (KHz)	1-1000(adjustment)
Cooling mode	Water Cooling
Laser switch-off time	2 μs
Laser wavelength	±1064NM+5
Max output power (W)	500
Maximum single pulse energy(MJ)	15/50
Optical fiber length	10m
Laser safety classification	IV
Weight	135KG
Size	11706201120mm
Cleaning speed	＜30000mm/s
Voltage	220/380V

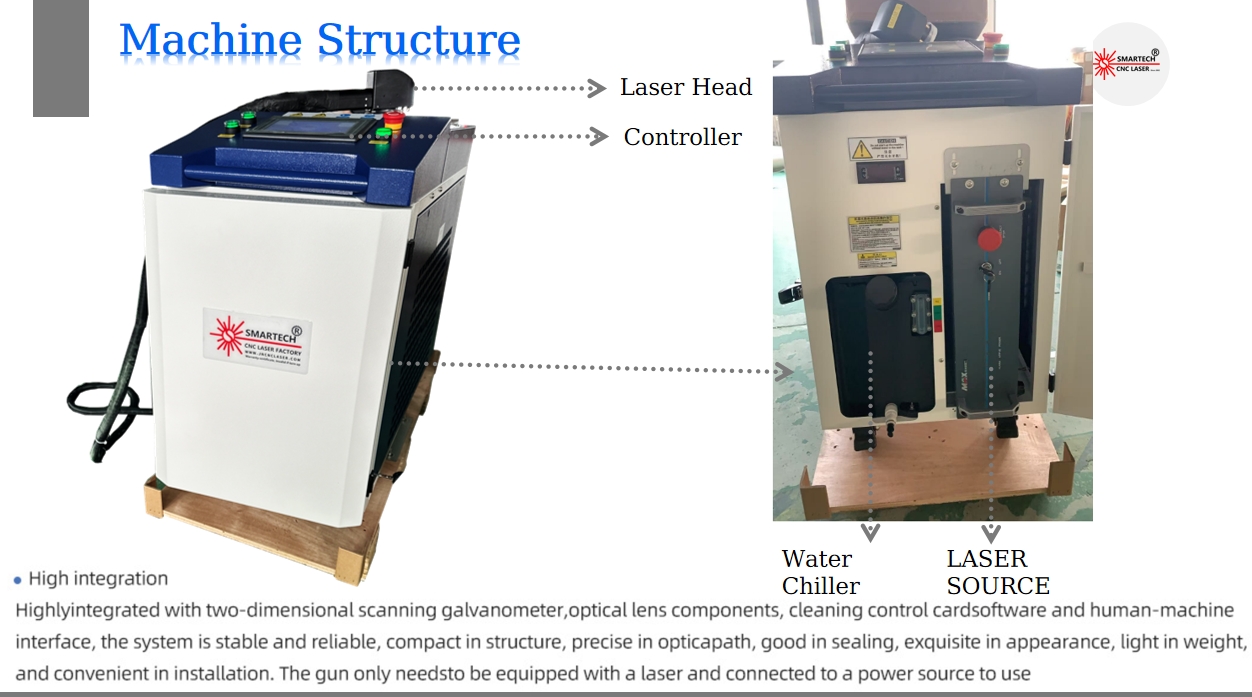

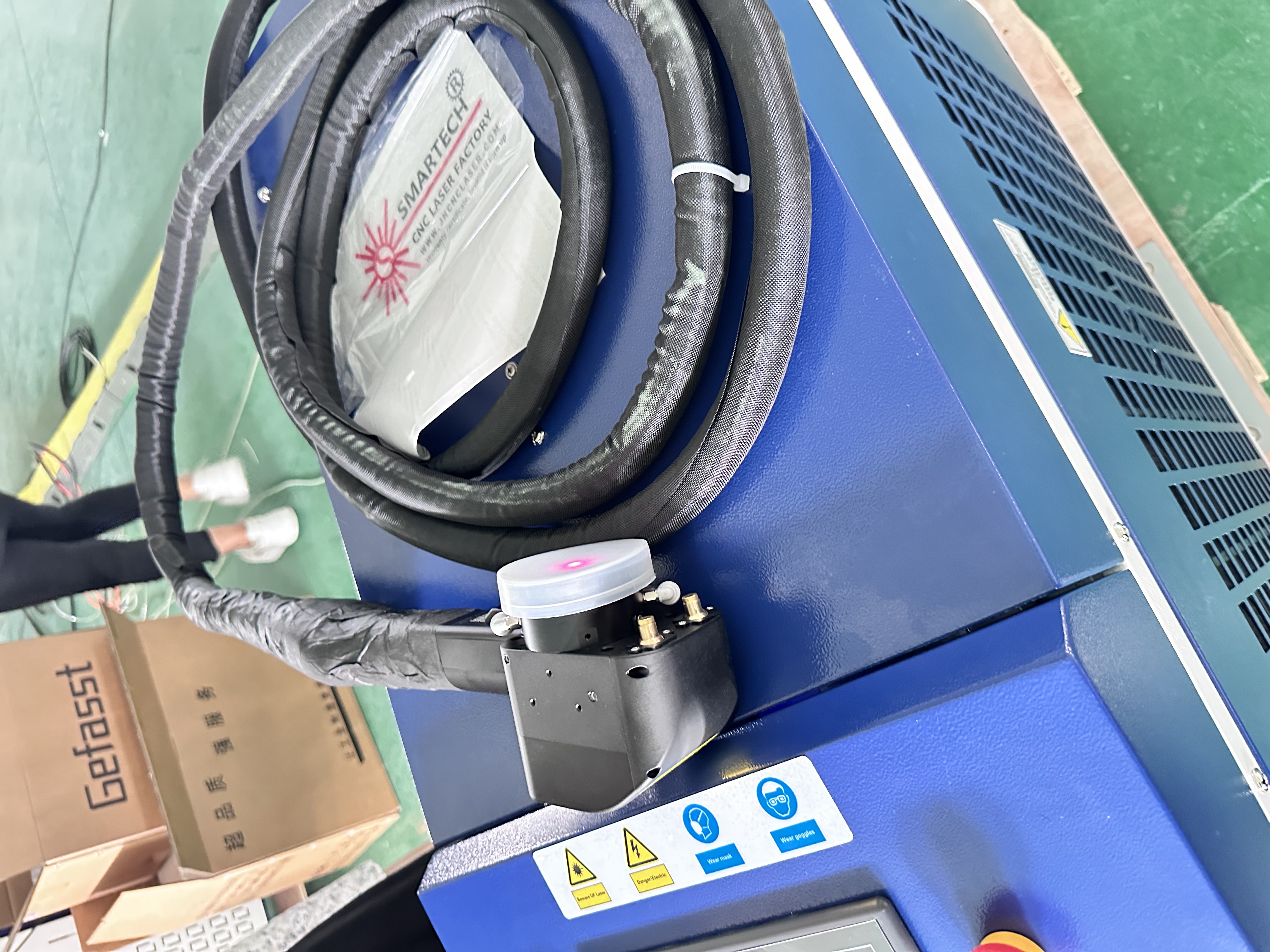

High integration

High integration

Highly integrated with two-dimensional scanning galvanometer,opticallens components, cleaning control cardsoftware and human-machineinterface, the system is stable and reliable, compact in structure, precise in opticapath, good in sealing, exquisite in appearance, light in weightand convenient in installation, The qun only needsto be equipped with a laser and connected to a power source to use

激光头2

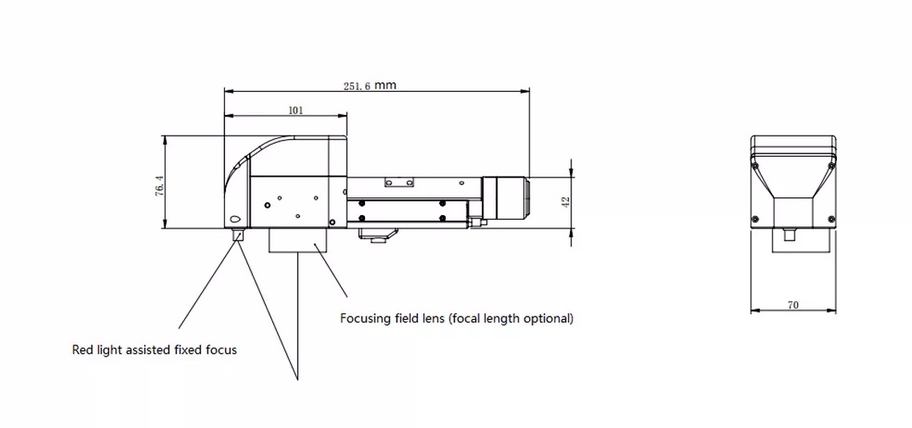

Laser head

Laser cleaning is a new generation of surface cleaning technology that can widely replace traditional cleaning processes such as chemistry, grinding, sandblasting, etc. It has the advantages of no grinding, non-contact, low thermal effect, no damage, and is suitable for objects of various materials. It is recognized as a reliable and effective new generation of cleaning technology

微信截图_20250801111343

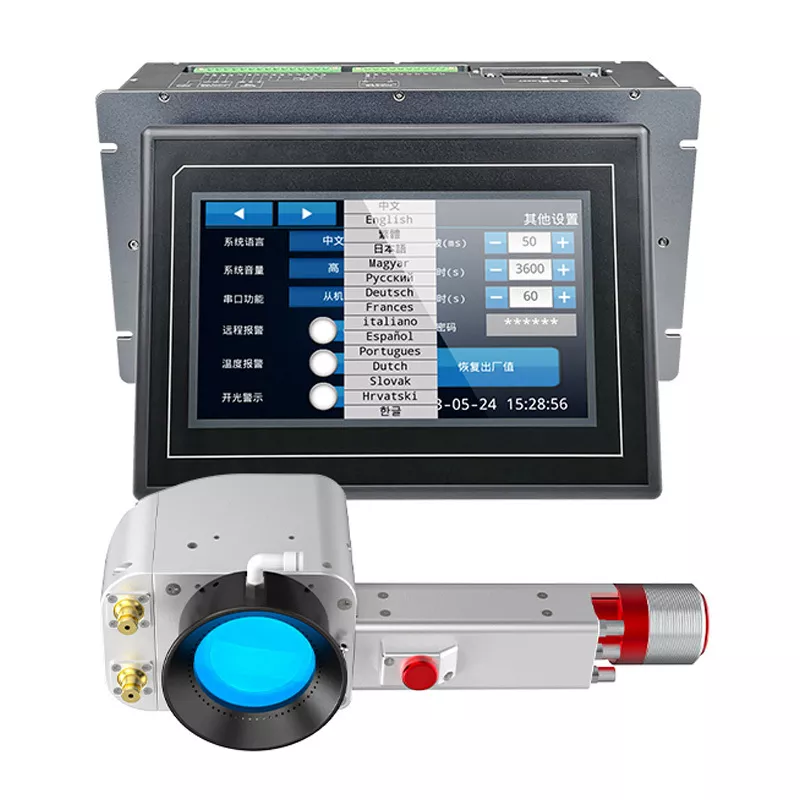

Control system

Introduction to Laser Control System

◆ Supports 8 cleaning modes, suitable for various complex cleaning scenarios. Supports laser power ramp-up and ramp-down, real-time control, better cleaning results, does not damage the substrate. Multiple safety alarms, smaller size, more flexible operation;

◆ Has 10 safety alarm protection systems, stronger product stability. Supports multiple communication methods, richer control functions. At the same time supports LOGO, interface, specific function customization; Adopts high-speed galvanometer motor, higher stability;

◆ Supports 15 language switching, can adapt to more countries' users. Barrier-free human-machine communication;
◆ Upgrades unique wind tunnel multi-hole ring-shaped air knife design, all-round protection of protective lens. Even in complex working environments, it can be safer and more stable, better improving cleaning efficiency;

◆ Cleaning width up to 150 * 150mm, can support higher laser power stability, better efficiency. Supports multiple field lens specifications, suitable for more application scenarios;
