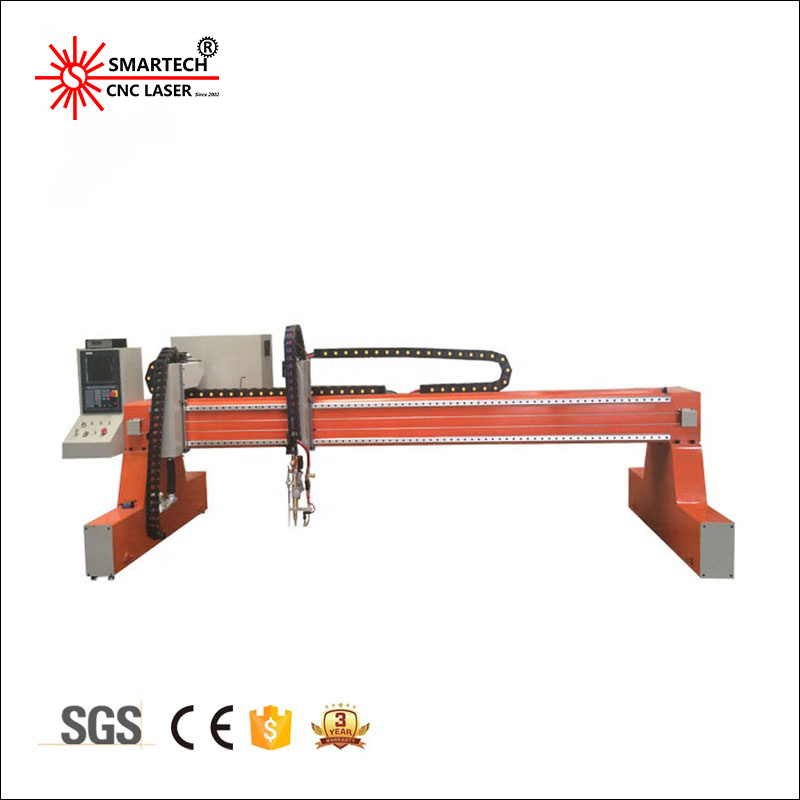

New Design Gantry CNC Plasma Cutting Machine

Availability:



Inquire Add to Basket

Model:
SP-1530 Plasma + Flame cutter
Brand:
SMARTECH
Code:
New Product 2021
Size:
1300x2500/1500x3000mm
Power:
8.5KW
Machine Color:
as your preference

Product Description

Product Overview

SP-1530 Plasma + Flame cutter

 A gantry plasma cutting machine will also have some sort of guiding system in the Y-axis too, which is mounted to the bridge structure itself. The Y-axis guiding system will usually be smaller than the X-axis rails, because they only have to carry the weight of a small carriage and cutting tool, not the entire gantry. Gantry machines may have one tool carriage or many tool carriages. Some times the tool carriages will each have their own drive motor that moves them in the Y-axis, and some times there will be only one motor that drives the Y-axis, and all of the tool carriages will be connected together by a steel band, tie rod, wire rope, or similar mechanical device.


FEATURES AT A GLANCE

   Guide length(mm) 3000 4000 5000 6000 7000 Working width(mm) 2200 3200 4200 5200 6200 Control system SHANGHAI FLMC-F2300A / BEIJING STARFIRE or customed Flame cutting torch The special NC flame cutting torch Working Mode Untouched Arc Striking Transmission X Y High PrecisionHelical rack; Z Axis High Accuracy ball screw; XYZ Linear Square Rails Plasma power supply According to the customer requirement Command Code G code *uoo,*nc,*mmg, *plt Motor Driver Servo motor / Stepper Motor Driver Torch distance(mm) 200 Traveling speed(mm/min) 0-10000 Cutting speed(mm/min) 0-6000 Flame cutting thickness(mm) 5-300 Plasma cutting thickness(mm) According to the plasma power Gas type Acetylene, propane or natural gas Cutting table and base We will supply drawing of cutting table base (H-beam) and cutting table are not supplied


 Right elevation

 Left elevation

 Front elevation

Main advantages:

 1. Display: 5-inch LCD monitor 2, external interface: USB 3, buttons and chassis: completely shielded steel structure, anti-electromagnetic radiation, anti-static. 4.Chinese and English prompts on the operation interface. There are various working status indications on the graphic display panel. The digital control and drive adopt modular integrated design. The operation and maintenance are simple and convenient. 5.Automatic Compensation,positioning,break point renewal ,restore Automatically. 6.With a high automation, easy to use, high precision and high reliability. 7.The advantages of easy operation and maintenance are extensively applicable to the cutting of metal sheets in various mechanical manufacturing industries. 8. It adopts bilateral drive, double-axis linear guide rails, standard transverse guide 4m, vertical rail length 8m, single flame or single plasma cutting mode, automatic ignition; 9. Addition to flame and plasma cutting methods. Cross-cutting matching devices can also be configured. 10.Cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high quality.

PRODUCT SPECIFICATIONS

 Working material Iron, steel, sheets, galvanized sheets, titanium plates etc Cutting thickness According to materials Plasma power Hypertherm or Chinese Power Drive Mode double-axis linear guide rails CNC system Beijing START /Starfire for option Plasma cutting speed 50-6500 mm/min Cutting torch lifting distance 150mm Speed setting error ≤±5% Torch height controller accuracy ≤±1.0mm Longitudinal line accuracy ±0.2mm/m Motor and drivers Stepper Gearbox Cast Iron (Better than welded) Drive Method Rack and square rails for X  Y Z axis Rail Brand Taiwan HIWN Or PMI Moving Precision 0.01mm per step Height controller(plasma) PHC330-Arc voltage height controller for plasma cutting Idling Cutting speed 0-16000mm/min Input voltage 3 phase 380V Power frequent 50 Hz or 60HZ Files transfer USB interface Arc Untouched arc striking General machine accuracy ±0.05mm Cooling system Water chiller Gas For flame cutting :Oxygen + Acetylene, Propane For plasma head cutting :Compressed air, oxygen, nitrogen, etc. Optional air compressor 0.8MPa

PRODUCT CONFIGURATION

 T.H.C SYSTEM

 Start or starfire   Controlling system

 High soft close towing chains wire@Longer life span,could reach 8 years without damage

 Original HIWN Rail from Taiwan

Successful Project

machine recommendation

FAQ -Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.

machine recommendation

 Payment terms
1.30% deposit for production, 70% by T/T after machine production is finished;
Service
@.After sale:
All machine is properly adjusted before dispatch.You will be able to use the machines immediately. If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls. If you still have troubles on operation or problems,Engineers are also available to give training overseas. Could be remote control if needed.  24 months warranty for the whole machine.  Within 24 months under normal use and maintenance,  if something is wrong with machine, you will get spare part for free.; You will also get technical support and service all the lifetime.
Quality Guarantee
2 years from delivery date.if your machine has any unintentional damages,we would provide parts for free.
We Could Produce machines according to your specific demands ! We could also provide a OEM manufacturing!
