SMARTECH

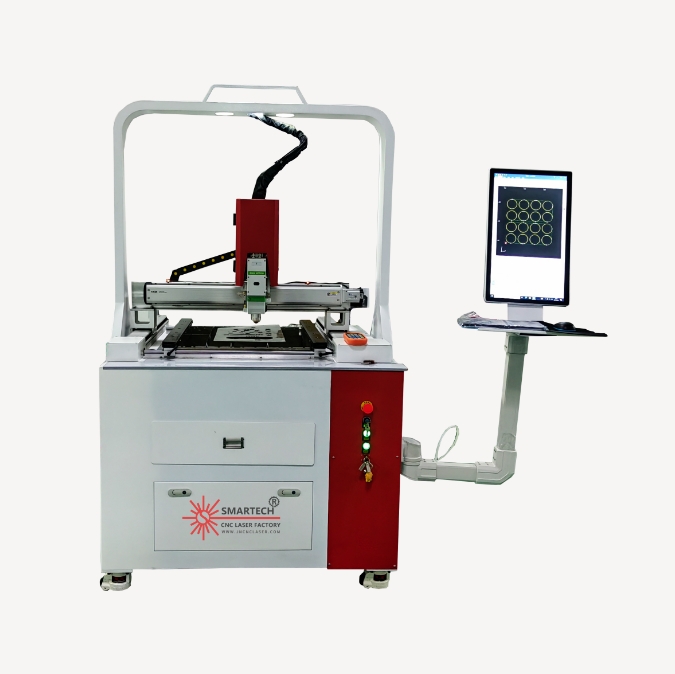

Mini Precision Laser Cutting Machines
Model: 6060A
#Working area:600*600 mm
#Laser Source:- Max -1500W /2000W
#Head- Raytools BT240S-2D
#lead shine servo motor
#Controller- Raytools control system
# Ball Screw -TBI
#Rails - Taiwan HIWIN
#Support DXF,DXP,NC,G,etc
#AIR chiller
#Electrical components Schneider
#380V 50HZ Voltage
#Machine size：1430*1400*2230mm+ 630*600*970mm
#Weight:780KG
| name | brand | molde |
| Laser, cutting head, platform, CNC system, laser power supply and chiller | ||
| Laser | Raycus | 1500W/2000W |
| Max | 1500W/2000W | |
| Head | BT240S-2D | |
| CNC system | ||
| Chiller | S&A | 1.5KW/2KW |
| Cutting platform + cabinet | Gantry | |
| Field lens | F330 | |
| Main equipment | ||
| Linear Guides | TBI | |
| Motor and driver | Raiser servo motor | L7 |
| Electrical components | Chint/Delixi/Schneider | |
1.High Precision & Stability Advanced auto-focusing technology ensures micron-level cutting accuracy. Robust structural design minimizes vibration and thermal drift for consistent performance in high-speed operations. 2.Wide Power Compatibility Compatible with fiber lasers ranging from 500W to 30,000W, adaptable to diverse material thicknesses (metals, alloys, composites).
3.Intelligent Control System Integrated sensors and real-time feedback enable automatic focal length adjustment and collision avoidance.
4.Supports automated calibration for rapid setup and reduced downtime.
