Jewelry Fiber Laser Cutting Machine Small Precision Laser Cutter for Ring Engraving Gold

Availability:



Inquire Add to Basket

Model:
2030
Brand:
SMARTECH

Product Description

Mini Precision Laser Cutting Machines

Mini precision laser cutting machines are compact, high-accuracy laser systems designed for cutting, engraving, and marking various materials with fine detail. These machines are widely used in industries such as jewelry making, electronics, medical devices, automotive parts, and small-scale manufacturing.

PRODUCT SPECIFICATIONS

Item	Subitem	XC2030
Basic parameter	Working area	200*300mm
	Table load bearing	60kg
	Machine overall dimensions	950×820×780mm
	Machine weight	220kg
	Z axis travel	100mm
Operation parameter	Max. linkage speed	50m/min
	Max. acceleration	0.5G
	Positioning accuracy	0.03
	Repositioning accuracy	0.02
processing precision (1mm Original box carbon steel plate)	Φ30mm roundness	≤0.1mm
	30mm adjacent side dimension difference	≤0.04mm
	190mm adjacent side dimension difference	≤0.05mm
	190mm diagonal size difference	≤0.07mm

Key Features:

1. High Precision & Accuracy – Capable of micron-level cutting for intricate designs.
2. Compact & Portable – Small footprint ideal for workshops, labs, and small businesses.
3. Versatile Material Compatibility – Works on metals (gold, silver, copper, steel), plastics, wood, acrylic, and more.
4. Fiber/CO2/Diode Laser Options – Different laser types for varying material needs.
5. User-Friendly Operation – Often equipped with CNC control and intuitive software (e.g., LightBurn, RDWorks).
6. Low Maintenance & Energy Efficient – Compared to traditional cutting methods.

微信截图_20250530180052

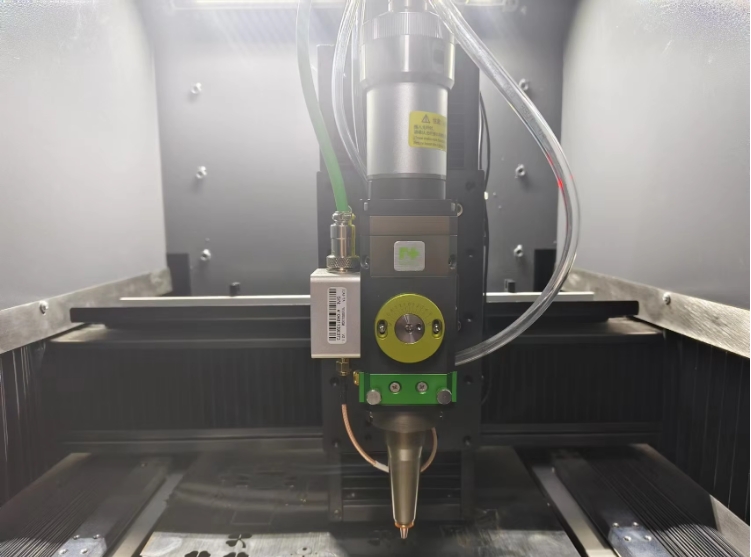

Cutting Head

1.High Precision & Stability Advanced auto-focusing technology ensures micron-level cutting accuracy. Robust structural design minimizes vibration and thermal drift for consistent performance in high-speed operations. 2.Wide Power Compatibility Compatible with fiber lasers ranging from 500W to 30,000W, adaptable to diverse material thicknesses (metals, alloys, composites).
3.Intelligent Control System Integrated sensors and real-time feedback enable automatic focal length adjustment and collision avoidance.

4.Supports automated calibration for rapid setup and reduced downtime.

图片1(6)
