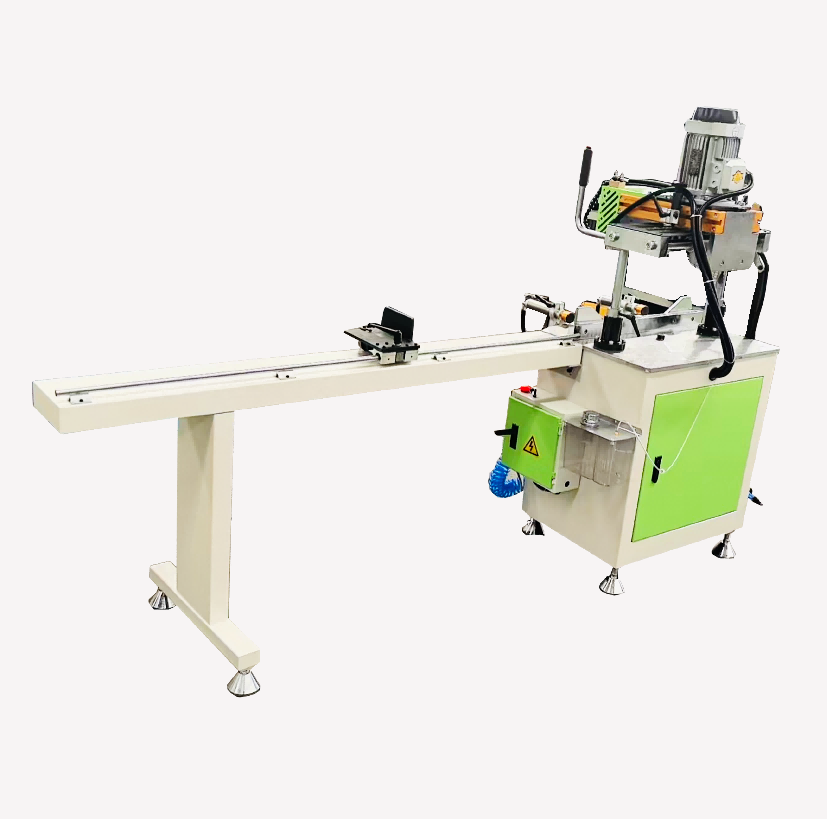

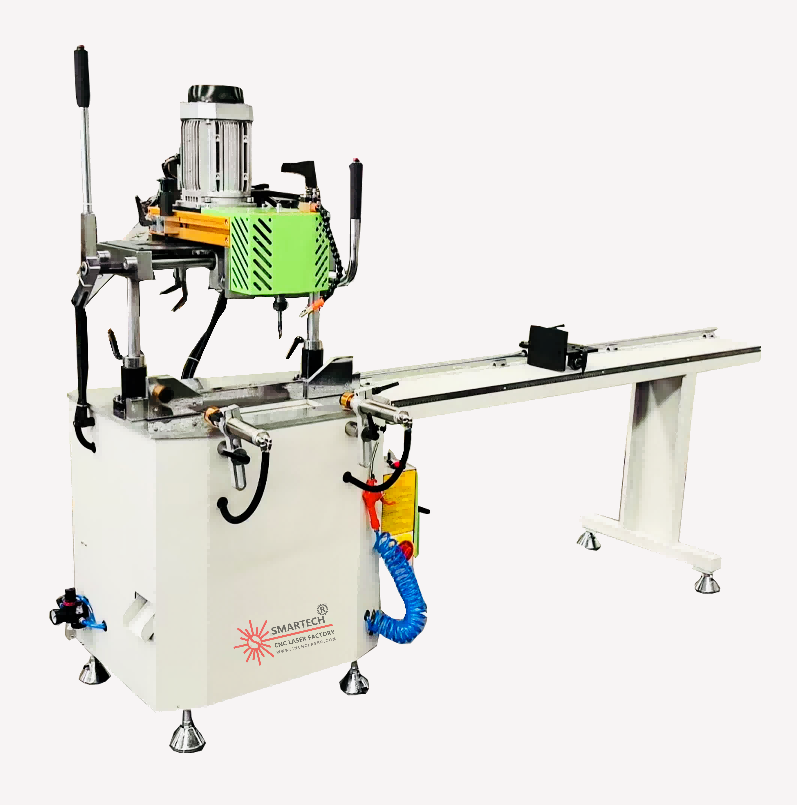

1)-Used for copy-routing processing various kinds of holes, grooves and water slots on aluminum and PVC windows and door.
2)-The latest improvement of bearing seat structure, the belt can be easily replaced, become a more complete product structure.
3)-Precision linear bearing guide rail, make the cutter movement smooth and flexible, easy to operate.

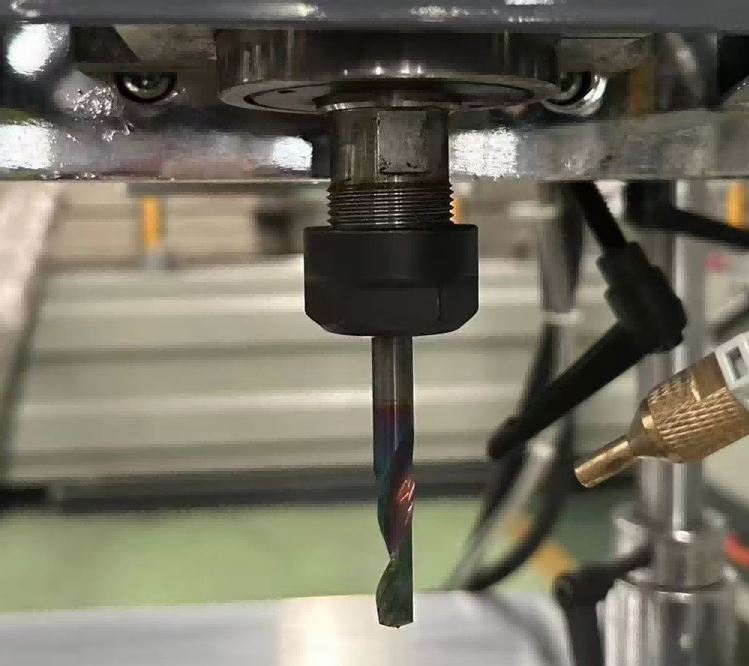

4)-It makes the milling cutter easy to clamp for its high standard milling cutter and main axis taper from precision work
5)-Excellent gas oil atomization cooling system makes the milling effect better, cutting tool durable
Technical data
Input voltage | 440V / 60Hz |
Input power | 1.5Kw |
Working air pressure | 0.4~0.6Mpa |
Air consumption | 30L/min |
Copying range | 90x290mm |
Milling tool diameter | Φ8mm |
Overall size | 2500x800x1500mm |
Machine weight | 300kg |

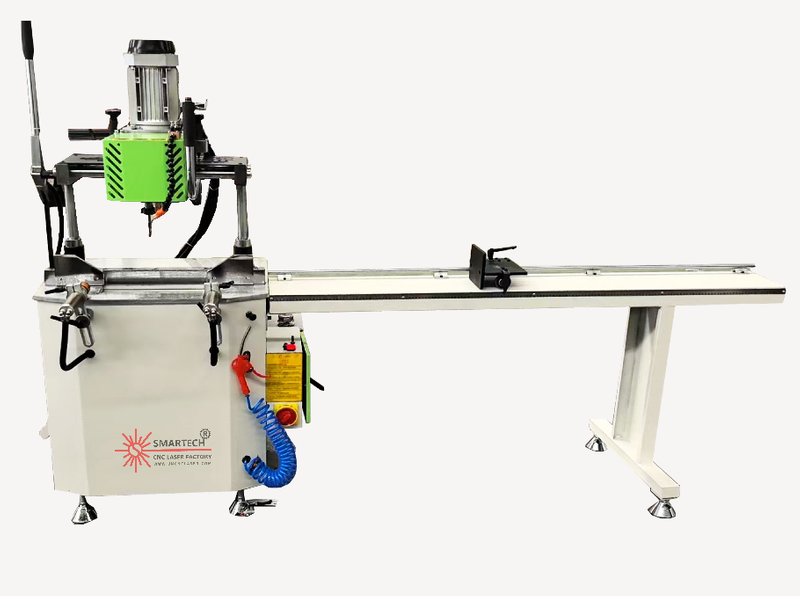

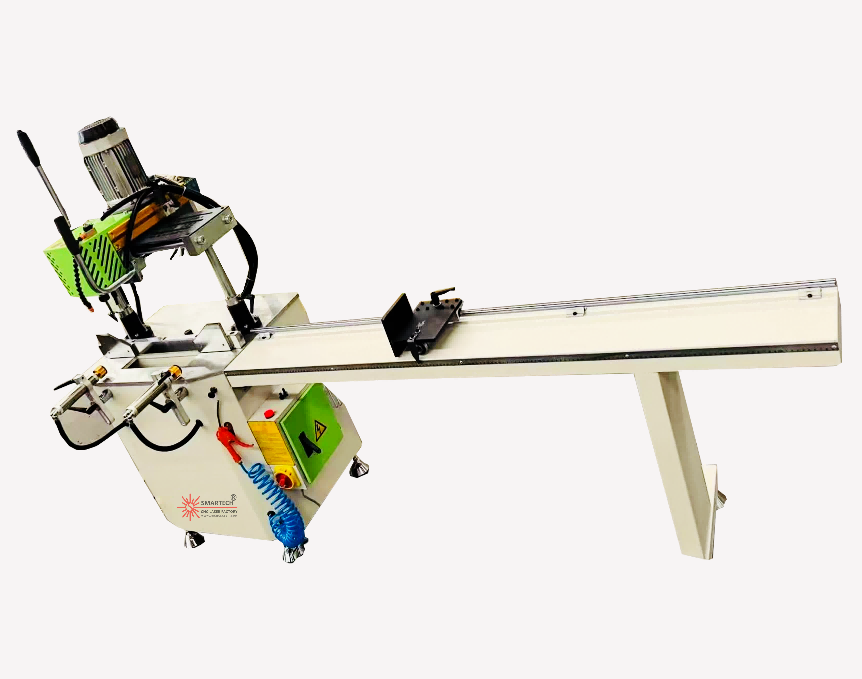

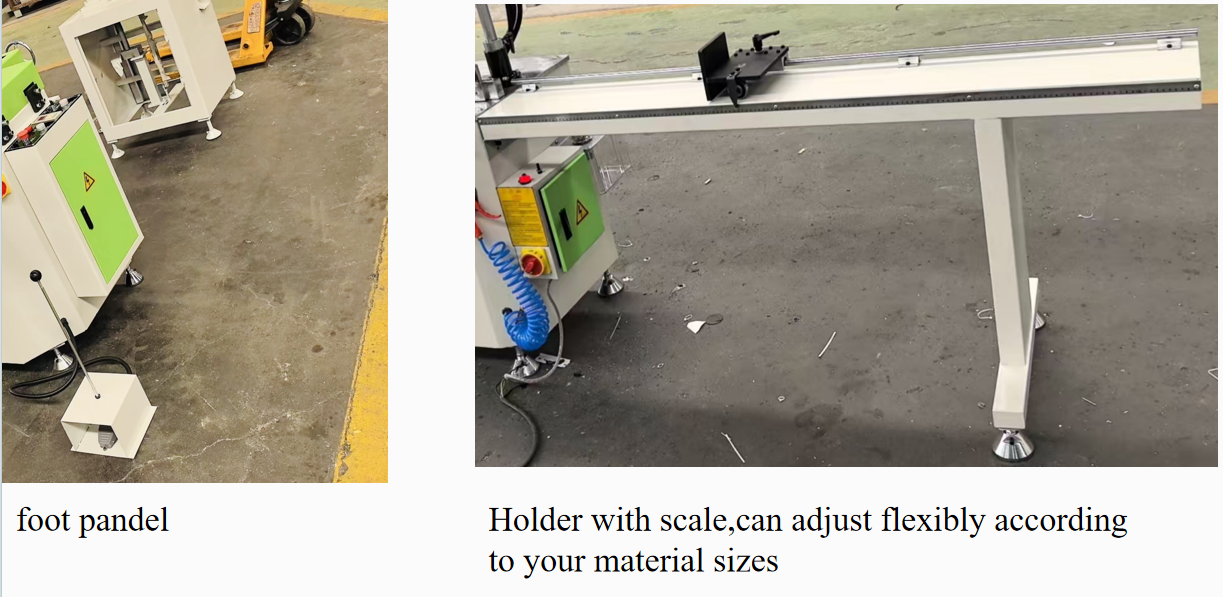

Machine parts

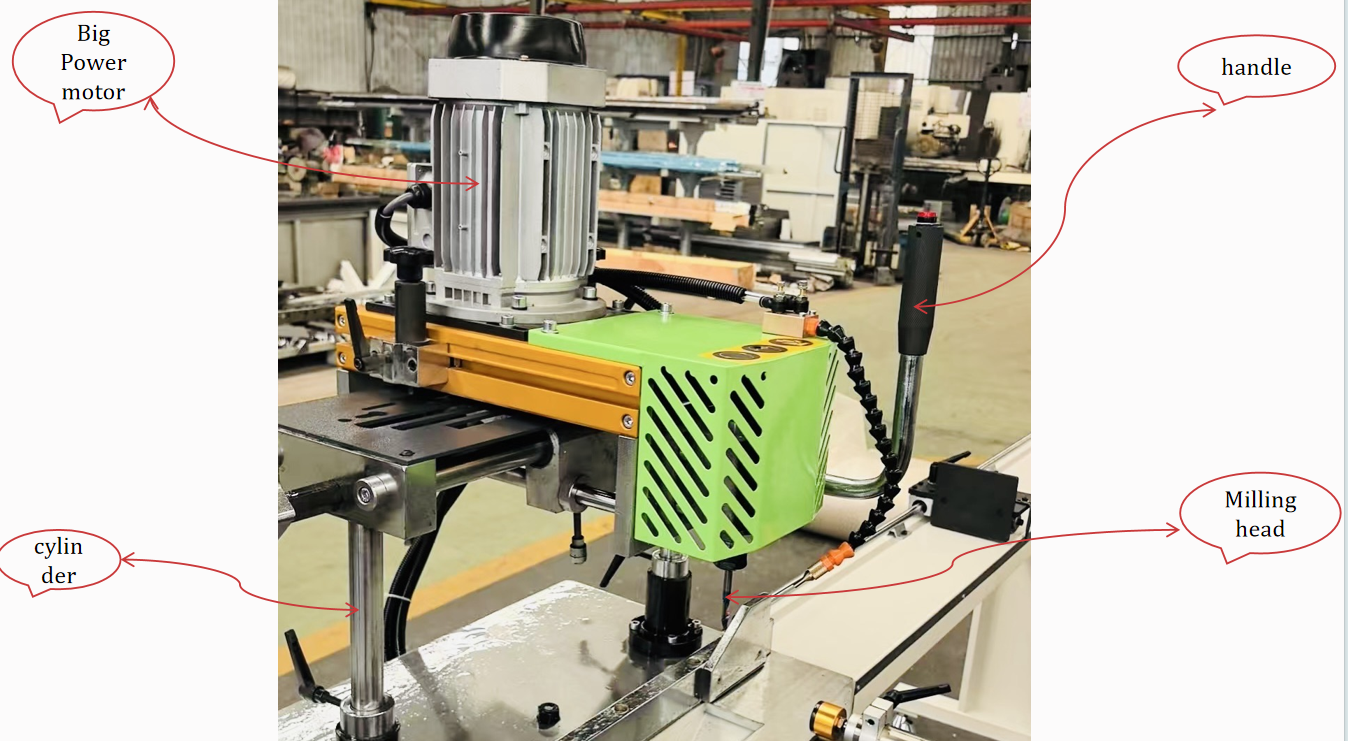

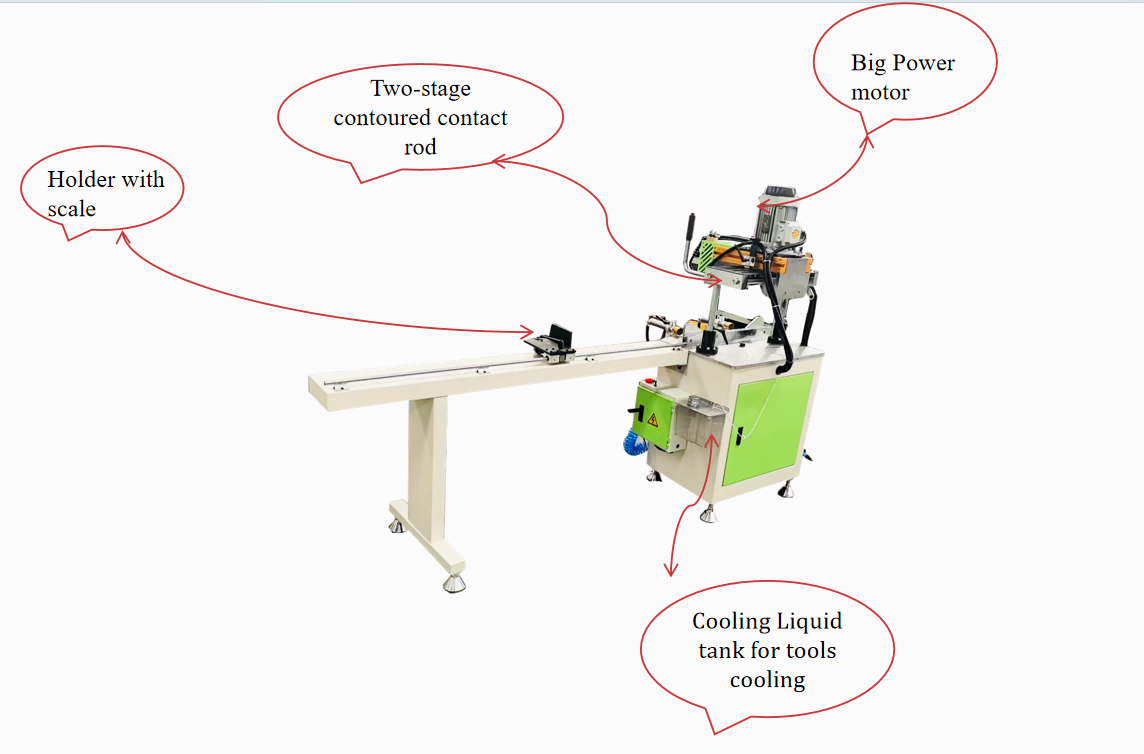

Milling head
The motor drives the milling head to rotate through the annular belt, and after
clamping the parts, enabling continuous processing.
Spray system (for aluminum profile processing)

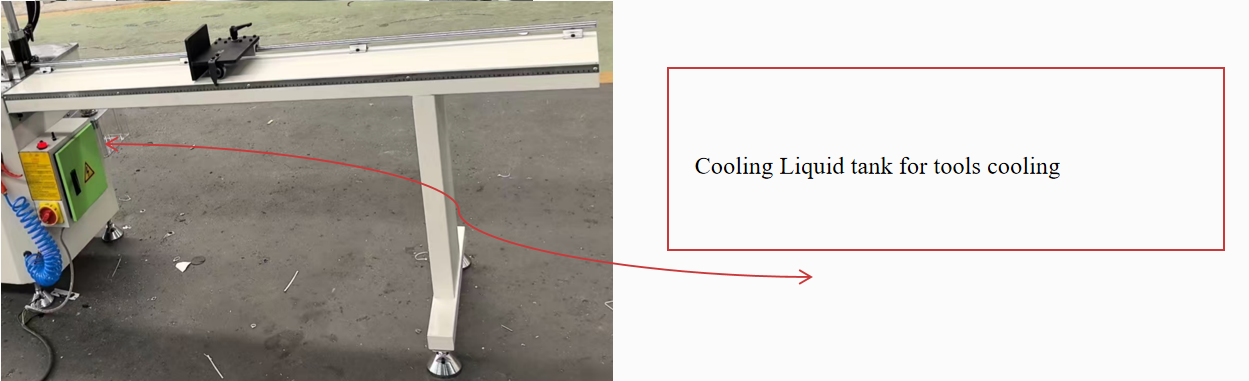

In order to improve the roughness of parts and extend the life of tools, a spray cooling device is provided. In order to ensure that milling is always carried out under the condition of spray cooling, the motor switch is interlocked with this switch.
Positioning structure

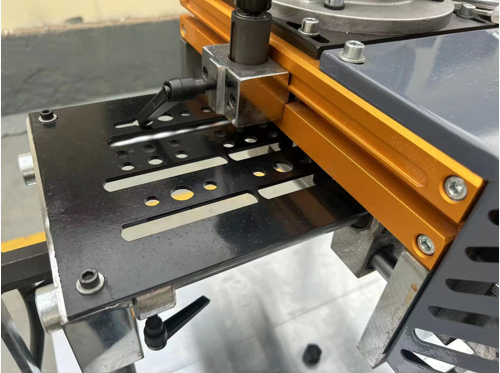

The extension length of the positioning screw can be adjusted to ensure the cutting depth of the feed.

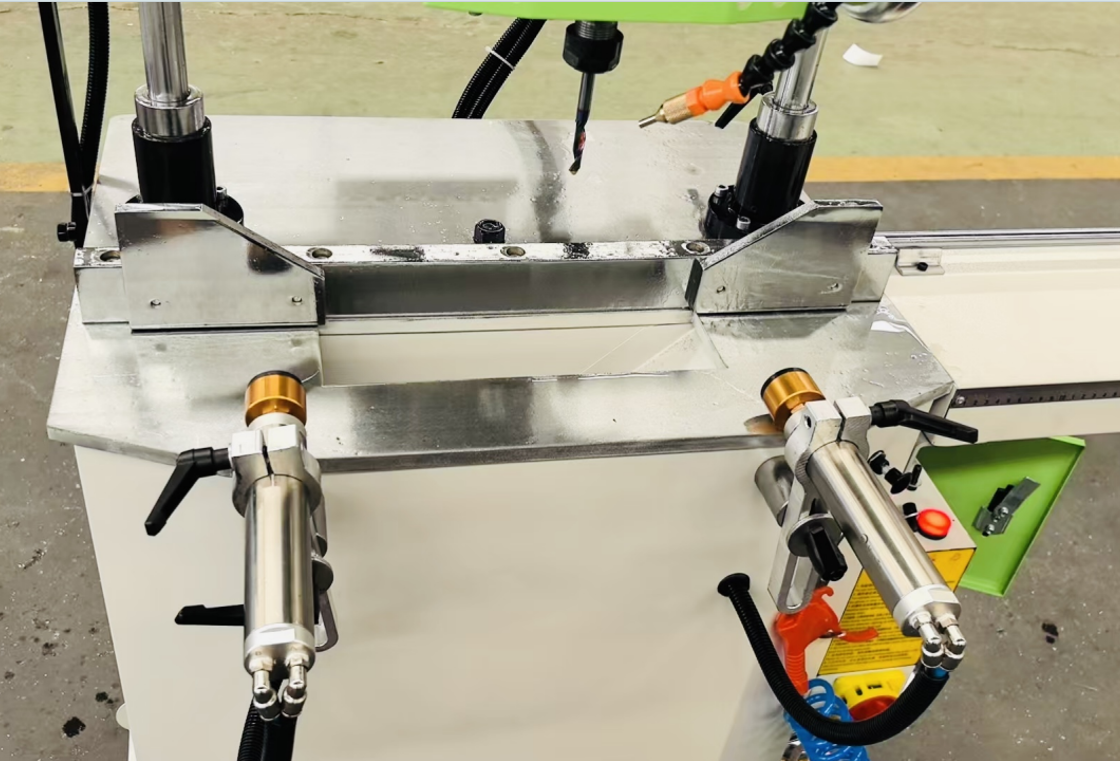

Clamping device
There are two cylinders for adding parts to ensure stable and reliable
operation
Two-stage contoured contact rod
The diameter of the two-stage profiling contact rod is the same as the diameter of the milling cutter (the contact rod is adjusted according to the diameter of the milling cutter), so the profiling milling process can be performed in a 1:1 relationship to ensure that the shape of the milled part is consistent with the shape of the hole in the profiling plate.

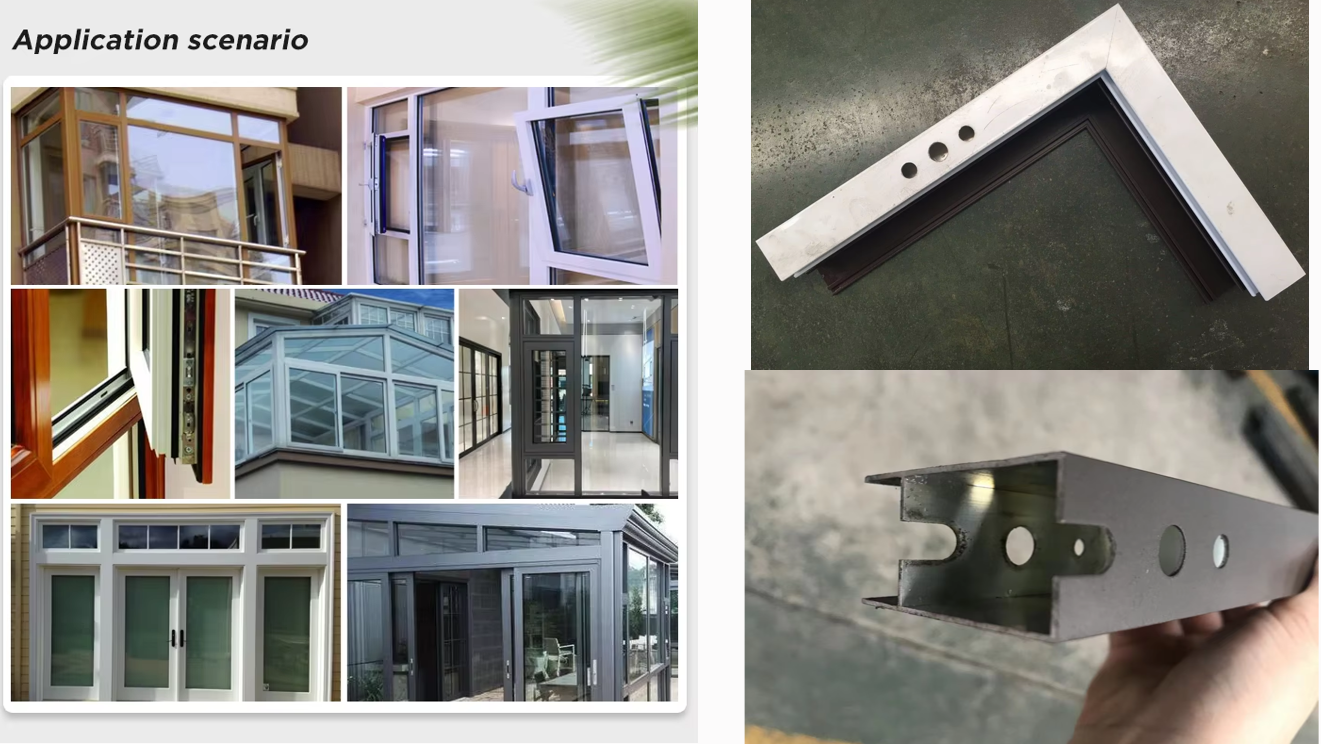

working samples
