Availability: | |
---|---|
SJ1325
SMARTECH CNC LASER
1300*2500MM(51''*98'')
100/130/150W
AS YOUR PREFERENCE
Laser cutting machine Function Features:
1.High stability and high strength mechanical structure casted by high accuracy model which can
ensure stable data motion, high speed, high precision, long-term operation without adjustment
and the same precision carving. The design idea of around the body through can add materials
from before and behind which for infinite workpiece.
2.The stability and integrity design idea with advanced industry cooling system and water alarm
Automatic Protection Function, improve the stability and safety of continuous operate.Perfect dust,
pollution prevention design greatly improve the overall stability of the machine.
3.Using flying path design, unique structure, small optical path deviation, high stability, easy to
adjust. Optical Accessories adopts best imported K9 mirrors and ante focusing mirrors whose
reflectivity and transmittance is the best with more detailed spot, more cutting edge .
4.DSP control: Based on upper control unit of PC-PCI, adopt advanced DSP-TMS320,XC2S300 control chip
with high speed, stability, anti-interference ability. Advanced USB control and Flash Disk (U Disk) off computer control system are optional.
5.Independent R&D efficient laser power: Adopt new high-voltage switch-mode,
PWM master control technology, which is more stable.
Wood laser cutting machine Applicable Industry:
1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone,leather,marble,shell.
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and
cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine
leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats,
toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate
cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut
paper, card.
7.Product Identification Industry: Security marking products, etc.
8.laser cutting machine garment industry: fabric,cloth,garment,leather etc
Wood laser cutting machine Applicable Material:
Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf,
Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.

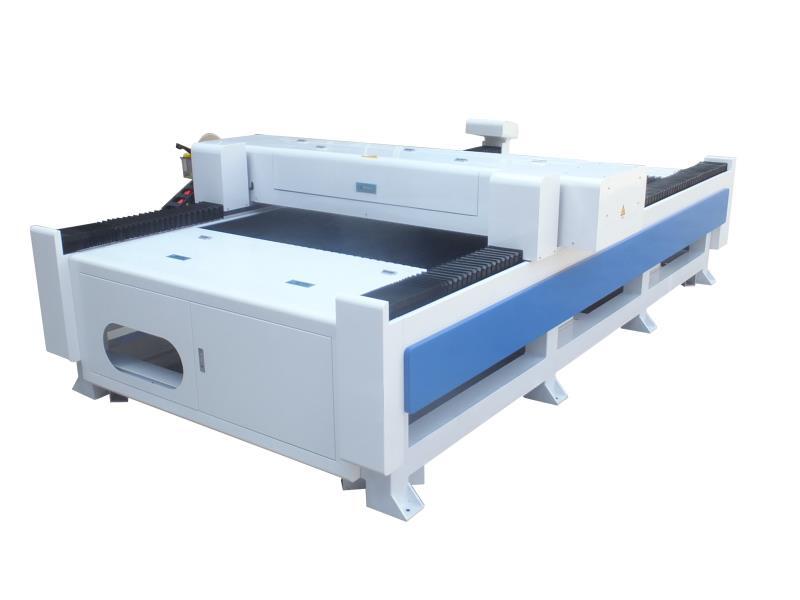

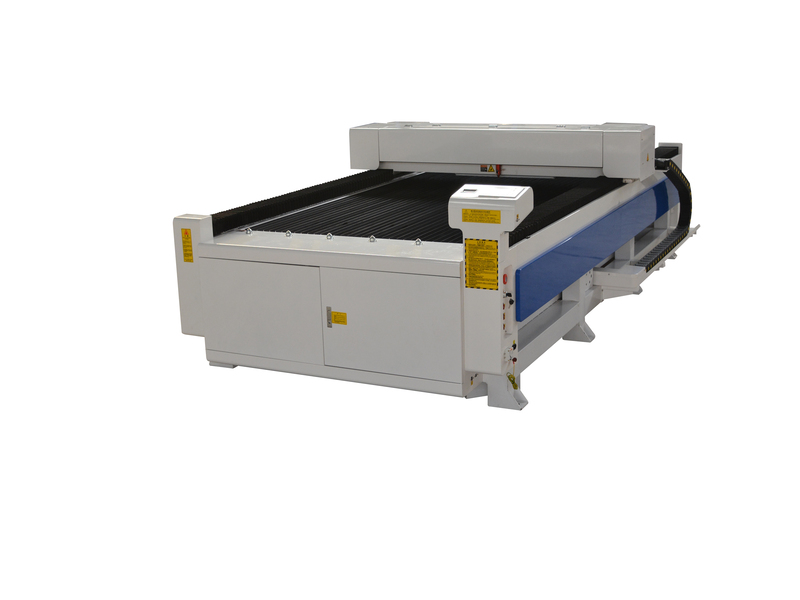

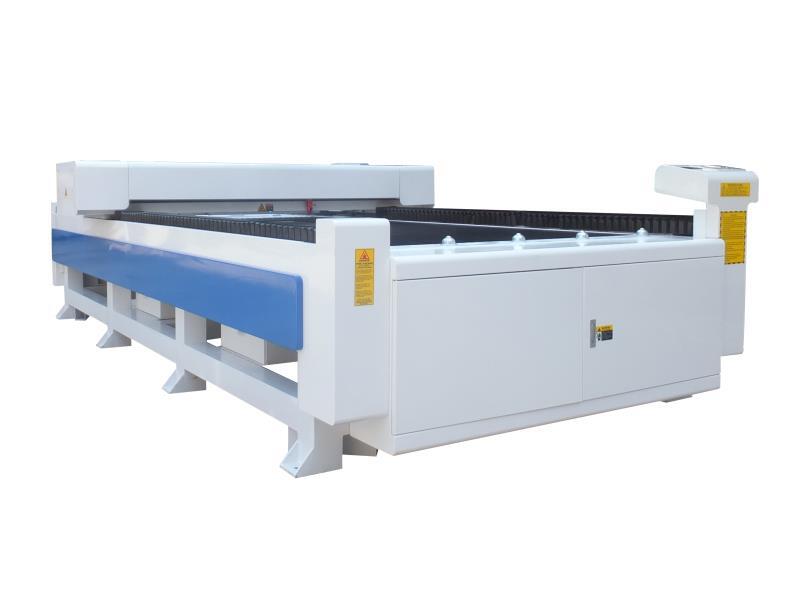

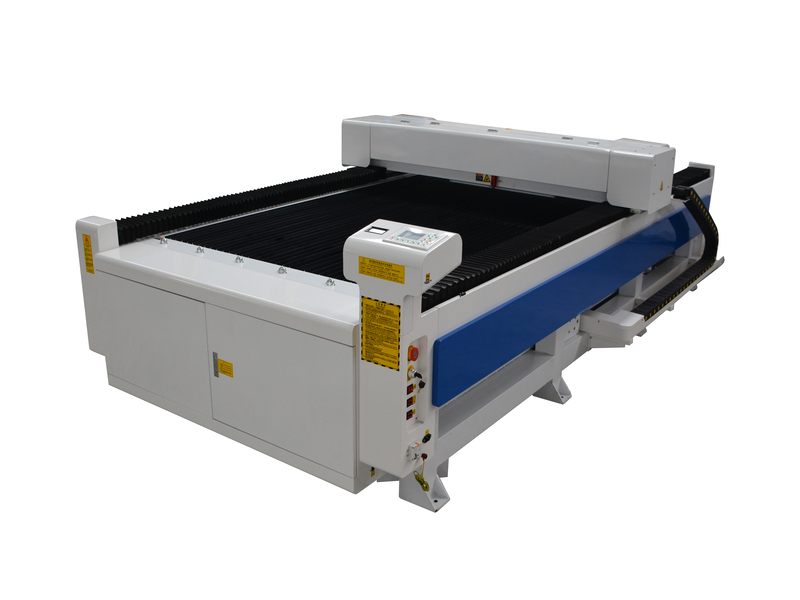

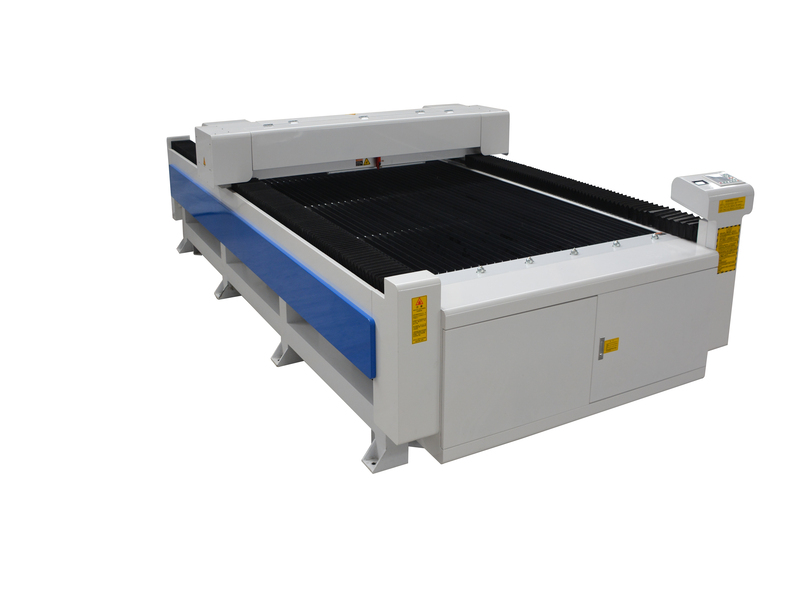

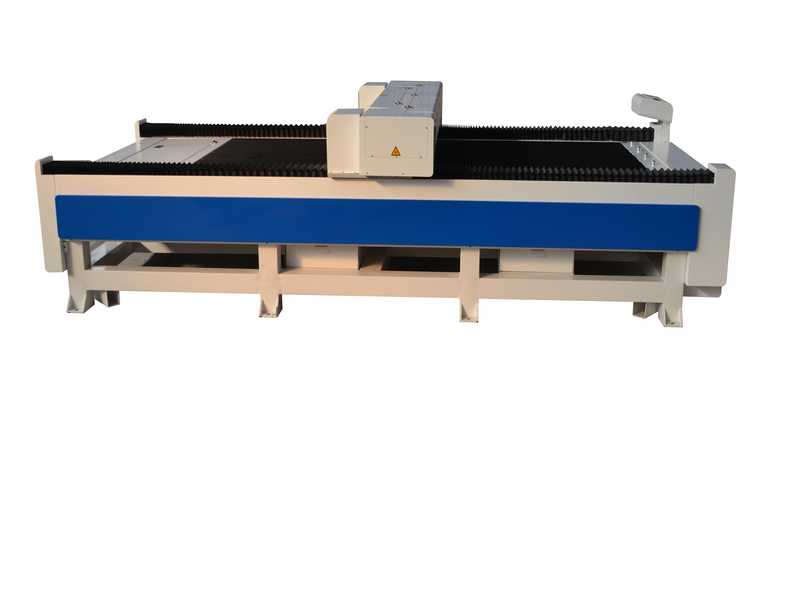

CO2 Laser Cutting Machine for wood pictures:
Parameters:
Model | 1610/1625/1825/1325 |
Engraving and Cutting Area | 1600*2500/1800*2500/1300*2500mm |
Tube type | CO2 sealed glass tube |
Laser wave | 10.6um |
Laser Power | RECI-80W/100W/130W/150W/180W (10,000 hours life time) |
Cooling | Pure water (GZ teyu water chiller CW5000) |
Engraving Speed | 0-75,000mm/min |
Cutting Speed | 0-40,000mm/min |
Reposition Accuracy | ±0.01mm |
Minimum Character Size | English:1mm ; Arabic numbers:1mm |
Resolution | 4,000 dpi |
File output mode | 2.0 USB interface |
Machine Power | <2,000W |
Support Format and Software | PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3 |
Working Environment Temperature | 0-45°C |
Drive system | Leashine Stepper motor |
Control system | Ruida LCD DSP offline control system |
Exhaust smoke system | Big exhaust fan |
Working Voltage | 220V,50HZ/60HZ |
N.W. | 600KG |
G.W. | 700KG |
Warranty time | 1 year for machine (12 months for RECI tube) |
Package | Wooden case |
Packing size | 2270*2050*1300mm |
Delivery time | 5 working days after received the deposit |
