SMARTECH
@Fiber laser power 6000W;
@New Generatinon Laser head
@One-piece design,With universal walking casters
@Handheld fiber optic continuous cleaning head
@Laser Power Source Raycus /Max(Worldwide warranty)
@Laser gun wide cleaning
@Water Chiller S&A

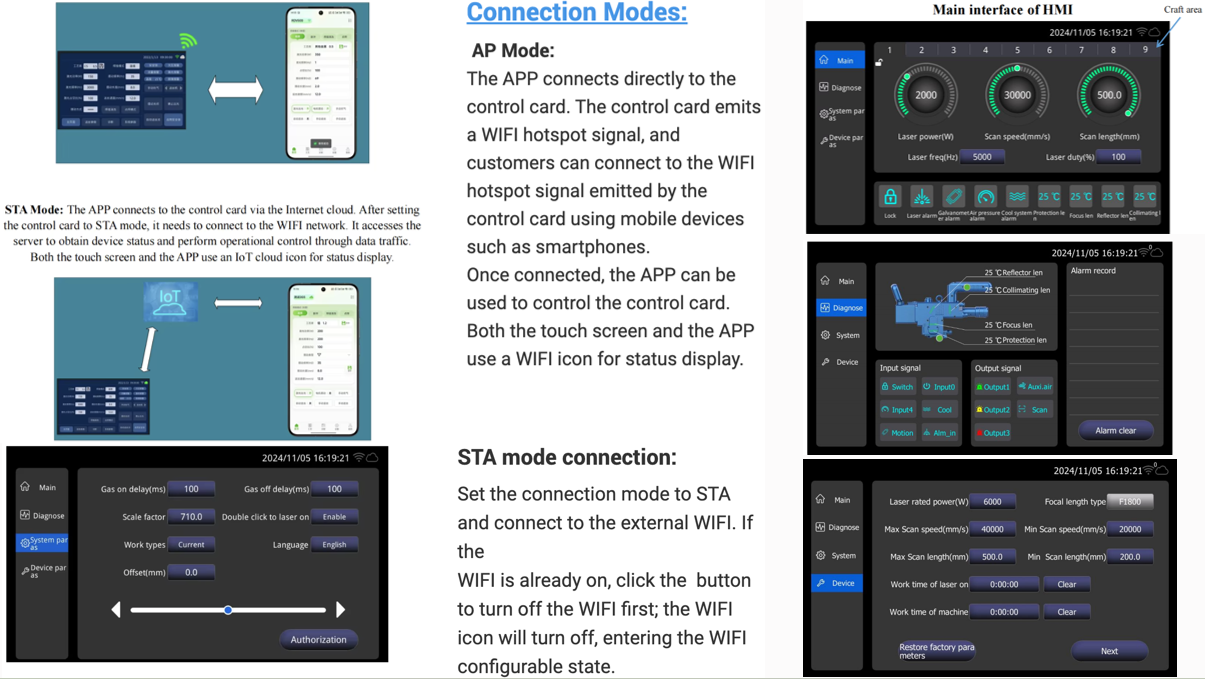

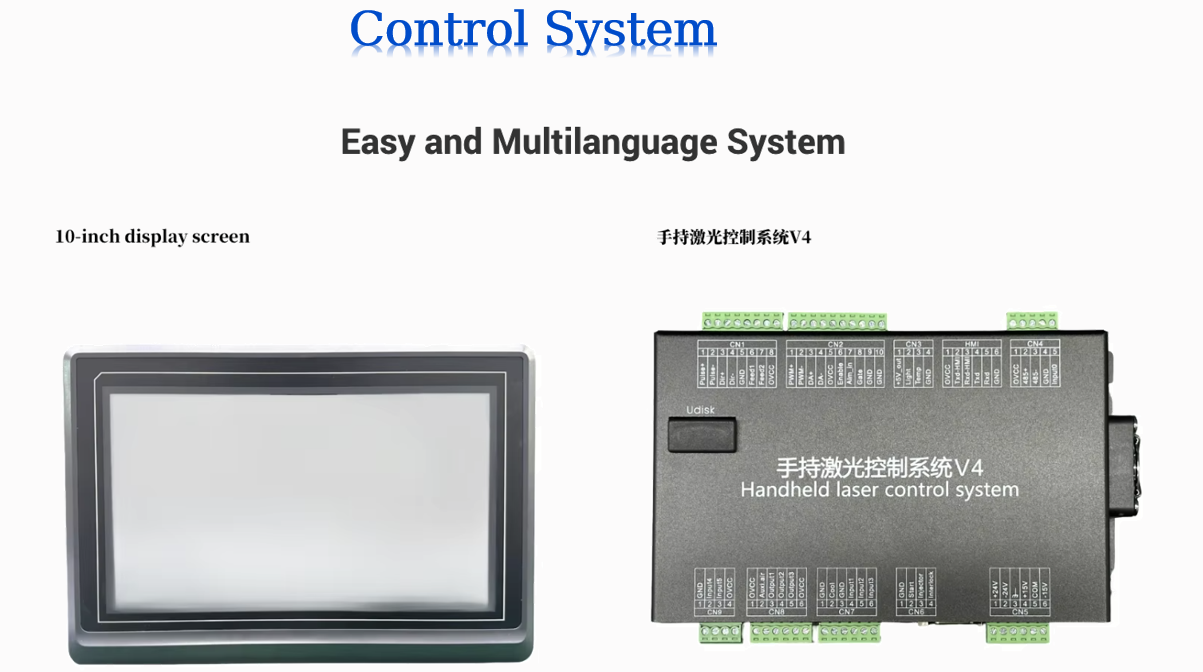

@Control system: Touching PLC Support many languages (English, German, Spanish, French, Russian etc)
@10 Meters Cleaning gun working distance
@Electrical parts: Schneider brands.
@Leakage protector to protect operator's safety.
@Working voltage:380V
@Tools and tool box Machine comes with full set machine accessories, you could use machine directly after its arrival.
PRODUCT SPECIFICATIONS
| Technical Parameter | 6000W |
| Fiber interface | QBH |
| Scanning speed | 40000mm/s |
| Rated power | ≤6KW |
| Laser Gun Weight | 2.2Kg |
| Focus Focal length (mm) | 1500mm |
| Cooling mode | Water cooling |
| Laser wavelength | 1070±20nm |
| Collimated focal length | 75mm |
| Scanning width | 10-500mm |
| Cleaning head wire | 10m(Could be customized) |
| Auxiliary pressure | ≥0.5～0.8Mpa |
| Effective clear aperture | Ø20 |
| Weight | 180kg |
| Package Size | 1200x900x1300mm |
| Voltage | 380V |
(1) The three-layer condenser sub-technology has large cooling capacity and good heat dissipation, ensuring the equipment is durable in harsh environments.
(2) The water quality is good, the precision is high, and the laser is carefully taken care of to prolong its service life. (3) With automatic heating and heating technology, it can reduce the waiting time for customers to turn on the laser in winter and improve production efficiency.
(4) The arc-shaped design, the atmosphere is beautiful, and the laser is improved equipment The matching grade. (5) Energy-saving and electricity-saving, effectively reducing customers' production costs. (6) High, medium and low matching to meet the diversified needs of customers.

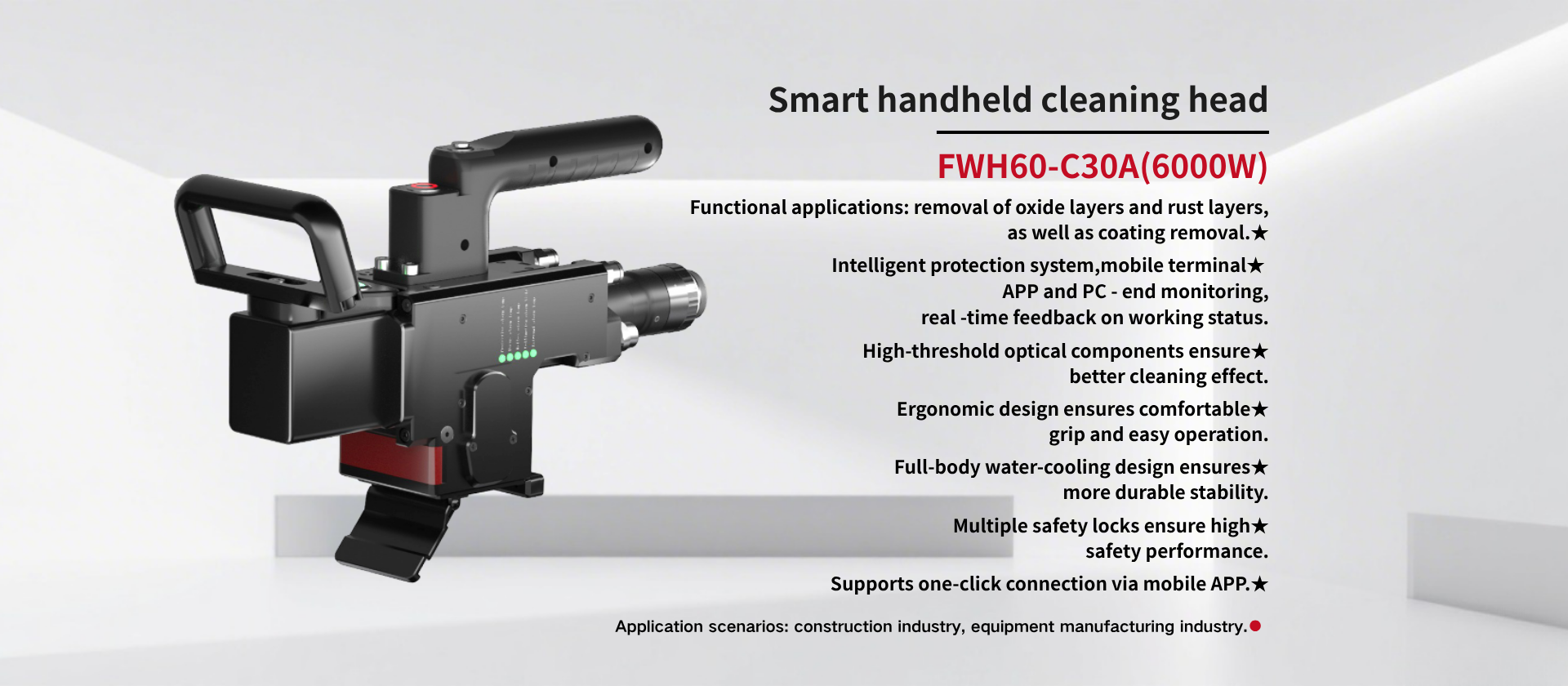

Laser Head
