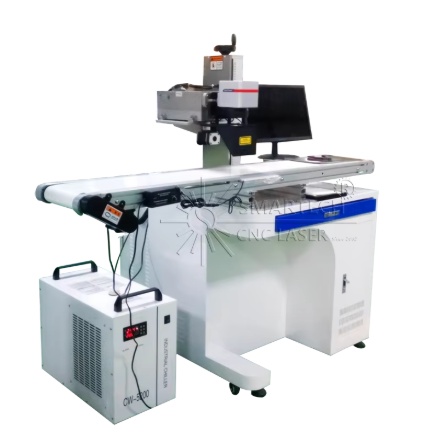

UV Laser Marking Machine 3W/5W With Auto Feeding System For Ultra Small Parts And Glass Bottles Plastic Marking

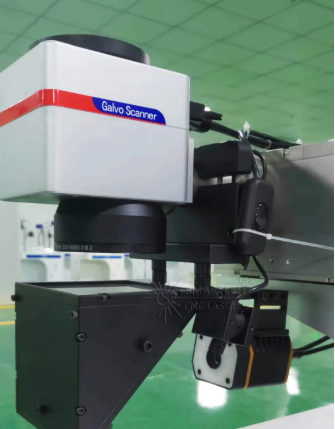

Standard main parts uv laser marking machine SF110 Working area is :160*160mm PC computer for table type;Laptop for portable type Comes with Keyboard and mouse     Sino-Galvo galvanometer (best quality in China) Wavelength filed lens (best quality in China) JPT/INNGU power source 3W /5W Air cooling (better than water cooling) user manual and CD   data connection   Foot switch Double Red pointer(not single) Original EZCAD software and control card(Not copy type) Up down table to adjust focal length Protective glasses Tools and tool box comes with machine   Include each necessary part,no need to buy other additional parts,you could use directly after received machine. Rotary Change into 300x300 mm working area lens Auto up down to adjust focal length Add LED light for night works Change into enclosed cover and auto door

Laser UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to coldprocess with a little heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorb ultraviole laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power consumption. Product Application:(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products. (2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware. (3) Pharmaceutical, food, beverage and cosmetics industry. (4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or  engraving,  clocks and watches and glasses. (5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, etc,. Main Features:Adopting doubling technique of intravenous frequency has greatly improve the stability of laser.Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode. (2) The machine takes 355nm pumped purple light laser device as the light source. Narrower pulse width  and smaller heat affection contribute to generate peak power. The higher the peak power is, the wider  the adapting range of materials is. This implement perfect printing in some relatively hard material. (3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and  high production efficiency. (4) High efficiency of the photoelectric conversion and long service life. (5) Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency. (6) The mark is of environmental protection, comply with RoHS standard. (7) It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc. (8) It can mark date, bar code and two-dimension code automatically. (9) Superior performance, good stability, high conversion rate and low energy consumption. (10)Faster and more efficient marking efficiency.

Marking format Graphics, text, bar code, 2D code, date, shift number, batch number, serial number, document link (support the graphic import of any design software) Graphics, text, bar code, 2D code, date, shift number, batch number, serial number, document link (support the graphic import of any design software) Graphics, text, bar code, 2D code, date, shift number, batch number, serial number, document link (support the graphic import of any design software) Graphics, text, bar code, 2D code, date, shift number, batch number, serial number, document link (support the graphic import of any design software) Operating system WINXP Chinese operating interface, support PLT, PCX, DXF, BMP and other file formats, adopt SHX, TTF fonts WINXP Chinese operating interface, support PLT, PCX, DXF, BMP and other file formats, adopt SHX, TTF fonts WINXP Chinese operating interface, support PLT, PCX, DXF, BMP and other file formats, adopt SHX, TTF fonts WINXP Chinese operating interface, support PLT, PCX, DXF, BMP and other file formats, adopt SHX, TTF fonts Power consumption ≤3KW ≤3KW ≤3KW ≤3KW Electrical connection 220V±22V/50HZ/15A 220V±22V/50HZ/15A 220V±22V/50HZ/15A 220V±22V/50HZ/15A Laser unit UV UV UV UV Working temperature 15~30ºC (no dust and required air-conditioner) 15~30ºC (no dust and required air-conditioner) 15~30ºC (no dust and required air-conditioner) 15~30ºC (no dust and required air-conditioner) Relative humidity <80% <80% <80% <80% Cooling style Air cooling Air cooling Air cooling Air cooling

FAQ

Semi-A1. Free Sample Machining Service Send us your designed files, we will arrange free sample machining in our factory and make video to show you the process and result, or send samples to you to check the machining quality. 2. Machining Solution Design: According to customer’s requirements, we can design the unique solution that supports higher manufacturing efficiency and better machining quality for customer. 3. Custom and OEM Service The divisions and partnerships of SMARTECHC welcome both custom work and OEM customers. We have a broad range of capabilities and manufacturing strengths, which makes it possible for SMARTECHC to customize our existing products for OEM customers.utomatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;

1.We will supply the CNC router machine with training video and user's manual in English for installing, operation, maintenance and troubleshooting, and shall give technical guide by Desktop remote, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. 2. You can come to our CNC router machine factory for training.We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days. 3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period.

New CNC router machines sold by SMARTECH carry a 3-years warranty (fiber laser cutting machines carry a 5 years warranty) effective from the date of shipping. CNC machines sold through dealers must be registered with SMARTECH within 30 days of purchase to be covered by this warranty. We would send new parts or repair for you during warranty period.

SMARTECH brand Comes from Smart Technology.In order to protect the trademark, we have registered and applied for the SMARTECH & ISMARTECH trademarks from China government. SMARTECH based in Jinan, China, has been leading the industry in woodworking innovations since 2002 years and continues to challenge the industry with new advancements. We provide our clients advanced and original, high-tech products, as well as solutions in the field of CNC laser-based production for different material processing applications.Our core business is design and production of CNC router machines (CNC wood routers, stone carving machines, metal CNC machines, 3D CNC routers, 3 axis CNC routers, 4 axis CNC routers, and 5 axis CNC routers), CNC laser machines (laser marking machines, laser engraving machines, laser cutting machines, and laser welding machines), CNC milling machines, CNC plasma cutting machines, CNC machining centers, CNC wood turning lathe machines, CNC spare parts, and other CNC machines. Welcome to visit our factory when you are convenient !
